Strong SRT 5437 Manual de usuario

High Denition Digital Receiver

SRT 5437

User Manual

Warranty Information

This product comes with a 12-month manufacturer’s warranty from

the date of purchase.

This unit has a 30 days replacement warranty for manufacturing

faults. Within this period please return the faulty product with all

its supplied accessories to either the place of purchase or STRONG

Australia accompanied by the original purchase receipt.

After this 30 day period the unit must be returned to STRONG

Australia for testing, and if deemed faulty, it will be repaired or

replaced at the discretion of STRONG Australia Pty Ltd. The faulty

product can either be sent to STRONG Australia directly or via your

place of purchase for evaluation.

STRONG Australia will cover any reasonable costs incurred in

returning the faulty product for evaluation should the product

be deemed as genuinely faulty. If the product is found to have no

fault, the costs incurred in delivering the unit to and from STRONG

Australia needs to be covered by the customer.

Our goods come with guarantees that cannot be excluded under

Australian Consumer Law. You are entitled to a replacement or

refund for major failure and for compensation for any reasonably

foreseeable loss or damage. You are also entitled to have goods

repaired or replaced if the goods fail to be of acceptable quality and

the failure does not amount to a major failure.

STRONG Australia Pty Ltd

60 Wedgewood Rd, Hallam. VIC. 3803

Ph: +61 3 8795 7990 FAX: +61 3 8795 7991

Table of Contents

1. Safety Instructions 5

Reference & Software Update 6

2. Product Overview

2.1 Front Panel 7

2.2 Rear Panel 7

2.3 Remote Control Functions 8

2.4 Activating the learning remote function 10

3. Installation

3.1 Connecting to a Television 11

3.2 First Time Installation 12

4. Basic Unit Operations

4.1 Program Management Settings 15

a) Program Edit

b) EPG - Electronic Program Guide

c) Sort Channels

d) Creating favourite channel list

4.2 Picture Settings 15

a) Screen Mode

b) Display Mode

c) TV Type 16

4.3 Colour Settings Menu 16

4.4 Channel Search 16

a) Auto Search

b) Manual Search

4.5 Restore factory default 16

4.6 USB 16

a) Accessing the USB

b) Multimedia

c) Recording - Instant Recording, Schedule Recording

d) Time Shift 17

e) Playback Recorded Files 18

f) Stop playback

g) Delete Recorded Files

5. Clock & Time Settings 18

6. Trouble Shooting 19

7. Unit Specications 21

1. Safety Instructions

Safety Precaution

This STB has been designed and manufactured to satisfy the

international safety standards, please read the following safety

precautions carefully before operating this receiver.

Main Supply:

Before operating, please check the units operating voltage is

100-240V AC 50/60Hz.

Overload:

Do not overload a wall outlet with extension cord or adapter, do not

use damaged power cords or touch it with wet hands as this may

result in electric shock.

Liquid:

The receiver should not be exposed to dripping or splashing water,

and that no objects lled with liquids, such as vases, should be

placed on or near the unit.

Ventilation:

Keep the slots on sides & top of the receiver uncovered to allow

sucient airow to the unit. Do not put the receiver on soft

furnishings or carpets. Do not expose the receiver to direct sunlight,

do not place it near a heater or in humid conditions. Do not stack

other electronic equipment on top of the receiver.

Cleaning:

Un-plug the receiver from the wall outlet before cleaning. Clean

the receiver with a soft cloth and a mild solution of washing-up

liquid (no solvents).

Connection:

Disconnect the receiver from the mains when you connect it to

Antenna or disconnect it from Antenna. Failure to do so, could

possibly cause damage to the Antenna.

Location:

Keep the receiver indoors in order to avoid lightening, rain or

direct sunlight.

Do not remove cover:

Do not remove the cover, to reduce the risk of electric shock.

Contact qualied and licensed service personnel to repair the

receiver, or contact your dealer.

Reference

Auto Search

Manual Search

PAL/NTSC Conversion

True full Color (32 bits) on screen display (OSD)

Menu language supported: English

Multi-language audio supported

Multi-language DVB Subtitle output

7 days Electronic Program Guide (EPG)

USB 2.0 Interface

Software update:

If new software becomes available for this model, it can be

downloaded from our website (www.strong.com.au) and then

placed onto a USB. Plug in the USB into the USB port on the unit

and then go to:

Menu > Expansion > USB > Software > Click on the le.

2. Product Overview

2.1 Front Panel

1. Power button: Switch between operation and standby modes.

2. Up & Down Channel: Change channel in viewing modes.

3. USB2.0: Single USB 2.0 Host Port.

4. Power / Signal light: Power / signal indicator.

5. Display: It displays channel information in normal mode and local

time in standby mode.

2.2 Rear Panel

1. ANT IN: Connect the antenna cable.

2. Loop Out: Antenna loop out

3. S/PDIF: COAXIAL: Digital Audio output (Optical).

4. IR Extender Plug: IR Cable (optional).

5. HDMI: Connect to the TV using an HDMI cable (supplied).

6. A/V- AUDIO R/L / VIDEO: Connect to the TV using RCA Jack cable

(not supplied).

7. DC-12V: Connect to the power using power adapter.

*Note: For best results, use HDMI cable and RG6 Quad Shielded antenna cabling

3 4 5

1 2 3 4 5 6 7

1 2

2.3 Remote Control Functions

12 13

18 19

23 24

15 16

1. POWER: Turns the receiver On

2- 6. TV Control buttons (refer page

10)

7. TV/RADIO: Toggles between TV or

RADIO mode

8. USB: Access USB Menu &

Recorded Files

9. USB: Previous and Next

10. USB: Fast rewind

11. USB: Stop

12. USB: Fast forward

13. USB: Play/Pause

14. AUDIO: Speaker Selection

15. SUB: Subtitles On/O

16. Timer

17. Set Screen resolution

18. Menu

19. Exit

20. Alter channel or change

selection in Menu Page

21. OK / Enter

22. Alter volume or change

selection in Menu Page

23. INFO: Shows the current channel

information

24. EPG: Shows the EPG (Electronic

Program Guide) in TV mode

25. MUTE: Mutes audio output of the

set top box

26. V+/V- : Increases/decreases the

volume level

27. CH+/CH- : Channel up/down in

channel list mode

28. Records the TV program to the

connected storage device

29. 0~9: Channel selection or value

input

30. FAV: Displays Favourite Channel

List

31. RECALL: To select from the list of

previously viewed channels

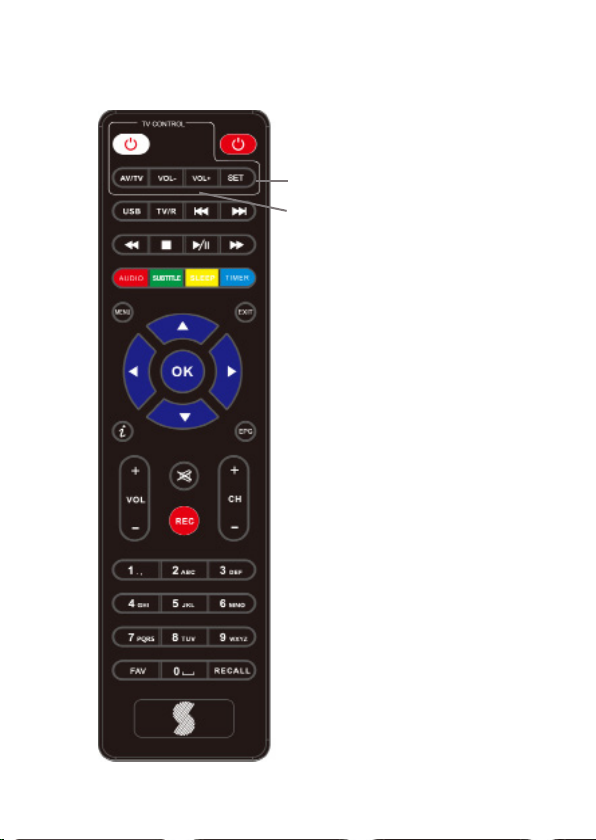

2.4 Activate the learning remote function

1. Press and hold SET button

(1) in TV CONTROL area for

3 seconds. The red LED light

on the TV CONTROL POWER

button will glow brighter,

conrming remote is in

learning mode.

2. Then press any one of the

learning buttons, within 10

seconds, on this remote (2)

(AV/TV, Vol+ VOl- or Power),

the LED light will icker,

conrming readiness to accept

codes from the TV remote.

3. Aim the TV remote (top end)

against this remote, as close as

possible, and press and hold

the corresponding button on

the TV remote. (AV/TV, Vol+,

Vol- or Power).

4. If copy is successful, the LED

light on TV control POWER

Button will ash three times

before staying lit.

5. Repeat 2,3 and 4 for every

other key you wish to copy,

(AV/TV, Vol+, Vol- or Power).

6. Once copying is complete,

press the SET key again, to exit

the learning mode. The LED

light will go out.
