DROP-IN BATHTUB SERIES

OWNER'S MANUAL &

INSTALLATION GUIDE

These products must be installed by a fully insured and licensed plumber only.

Installation of any product by anyone other than fully insured and licensed plumber shall void limited warranty.

We are not responsible for any local code compliance for this product.

Building and plumbing codes may vary state-to-state.

Streamline shall not be held liable for any and all incidental damages or flood caused due to use of this product.

Streamline shall not be held liable for any and all fees stemming from cost of installation, re-installation, removal,

subsequent damage, or transportation in a case of a product defect.

Silicone

Bathtub

Leveling Feet

Drain

Adjustable Key

Measuring Tape Safety Glasses

Pencil

Level Bar

PRIOR TO INSTALLING

TOOLS REQUIRED

WHAT'S IN THE BOX

Model: N-DWF-CH

Model: N-DWF-GLD

DRAIN MODEL COMPATIBILITY

FREESTANDING BATHTUB

N-DWF-CH

N-DWF-GLD

R-5520-67CIDIWH R-5540-71CIDIWH R-5560-59CIDIWH

R-5561-63CIDIWH R-5562-67CIDIWH R-5580-59CIDIWH

R-5582-67CIDIWHR-5581-63CIDIWH R-5600-59CIDIWH R-5601-67CIDIWH

R-5621-67CIDIWHR-5620-59CIDIWH R-5622-71CIDIWH

R-5661-67CIDIWHR-5660-59CIDIWH R-5662-71CIDIWH

R-5640-67CIDIWH

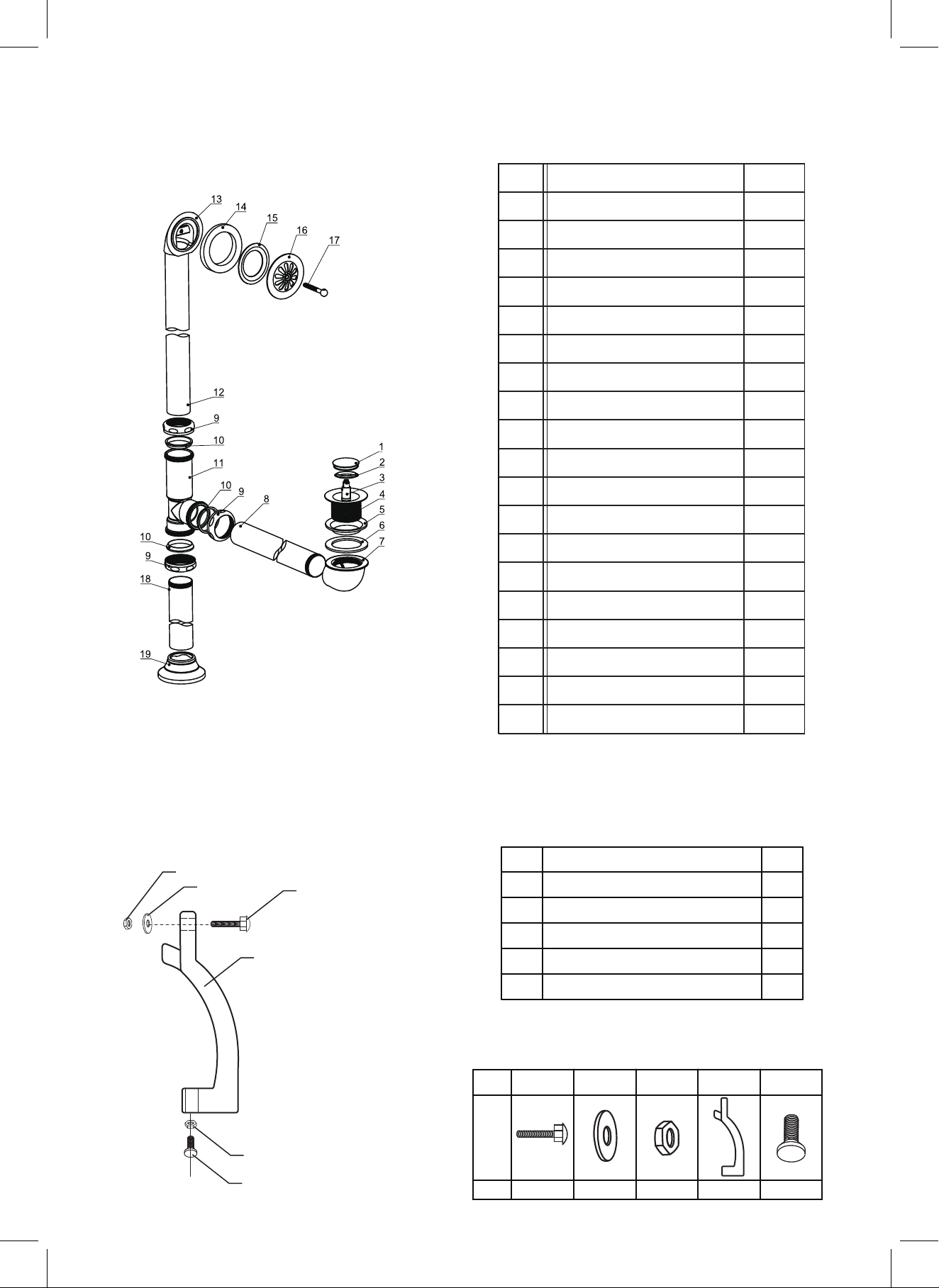

DRAIN DIAGRAM

LEVELING FOOT DIAGRAM

WHAT’S INCLUDED:

Model: N-DWF-CH

Model: N-DWF-GLD

No ITEM Qty

Cover

Cover gasket

Cartridge

Strainer

Waste upper gasket

Waste lower gasket

Connector

Coupling nut

Nut

Washer

Tee

Pipe

Overﬂow body

Tapered rubber gasket

Overﬂow upper gasket

Overﬂow plate

Pin Bolt

Taic piece

Flange

ITEMNo. Qty

Retaining Screw

Washer

Nut

Feet

Adjustable Feet

4 4 8 4 4

Qty:

ITEMS

No.

BATHTUB INSTALLATION

1. Prepare the site where the bath will be installed by waterproofing the floor and determining the

location of the drain pipe. Please refer to pictures 1, 2, 3 for recommended methods of installation

for this bathtub model.

2. Take (1) adjustable foot [#5] and (1) nut [#3] and screw the nut halfway on foot.

3. Screw the adjustable foot with the nut into the leveling foot.

4. Take (1) retaining screw [#1] and put it through the hole at the top of the foot. Then take (1) washer

[#2] and place it on the screw and secure with (1) nut [#3].

5. Take the assembled leveling foot (#4) and place it into the opening on the bathtub [see diagram].

Once inserted, secure and tighten all the bolts to ensure stability. A wrench may be required.

Repeat steps 2-5 for the other 3 leveling feet.

6. Ensure to mark all positions of leveling legs on the floor using a pencil. Move the bathtub into the

desired location near the drainpipe.

7. Take the strainer, place silicone sealant around it, and then place it into the drain hole ensuring

a tight connection with the drain ell & gasket. Use silicone sealant. DO NOT use plumbers putty to seal.

8. Insert the tailpiece into the trap inlet using the O-ring, coupling nut, & flange. The tailpiece may

need to be cut for proper fit. 1''-2'' of the tail piece shoudl fit inside the trap. Slip the flange over the tailpiece

and slide down to the floor.

Silicone

Sealant

Strainer

O Ring

Coupling Nut

Flange

Trap Inlet

Tailpiece

Gasket

Drain Ell

9. Assemble the tee section to the tailpiece, overflow, & drain ell using the coupling nuts and O-rings

that are provided.

O Ring

Overow Ell

Tee

Coupling Nut

10 . Attach the tapered rubber gasket to the overflow ell. Align the overflow ell with the overflow hole &

secure the drain to the tub with overflow plate and screw provided.

11 . Run water into the bath and check the bath drain connections for leaks. Seal the connection between

the bath rim and the finished tiled wall using silicone sealant.

Tapered Rubber Gasket

Overow Plate
