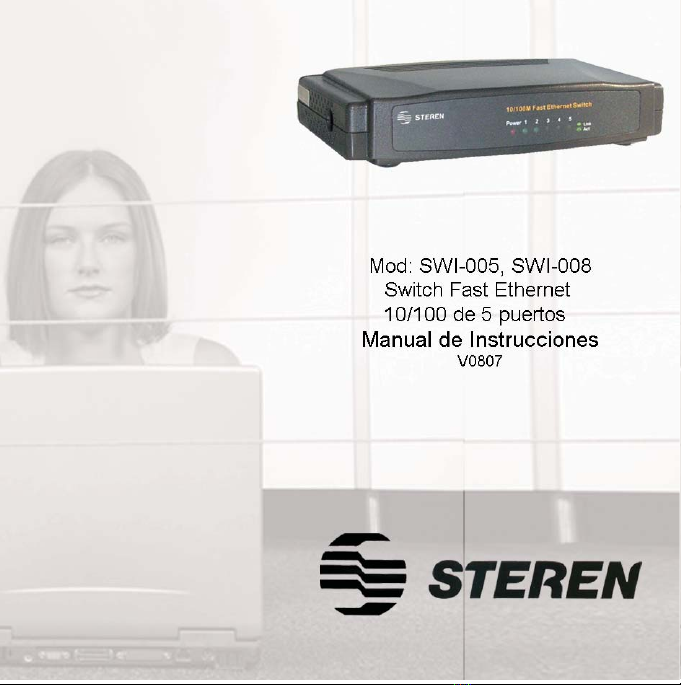

Steren SWI-005 Manual de usuario

Before using your new fast Ethernet switch, please read this

instruction manual to prevent any damage. Put it away in a safe

place for future references.

IMPORTANT

Do not try to open the equipment, may cause malfunction

Warranty is void if you open the case

Do not expose the device to extreme weather

Do not use or store the equipment near wet places. May cause

malfunction or shock hazard

Clean with a soft, dry cloth

PACKAGE CONTENT

1 Ethernet switch

Wall mounting screws

1 AC power adapter

1 user manual

MAIN FEATURES

Complies with IEEE802.3, IEEE802.3u standards

Data transfer up to 100Mbps

RJ45 ports with auto negotiation

Supports Auto-MDI /MDIX

Supports Full Duplex and Half Duplex ﬂow control

Supports MAC address, auto learning and auto aging

LEDs indicator for Power, Link andActivity

•

ENGLISH

ENGLISH-02

Before usin

our new fast Ethernet switch, please read this

nstruction manual to prevent an

dama

e. Put it awa

in a safe

lace for future references

CONTROLS

1.- Power LED

Light on when the equipment plugs to an AC household outlet

2.- Link / ACT LED

Light on when the equipment is connected to a RJ45 port / ﬂashes when

there’s reception or transmission of data

3.- RJ45 connector

Allows you to plug devices to switch

ENGLISH

ENGLISH-03

ENGLISH

4.- AC power adaptor

Allows you to plug the AC power adaptor included in the package

PREPARE TO INSTALL THE SWITCH

Decide where you want to place the switch. Find a ﬂat horizontal surface

such as a table, desk or shelf. The switch comes with a wall-mounting

screws to place it vertically.

Make sure the selected location is:

- Not in direct sunlight

- Not near a heater or heating vent

- Not cluttered or crowded. There should be at least 2 inches

of clear space on all sides of the switch.

- Well ventilated

Also, you’ll need a Category 5 (Cat 5) Ethernet cable with RJ45

connectors for each device you want to connect into the switch. Each

Ethernet cable must be smaller than 328 feet.

ENGLISH-04

ENGLISH

ENGLISH-05

INSTALLATION1

1.- Place the switch on a ﬂat surface or hook onto the screws.

2.- For each device, insert one end of an Ethernet cable into the port in

the device and insert the other end into one of the Ethernet ports on the

switch.

3.- Connect the power’s adapter cord into the switch and then plug the

adapter into an AC household outlet. The Power light should light up.

The corresponding port number for each connected and powered

device should light and ﬂash when activity occurs.

DSL Modem

Cable / DSL Router

Fast Ethernet Switch

ENGLISH

ENGLISH-06

If you have more than 5 devices which want to connect to the

switch, you must do it through a hub or another switch.

If any light doesn’t operate as we indicated, refers to

Troubleshooting section.

Ethernet cable is not included in the package.

TROUBLESHOOTING

Trouble Solution

Make sure the power cord is properly

connected to the switch

Make sure you are using the supplied power

ada

ter

Make sure the cable connectors are securely

ed to the switch

Make sure the connected device is turned on

Make sure the cable is smaller than 328 feet

The power light does not lit

The port number light does not lit for a

connected device

ou have more than 5 devices which want to connect to the

switch,

ou must do it throu

h a hub or another switch

If an

ht doesn’t operate as we indicated, refers to

roubleshootin

section

thernet cable is not included in the packa

ENGLISH

ENGLISH-07

SPECIFICATIONS

Product design, speciﬁcations and illustrations are subject to

change, without notice.

SWI-005 SWI-008

ut 12V~ 350mA 9V~ 800mA

Standards compatibility IEEE802.3 10Base-T, IEEE802.3u

100Base-TX IEEE802.3 10Base-T, IEEE802.3u

100Base-TX

olo

Star Star

Protocol C SMA / CD CSMA / CD

Data rate Fast Ethernet: 100Mbps (Half Duplex),

200Mb

(

Full Du

lex

)

Fast Ethernet: 100Mbps (Half

lex

200Mb

(

Full Du

lex

)

10Base-T: UTP cable Cat 3, 4, 5

(

maximum 100 metres

10Base-T: UTP cable Cat 3, 4, 5

(

maximum 100 metres

EIA/TIA-568 100ohms STP (maximum

100 metres

)

EIA/TIA-568 100ohms STP

(

maximum 100 metres

)

Network interface 100Base-T: UTP cable Cat 5, 5e

(

maximum 100 metres

EIA/TIA-568 100ohms STP (maximum

100 metres

)

EIA/TIA-568 100ohms STP

(

maximum 100 metres

)

Number of

orts 5 8

LED indicators Power

Link / Act Power

Link / Act

Transfer method Store-and-Forward Store-and-Forward

MAC address learning Automatic learning, automatic update Automatic learning, automatic

date

10Base-T: 14880

ort 10Base-T: 14880

ort

100Base-Tx: 148800

ort 100Base-Tx: 148800

ort

10Base-T: 14880

ort 10Base-T: 14880

ort

100Base-Tx: 148800

ort 100Base-Tx: 148800

ort

eratin

tem

erature 32 - 104°F 32 - 104°F

Stora

e tem

erature -40 - 158°F -40 - 158°F

eratin

humidit

10% - 90% non-condensed 10% - 90% non-condensed

Stora

e humidit

5% - 95% non-condensed 5% - 95% non-condensed

Power ada

tor

Salida / Out

ut 12V~ 350mA 9V~ 800mA

Dimensiones / Dimensions 145x85x28mm 145x85x28mm

Peso: Wei

ht 276

276

Frame filter rate

Frame forward rate

Network interface

roduct desi

n, speciﬁcations and illustrations are sub

ect to

han

e, without notice

WARRANTY

This Steren product is warranted under normal usage against defects in workmanship and

materials to the original purchaser for one year from the date of purchase.

CONDITIONS

1.- This warranty card with all the required information, invoice or purchase ticket, product

box or package, and product, must be presented when warranty service is required.

2.- If the product stills on the warranty time, the company will repair it free of charge.

3.- The repairing time will not exceed 30 natural days, from the day the claim was received.

4.- Steren sell parts, components, consumables and accesories to costumer, as well as

warranty service, at any of the addresses mentioned later.

THIS WARRANTY IS VOID IN THE NEXT CASES:

If the product has been damaged by an accident, acts of God, mishandling, leaky batteries,

failure to follow enclosed instructions, improper repair by unauthorized personnel, improper

safe keeping, among others.

a) The consumer can also claim the warranty service in the purchase establishment.

b) If you lose the warranty card, we can reissue it, if you show the invoice or purchase ticket.

Product: 5-Port Fast Ethernet Switch

Part number: SWI-005, SWI-008

Brand: Steren

RETAILER INFORMATION

Name of the retailer

Address

Product

Brand

Part number

Serial number

Date of delivery

In case your product fails or have any doubt, please contact your nearest retailer. If

you are in Mexico, please give a call to our Call Center.

Call Center

01 800 500 9000
