ENGLISH

ENGLISH-02

Before using your new RF modulator and switch read this

instruction manual to prevent any damage. Put it away in a safe

place for future references.

IMPORTANT

Clean only with a soft, dry cloth.

Do not try to open the equipment, may cause malfunction and

warranty repeal.

Do not use or store the equipment near wet places. May cause

malfunction or shock hazard.

REQUIRED EQUIPMENT (NOT INCLUDED IN THE PACKAGE)

For model 207-350 with RCA connectors:

- If the AV equipment have stereo outputs, one audio / video cable with

3 RCA connectors in each end

- If the AV equipment have mono outputs, one audio / video cable with 2

RCA connectors in each end

For models 207-360 and 207-370 with RCA & S-Video connectors:

- If the AV equipment have stereo outputs, one audio / video cable with

3 RCA connectors in each end

- If the AV equipment have mono outputs, one audio / video cable with 2

RCA connectors in each end

- One audio / video cable with 2 or 3 RCA connectors in one end, and

one S-Video connector at the other end

- Two coaxial cable with F connector (75ohm)

- One matching device from 75 to 300ohm, in case your TV set have not

VHF 75ohm connector

•

Before usin

our new RF modulator and switch read this

nstruction manual to prevent an

dama

e. Put it awa

in a safe

lace for future references

ENGLISH

ENGLISH-03

CONNECTING RCA AND S-VIDEO CABLE

If video source is in stereo:

1.- Locate the RCA connectors into the modulator, then insert one AV

cable on them.

2.- Plug the other end into AV device output jacks.

Make sure the colors match on both equipments.

If video source is in mono:

1.- Locate the RCA connectors into the modulator, then insert one AV

cable on them. For audio connections, use one of the connector and

insert it in L or R input jack.

2.- Plug the other end into AV device output jacks.

Make sure the colors match on both equipments.

You can connect up to 3 or 4 devices per modulator, depending of

the model.

For models 207-360 and 207-370:

Both models includes a S-Video connector, if you want to use it, just

plug a S-Video cable between AV device and modulator, on the Video

input and output jacks.

To connect the audio cable, it is necessary you have an AV cable with

two RCA connectors; then plug into Audio output and input jacks in the

modulator and the AV device.

You can connect up to 3 or 4 devices per modulator, depending of

the model.

ou can connect up to 3 or 4 devices per modulator, dependin

he model

ake sure the colors match on both e

ments

ou can connect up to 3 or 4 devices per modulator, dependin

he model

ake sure the colors match on both e

ments

ENGLISH

ENGLISH-04

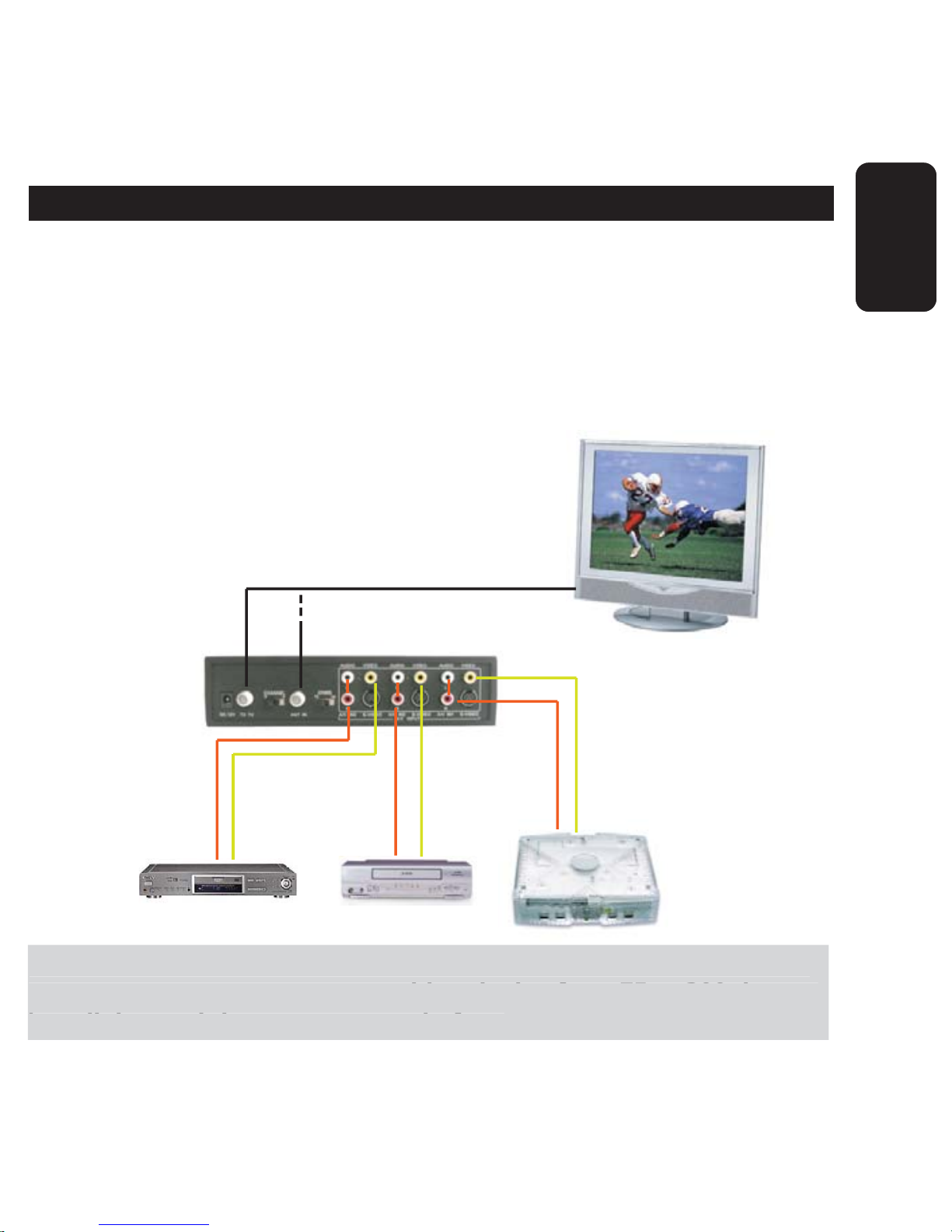

CONNECTING F CABLE

If you have a device connected to F connector on TV set (such as VCR

or Cable) unplug the coaxial cable from the TV set and plug into the

ANT IN connector in the modulator.

Then, plug other coaxial cable from TO TV output jack on the modulator

to F connector on TV set.

If you don’t have any device connected to F connector on TV, just plug a

coaxial cable from TO TV output to F connector on TV.

In case your TV set have 300ohm connector (screws) instead of F

connector, you must use a matching device from 75 to 300ohm, to

install the modulator as we seen before.

To TV

From Cable / VCR

To Video INTo Audio IN To Video INTo

Audio IN

To Video INTo

Audio IN

DVD VCR

Videogame

n case

our TV set have 300ohm connector

(

screws

)

instead of F

onnector,

ou must use a matchin

device from 75 to 300ohm, to

nstall the modulator as we seen before

ENGLISH

ENGLISH-05

HOW TO USE THE MODULATOR

Once you have made the right connections, follow these steps to start to

use the equipment:

1.- Turn the TV set on and choose channel 3 or 4 (usually, you need to

choose the channel without signal).

2.- Select channel 3 or 4 in the modulator.

3.- Turn the AV source on.

4.- Place the 75/1k switch in the position where you get the best image

quality.

5.- If the equipment is in use, an indicator will light in frontal panel.

6.- To switch between different devices, just press the button of the

corresponding device that you want to use (i.e. DVD player on input 1,

VCR on input 2, Video game on input 3; if you want to use the DVD,

press the button with number 1 in frontal panel, if you want to use the

video game, then press the button with number 3).

SPECIFICATIONS

General

Input: 12V 120mA

Video output: 69dB uV

RF output channels: 3 or 4

RF output impedance: 75ohm

Video input impedance: 75ohm to 1kohm

Audio input impedance: 13 + 3kohm

Loss insertion from

50 to 806MHz: 2dB

ENGLISH

ENGLISH-06

Weight: 0,36kg

Dimensions: 6 x 3 x 1,5in

AC power adaptor

Input: 120V~ 60Hz 3W

Output: 12V 120mA

Product design and speciﬁcations are subject to change without

previous notice.

roduct desi

n and speciﬁcations are sub

ect to chan

e without

revious notice

WARRANTY

This Steren product is warranted under normal usage against defects in workmanship and

materials to the original purchaser for one year from the date of purchase.

CONDITIONS

1.- This warranty card with all the required information, invoice or purchase ticket, product

box or package, and product, must be presented when warranty service is required.

2.- If the product stills on the warranty time, the company will repair it free of charge.

3.- The repairing time will not exceed 30 natural days, from the day the claim was received.

4.- Steren sell parts, components, consumables and accesories to costumer, as well as

warranty service, at any of the addresses mentioned later.

THIS WARRANTY IS VOID IN THE NEXT CASES:

If the product has been damaged by an accident, acts of God, mishandling, leaky batteries,

failure to follow enclosed instructions, improper repair by unauthorized personnel, improper

safe keeping, among others.

a) The consumer can also claim the warranty service in the purchase establishment.

b) If you lose the warranty card, we can reissue it, if you show the invoice or purchase ticket.

Product: RF modulator and switch

Part number: 207-350, 207-360, 207-370

Brand: Steren

RETAILER INFORMATION

Name of the retailer

Address

Product

Brand

Part number

Serial number

Date of delivery

In case your product fails or have questions, please contact your nearest dealer. If

you are in Mexico, please give a call to our Call Center.

Call Center

01 800 500 9000

Antes de utilizar su nuevo Convertidor de A/V a RF lea este

instructivo para evitar cualquier mal funcionamiento. Guárdelo

para futuras referencias.

IMPORTANTE

Siempre utilice un paño suave, limpio y seco para limpiar el equipo.

No intente abrir el equipo, puede ocasionar malfuncionamiento y

anulación de la garantía.

No use ni almacene este equipo en lugares donde existan goteras

o salpicaduras de agua.

EQUIPO REQUERIDO NO INCLUIDO EN EL EMPAQUE

Para el modelo 207-350 con entradas RCA:

- Un cable de audio / vídeo con 3 conectores tipo RCA en cada punta, si

el equipo de AV es estéreo

- Un cable de audio / vídeo con 2 conectores tipo RCA en cada punta, si

el equipo de AV es mono

Para el modelo 207-360 y 207-370 con entradas RCA y S-Vídeo:

- Un cable de audio / vídeo con 3 conectores tipo RCA en cada punta, si

el equipo de AV es estéreo

- Un cable de audio / vídeo con 2 conectores tipo RCA en cada punta, si

el equipo de AV es mono

- Un cable de audio / vídeo con 2 o 3 conectores tipo RCA en una punta

y un conector S-Vídeo en la otra punta

- Dos cables coaxiales con conectores tipo F de 75ohms

•

ESPAÑOL-02

ESPAÑOL

ntes de utilizar su nuevo Convertidor de A/V a RF lea este

nstructivo para evitar cualquier mal funcionamiento. Guárdelo

ara futuras referencias
