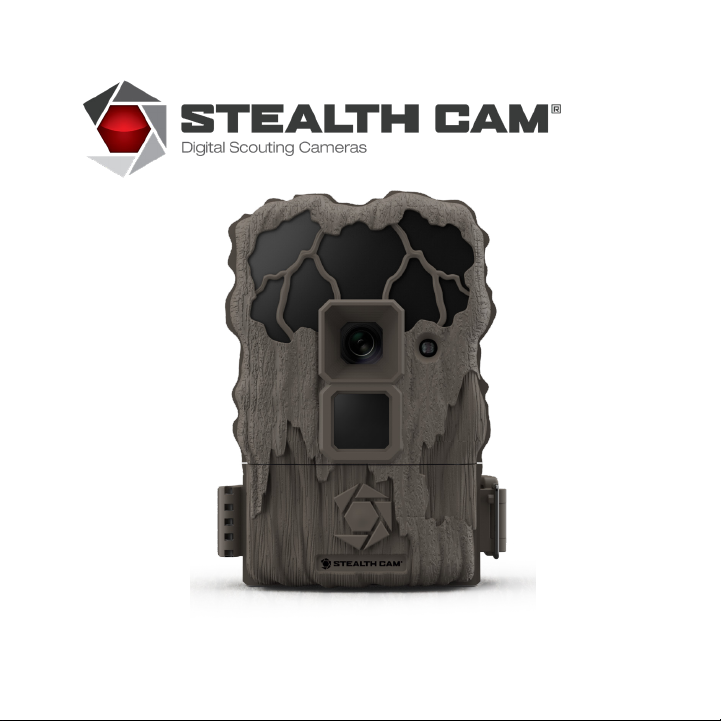

STC-QS20

Instruction Manual

Page 2

To ensure the product is being utilized to its full potential, we recommend checking

our website for new product updates. If your camera is having an issue, please check

our website to determine you are using the latest rmware or software version.

Notice

TECHNICAL SUPPORT

EMAIL:

[email protected]

Please allow 48 hours for email

response.

GSM, LLC

P.O. Box 535189

Grand Prairie, TX 75053-9504

CUSTOMER SERVICE

CONTACT & HOURS

Toll Free: 877-269-8490

CALL CENTER HOURS

Mon – Fri / 8 AM – 5 PM (CST)

WEBSITE

www.stealthcam.com

QS20

Page 3

Table of Contents

About Your Camera 4

Quick Setup Guide 5

Camera Overview 6

Camera Setup 8

Camera Conguration 9

Viewing and Deleting Images 12

Frequently Asked Questions 13

Camera Care 14

FCC COMPLIANCE 15

Limited Warranty Information 16

Page 4

About Your Camera

80 Foot Detection and Flash Range

See farther with long-distance PIR sensor and LEDs.

0.8 Second Trigger Speed

Never miss a shot with lightning fast 0.8 second trigger

speed.

Quick Set Options

Set up in seconds with pre-programmed options.

Burst Rapid-Fire Mode

Rapid-re Burst Mode, multiple exposures per triggering.

18 IR LEDs

Perfectly illuminate your nighttime photos with 18 IR LED

lights.

Page 5

Quick Setup Guide

Insert Batteries and SD Card

Install 8 AA batteries and a class 10 SD card into camera.

Mount Camera

Mount the camera at the desired location using the strap

mount, Python Lock cable, Articulating Ball Joint Mount, or

other desired mounting mechanism. Position the camera so

that it does not face East or West directly as the rising and

setting of the sun can cause false positive triggers.

Activate Camera

Set camera to desired Quick Set (QSET) or to custom

conguration and place in desired vantage point to start

capturing photos of game.

Page 6

Camera Overview

Menu Down Up Enter

Mode Switch

MENU ENTER

Universal

¼ - 20 thread

SD Card

Slot

Battery

Release Switch

Page 7

Python Cable

Lock Hole

Strap

Mounts

Universal

¼ - 20 thread

Page 8

Camera Setup

Battery Installation

To remove batteries from unit, simply open camera and slide the

battery release switch to the left. Once the battery compartment is

open, insert batteries into camera, being careful to match the orien-

tation marked on your camera. After batteries are inserted, close the

battery compartment and secure the battery release switch.

SD Card Installation

SD card slot is located on the

bottom of the camera, above the

battery compartment. Insert SD

card with the label facing back of

camera. Only minimal resistance

should be felt as card is inserted

and a click when the card is fully

inserted.

Page 9

Camera Conguration

This camera features 4 distinct modes of operation:

QSET 1 | QSET 2 | QSET 3 | CUSTOM |.

Each setting is activated based upon the position of the switch inside the unit.

Name Type Quality Timeout

Delay Detail

QSET 1 Photo Medium 30 sec 3 Photos

QSET 2 Photo Medium 30 sec 1 Photo

QSET 3 Video 640 x 368 30 sec 10 sec video

Quick Sets

Once selected, the screen will display the Quick Set (QSET) that has been

chosen and then count down from 9to 0 seconds. When countdown has

been completed camera is ready and in an active state.

See table for breakdown of Quick Set modes.

O

QSET 1

QSET 2

QSET 3

Custom

MENU ENTER

Page 10

Custom Conguration

The CUSTOM setting on your camera allows you to customize every

setting to t your exact needs. To begin, move the slider to the CUSTOM

position and press the menu button on the camera.

Once inside the custom settings menu, use the Up and Down arrows to

scroll through the di󰀨erent settings. To change a setting that is displayed,

press the Enter key and the setting will begin ashing. At this point use

the Up and Down arrows to change the setting. When nished press the

Enter button to save the change or press Menu to cancel change.

When you are nished conguring your camera’s settings, press the

Menu button to return your camera to an active state.
