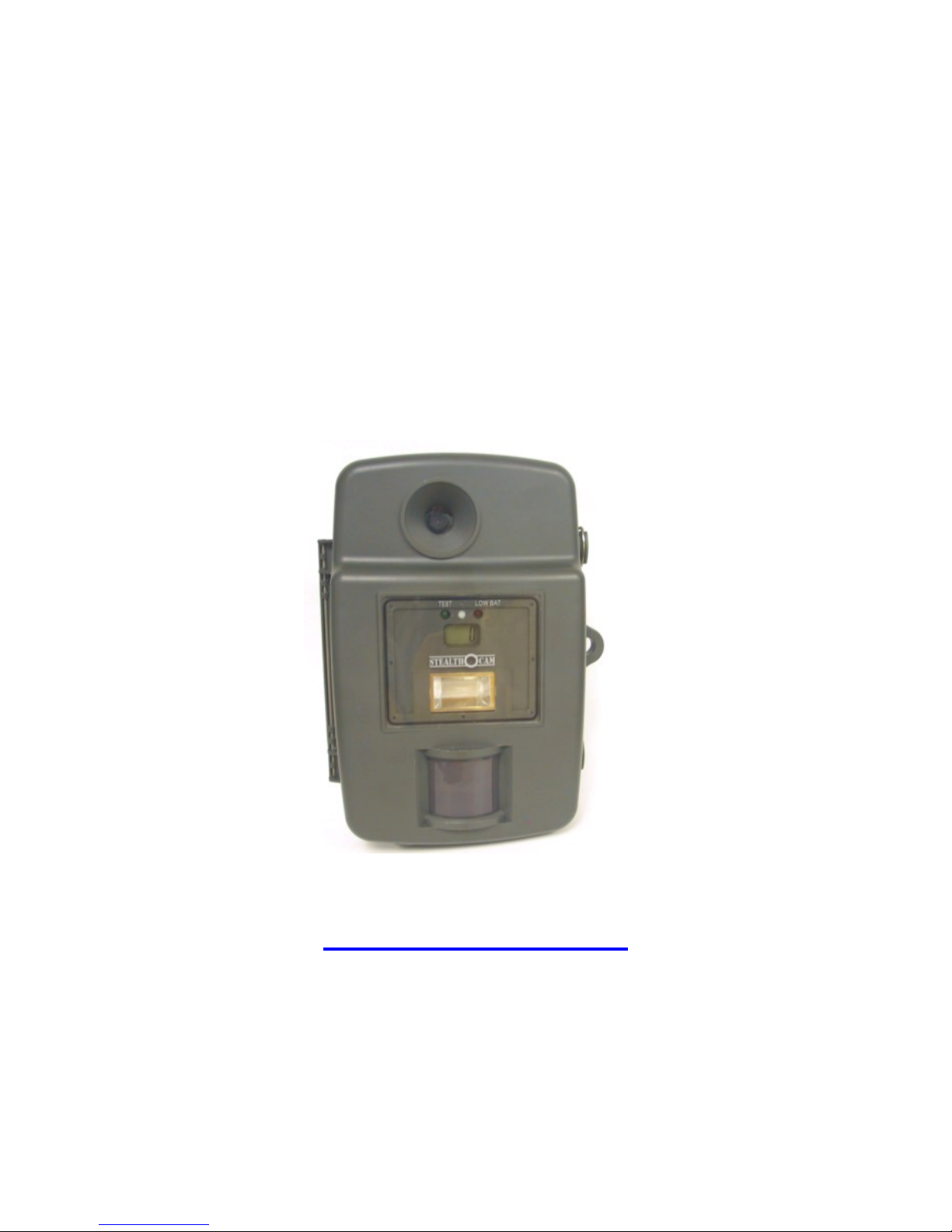

Stealth Cam STC-AD3X Manual de usuario

Stealth Cam

STC-AD3X

User’s Manual

Toll Free Customer Support 1-877-269-8490

www.stealthcam.net

Version 1.0 Dec/05

STC-AD3X

www.stealthcam.net Toll Free 877-269-8490 2

For Customer Service or Warranty Information Call Toll Free

877-269-8490

Stealth Cam, LLC

P.O. Box 211662

Bedford, Texas 76095

www.steatlhcam.net

Stealth Cam Limited Warranty

Your Stealth Cam is covered by a One Year Limited Warranty on parts

& labor from the date of purchase. The warranty covers defects in

workmanship & materials. The warranty does not apply to units, which

have been damaged or abused intentionally or unintentionally.

Tampering with or altering the unit will void the warranty. Any

unauthorized service will void warranty. Original sales receipt must be

produced for any warranty service. Questions call 877-269-8490

STC-AD3X

www.stealthcam.net Toll Free 877-269-8490 3

Manual Contents

Warranty 2

Camera overview 4

Camera kit contents 8

Battery and memory installation 9

Set up and programming 13

Using the camera 23

Manual shooting mode 31

Viewing and deleting images 33

Using external power 42

Memory compatibility chart 43

Technical specs 44

General information 48

STC-AD3X

www.stealthcam.net Toll Free 877-269-8490 4

Camera overview

Front housing image with major parts indication.

STC-AD3X

Open view image with major parts indication

www.stealthcam.net Toll Free 877-269-8490 5

STC-AD3X

Side view with major parts indication

www.stealthcam.net Toll Free 877-269-8490 6

STC-AD3X

www.stealthcam.net Toll Free 877-269-8490 7

Picture / Image Capacity

CF card High Low AVI

16MB 30 120 20

32MB 60 240 40

64MB 120 480 80

128MB 240 960 160

256MB 480 1920 320

512MB 960 2048 640

NOTE: Picture / Image Capacity Chart provides approximate number of

images or AVI movies based on resolution setting and the size of

memory card. These figures may vary depending on the amount of

detail in the image.

STC-AD3X

www.stealthcam.net Toll Free 877-269-8490 8

Camera kit contents

•Model STC-AD3X Digital Scouting Camera

•CDROM (Contains Lover’s Eye image editing software and

camera driver)

•User Manual

•1.2M USB cable

•1.5M TV out cable for TV (RCA Jack)

•1.5M TV out cable for handheld TV (Mini Jack)

•Strap

•Tree screw with nut

•Washer x 2

•Lock plate

STC-AD3X

www.stealthcam.net Toll Free 877-269-8490 9

Battery & memory installation

Warning: Do not use different Voltage lead

acid battery other than the one specified in

this section. Doing so will damage the camera

and will void the warranty.

The Stealth Cam STC-AD3X Advanced Digital Scouting Camera is

designed to operate using two different types of battery power options.

NOTE: Always have camera in OFF position when installing or

removing batteries.

Batteries “D” cell

The internal battery compartment accepts 8 “D” cell batteries. Be sure

to use high quality brand name alkaline batteries. Install batteries in

correct polarity (+/-) as noted inside battery compartment.

STC-AD3X

www.stealthcam.net Toll Free 877-269-8490 10

6V Lead Acid external battery

The STC-AD3X is equipped with an external power jack designed to

accept a barrel plug cable to attach to a sealed lead acid battery. (Sold

separately) Battery cable and complete 6V Lead Acid battery kits are

available wherever Stealth Cam scouting cameras are sold or call toll

free 877-269-8490. Only Stealth Cam external battery accessories are

recommended.

•Make sure the camera power switch is OFF.

•Insert the battery pack plug into the DC 6V jack of the bottom

of camera housing

•Turn the camera power on.

Please make sure the voltage and polarity (+/-) are correct

before connection. Incorrect voltage or polarity (+/-) will

damage the camera.
