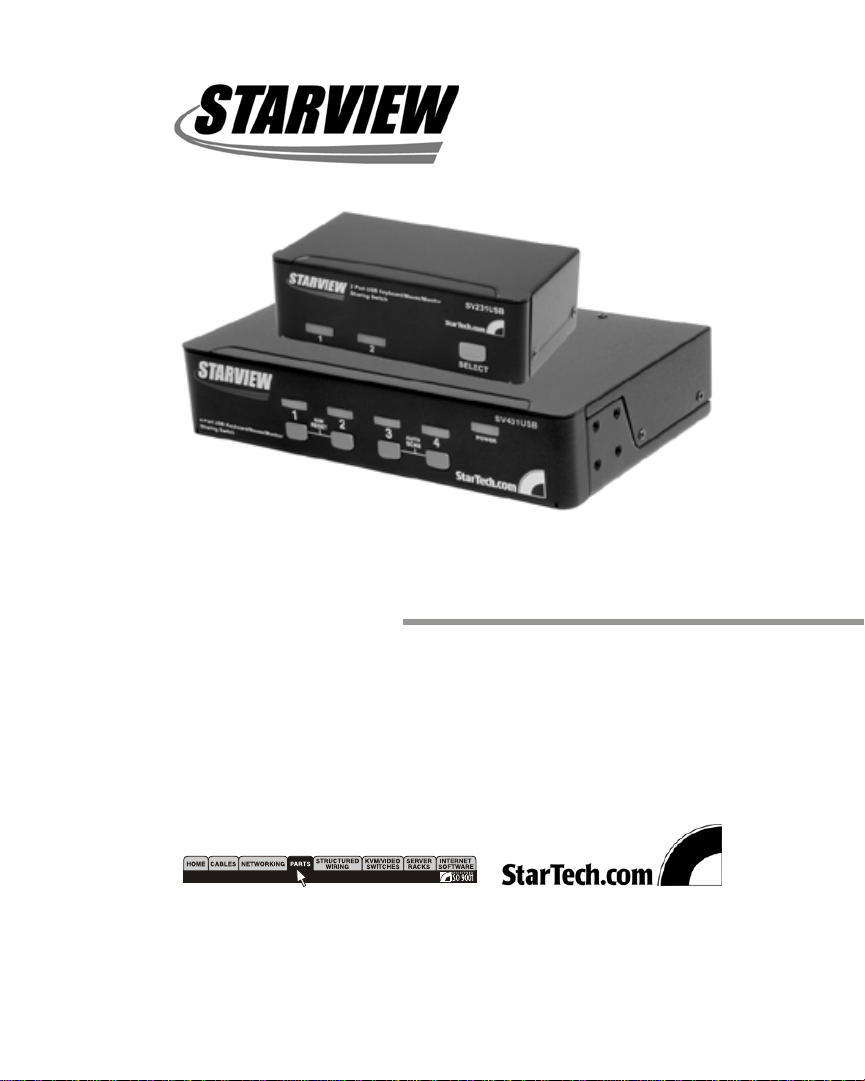

StarTech.com StarView SV431USB Manual de usuario

USB Keyboard/Video/Mouse

Sharing Switch

User's Manual

SV431USB

SV231USB

Table of Contents

Introduction

Overview 1

Features 2

System Requirements

Console Side 3

Computer Side 3

Installation

PC BIOS Notice 4

Console Connection 5

Computer Connection 6

Operation

Front Panel Push Buttons 7

Rack Mount Kit 9

Appendices

Specifications 10

Troubleshooting 11

Other StarView Switches 13

Please read this manual thoroughly and

follow the Installation procedures to

prevent damage to the StarView or any

connecting devices.

Introduction

Overview

The StarView SV231USB and SV431USB, fully

compatible with USB specifications, are a combination of

USB KVM (Keyboard/Video/Mouse) switches and USB

peripherals sharing devices. With the SV231USB and

SV431USB, you can easily operate up to 2 or 4 PCs,

G3/G4 Macs, or iMacs respectively from the 1 USB

keyboard, 1 USB mouse, and 1 monitor saving you

space, time, equipment and money. Its peripheral

sharing function enables you to share more USB

peripherals among all computers.

Installation is easy as connecting USB A-B cables to the

computers and to the StarView switch. Computer

selecting is as easy as front panel button pressing. The

built-in USB hub ensures smooth switching from one

computer to the other. The StarView switches provide the

easiest way to manage multiple computers with USB

interface and share USB peripherals among computers.

Features

?Manage 2 or 4 PC, G3/G4 Macs, or iMacs from one

USB keyboard, mouse and monitor with the

SV231USB and the SV431USB respectively

?2 or 4 computers share up to 2 or 4 different USB

peripherals with the SV231USB and the SV431USB

?Front panel push buttons for easy computer selection

?No drivers needed for keyboard and mouse operation

?Supports keyboard and mouse plug-n-play

?High VGA resolution: 19230 x 1440

?Buzzer sounds for computer switching confirmation

?Front button Auto Scan activation

?Selectable Scan Time interval

?Supports the latest DDC2B VGA monitors

?Saves time, space, equipment and power

?USB self-powered operation

?No software required

System Requirements

Console Side

One VGA, SVGA or Multisync monitor

One USB keyboard

One USB mouse

Computer Side

Each USB enabled computer must be connected to the

StarView switch by:

One HDB15 male-to-female VGA cable or monitor

One USB A-B cable with Type-A and Type-B plug for

USB devices, as shown in figure 1.

figure 1:USB A-B cable

(Note: An optional HDB-15 to DB-15 VGA adapter is

required for Mac computer VGA ports)

Installation

PC BIOS Notice

The following BIOS setup changes are necessary for

PC users and not necessary for Mac users:

1. In STANDARD CMOS, set HALT ON ERROR to ALL

BUT KEYBOARD

2. 2. In PNP and PCI SETUP, set PNP OS

ONSTALLED to YES and set USB IRQ to ENABLED

Note: The StarView switch is applicable for USB

keyboard and mouse switching from one computer

to the other. If you plan to share other peripherals

such as a CCD camera, printer or scanner, it is

necessary to shut down the driver of the computer

before switching to another computer. Because port

switching is equivalent to unplugging the USB cable

from one computer and plugging it into another one,

some USB drivers check attached USB peripherals

all the time and do not accept plug-n-play functions.

Console Connection

Before installation, make sure all devices and computers

to be connected to the StarView switch have been

turned off.

Plug a monitor to the Console’s VGA port; plug a USB

keyboard and a USB mouse to any two of the Console’s

USB ports as shown in figure 2.

For SV431USB only: As an option, the Master

StarView is either SV431 or SV431D to be linked to

the SV431USB with a mini-DIN8 male-to-male cable.

The SV431USB can operate as USB-peripheral

sharing devices

Figure 2: Console Connection

Computer Connection

Use a HDB15 male-to-female cable to connect from a

computer’s VGA port to the StarView’s VGA port of the

PC side, as shown in figure 3.

Use a USB A-B cable to connect from the StarView’s

USB port on the corresponding computer (A connector is

the flat connector) as shown in figure 3.

Figure 3: Computer Connection

Operations

Front Panel

1. On-line LED and Selected LED:

When the LED turns green, the connected computer

is powered-on. When a computer is selected its

corresponding red LED illuminates.

2. Push buttons:

Each computer has a button associated with it on

the front panel for selection.

Auto Scan

Auto Scan automatically cans through computers one by

one in a fixed interval (see Scan Time below).

Note: keyboard or mouse is not operable during

Auto Scan.

Scan Time

It sets the scan interval for Auto Scan. The Scan Time

options are 3, 8, 15 and 30 seconds.

Note: Scan Time is automatically set to the default of 3

seconds when the KAG switch loses power.

For SV231USB

To activate the Auto Scan, press and hold the

pushbutton down for 2 seconds until you hear a long

beep followed by a short beep. To exit from it, tap the

pushbutton again.

To change the Scan Time interval, press and hold the

pushbutton for 4 seconds until you hear two long beeps.

By tapping the pushbutton each time, the SV231USB

responds with 1, 2, 3 or 4 beeps corresponding to 3, 8,

15 or 30 seconds respectively. Once set, leave the

SV231USB as it is and it will automatically return for

normal operation.

For SV431USB

To activate Auto Scan, press down front panel push

buttons “3” and “4” simultaneously. The port LED flashes

during Auto Scan. Auto Scan is effective for powered-on

computers only. To exit the Auto Scan mode, just tap any

one of the pushbuttons.

To change the Scan Time interval, press both front panel

buttons “1” and “2” simultaneously. The Sv431USB

beeps 1, 2, 3 or 4 times for Scan Time of 3, 8, 15 or 30

seconds respectively.
