StarTech.com PEX1S1P952 Manual de usuario
Manual Revision: 05/30/2011
For the most up-to-date information, please visit: www.startech.com
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
PEX1S1P952
1-Port Serial, 1-Port Parallel PCI Express
Combo Card
*actual product may vary from photos
Instruction Manual
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by
turning the equipment o and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Use of Trademarks, Registered Trademarks, and other Protected Names and
Symbols
This manual may make reference to trademarks, registered trademarks, and other
protected names and/or symbols of third-party companies not related in any way to
StarTech.com. Where they occur these references are for illustrative purposes only and do not
represent an endorsement of a product or service by StarTech.com, or an endorsement of the
product(s) to which this manual applies by the third-party company in question. Regardless
of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby
acknowledges that all trademarks, registered trademarks, service marks, and other protected
names and/or symbols contained in this manual and related documents are the property of
their respective holders.
Instruction Manual i
Table of Contents
Introduction ............................................................................................1
Packaging Contents ................................................................................................................................. 1
System Requirements .............................................................................................................................. 1
Installation ..............................................................................................2
Setting Power Mode (Serial Port only) .............................................................................................. 2
Hardware Installation .............................................................................................................................. 3
Driver Installation ...................................................................................................................................... 3
Verifying Installation ................................................................................................................................ 4
Specications ..........................................................................................5
Technical Support ..................................................................................6
Warranty Information ............................................................................6
Instruction Manual 1
Introduction
The PEX1S1P952 ‘1S1P’ Native PCI Express Parallel/Serial Combo Card with 16950 UART
turns a PCI Express (PCIe) slot into one RS232 (DB9) serial, and one Parallel port.
The adapter card features a native PCI Express single chip design that allows you to
take advantage of full PCI Express capability, providing improved speed and reliability
while reducing the load applied to the CPU by as much as 48% over conventional serial
cards using a bridge chip design.
This 1-Port Serial 1-Port Parallel card oers compatibility with a broad range of
operating systems including Windows® (32/64-bit) and Linux, for easy integration into
mixed environments. The card also features an optional low prole/half-height bracket
that allows the card to be installed in virtually any computer case, regardless of form
factor.
Packaging Contents
• 1 x PCI Express Serial/Parallel card
• 2 x Low Prole Installation Bracket
• 1 x Driver CD
• 1 x Instruction Manual
System Requirements
• PCI Express enabled computer system with available PCIe slot
• Computer chassis with a single full prole expansion card slot, or dual low prole
expansion card slots
• Microsoft® Windows® 2000/XP/Server 2003/Vista/Server 2008 R2/7 (32/64-bit), or
Linux® kernel 2.6.x
Instruction Manual 2
Installation
WARNING! PCI Express cards, like all computer equipment, can be severely
damaged by static electricity. Be sure that you are properly grounded before
opening your computer case or touching your PCI Express card. StarTech.com
recommends that you wear an anti-static strap when installing any computer
component. If an anti-static strap is unavailable, discharge yourself of any
static electricity build-up by touching a large grounded metal surface (such
as the computer case) for several seconds. Also be careful to handle the PCI
Express card by its edges and not the gold connectors.

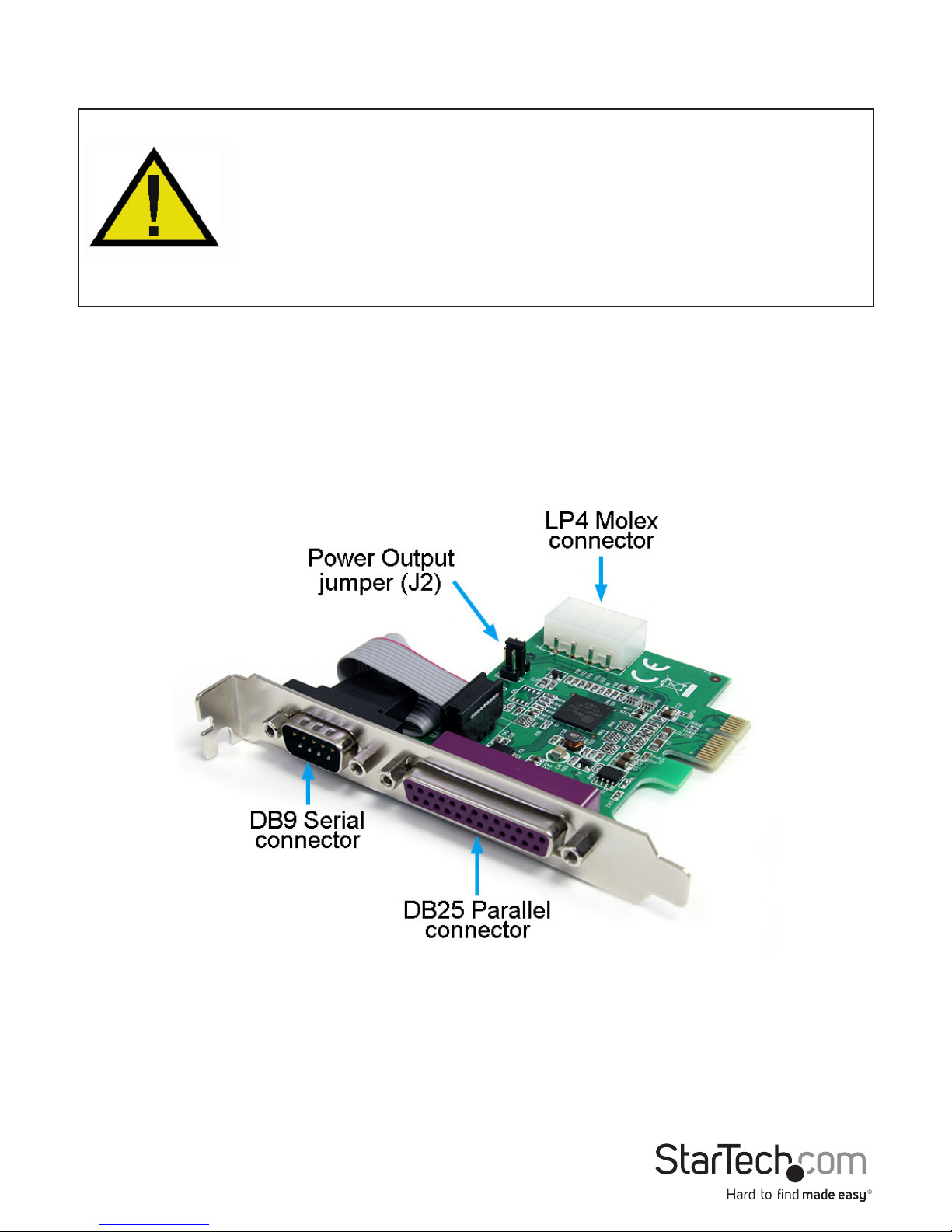

Setting Power Mode (Serial Port only)
This card is specially designed to allow for power output from the ninth pin of the DB9
connector for devices that support power over serial. This card allows users to set the
port with 5V, 12V, or RI (no power) by setting the J2 jumper. Users can also choose to
draw the necessary power from the system power supply by connecting to the LP4
power connector.
Instruction Manual 3
Hardware Installation
1. Turn your computer o and any peripherals connected to the computer (i.e. Printers,
external hard drives, etc). Unplug the power cable from the rear of the power supply
on the back of the computer and disconnect all peripheral devices.
2. Remove the cover from the computer case. See documentation for your computer
system for details.
3. Locate an open PCI Express slot and remove the metal cover plate on the rear of the
computer case (refer to documentation for your computer system for details).
NOTE: This card will work in PCI Express slots of additional lanes (i.e. x4, x8 or x16 slots).
4. Insert the card into the open PCI Express slot and fasten the bracket to the rear of
the case.
NOTE: If installing the card into a small form factor/low prole system, replacing the
pre-installed full prole bracket with the included low prole installation bracket may
be necessary. The serial port will be relocated to a second bracket, so the card will take
up two expansion card slots.
5. OPTIONAL: If supplying power from the computer system power supply, (see
“Setting Power Mode”) connect the LP4 molex plug into the card.
6. Place the cover back onto the computer case.
7. Insert the power cable into the socket on the power supply and reconnect all other
connectors removed in Step 1.
Driver Installation
Windows 2000/XP/Server 2003
1. When the Found New Hardware wizard appears on the screen, insert the Driver CD
into your CD/DVD drive. If you are prompted to connect to Windows Update, please
select the “No, not this time” option and click Next.
2. Select the option “Install Drivers Automatically (Recommended)” and then click the
Next button.
3. Windows should now start searching for the drivers. Once this has completed, click
the Finish button.
Instruction Manual 4
Windows Vista/7/Server 2008 R2
1. When the Found New Hardware window appears on the screen, click on the “Locate
and install drivers software (recommended)” option. If prompted to search online,
select the “Don’t search online” option.
2. When prompted to insert the disc, insert the Driver CD that came with the card, into
your CD/DVD drive and Windows will automatically proceed to search the CD.
3. If a Windows Security dialog window appears, click the “Install this driver software
anyway” option to proceed.
4. Once the driver is installed, click the Close button.
Verifying Installation
Windows 2000/XP/Server 2003/Vista/Server 2008 R2/7
From the main desktop, right-click on “My Computer” (“Computer” in Vista/7), then
select Manage. In the new Computer Management window, select Device Manager
from the left window panel.
Double-click on the “Ports (COM & LPT)” option. An additional COM port and parallel
(LPT) port should be listed.
Instruction Manual 5
Specications
Host Interface PCI Express revision 1.1
Form Factor Full / Low Prole
Chipset ID PLX OXPCIe952
External Connectors 1 x DB9 male
1 x DB25 female
Internal Connectors 1 x LP4 Molex male
Supported Protocols / Modes SPP / EPP / ECP, RS232
Maximum Data Transfer Rate Serial: 115.2 Kbps
Parallel: 1.5 Mbps
Data Bits 5, 6, 7, 8, 9
Parity Even, Odd, Mark, Space, None
Stop Bits 1, 1.5, 2
Buer Size 128 Byte
Operating Temperature -40°C ~ 85°C (-40°F ~ 185°F)
Storage Temperature -40°C ~ 125°C (-40°F ~ 257°F)
Humidity 0% ~ 60% RH
Dimensions 85.0mm x 60.0mm x 20.0mm
Weight 58g
Compatible Operating Systems Windows 2000 / XP / Server 2003 / Vista /
Server 2008 R2 / 7 (32/64-bit)
Instruction Manual 6
Technical Support
StarTech.com’s lifetime technical support is an integral part of our commitment to
provide industry-leading solutions. If you ever need help with your product, visit
www.startech.com/support and access our comprehensive selection of online tools,
documentation, and downloads.
For the latest drivers/software, please visit www.startech.com/downloads
Warranty Information
This product is backed by a lifetime warranty.
In addition, StarTech.com warrants its products against defects in materials
and workmanship for the periods noted, following the initial date of purchase.
During this period, the products may be returned for repair, or replacement with
equivalent products at our discretion. The warranty covers parts and labor costs only.
StarTech.com does not warrant its products from defects or damages arising from
misuse, abuse, alteration, or normal wear and tear.
Limitation of Liability
In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their
ocers, directors, employees or agents) for any damages (whether direct or indirect,
special, punitive, incidental, consequential, or otherwise), loss of prots, loss of business,
or any pecuniary loss, arising out of or related to the use of the product exceed the
actual price paid for the product. Some states do not allow the exclusion or limitation
of incidental or consequential damages. If such laws apply, the limitations or exclusions
contained in this statement may not apply to you.
Hard-to-nd made easy. At StarTech.com, that isn’t a slogan. It’s a promise.
StarTech.com is your one-stop source for every connectivity part you need. From
the latest technology to legacy products — and all the parts that bridge the old and
new — we can help you nd the parts that connect your solutions.
We make it easy to locate the parts, and we quickly deliver them wherever they need
to go. Just talk to one of our tech advisors or visit our website. You’ll be connected to
the products you need in no time.
Visit www.startech.com for complete information on all StarTech.com products and
to access exclusive resources and time-saving tools.
StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology
parts. StarTech.com was founded in 1985 and has operations in the United States,
Canada, the United Kingdom and Taiwan servicing a worldwide market.
Tabla de contenidos
Otros manuales de Tarjeta PCI de StarTech.com
StarTech.com
StarTech.com PEX1000MMSC Manual de usuario
StarTech.com
StarTech.com PEXUSB311AC2 Manual de usuario
StarTech.com
StarTech.com PEXMSATA343 Manual de usuario
StarTech.com
StarTech.com PEXSAT34 Manual del sistema
StarTech.com
StarTech.com PEX2S553B Manual del sistema
StarTech.com
StarTech.com USB2HDCAPM Manual de usuario
StarTech.com
StarTech.com PEX2S950 Manual de usuario
StarTech.com
StarTech.com PEX1PCI1 Manual de usuario
StarTech.com
StarTech.com PEXSAT34RH Manual de usuario
StarTech.com
StarTech.com ECHDCAP Manual de usuario
StarTech.com
StarTech.com PCI1S550 Manual
StarTech.com
StarTech.com PCISOUND5LP Manual de usuario
StarTech.com
StarTech.com PEXUSB311A1C Manual de usuario
StarTech.com
StarTech.com PCI4S550N Manual de usuario
StarTech.com
StarTech.com PEXUSB321C Manual de usuario
StarTech.com
StarTech.com PEX2S553S Manual de usuario
StarTech.com
StarTech.com PCI2S485 Manual de usuario
StarTech.com
StarTech.com PCI220USB Manual de usuario
StarTech.com
StarTech.com USB32HDCAPRO Manual de usuario
StarTech.com
StarTech.com PEXMSATA3422 Manual de usuario
Manuales populares de Tarjeta PCI de otras marcas
Belkin
Belkin F5D7000F Manual de usuario
Pericom
Pericom PI7C7100 Manual de usuario
ADLINK Technology
ADLINK Technology cPCI-3548 Manual de usuario
Digium
Digium TE200 Series Manual de usuario
Allo.com
Allo.com 2nd Gen E1/T1/J1 Manual de usuario
Western Digital
Western Digital FireWire PCI Adapter Manual de usuario
