StarTech.com PEX8S1052 Manual de usuario

Manual Revision: 11/21/2018

For the most up-to-date information, please visit: www.startech.com

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

PEX8S1052

8 Port Low Prole PCI Express RS232

Serial Adapter Card w/ 161050 UART

*actual product may vary from photos

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation.This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Introduction............................................................................................1

Packaging Contents ................................................................................................................................. 1

System Requirements.............................................................................................................................. 1

Installation ..............................................................................................2

Hardware Installation .............................................................................................................................. 2

Driver Installation...................................................................................................................................... 3

Verifying Installation................................................................................................................................ 6

Specications..........................................................................................7

Technical Support ..................................................................................8

Warranty Information............................................................................8

Instruction Manual

Introduction

Packaging Contents

• 1x 8 Port RS232 Card

• 1x Breakout Cable

• 1x Standard Prole Bracket

• 1x Driver CD

• 1x Instruction Manual

System Requirements

• Available PCI-Express slot

Instruction Manual

Installation

WARNING! PCI Express cards, like all computer equipment, can be severely damaged

by static electricity. Be sure that you are properly grounded before opening your

computer case or touching your PCI card. StarTech.com recommends that you wear

an anti-static strap when installing any computer component. If an anti-static strap is

unavailable, discharge yourself of any static electricity build-up by touching a large

grounded metal surface (such as the computer case) for several seconds. Also be

careful to handle the card by its edges and not the gold connectors.

Hardware Installation

1. Turn your computer o and any peripherals connected to the computer (i.e. Printers,

external hard drives, etc.). Unplug the power cable from the rear of the power

supply on the back of the computer and disconnect all peripheral devices.

2. Remove the cover from the computer case. Refer to documentation for your

computer system for details.

3. Locate an open PCI Express slot and remove the metal cover plate on the rear of the

computer case.

4. Gently insert the card into the open PCI Express slot and fasten the card’s bracket to

the rear of the case.

NOTE: If installing the card into a standard prole system, replacing the pre-

installed low prole bracket with the included standard prole installation bracket

may be necessary.

5. Place the cover back onto the computer case.

6. Connect the 8 Port breakout cable to the large connector on the card.

7. Insert the power cable into the socket on the power supply and reconnect all other

connectors removed in Step 1.

Pin 1 DCD

Pin 2 RXD

Pin 3 TXD

Pin 4 DTR

Pin 5 GND

Pin 6 DSR

Pin 7 RTS

Pin 8 CTS

Pin 9 RI

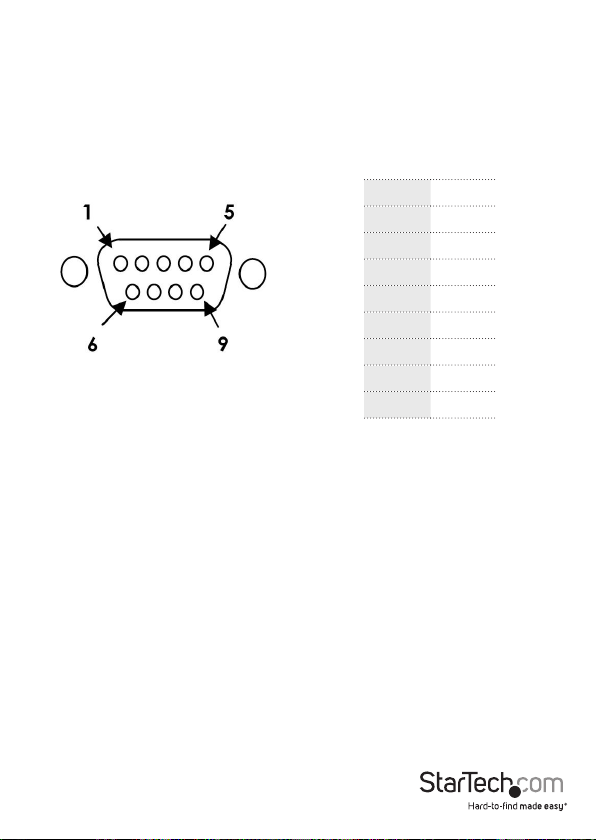

DB-9 Serial Port Pin Assignment

Instruction Manual

Driver Installation

Windows® 8 / 7 / Vista / Server 2008 R2

1. Upon starting Windows, if the Found New Hardware dialog appears on the screen,

cancel/close the window and insert the included Driver CD into the computer’s CD/

DVD drive.

2. Open the Device Manager by right-clicking on Computer, and then select Manage.

In the new Computer Management window, select Device Manager from the

left window panel (For Windows 8, open the Control Panel and select Device

Manager).

3. Right-click on one of the newly detected “Enhanced Serial Multi-2/PCI” devices and

select Update Driver Software, which will start the Update Driver Software Wizard.

4. On the How do you want to search for driver software? window, click Browse my

computer for driver software, then Let me pick from a list of device drivers on

my computer.

5. From the next screen labeled Select your device’s type from the list below, select Show

All Devices (should be highlighted by default), and then click Next.

NOTE: This screen does not appear on all systems, move on to the next step if this

does not apply

6. On the Select the Device Driver you want to install for this hardware screen, click the

Have Disk button.

7. Click Browse from the Install from Disk dialog box that pops up.

8. From the Locate File dialog window that opens, navigate to your CD/DVD drive, then

double-click the appropriate 32 or 64-bit OS folder for the system you are using.

The File Name portion at the bottom should show“*.inf” by default and several les

should be visible. Click the Open button.

Instruction Manual

9. Click the OK button on the Install From Disk dialog box which will close the window.

10.Once back at the Select the Device Driver you want to install for this hardware

screen, click Next and then Close once the driver has installed.

NOTE: At this point of the install, you may receive a message pop-up stating

Windows can’t verify the publisher of this driver software, click Install this driver

software anyway

11.Repeat Steps 3-10 for the remaining“Enhanced Serial Multi-2/PCI”devices before

closing the Device Manager window.

Instruction Manual

Windows XP

1. Upon starting Windows, if the Found New Hardware dialog appears on the screen,

cancel/close the window and insert the included Driver CD into the computer’s CD/

DVD drive.

2. Open the Device Manager by right-clicking on My Computer, and then select

Manage. In the new Computer Management window, select Device Manager from

the left window panel.

3. Right-click on one of the newly detected “PCI Serial Port” devices and select Update

Driver, which will start the Hardware Update Wizard.

4. On the Hardware Update Wizard window, click Install the software automatically,

then click Next.

5. If you receive a message regarding Windows Logo testing, click Continue Anyway.

6. Click the Finish button once the wizard completes the install.

7. Repeat Steps 3-6 for the remaining“PCI Serial Port” devices before closing the Device

Manager window.

Instruction Manual

Verifying Installation

Windows 8 / 7 / Vista / Server 2008 R2 / XP

Open the Device Manager window, and expand the Multifunction Adapters and Ports

(COM & LPT) sections. On a successful install, you should see 4 Enhanced Serial Multi-2/

PCI devices in the Multifunction Adapters section, and 8 Serial Port (COMx) devices

installed with no exclamation points or question marks.

Instruction Manual

Specications

Host Interface PCI Express

Form Factor Low Prole (Standard bracket incl.)

Chipset ID SystemBase - SB16C1052PCI

External Connectors 8 x DB-9 (9 pin; D-Sub)

Supported Protocols RS-232

Maximum Baud Rate 460.8 Kbps

Data Bits 5, 6, 7, 8

Parity None, Odd, Even

Stop Bits 1, 1.5, 2

Flow Control None, Xon/Xo, RTS/CTS

Operating Temperature -10°C - 80°C (14°F - 170°F)

Storage Temperature -20°C - 100°C (-45°F - 212°F)

Humidity 20~80% RH

Dimensions 70 x 20 x 125 mm

Weight 67.4 g

Compatible Operating Systems

Windows® 8 (32/64bit), 7 (32/64),

Vista(32/64), XP(32/64), 2000

Windows® Server 2008 R2, 2003(32/64)
