StarTech.com SATSASBAY3BK Manual de usuario

SATA and SAS Hard Drive

Backplane

3 Drive 3.5” Removable

SATA/SAS Mobile Rack

Backplane

SATSASBAY3BK

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide rea-

sonable protection against harmful interference in a residential installation. This equip-

ment generates, uses and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful interference to radio com-

munications. However, there is no guarantee that interference will not occur in a particu-

lar installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.•

Increase the separation between the equipment and receiver.•

Connect the equipment into an outlet on a circuit different from that to which the receiver•

is connected.

Consult the dealer or an experienced radio/TV technician for help.•

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and

do not represent an endorsement of a product or service by StarTech.com, or an en-

dorsement of the product(s) to which this manual applies by the third-party company in

question. Regardless of any direct acknowledgement elsewhere in the body of this doc-

ument, StarTech.com hereby acknowledges that all trademarks, registered trademarks,

service marks, and other protected names and/or symbols contained in this manual and

related documents are the property of their respective holders.

Table of Contents

Introduction..................................................................... 1

Packaging Contents.....................................................................1

System Requirements .................................................................1

Installation....................................................................... 2

Hardware Installation...................................................................3

Driver Installation.........................................................................4

Using Your Backplane..................................................... 4

Speciﬁcations.................................................................. 5

Technical Support........................................................... 6

Warranty Information...................................................... 6

Introduction

Packaging Contents

1 x SATSASBAY3BK backplane•

3 x 7-pin SATA cables•

1 x Screw Kit•

1 x Instruction Manual•

System Requirements

2 adjacent 5.25” front bays•

3 available SATA/SAS ports on the hard drive controller•

2 available LP4 molex or 2 15-pin SATA power connectors on the•

power supply

Installation

Rear View

Front View

7+15 pin

SATA/SAS

7-pin

SATA/SAS

LP4 molex

power

JP2

JP1

Fan Speed

switch

Power LED/

Button

Reset

button

Fan LED

Lock and Tray

Release

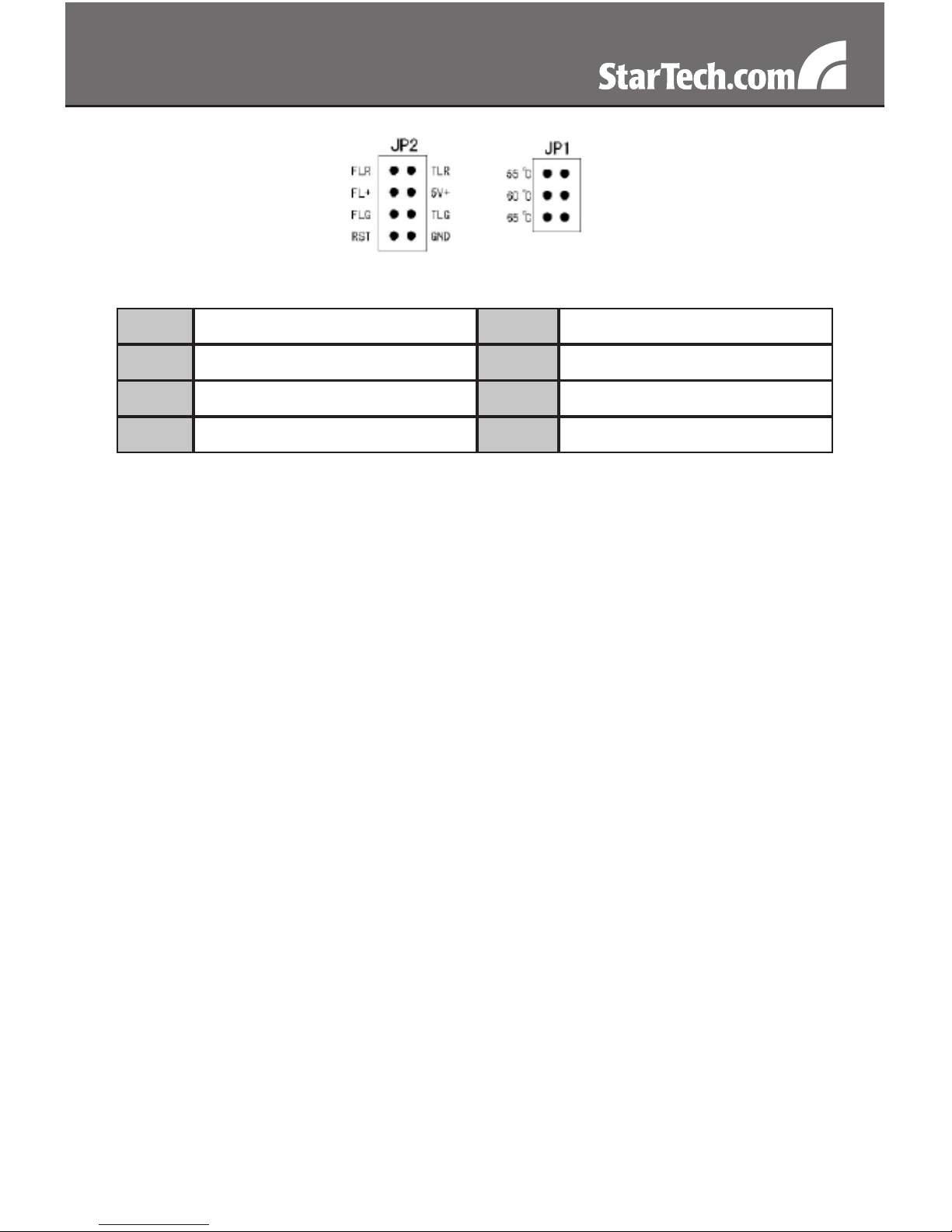

JP2

FLR Fan Failure Detect (red) TLR Temperature Detect (red)

FL+ Fan Failure Detect (+) 5V+ 5V power

FLG Fan Failure Detect (green) TLG Temperature Detect (green)

RST Reset switch GND Ground

Hardware Installation

Remove one of the drive trays by pressing on the left side of the1.

drive tray. This will cause the tray’s locking arm to swing out. Hold the

arm and pull the tray out.

Place the hard drive into the tray. Line up the holes in the bottom of2.

the tray with the holes in the bottom of your drive. Use the provided

screws to secure the hard drive to the tray.

Slide the tray back into the slot. When the tray is all the way back into3.

the slot, press the locking arm back in until you hear a “click” sound.

This indicates that the tray and hard drive are properly installed.

Repeat these steps for the other hard drives.4.

Install the backplane into open 5.25” drive bays in your system case.5.

Follow the directions from the case manufacturer.

Use the 7-pin Serial ATA (SATA) signal cables to connect the 7-pin6.

hard drive (HDD) ports on the back of the backplane to your SATA or

SAS controller.

NOTE: Some SAS controller cards use an SFF-8484 or SFF-8087

connector. A special breakout cable to 7-pin SATA connectors would

be required to plug into the backplane

(ie. StarTech.com ID: SAS84SS450).

To power the backplane, use7. either the 15-pin SATA or 4-pin LP4

molex connectors from your power supply. If you use the LP4 molex

connectors, the power will automatically be converted to SATA

power. Both types of power connectors do not need to be plugged

in.

Driver Installation

No driver installation is required for any operating system, as this

backplane is only a passthrough for the hard drives, so it is not seen by

the operating system.

Using Your Backplane

Reset: The Reset button/LED on the front of the backplane serves as

both a reset switch and an overheating LED. When overheating occurs,

a buzzer will sound and the Reset LED will ﬂash. To stop the alarm,

press the Reset button.

HD1, HD2, etc: The HD buttons/LEDs on the front of the backplane

serve as both the power switches and power LEDs for each drive. To

turn power to the drive on or off, push the corresponding HD button (Do

not turn off power when the drive is in use!).

When the drive is powered, the corresponding LED will be lit.

Note: The default temperature at which the alarm will sound is 60ºC

(140ºF). Using jumpers on the back of the backplane (JP1), you can

also set the temperature to 55ºC (131ºF) or 65ºC (149ºF).

Fan Sensor: The fan sensor LED on the front of the backplane

indicates the activity of the backplane’s fan. If the fan sensor LED is lit

green, the fan is working properly. If the fan fails, the fan sensor LED

will be lit red.

Specications

Bus Interface SATA 3.0Gb/s

SAS 3.0Gb/s

Rear Connectors

3 x 7-pin SATA/SAS

2 x LP4 molex power

2 x 15-pin SATA power

LEDs

3 x Hard Drive Power/Activity

1 x Reset

1 x Fan Status

Fans 1 x 80mm (ball bearing)

Maximum Data Transfer Rate 3.0 Gbps

Hard Drive Compatibility

3.5” SATA 1.5/3.0Gbps with

capacity up to 1.5TB

3.5” SAS 3.0Gbps

Operating Temperature 35° - 65°C

Storage Temperature 15° - 65°C

Dimension 202.0mm x 146.0mm x 86.0mm

Technical Support

StarTech.com’s lifetime technical support is an integral part of our com-

mit-ment to provide industry-leading solutions. If you ever need help

with your product, visit www.startech.com/support and access our com-

prehensive selection of online tools, documentation, and downloads.

Warranty Information

This product is backed by a one year warranty.

In addition, StarTech.com warrants its products against defects in

materials and workmanship for the periods noted, following the initial

date of purchase. During this period, the products may be returned for

repair, or replacement with equivalent products at our discretion. The

warranty covers parts and labor costs only. StarTech.com does not war-

rant its products from defects or damages arising from misuse, abuse,

alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com

USA LLP (or their ofﬁcers, directors, employees or agents) for any dam-

ages (whether direct or indirect, special, punitive, incidental, consequen-

tial, or otherwise), loss of proﬁts, loss of business, or any pecuniary loss,

arising out of or related to the use of the product exceed the actual price

paid for the product. Some states do not allow the exclusion or limitation

of incidental or consequential damages. If such laws apply, the limita-

tions or exclusions contained in this statement may not apply to you.

StarTech.com has been making “hard-to-ﬁnd easy” since 1985,

providing high quality solutions to a diverse IT and A/V customer

base that spans many channels, including government, education

and industrial facilities to name just a few. We offer an unmatched

selection of computer parts, cables, A/V products, KVM and Serv-

er Management solutions, serving a worldwide market through our

locations in the United States, Canada, the United Kingdom and

Taiwan.

Visit www.startech.com today for complete information about all

our products and to access exclusive interactive tools such as the

Cable Finder, Parts Finder and the KVM Reference Guide.
