StarTech.com PCIX1PEX4 Manual de usuario

Warranty Information

This product is backed by a one year warranty.

In addition, StarTech.com warrants its products against defects in materials

and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for repair, or

replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products

from defects or damages arising from misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ofﬁcers, directors, employees or agents) for any damages

(whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of proﬁts, loss of business, or any pecuniary loss, arising out

of or related to the use of the product exceed the actual price paid for the product. Some states do not allow the exclusion or limitation of incidental or

consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

PCIX1PEX4

PCI-X to x4 PCI Express Adapter Card

Installation Guide

Packaging Contents

• 1 x PCIX1PEX1 adapter card

• 1 x Spare Full Height Bracket

• 1 x Installation Guide

System Requirements

• PCI-X enabled computer system with

available PCI-X slot

• Computer chassis with full height expansion

card slots

Installation

1. Insert the low proﬁle PCIe card into the PCIe slot connector on the top of the adapter card.

NOTE: The PCI-X bus can only handle up to x4 PCIe speeds. Faster cards will run at reduced

speeds.

*actual product may vary from photos

Manual Revision:09/08/2010

For the most up-to-date information, please visit www.startech.com

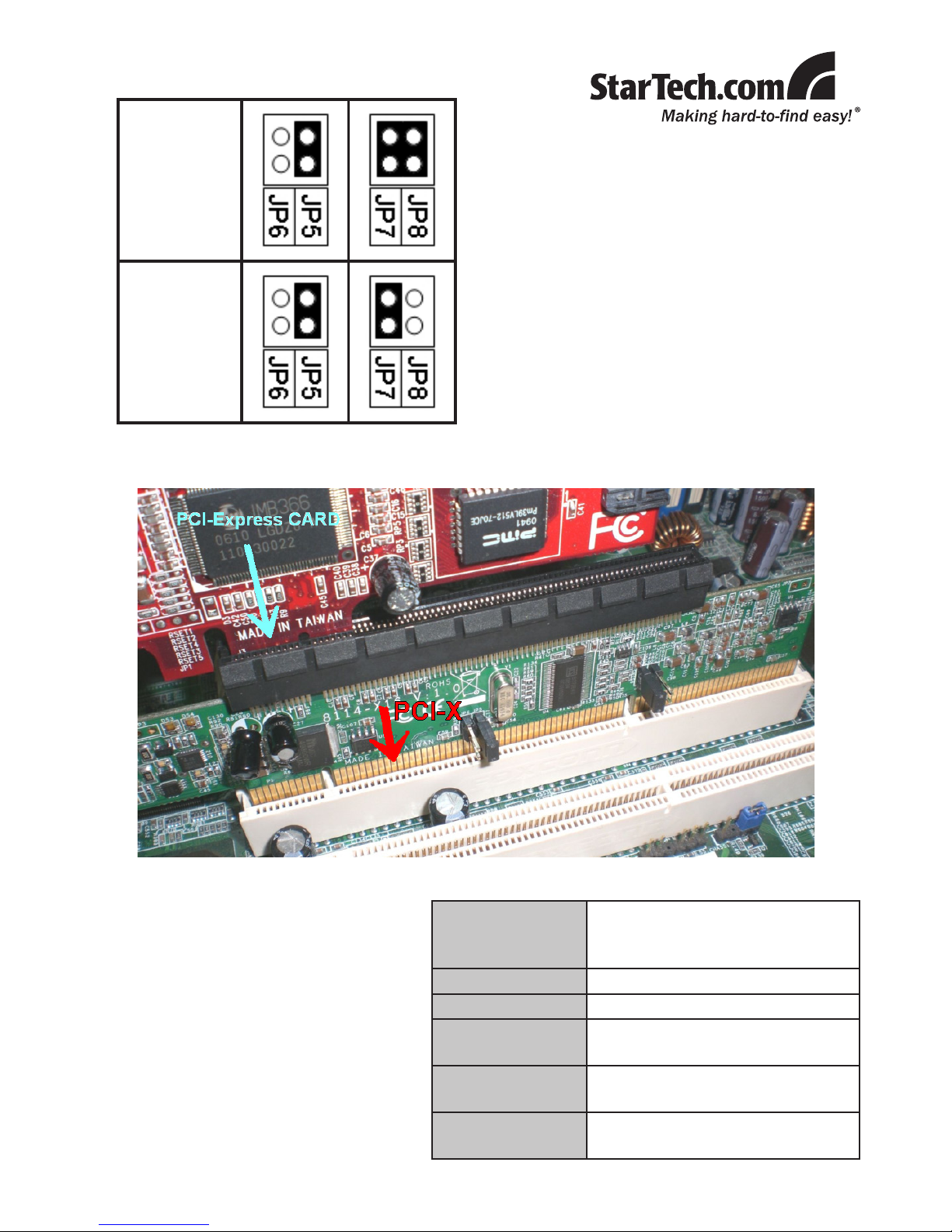

2. Set the jumpers on the card to manually force the PCI-X

clock speeds between 33 MHz and 133 MHz, if necessary.

33 MHz

133 MHz

(default)

Specications

Bus Interface

PCI-X 1.0 and PCI 3.0

(64-bit 3.3V slot connector)

PCI Express 1.0a

Chipset ID PLX PEX8114

Connectors x16 PCI Express slot

Operating

Temperature -40°C ~ 85°C (-40°F ~ 185°F)

Storage

Temperature -65°C ~ 150°C (-85°F ~ 302°F)

Dimensions

(LxWxH) 164.0mm x 40.0mm x 20.0mm

3. Install the adapter card into a PCI-X slot on the motherboard and secure the card bracket to the

computer chassis.

4. Power on the computer and load the

operating system. The PCIe card

should function as though connected

directly to the motherboard natively.
