Stark U-AURA Instrucciones de funcionamiento

Original

Operating and maintenance

manual

Multipurpose bucket

Sivu 2 / 19

General

Congratulations on the purchase of your STARK Multipurpose bucket!

For us, the long lifecycle and efficiency of your new equipment is a priority. To keep the multipurpose bucket in top

working condition, read this manual carefully before using the equipment.

STARK products are engineered and manufactured in Finland, and each of them is equipped according to the needs of

the customer.

Never let anyone operate or maintain the device without reading this manual carefully! Always make sure that safety

precautions are observed in use and maintenance. Keep this manual for future reference and make sure to hand it over

to a new owner.

The cornerstones of the product development of STARK attachments are quality, durability and economy. The products

are engineered to be high-performing, safe and durable in professional use. Any feedback on our products is welcome

and contributes to the further development of our products. If you have any questions about the use or maintenance of

the bucket, please contact us by e-mail: info@stark.fi

Visit our webpage www.stark.fi for the complete product range, including new products.

The manufacturer reserves the right for structural and technical changes without prior notice. Therefore, some pieces of

information given in the manual may have changed after printing this manual.

Read before use

Make sure you know your equipment before you start using it.

Equipment may be operated only by an individual who is thoroughly familiar with its use.

All operators must be properly instructed before use and maintenance of the equipment. Use by

individuals with insufficient instructions may pose serious risks to the operators themselves, to the

environment and the equipment.

When coupling the attachment to the base machine, make sure:

-that all locking cotters are intact and in order

-there is no pressure in the hydraulic system

-that hydraulic hoses are intact

-there is no skin contact to hydraulic oil when connecting hydraulic hoses

-not to pull by the hydraulic hoses, but only by the hydraulic fitting

During operation, pay attention to:

-safe, appropriate travel speed

-other traffic, people and animals

-danger zones and objects that block your view

-children

NEVER use the machine if there is someone in the danger zone.

NEVER go under unsecured the attachment.


Sivu 3 / 19

Table of contents
General.................................................................................................................................................2
Read before use ...................................................................................................................................2
DECLARATION OF CONFORMITY......................................................................................................4
PURPOSE OF USE..............................................................................................................................5
SAFETY PRECAUTIONS......................................................................................................................5
IDENTIFICATION INFORMATION AND SPAREPARTS ........................................................................6
1. Identification plate ............................................................................................................................ 6
2. Maintenance services........................................................................................................................ 6
MAIN PARTS OF THE MULTIPURPOSE BUCKET................................................................................7
USING THE MULTIPURPOSE BUCKET ...............................................................................................8
1. Attaching the multipurpose bucket the base machine..................................................................... 8
OPERATING THE MULTIPURPOSE BUCKET.......................................................................................9
1. Operating instructions....................................................................................................................... 9
2. Adjustment of the wing’s height ..................................................................................................... 11
3. Adjustment of the blades ................................................................................................................ 11
4. Adjustment of the bucket blades .................................................................................................... 13
5. Detaching the bucket spreader ....................................................................................................... 13
6. Transferring the bucket spreader.................................................................................................... 13
7. Accessories ...................................................................................................................................... 13
MAINTENANCE OF THE MULTIPURPOSE BUCKET..........................................................................14
1. General safety precautions for the use and maintenance.............................................................. 14
2. Tightening torque............................................................................................................................ 14
3. Daily maintenance........................................................................................................................... 14
4. Maintenance after first 10 hours of operation ............................................................................... 14
5. Maintenance at 50-working hour intervals or on a weekly basis ................................................... 15
6. Lubrication points............................................................................................................................ 15
HYDRAULICS...................................................................................................................................16
1. 4- and 5-hose hydraulics.................................................................................................................. 16
2. 3-hose hydraulics............................................................................................................................. 17
3. Adjustment of the safety valves...................................................................................................... 18
WARRANTY POLICY ......................................................................................................................19



Sivu 4 / 19

1. DECLARATION OF CONFORMITY

The original manufacturer’s EC declaration of conformity:

Generic product name: Multipurpose bucket

Models: SL 2000/3200, SL 2200/3600, SL 2350/4150T, SL 2300/3700, SL 2500/3900, SL 2500/4300, SL 2600/4400,

SL 2600/4800, SL 2800/5000, SL 3000/5200

Manufacturer:

Lametal Ltd

Kaskenviertäjäntie 2 73100 LAPINLAHTI, Finland

tel. +358 17 731 565

Declares that the above-mentioned equipment meets the provisions of Directive 2006/42/EC on machinery and, where

applicable, comply with the standards

•SFS-EN ISO 12100-1,

•SFS-EN ISO 12100-2

•SFS-EN 1050

The person authorized to compile technical documentation:

Lassi Mehtonen

Managing director

Kaskenviertäjäntie 2

73100 Lapinlahti, FINLAND

Sivu 5 / 19

2. PURPOSE OF USE

Multipurpose buckets are intended for removing snow from streets and yards of different size. It also can be use loading

snow or other light material.

Using to plow or move heavier material than snow is prohibited and will terminate warranty.

3. SAFETY PRECAUTIONS

Make sure you know your equipment before you start using it. Equipment may be operated only

by an individual who is thoroughly familiar with its use.

Before connecting hydraulics to the base machine, make sure that:

-there is no-one between the attachment and the base machine

-the base machine is turned off and the parking brake is on.

When coupling the attachment to the base machine, make sure that:

-all locking cotters are intact and in order

-hydraulic hoses are intact

-there is no skin contact to hydraulic oil when connecting hydraulic hoses

-you do not to pull by the hydraulic hoses, but only by the hydraulic fitting.

During operation, pay attention to:

-safe, appropriate travel speed

-other traffic, people and animals

-danger zones and objects that block your view

-children

-use of turn signal when driving

NEVER use the machine, if there is someone in the danger zone

NEVER go under the attachment

During maintenance, the hydraulics of the base machine MUST be turned off. The base machine MUST also be turned

off and the parking brake MUST be applied. The equipment must be properly supported, if maintenance can only be

performed by going under the equipment. Never go under the equipment if it is not properly supported.

Daily maintenance:

-check general condition of structures, make repairs if needed

-check the hydraulic hoses and fittings, and replace damaged parts

After every 50 hours of operation:

-lubricate points specified in later section of this manual

-check all bolts and nuts for tightness

Check all bolts, nuts and hydraulic fittings for tightness after the first day of operation!

If the equipment is not likely to be used for a longer period, clean it thoroughly after use and lubricate as instructed.

WARNING! Pressurized hydraulic hoses and components!

Sivu 6 / 19

4. IDENTIFICATION INFORMATION AND

SPAREPARTS

4.1. Identification plate

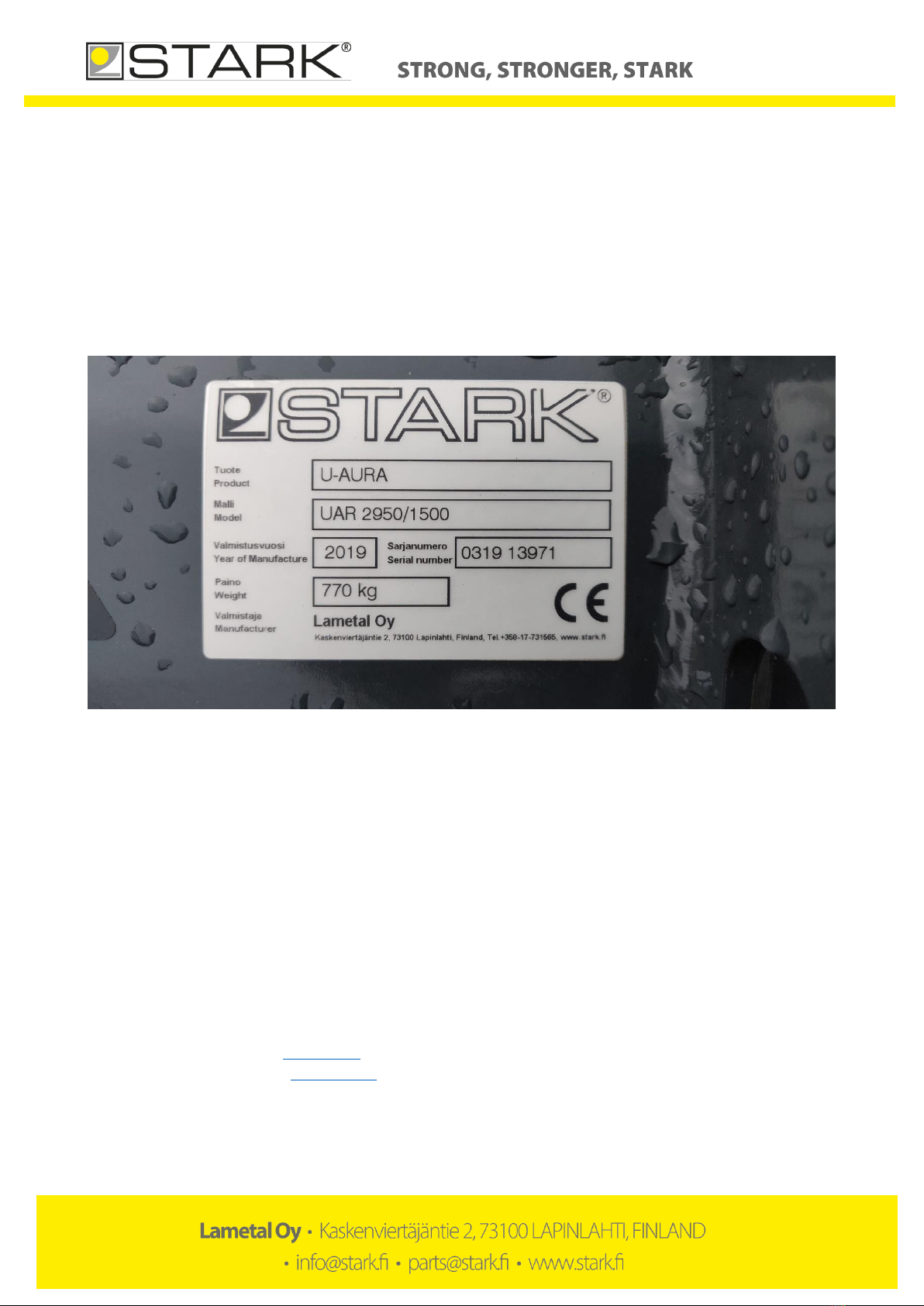

Identification plate is placed on the side of the equipment. The plate includes contact information, machine type, year of

manufacture, serial number and weight. (See an example of an identification plate in picture 1 below).

The first four numbers in the serial number indicate the month and year of manufacture (month first). The remaining five

numbers constitute the machine tracking number, which is stored in the manufacturer’s database (13971 in the example

below).

Picture 1. Identification plate

Take down the machine type and the serial number of your multipurpose bucket:

Product and model _______________________________Serial number___________________________________

4.2. Maintenance services

When replacing parts, use original, manufacturer spare parts only. By using original spare parts, you ensure dependable

operation of the multipurpose bucket and comply with the warranty policy. To facilitate the supply of spare parts, always

inform the manufacturer/retailer of the model and serial number of the multipurpose bucket (marked in the identification

plate) when you order spare parts.

For more information on maintenance and spare parts, please contact the STARK maintenance and spare part services

or your retailer.

Contact information for STARK maintenance services:

tel. +358 (0)17 731 565, e-mail info@stark.fi

tel. +358 (0)44 758 6221, e-mail parts@stark.fi

Sivu 7 / 19

5. MAIN PARTS OF THE MULTIPURPOSE

BUCKET

Picture 1. Main parts of the device

1) Multipurpose bucket frame

2) Wing fastener, right

3) Wing, right

4) Wing fastener, left

5) Wing, left

6) Wing fastening pin

7) Hydraulic cylinder

8) Cylinder fastener pin

9) Hydraulic valve

10) Hose set

11) Blade set

Sivu 8 / 19

6. USING THE MULTIPURPOSE BUCKET

When attaching the bucket spreader for the first time, make sure it is compatible with the base machine by following the

instructions below. Always check the compatibility when attaching the bucket spreader to a new base machine.

6.1. Attaching the multipurpose bucket to the base machine

The multipurpose bucket is attached to the base machine with welded or bolted STARK FIT quick hitches. The machine

is connected to a hydraulic system. Hydraulic circuit diagrams can be found in a later section in this manual. Ask your

retailer for available STARK FIT quick hitches.

Before using the multipurpose bucket, MAKE SURE all locking cotters and pins are secured and intact.

When coupling the multipurpose bucket to the base machine, please pay attention to the instructions on the use of the

base machine.

1. Make sure that the attachment and the base machine are compatible in terms of mechanical solutions, hydraulics and

electricity.

2. The multipurpose bucket is attached to the coupler on the base machine (e.g. a loader). Attach the multipurpose

bucket to the base machine, and make sure the locking cotters and pins are secured. Apply parking brake.

3. Turn off the base machine and make sure the parking brake is applied.

4. Make sure there is no pressure in the base machine hydraulic system. When connecting, always make sure the

hydraulic connectors are clean and the hoses are intact.

5. Check carefully all of the wing paths of the attachment, the base machine and the fitting for collision. Make sure that

the hydraulic hoses and attachments have enough space. Check that the wings are operating in direction you wanted. If

needed, change the positions of the hoses in the base machine.

6. During first hours of operating the attachment, bolts, nuts and connectors might loosen up. Retighten them after the

first day of operating the attachment.

Sivu 9 / 19

7. OPERATING THE MULTIPURPOSE

BUCKET

Make sure before driving that:

-the equipment is properly attached to the base machine

-all locking cotters and pins are secured

-hydraulic hoses are properly connected

-the hoses are intact

-there are no oil leaks in the equipment

-all functions are working properly

-you have learnt to use the multipurpose bucket in a closed area before actual use

-While driving, stay alert for possible malfunctioning and oil leaks

7.1. Operating instructions

1. Check that the attachment and the base machine are compatible in terms of mechanical solutions, hydraulics

and electricity.

2. The multipurpose bucket is connected to the base machine’s quick hitching (e.g. front loader). Apply the

parking brake. Connect the bucket to the base machine and make sure the pins are properly locked.

3. Turn off the base machine and make sure the parking brake is applied.

4. Make sure there is no pressure in the base machine hydraulic system. When installing, always check that the

hydraulic fittings are clean and hoses are intact.

5. Check carefully wings’ movements between the attachment mechanism, the base machine and the attachment

for collisions. Check also the space needed for hydraulic hoses and fittings.

6. Collection of snow: Keep the multipurpose bucket in a horizontal position. Spread or retract the wings as

needed. The bucket has a fixed blade, which means that collisions may be abrupt and hard, so make sure to

adjust your speed accordingly (picture 3).

7. Removing hard, packed snow: Tilt the multipurpose bucket within the limits of the wing’s springs (picture 4).

Watch out for collision; if the bucket’s blade hits an obstacle, collision may be abrupt and hard.

Picture 3. Collecting snow

Sivu 10 / 19

Picture 4. Removing packed snow

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Accesorios para tractores de Stark

Stark

Stark TLH3050 Manual de usuario

Manuales populares de Accesorios para tractores de otras marcas

Land Pride

Land Pride SGC0548 Manual de usuario

Swisher

Swisher Versa Commercial Pro VSP50 Manual de usuario

matev

matev FPS-FKH-Kioti CX 2510 Manual de usuario

matev

matev SCA-130 Manual de usuario

Toro

Toro 08733 Manual de usuario

Avantco

Avantco A425119 Manual de usuario

FTS

FTS G-FTL Series Manual de usuario

Sami

Sami 150-50 Manual de usuario

CAMSO

CAMSO TTS 30 Series Manual de usuario

Luda

Luda tractorCam S Manual de usuario

HLA

HLA BALE KNIFE Series Manual de usuario

P.Lindberg

P.Lindberg 9059890 Instrucciones de operación

Ventrac

Ventrac KD482 Manual de usuario

Original Tractor Cabs

Original Tractor Cabs 4421381 Hoja de datos

Grouser Products

Grouser Products 760 Manual de usuario

Degelman

Degelman Landroller Manual de programación

Bush Hog

Bush Hog BS1 Series Manual de usuario

MX MX A104 Manual de usuario
