Star Micronics SP2000 Manual de usuario

Attaching theWall Mounting Bracket of SP2000

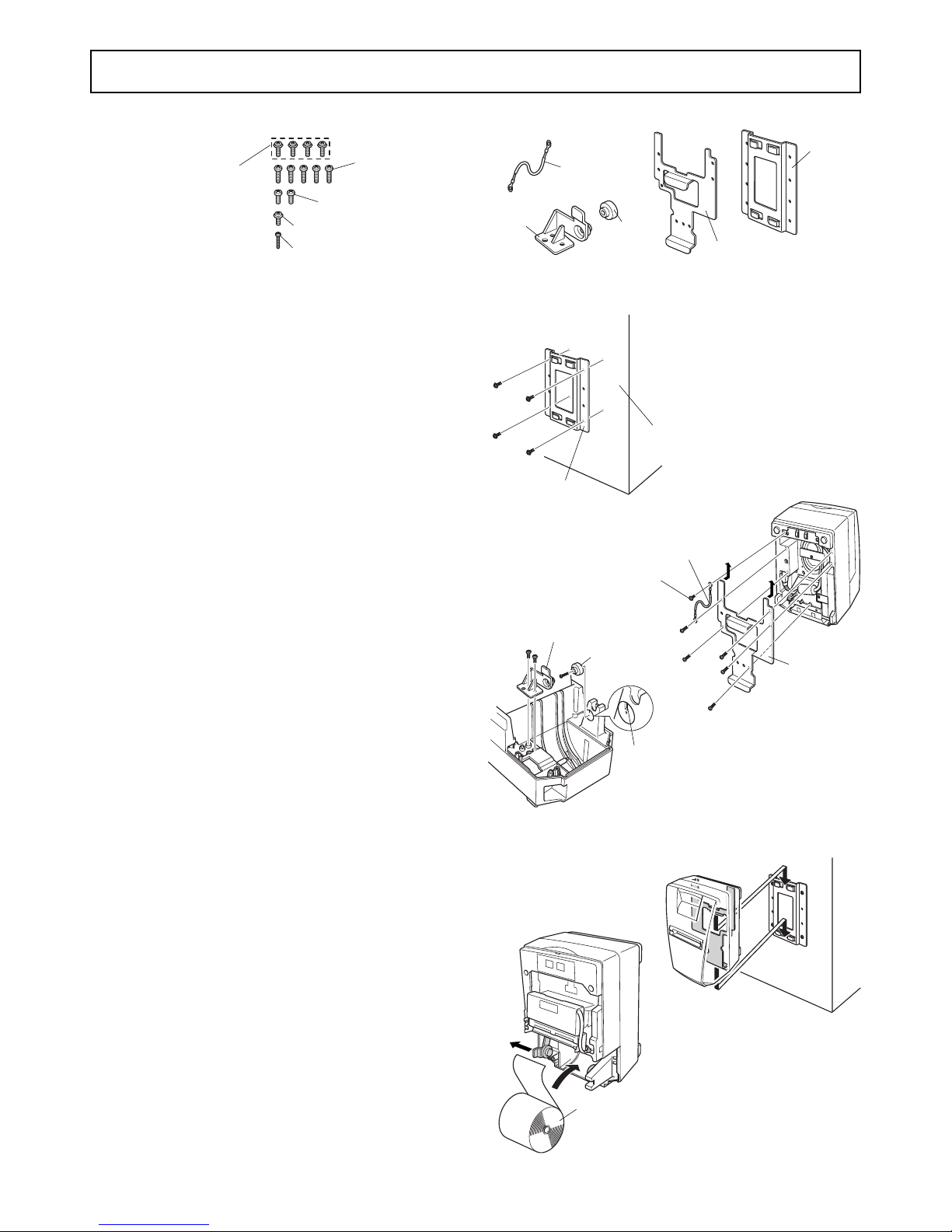

1. Unpacking : Confirm that all accessories are included.

2. Attaching procedure :

Note1) Unplug the power plug from the outlet.

Note2) Select a position that is not subjected to me-

chanical shocks or exposed to moisture.Also,

confirm that the wall is wide enough for at-

tachment.

2-1 How to attach the bracket

1If attachment on the wall is not possible, fas-

ten a board, having the minimum dimensions

of 120mm×170mm×5mm, to the wall.

2Apply the bracket and mark the positions of

the screw holes.

3Drill screw holes in the marked positions.

4Firmly tighten and fix the bracket to the wall

with screws. Attach and fix the bracket with

the four φ4mm screws.

Use screws having sufficient length to secure

the bracket.

2-2 How to attach the holder plate and ground wire

1Firmly tighten the five accessory screws M3

in the direction shown in the figure to attach

the holder plate onto the printer.

Tightening torque : 9N.m ± 0.1N.m

2Firmly tighten the flanged accessory screw

M3×5 and the accessory screw M3×10 to at-

tach the ground wire to the printer.

2-3 Setting the roll paper holder

1Remove the printer cover.

2Position the holder with the slot and tighten

the accessory screw M2 to attach the holder

onto the printer.

3Firmly tighten the two accessory screws M3

to attach the roll paper holder onto the printer.

2-4 Setting the printer

Slide the printer main unit downward from the

topofthebracketso thattheholderplateguides

it to a secure position.

2-5 Setting the roll paper

Move the roll paper holder in the direction of

the arrow, and insert the roll so that the holes

in the core align with the axes of the roll paper

holder. Release the roll paper holder to secure

the roll paper. 80871120WB-2000

φ4mm screws(4) Not Supplied

Users must prepare φ4mm sc-

rews for bracket.

M3 ×10 screws (5)

M3 × 8 screws (2)

M3 ×5 screw

M2 ×10 screw

Ground wire

Roll paper holder Holder Holder plate

Bracket

Ground wire

Screw with flange

Holder plate

Bracket

Wall material

Roll paper

fig.1 Attaching the bracket

fig.2 Attaching the holder plate

and ground wire

fig.3 Setting the roll paper holder

fig.5 Setting the roll paper

fig.4 Setting the printer

Roll paper holder

Holder

Slot
