Stanley CL2XTi Manual de usuario

Please read these instructions before operating the product

CL2XTi

2 - Beam Self-Leveling Cross Line Laser

77-121

Self-Leveling

FIN

277-121

Carefully read the Safety Instructions and User Manual before using this product. The person

responsible for the instrument must ensure that all users understand and adhere to these

instructions.

Retain this manual for future reference.

IMPORTANT: The following labels are on your laser tool for your convenience and safety.

They indicate where the laser light is emitted by the level. ALWAYS BE AWARE of their

location when using the level.

1. Safety

2. Product Description

3. Speciﬁcations

4. Operating Instructions

5. Calibration

6. Maintenance and Care

7. Warranty

User Safety

Safety

Contents

EN 60825-1

LASER RADIATION - DO NOT

STARE INTO BEAM OR VIEW

DIRECTLY WITH

OPTICAL INSTRUMENTS

CLASS 1M LASER PRODUCT

MAX OUTPUT ≤ 1 mW @ 630 - 670 nm

FIN

GB ENGLISH

GERMAN

FRENCH

ITALIAN

SPANISH

PORTUGUESE

DUTCH

DANISH

SWEDISH

FINNISH

NORWEGIAN

POLISH

GREEK

CZECH

RUSSIAN

HUNGARIAN

SLOVAKIAN

SLOVENIAN

BULGARIAN

ROMANIAN

ESTONIAN

LATVIAN

LITHUANIAN

TURKISH

CROATIAN

FIN

LT LT LT LT

TR TR TR

HR HR HR HR

77-121

DO NOT remove any warning label(s) on the housing. This instrument must only be used for

leveling and layout tasks as outlined in this manual.

ALWAYS make sure that any bystanders in the vicinity of use are made aware of the

dangers of looking directly into the laser tool.

DO NOT use in combination with other optical instruments. Do not modify the instrument, or

make manipulations or use in other applications than those described in the manual.

DO NOT look into the beam with optical aids, such as magniﬁers, binoculars or Telescopes.

DO NOT stare into the laser beam or direct it towards other persons. Make sure the

instrument is not set at eye level. Eye protection is normally afforded by natural aversion

responses such as the blink reﬂex.

DO NOT direct the laser beam at other persons.

ALWAYS turn the laser tool “OFF” when not in use. Leaving the laser tool “ON” increases

the risk of someone inadvertently staring into the laser beam.

DO NOT operate the laser tool in combustible areas such as in the presence of ﬂammable

liquids, gases or dust.

DO NOT disassemble the laser tool. There are no user serviceable parts inside.

Disassembling the laser will void all warranties on the product. Do not modify the product in

any way. Modifying the laser tool may result in hazardous laser radiation exposure.

DO NOT use this instrument in areas where a risk of explosion is present.

NOTE: Since the laser beam is of the focused type, ensure you check the beam’s path over

a relatively long distance and take all necessary precautions to ensure the beam cannot

interfere with other persons.

477-121

WARNING: Batteries can explode or leak and can cause injury or ﬁre. To reduce this risk:

ALWAYS follow all instructions and warnings on the battery label and package.

DO NOT short any battery terminals

DO NOT charge alkaline batteries.

DO NOT mix old and new batteries. Replace all of them at the same time with new batteries

of the same brand and type.

DO NOT mix battery chemistries.

DO NOT dispose of batteries in ﬁre.

ALWAYS keep batteries out of reach of children.

ALWAYS remove batteries if the device will not be used for several months.

NOTE: Ensure that the correct batteries as recommended are used.

NOTE: Ensure the batteries are inserted in the correct manner, with the correct polarity.

DO NOT dispose of this product with household waste.

ALWAYS dispose of batteries per local code.

PLEASE RECYCLE in line with local provisions for the collection and disposal of electrical

and electronic waste under the WEEE Directive.

Battery Safety

End of Life

77-121

ROHS Compliant

The Stanley Works declares that the CE Mark has been applied to this

product in accordance with the CE Marking Directive 93/68/EEC.

This product conforms with EN60825-1:2007.

For further details please refer to www.stanleyworks.com.

Declaration of Conformity

Product Description

Package Contents

1. Laser Unit

2. Universal Mount Adapter

3. L-Type Bracket

4. Pole Clamp (attaches to L-Type Bracket)

5. Laser Target

6. Telescopic Pole

7. Carrying Case

8. Batteries (3 x AA)

9. User Manual

EN 60825-1

677-121

Product Overview

1. Window for Cross Beam Laser

2. Main Power / Transport Lock

3. Keyboard

4. Laser Warning Label

5. Battery Compartment Cover

Laser Unit

6. 1/4 - 20 Threaded Mount

Universal Mount Adapter

1. 1/4 - 20 Screw Mount

2. Magnet Mount

3. 5/8 - 11 Threaded Mount

4. Fold Out Legs for Tripod

5. Tightening Knobs

6. 1/4 - 20 to 5/8 - 11 Screw Mount Adapter

77-121

L-Type Bracket

Pole Clamp

1. Keyhole Slots

2. 1/4 - 20 Screw Mount

1. Clamp

2. 3 Pin Key

1. Spring Tension End with Snap on Plate

2. Multi-Segment Telescopic Pole (Can be used

independently or with the included foldable

tripod legs to make it free standing)

Telescopic Pole

877-121

Leveling Accuracy:

Horizontal / Vertical Accurracy

Working Range:

Working Distance:

with Laser Detector:

Laser Class:

Laser Wavelength:

Operating Time:

Power Voltage:

Power Supply:

IP Rating:

Operating Temperature Range:

Storage Temperature Range:

Weight (without Base and Batteries):

Size:

≤ 3 mm / 10 m (≤ 1/8 in / 30 ft)

Self-Leveling to ± 4°

≤ 15 m (≤ 50 ft)

≤ 50 m (≤ 165 ft)

Class 1M

635 nm ± 5 nm

12 h

4,5 V

3 x AA Batteries (Alkaline)

IP54

-10° C to +40° C (+14° F to +104° F)

-20° C to +60° C (-4° F to +140° F)

230 g (8 oz)

88 mm × 48 mm × 90 mm (3 1/2 in × 1 7/8 in × 3 1/2 in)

Speciﬁcations

Laser Unit

77-121

Operating Instructions

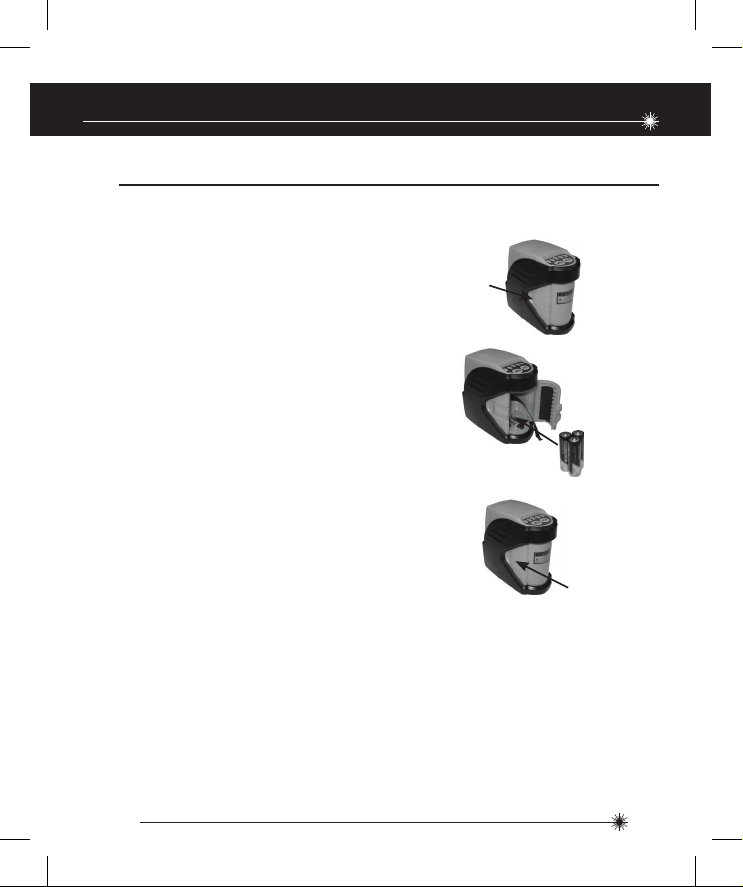

1. Turn laser unit to back. Open battery

compartment cover by bending tab out to

unlock.

Lift Out

+++

---

Laser Unit

2. Install / Remove batteries. Orient batteries

correctly when placing into laser unit.

3. Close and lock battery compartment

cover. Be sure tab snaps back into locking

feature.

Battery Installation / Removal

10 77-121

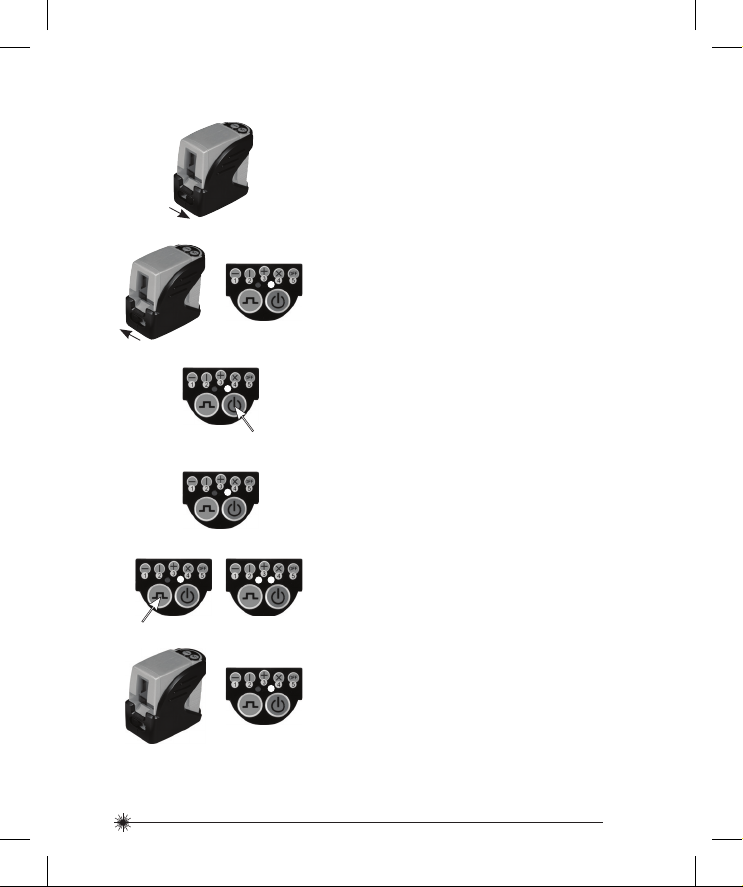

Laser Mode

3. Press laser mode key to toggle through

available laser modes - horizontal only,

vertical only, both horizontal and vertical,

self-leveling disabled, laser OFF.

2. Transport lock in unlocked position. Laser

power is ON. Right LED indicator lights green

when laser unit has self-leveled.

4. Mode 4 disables self-leveling feature and

allows both the horizontal and vertical

beams to be positioned in any orientation.

Right LED indicator lights red.

5. Press pulse mode key to toggle between

pulse mode ON and OFF. Left LED lights blue

when pulse mode on. Pulse mode allows use

with a laser detector.

OFF / Locked

Unlocked

1. Transport lock in locked position. Laser

power is OFF.

Pulse Mode

6. Laser beam(s) turn off and right LED lights

red to indicate the laser unit is out of

the working range for laser modes 1 - 3.

Reposition laser unit to be more level.

Function
