Introduction

The X-NUCLEO-OUT02A1 industrial digital output expansion board for STM32 Nucleo is based on the ISO8200AQ galvanic

isolated octal high-side smart power solid state-relay.

It provides an affordable and easy-to-use solution for the development of 8-channel digital output modules, letting you easily

evaluate the ISO8200AQ communication and industrial load driving features.

The X-NUCLEO-OUT02A1 can be connected to a NUCLEO-F401RE, NUCLEO-F103RB or NUCLEO-F302R8 development

board via Arduino™ UNO R3 connectors.

You can also evaluate the 16-channel digital output modules by connecting two X-NUCLEO-OUT02A1 expansion boards and

activating the daisy chaining feature.

The X-NUCLEO-OUT02A1 interfaces with the STM32 controller via SPI and GPIO pins and is compatible with the Arduino™

UNO R3 (default configuration) and ST morpho (optional, not mounted) connectors.

Industrial PLC functionality with 8 inputs and 16 outputs can be added with the X-NUCLEO-PLC01A1 expansion board.

Figure 1. X-NUCLEO-OUT02A1 expansion board

Getting started with the X-NUCLEO-OUT02A1 industrial digital output expansion

board for STM32 Nucleo

UM2507

User manual

UM2507 - Rev 1 - November 2018

For further information contact your local STMicroelectronics sales office.

www.st.com

1Getting started

1.1 Overview

The X-NUCLEO-OUT02A1 expansion board features:

• Based on the ISO8200AQ whose main characteristics are:

– Embedded 4kV galvanic isolation

– Radio frequency communication between the logic and process sides for maximum noise immunity

– Very low power dissipation (RON(MAX) = 220 mΩ)

– Fast decay for inductive loads

– 20 MHz SPI I/F on logic side

– VCC power good diagnostics

– Overload and overheating protections with thermal shutdown and diagnostics

– QFN-32L (9x11x1 mm) package

• 10.5 to 33 V operating voltage range

• Green LED (x8) for output on/off status

• Red LED for process supply power good fault

• Red LED for overload and overheating

• Supply reverse polarity protection

• EMC compliance according to IEC61000-4-2, IEC61000-4-3, IEC61000-4-5

• Compatible with STM32 Nucleo boards

• Equipped with Arduino™ UNO R3 connectors

• CE certified

• RoHS and China RoHS compliant

• WEEE compliant

The SPI interface and the embedded power good detection allow a deeper diagnostics, daisy chaining and less

MCU GPIO resources on the PLC logic stage.

Note: The X-NUCLEO-OUT02A1 offers a digital output solution: each output stage is managed at microcontroller level.

As the board has no input stage, no sensors can be connected to it.

1.2 Hardware requirements

To use STM32 Nucleo development boards with the X-NUCLEO-OUT02A1 expansion board, match the boards

via the Arduino™ UNO R3 connector pins on the STM32 Nucleo development board.

UM2507

Getting started

UM2507 - Rev 1 page 2/14

Figure 2. X-NUCLEO-OUT02A1 expansion board connected to an STM32 Nucleo development board

The X-NUCLEO-OUT02A1 has been designed to be used with

•NUCLEO-F103RB

•NUCLEO-F302R8

•NUCLEO-F401RE

1.3 System requirements

To use the STM32 Nucleo boards with the X-NUCLEO-OUT02A1 expansion board you need:

• a Windows PC/laptop (Windows 7 or above) to install the firmware package (X-CUBE-OUT02)

• a type A to Mini-B USB cable to connect the STM32 Nucleo board to the PC

• an STM32 Nucleo development board (NUCLEO-F103RB, NUCLEO-F302R8 or NUCLEO-F401RE)

• an X-NUCLEO-OUT02A1 expansion board

1.4 Board setup

Step 1. Connect the micro-USB cable to the PC.

Step 2. Download the firmware version onto the microcontroller.

Step 3. Set the following jumper configurations on the STM32 Nucleo board:

– Close SB62 and SB63 jumpers

– Open SB13 and SB14 jumpers

Step 4. Connect the ISO8200AQ device supply voltage to the X-NUCLEO-OUT02A1 via J1.

Step 5. Provide the digital supply voltage.

– when connected to the PC: keep the micro-USB cable connected and close jumper JP5 on the

STM32 Nucleo board between pins 1 and 2.

– in standalone mode: provide a 7 to 12 V external supply via J2 on the X-NUCLEO- OUT02A1 and

close jumper JP5 on the STM32 Nucleo board between pins 2 and 3.

Step 6. Connect the load on the output connector.

Step 7. Run the STM32 and push the blue button on the STM32 Nucleo board to select the example provided

in the firmware package.

UM2507

System requirements

UM2507 - Rev 1 page 3/14

2Hardware description and configuration

2.1 Digital section

The digital section is associated with the STM32 interface and digital supply voltage to and from the X-NUCLEO-

OUT02A1 expansion board.

Figure 3. X-NUCLEO-OUT02A1 expansion board: digital interface components

The four Arduino™ UNO R3 connectors:

• allow the ISO8200AQ communication with the STM32 Nucleo board microcontroller and access to the

STM32 peripheral and GPIO resources;

• provide digital supply voltage to/from the STM32 Nucleo development board and the X-NUCLEO-OUT02A1

expansion board.

To provide an external digital supply:

• close jumper JP5 between pins 2 and 3 on the STM32 Nucleo development board;

• connect a 7 to 12 V supply at screw connector J2 on the X-NUCLEO-OUT02A1 expansion board.

2.2 Power section

The power section involves the power supply voltage, load connection and electromagnetic compatibility (EMC)

protections.

UM2507

Hardware description and configuration

UM2507 - Rev 1 page 4/14

Figure 4. X-NUCLEO-OUT02A1 expansion board: power section components

For EMC:

• a Transil™ diode SMC30J30CA is placed on VCC track to protect the ISO8200AQ against surge discharge;

• for common mode surge testing, two single-layer capacitors (C1 and C3, not mounted) must be soldered;

• 22 nF capacitors are included on the output lines for burst disturbance filtering.

To supply the load, connect the supply voltage to the J1 2-way screw connector. The load is connected to the 8-

way output.

UM2507

Power section

UM2507 - Rev 1 page 5/14

3Bill of materials

Table 1. X-NUCLEO-OUT02A1 bill of materials

Item Q.ty Ref. Part/Value Description Manufacturer Order code

1 1 U1 ISO8200AQ TFQFPN32

Galvanic isolated

octal high-side

smart power solid

state-relay

ST ISO8200AQ

2 8

C19, C20,

C21, C22,

C23, C24,

C25, 26

22 nF 50 V ±10% 0603 X7R Capacitors TDK C1608X7R1H223K080AA

3 8

D5, D6, D7,

D8 D9, D10,

D11, D12

0603 AlGaInP Green LEDs OSRAM LG L29K-G2J1-24

4 8

R21, R22,

R23, R24

R25, R26,

R27, R28

10 kΩ 0.1 W ±1% 0603 Resistors Bourns CR0603-FX-1002ELF

5 1 J5 8 ways, 1 row, screw

connector TH 2.54 mm Jumper Phoenix Contact 1725711

6 1 C2, C7 2.2 µF 50 V ±10% 1206 X7R Capacitors Murata GRM31C71H225KA88K

7 1 C5 100 nF 50 V ±10% 0603 X7R Capacitor TDK CGA3E2X7R1H104K080AA

8 1 C28 100 nF 16 V ±5% 0603 X7R Capacitor AVX 0603YC104JAT2A

9 1 C27 2.2 µF 16 V ±10% 0805 X7R Capacitor Murata GCM21BR71C225KA64L

10 1 R31 47 kΩ 63 mW ±5% 0402 Resistor Vishay CRCW040247k0JNED

11 1 C18 10 pF 50 V ±5% 0402 COG Capacitor YAGEO CC0402JRNP09BN100

12 4 R20, R29,

R30, R32 0 Ω 100 mW ±1% 0603 Resistors TE Connectivity CRG0603ZR

14 4 C8, C15,

C16, C17 33 pF 50 V ±5% 0402 Capacitors Phycomp 2.23887E+11

15 2 R16, R36 910 Ω 63 mW ±1% 0402 Resistors Vishay CRCW0402910RFKED

16 2 D13, D4 AlGaInP 0603 Red LEDs OSRAM LS L29K-G1 J2-1

17 3 J6, J7, J8 6 ways, 2 rows connector

SMD 2.54mm Jumpers Harwin M20-8760342

18 7

R1, R2, R3,

R4 R5, R6,

100 Ω 0.1 W ±0.5% 0603 Resistors Panasonic ERJ3BD1000V

19 0

R101, R102,

R103, R104,

R105, R106,

R107, R108,

R109, R110,

R111, R112,

R113, R114,

R115, R116

DNM 0603 Resistors (not

mounted) Any

20 1 CN5 10 ways, 1 row TH 2.54 mm Capacitor SAMTEC SSQ-110-04-F-S

21 2 CN6, CN9 8 ways, 1row TH 2.54 mm Capacitors SAMTEC SSQ-108-04-F-S

22 0 CN7, CN10 TH 2.54 mm Capacitors (not

mounted) SAMTEC SSQ-119-04-L-D

UM2507

Bill of materials

UM2507 - Rev 1 page 6/14

Item Q.ty Ref. Part/Value Description Manufacturer Order code

23 1 CN8 6 ways, 1 row TH 2.54 mm Capacitor SAMTEC SSQ-106-04-F-S

24 1 J1 2 ways, 1 row (ISO8200AQ

HV supply) TH 3.5 mm Jumper RS 790-1149

25 1 J2

3 ways, 1 row (STM32,

ISO8200AQ LV supply) TH

3.5 mm

Jumper RS 790-1143

26 0 C1, C3 4.7 nF 3.15 kV TH Capacitors (not

mounted) Murata DEBE33F472ZC3B

27 1 D1 SMC 3000 W TVS in

SMC package ST SMC30J36A

28 1 D2 1 A, 100 V SMA Power Schottky

rectifier ST STPS1H100A

29 1 D3 0.35 A, 40 V SOD-323 Small signal

Schottky diodes ST BAT48JFILM

30 1 D14 700 W VBR = 6.8 V; VCL =

10.2 V 1610

High-power

transient voltage

suppressor (TVS)

ST ESDA7P60-1U1M

31 1 D15 1200 W VBR = 6.8 V; VCL =

10.2 V 1610

High-power

transient voltage

supressor (TVS)

ST ESDA15P60-1U1M

32 1 D16 600 W VBR =14.3 V; VCL =

20.8 V SMB

600 W TVS in

SMB ST SMBJ5.0A-TR

UM2507

Bill of materials

UM2507 - Rev 1 page 7/14

4Schematic diagrams

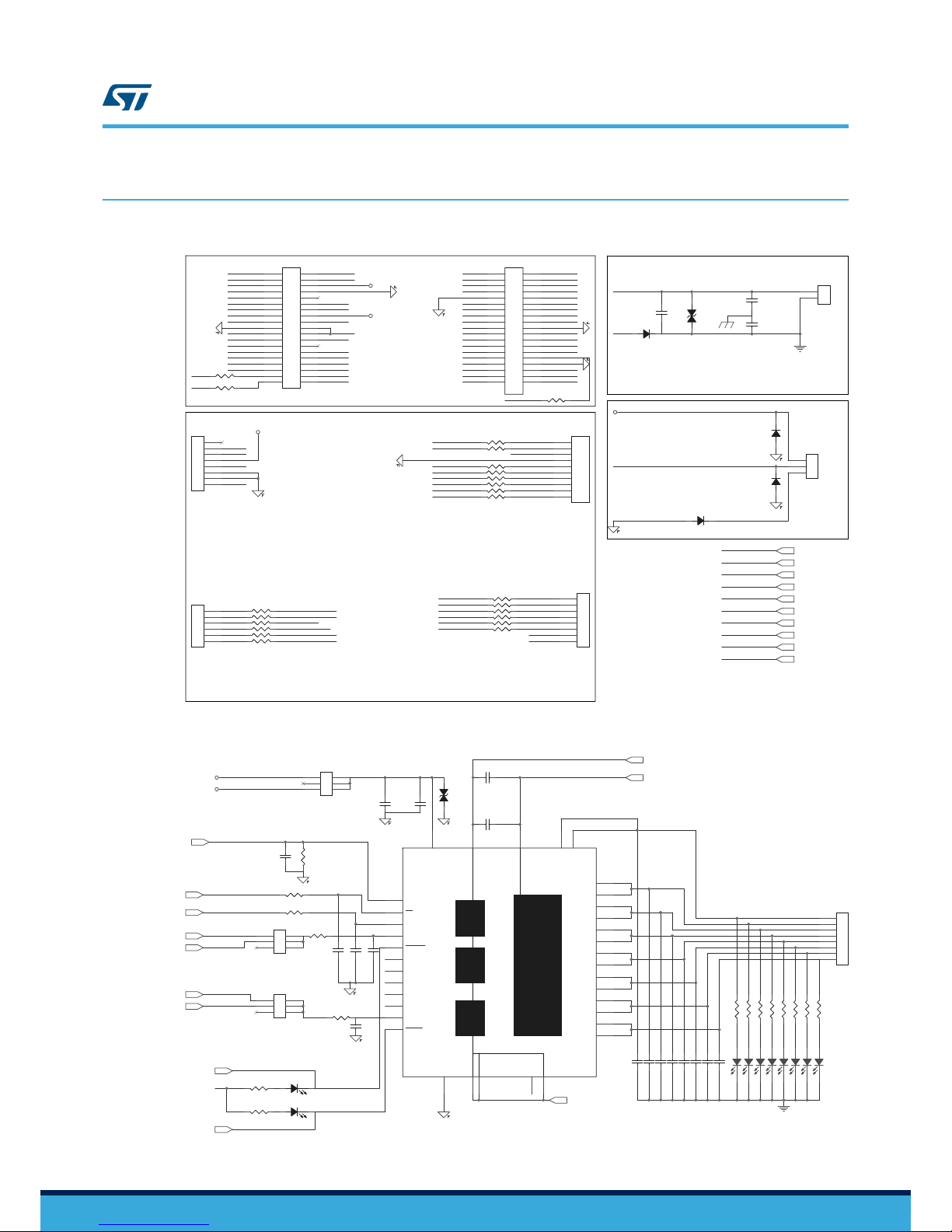

Figure 5. X-NUCLEO-OUT02A1 circuit schematic (1 of 2)
