Spypoint CELL-LINK Manual de usuario

QUICKSTART GUIDE

v.1.2

CELL-LINK

ENGLISH

In the box

1x CELL-LINK cellular module

1x Memory card adapter cable

1x Mounting strap

1x Quickstart guide

1x MicroSIM card (preactivated and inserted into the CELL-LINK)

Components

STATUS LED

ON/OFF switch

MicroSD card slot

¼"-20 tripod mount

Antenna

Memory card adapter cable port

12V jack

Locking latch

Memory card adapter cable

Slot for mounting strap

Cable lock hole

5 signal strength LEDs

SIM card slot

Battery‘‘PUSH’’eject button

Battery compartment

AA battery holder

NOTE: Memory card and batteries are sold separately.

User manual, latest rmware, and FAQ available at:

SPYPOINT.COM/SUPPORT

ENGLISH

STATUS LED

ON/OFF switch

MicroSD card slot

¼"-20 tripod mount

Antenna

Memory card adapter cable port

12V jack

Locking latch

ENGLISH

PREPARATION

SELECT A POWER SOURCE

• Lithium or alkaline AA batteries

• 12V rechargeable battery (#KIT-12V)

• 3.7V rechargeable battery pack (#LIT-10)

FOR BEST RESULTS AND NO LEAKAGE:

• Use only new lithium or alkaline batteries.

• Do not mix old and new batteries.

• Do not use rechargeable AA batteries

(their lower voltage can generate operational issues).

HOW TO INSTALL AA BATTERIES PROPERLY

• Unlock and open the CELL-LINK door.

• Take the battery holder out

and insert the AA batteries into the

battery holder following polarity (+) and (-) indications.

• Place the battery holder back into the battery compartment,

an audible click should be heard.

FORMATTING YOUR M

icro

SD CARD

Before inserting the MicroSD card into your CELL-LINK, it must be

reformatted via a computer to ensure proper functionality.

Memory card is sold separately.Whether you choose to use a

MicroSD card you previously used in another device or a brand

new one you've just bought, its capacity must not exceed 32 GB

and it must be reformatted. Do not use the "Quick format" option.

INSERTING A M

icro

SD CARD

• Ensure the CELL-LINK is turned o and open its door.

• Insert a MicroSD memory card (up to 32 GB capacity) into

the MicroSD card slot with the label facing up.

• The card is inserted correctly when a click is heard.

NOTE:

We recommend using the SPYPOINT #LIT-10

rechargeable lithium battery pack, sold separately.

ENGLISH

SPYPOINT APP

Follow these steps:

1. On Google PlayTM or the App StoreTM, search for "SPYPOINT".

2. Download and install the app on your smartphone or tablet.

3. Start the app. Select "ACTIVATE A DEVICE". In the list, select

"CELL-LINK" then follow the steps.

4. When complete, a conrmation email with instructions on

how to nalize the creation of your account will be sent to you.

5. Log in to the SPYPOINT app using your email and password.

ACTIVATING YOUR CELL-LINK

You must activate your CELL-LINK via the free "SPYPOINT

app" or by logging on to the SPYPOINT.COM website.

FINDING THE ACTIVATION CODE

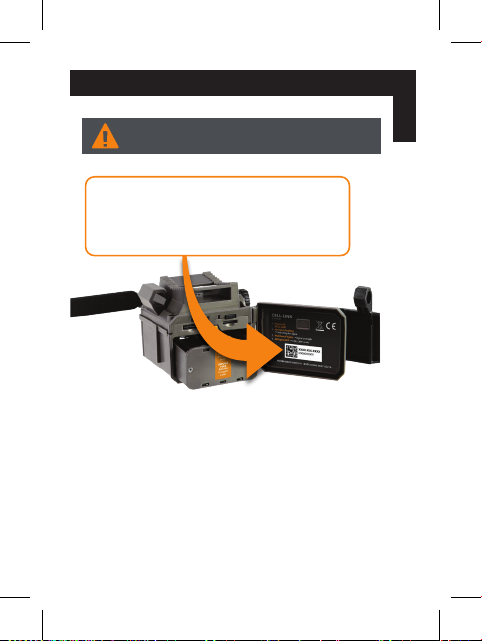

The activation code is located inside the CELL-LINK

battery compartment door. You will need this

unique code to activate the CELL-LINK.

ENGLISH

SPYPOINT website

Follow these steps:

1. On the SPYPOINT website, select "LOGIN" in the top

navigation menu. On the displayed page, select "Register",

ll out the required elds, then log in.

2. Select the + sign on the far right of the page;

in the list, select "CELL-LINK" then follow the steps.

3. When complete, a conrmation email with instructions on how

to nalize the creation of your account will be sent to you.

4. On the website, log in to your account using your email and password.

New settings take eect every time the CELL-LINK connects with

the SPYPOINT app or website

First transfer time: Allows you to choose the time

when the CELL-LINK makes its rst transfer of the day.

Transfer frequency: Allows you to choose the number of daily transfers.

ACTIVATING YOUR CELL-LINK

CONFIGURING YOUR CELL-LINK

NOTE: You can activate additional CELL-LINK’s for other cameras

and switch between them in the SPYPOINT app or the

"MY ACCOUNT" section of the SPYPOINT website.

CHOOSING A PHOTO TRANSMISSION PLAN

Go to

https://www.spypoint.com/en/spypoint-experience/plans

to read the latest oers and choose the plan that suits you.

NOTE:

Photo transfers are set by default to every 4 hours from midnight.

ENGLISH

1. Open the CELL-LINK door

2. Turn the CELL-LINK ON (ON/OFF switch)

3. All lights ashing – Searching for signal

The signal search can take a few minutes to process. If only 1 bar is ash-

ing, the network test is unsuccessful.Try moving the CELL-LINK (along with

your camera) to another spot in order to maximize signal strength, then

restart the cellular module. This operation might need to be repeated as

the SPYPOINT SIM card and services are powered by multiple providers.

The network modem will maneuver to ensure the strongest signal

strength by searching for the best tower available (cellular network).

4. Solid bars – Signal strength

Once the network test is completed, bars will stabilize showing the signal

strength. Note that signal bars displayed on the CELL-LINK can dier from

those shown on other cellular devices as there is no industry standard or

practice to label DBM values to a specic number of bars.

5. All lights OFF – CELL-LINK ready

Shut the CELL-LINK door. The CELL-LINK has updated its status

in the

SPYPOINT app and website with its latest information. The

CELL-LINK

is now ready to grab the pictures taken by your trail camera and transmit

them to you via the SPYPOINT app or website upon its next transmission.

HERE ARE THE RECOMMENDED CAMERA SETTINGS FOR

ENSURING OPTIMAL PERFORMANCE OF YOUR CELLLINK:

• A low-resolution photo format.

• Precisely adjusted date and time

• A delay no shorter than 1 minute between each detection.

• In time lapse mode, a delay no shorter than 1 minute.

STARTING YOUR CELL-LINK

NOTE:

Before starting the CELL-LINK, ensure you have successfully

congured your trail camera according to your preferences and

that you have done this by following your camera’s user manual.

NOTE:

The CELL-LINK doesn’t support video transfers. However, if you congure

your camera for having a photo taken before each video, this photo will be

sent out to you from the CELL-LINK.

ENGLISH

1. Open your camera door.

2. Take the CELL-LINK memory card

adapter cable and insert the

end with the SD card into your

camera’s SD card slot.

3. Keeping the SD memory card

adapter cable held tightly against

the case, direct the adapter cable

so that it exits from the bottom of

the camera case. The cable should

hang loosely below the camera.

(Avoid bringing the cable over any

critical components).

4. Shut the camera door and lock the latch.

5. Flip the SD cable upward, sliding it up behind the camera, so

that the CELL-LINK connector sticks out from behind the top

of your camera.

6. Mount your camera to the tree. (The CELL-LINK SD adapter

cable should now be found between the tree and camera)

7. Mount the CELL-LINK cellular module as close to your camera as possible.*

8. Connect the SD card cable connector to the CELL-LINK.

You can now access CELL-LINK photos, congurations, and statuses

either via the SPYPOINT app or the SPYPOINT website.

INSTALLING AND CONNECTING THE CELL-LINK

To connect the SPYPOINT CELL-LINK to your trail camera from any

brand, follow these steps (or view our video in the Help section):

NOTE:

It is strongly recommended to mount your CELL-LINK cellular

module directly above your camera leaving as little space as

possible between the two. Doing so will reduce the risk of

having animals cause damage to the cable.

If your cable memory card adapter gets damaged,

replacement cables can be ordered separately.

ENGLISH

ONLY USE ORIGINAL SPARE PARTS AND ACCESSORIES.

If one day your camera has been used so intensively that it has to be replaced, or if you

no longer have any use for it, you are obliged to dispose of it at a recycling center.

Information on return points for your electrical appliance can be obtained from

your local waste disposal company or from your local administrative offices.

Electrical appliances not only contain valuable recyclable raw materials,

but also substances which, if disposed of improperly, can affect public

health and the environment. Help ensure that valuable raw materials are

recycled when you return your old appliance to a central collection point.

The WEEE (Waste Electrical and Electronic Equipment Directive ) symbol represents

the obligation that the labeled camera to be sent to a separate center for the proper

recycling of electrical and electronic equipment.

FREQUENCY RANGE:

800/ 850/ 900/ 1900/ 2100MHz

MAXIMUM TRANSMISSION POWER:

FREQUENCY

GSM850

EGSM900

DCS1800

PCS1900

GSM850 (8-PSK)

EGSM900 (8-PSK)

DCS1800 (8-PSK)

PCS1900 (8-PSK)

UMTS 2100

UMTS 1900

UMTS 900

UMTS 850

UMTS 800

DISPOSAL

FREQUENCY

MAX.

33DBM±2DB

30DBM±2DB

27DBM±3DB

26DBM±3DB

24DBM+1.7/3.7DB

ENGLISH

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.

Operation is subject to the following two conditions:

1. This device must not cause harmful interference.

2. This device must accept any interference received,

including interference that may cause undesired operation.

FCC

THANK YOU FOR CHOOSING

FAQ, user manual & latest

rmware available at:

SPYPOINT.COM/SUPPORT

Live chat support at

Join the community

Sit back and relax as this device is covered by the "Know you’re

covered" 2-year warranty.We strive to provide our customers

with a positive experience and an outstanding service.

www.spypoint.com [email protected]


