Spectra Precision GL6X2N Guía de instalación

May 2017 GL6X2N

Hands-On training

a - Keypad/LCD-Display

b - Handle

c - Rotor

d - Roll Cage

e - Axes Alignment Marks

f - Sighting Guides/Scope Mounts

g - Battery door

h - Rubber Cover/Recharge Jack

i - 5/8” x 11 Tripod Mounts

j - Rubber Feet

k -Turnable Legs

l - Plus and Minus Battery

Diagrams

GL612N/622N Components

Powering the GL612N/GL622N

1 –GL is shipped with a rechargeable NiMH

battery pack (Q104667).

2 –The charger (Q104781) can be used as a

power supply when used Indoors

3 –The rechargeable battery pack can be

charged inside as well as outside of the

unit

4 –Alkaline batteries can be used as a backup

5 –An optional external power cable

(Q104802) is available too

6 –Plus and minus symbols indicate

how to put the alkalines into the

battery compartment

Powering the RC602N

1. Open the battery door using a coin or similar pry

device to release the battery door tab on the RC602N.

RC602N will be shipped with alkaline batteries

Rechargeable batteries can be used optional but need

to be charged externally

2. Insert two AA batteries noting the plus (+) and minus (-)

diagrams inside the battery housing.

3. Close the battery door. Push down until it “clicks”

into the locked position.

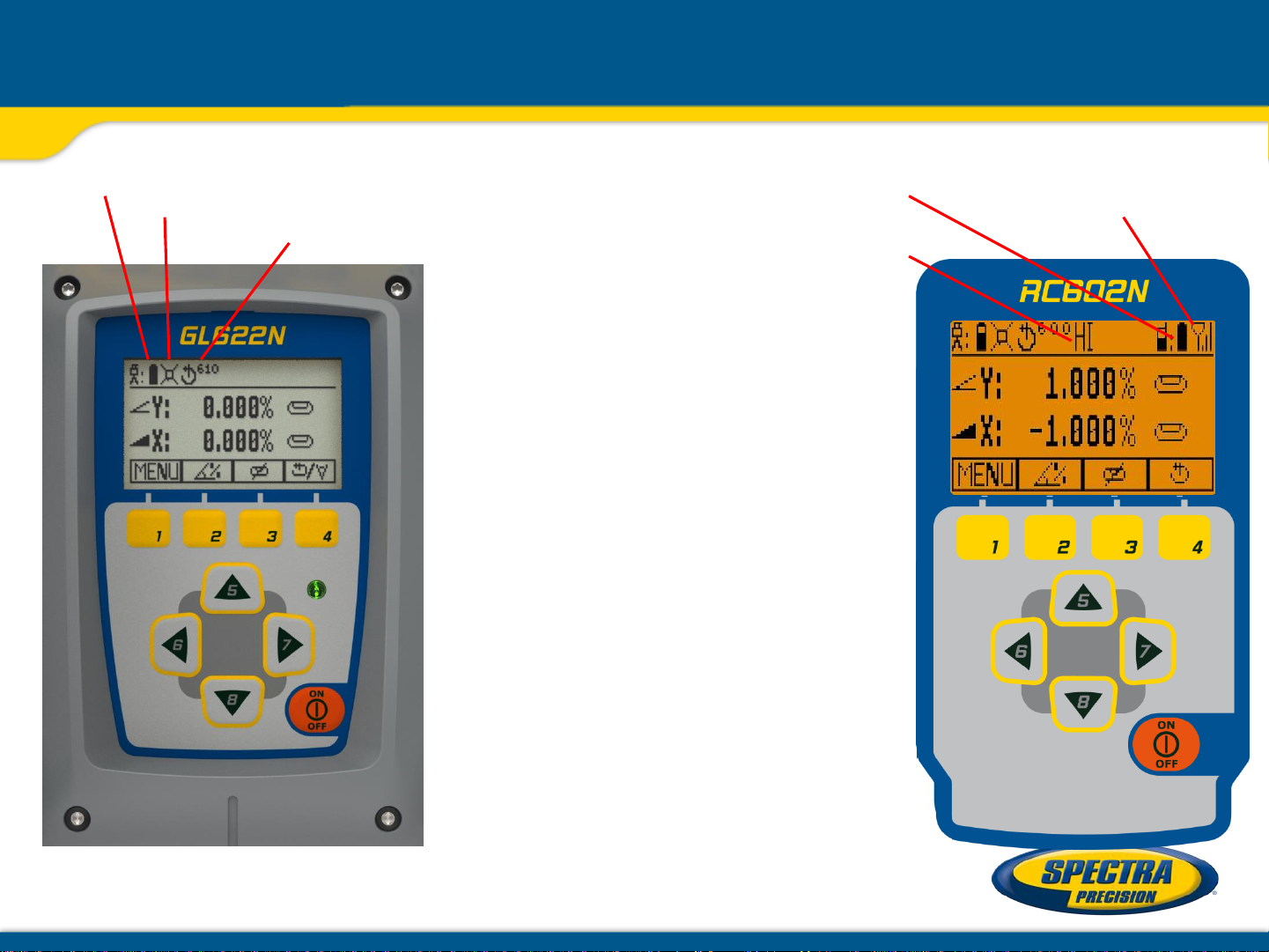

Battery status laser Battery Status Remote Control

Mask selection Radio Connectivity

Rotation speed HI alert

Standard Display

Button 1: MENU

Button 2: Grade Entering Mode

Button 3: Manual mode

Button 4: Rotation/Scan

Button 5, 8: up/down arrow buttons

Button 6, 7: left/right arrow buttons

Button 9: ON/OFF button

1 second to turn on the unit;

2 seconds to turn off the unit.

Leveling/Standby –LED (green/red)

Depending on the setup (horizontal) and if a grade value has been

dialed in, the unit starts the temperature/reference check while the

thermometer symbol is flashing.

Don’t start a menu function before the reference check has been

finished.

When the temperature/reference check has been finished, the standard

display appears and the bubble symbols flash until self-leveling has

been completed.

If the self-leveling can’t be finished based on the selected sensitivity, an

error message appears

Turning On/Off the Laser

X-Y- grade entering: Digit Select mode (Default)

button 2: Grade Entering Mode.

button 1quick set to 0%

button 2change the sign of the grade value

Press and release button 5 or 8 (down or up) to move the cursor to the X- or Y-axis.

Pressing and releasing button 6 or 7 (right or left) moves the cursor to the right/left.

Use button 1 or 2 (Plus or Minus) to set the desired digit.

button 3return to the standard display

The laser will self-level to the required grade position after confirming the grade change with button 4.

Note: The bubble symbols at the laser’s LCD will flash until the laser has been self-leveled to the requested

grade position.

Standard Features

X-Y-grade entering

Step and Go mode

Quickly press and release button 2starts the grade entering mode.

Both grade values will be shown.

Press/release button 1grade reverse Y

Press/release button 2grade reverse X

Press/release button 3return to the standard display.

Quickly press and release button 4to confirm the selected grade

value and return to the standard display

Press and hold button 6 or 7 (left/right) to change X- axis grade value

after the comma; press and hold buttons 6 + 7 simultaneously starts X-axis quick change mode

where the grade value in front of the comma will be set to 0% and then starts changing in 1%

increments.

Press and hold button 5 or 8 (up/down) for changing Y -axis grade value; press and hold buttons 5 +

8 simultaneously starts Y - axis quick change mode where the grade value in front of the comma will

be set to 0% and then starts changing in 1% increments

Note: When the grade value for either axis reaches its highest amount, the grade value switches to the

lowest value for that axis. For example, the value switches from +25% to -25%.

The laser will self-level to the required grade position after confirming the grade change with button 4.

Note: The bubble symbols at the laser’s LCD will flash until the laser has been

self-leveled to the requested grade position.

Standard Display

Standard Features

Using the Rotation mode

Repeatedly pressing the button 4 toggles through 300, 600, 750 rpm regardless if the unit is in automatic or

manual mode.

Manual mode

Pressing and releasing button 3 at the Standard Display activates/deactivates the manual mode

regardless if set up horizontal or vertical.

Manual mode is indicated by horizontal lines next to the axes symbols. An additional bubble helps to adjust

the laser on the cross axis when set up vertical.

In Manual mode (horizontal), the Y-axis can be sloped by pressing the Up-(5) and Down-(8)- Arrow

buttons on the laser‘s keypad or the remote control. Additionally, the X-axis can be sloped by pressing

the Left-(6) and Right-(7) Arrow-buttons on the laser or remote control.

In vertical mode, the up and down arrow buttons adjust the Z-axis slope, and the left and right arrow

buttons align the laser beam to the right/left side.

To resume automatic self-leveling mode, press the manual button 3 again.

Standard Features

Menu Functions (Radio controlled)

Press and release button 1 at the Standard Display to enter the MENU.

The menu offers always only the features which can be selected depending on the setup (horizontal or vertical).

The selected icon will be highlighted. A down arrow at the the right site indicates that the user can scroll down

through the menu using the button 8 (down arrow).

Note: As soon as the menu has been opened, button 2 (question mark) can be used to open a help text which

explains the selected function more in detail.

After going to the next menu row, a up/down arrow at the the right site indicates that the user can scroll

up/down through the menu rows (4 different screens) using the buttons 5/8 (up/down arrows).

Pressing and releasing button 3 changes the unit always back to the standard or previous display.

Press and release the buttons 6/7 until the desired icon at the selected menu row is highlighted.

Press and release button 4 to open the submenu OR start the selected function.

Menu functions when set up horizontal (GL622N)

Menu functions when set up vertical

Special MENU Features

PlaneLok Grade

Match Axis Align Mask Mode Standby Reference

Check Settings Info Service

PlaneLok Mask Mode Standby Line Scan Settings Info Service
