Speakman SB-1004 Manual de usuario

INSTRUCTIONS FOR MODELS

92-SB-1004-R4

For additional assistance or service please contact:

SPEAKMAN®Company

400 Anchor Mill Road

New Castle, DE 19720

800-537-2107

customerser[email protected]

www.speakman.com

SB-1004

SB-1004-E

HELPFUL TOOLS & SUPPLIES:

TOOLS AND SUPPLIES

Phillips

Screwdriver

Adjustable

Wrench

Aerator

Wrench

(Included)

10mm

Wrench

Safety

Glasses

Plumber’s

Putty

Additional warranty information can be found at:

www.speakman.com

WARRANTY

MAINTENANCE

Cover your drain to prevent loss of parts. Be sure to

wear eye protection while cutting pipe.

SAFETY TIPS

IMPORTANT

• Be sure to read instructions thoroughly before

beginning installation.

• Do not over-tighten any connections or damage

may occur.

• This faucet has an operating range of 20-80 psi.

Your new Speakman Product is designed for years of

trouble-free performance. Keep it looking new by

cleaning it periodically with a soft cloth. The use of harsh

chemicals and abrasives may damage the finish and

void the product warranty. Please be sure to only use

approved cleaners. Please contact Speakman for any

clarification of acceptable cleaners.

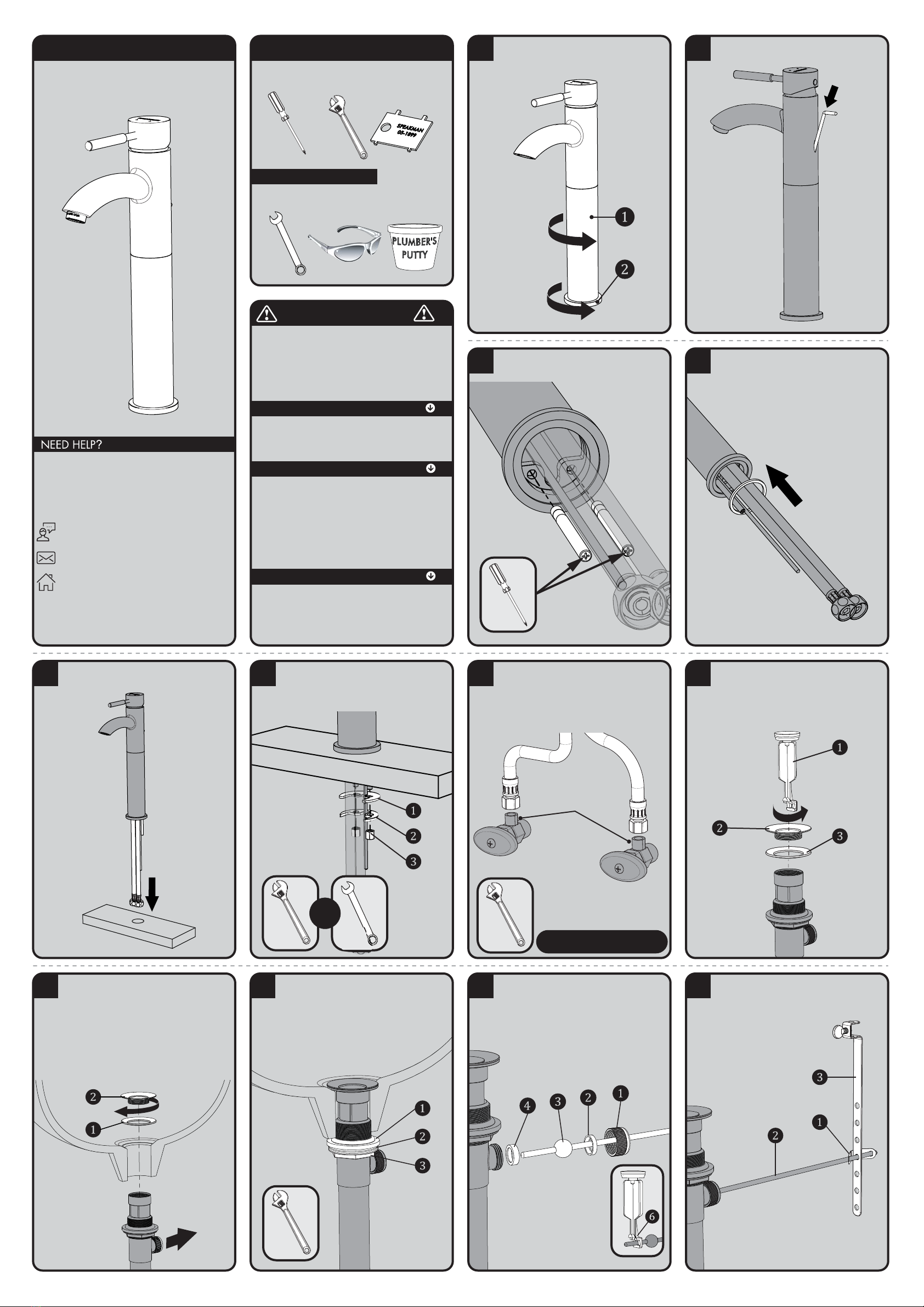

1Verify that the Vertical Extension (1) and Base

Flange (2) are secured tightly to the Faucet Body.

2Insert Lift Rod thru hole at rear of Faucet.

3Thread Mounting Studs into base of Faucet.

Tighten with Phillips Screwdriver.

4Place Rubber Gasket over Hoses and align to

base of Faucet.

5Place Hoses, one at a time, thru hole in

mounting surface. Lower Faucet into position.

6From below, install Rubber Washer (1), Metal

Washer (2), and secure with Mounting Nuts (3).

Align Faucet to desired position and wrench

tighten Mounting Nuts (3).

7Make connections to water supplies. The inlet

threads of the faucet are 9/16”-24 UNF and will

accept a 3/8” Compression Fitting. Wrench

Tighten.

Accepts a 3/8”

Compression

Fitting

SUPPLY STOPS NOT INCLUDED

8Remove Stopper (1), Flange Nut (2), and Flange

Washer (3) from Drain Assembly.

9From beneath, insert Drain Assembly thru drain

hole in sink. Attach supplied Flange Washer (1)

or plumber’s putty to the underside of the Flange

(2). Secure Flange (2) to the Drain Assembly.

Align the Drain Assembly as shown below.

Align towards faucet.

10 From beneath, secure Rubber Washer (1), Plastic

Washer (2), and Mounting Nut (3). Wrench

tighten.

11 Remove Pivot Nut (1), from Drain Assembly.

Install Outer Pivot Washer (2), and Pivot Rod (3).

Ensure that Inner Pivot Washer (4) is retained in

Drain Assembly. Insert Pivot Rod into Drain

Assembly and install Stopper (6) as non-remov-

able. Secure Pivot Rod to Drain Assembly by

tightening Pivot Nut (1).

12 Place one end of Spring Clip (1), on Pivot Rod

(2). Insert Pivot Rod (2) thru a hole in the Lift Rod

Strap (3). Secure with Spring Clip (1).

13 Place Drain into the open position by pressing

downward on the Pivot Rod (1). Insert Lift Rod

(2) into Strap (3). Adjust height of Lift Rod (2),

and tighten Thumb Screw (4).

14 Turn on water supplies. Activate faucet and flush

both HOT and COLD water for 1 minute.

15 Turn OFF faucet and install Aerator with

supplied Aerator Wrench.

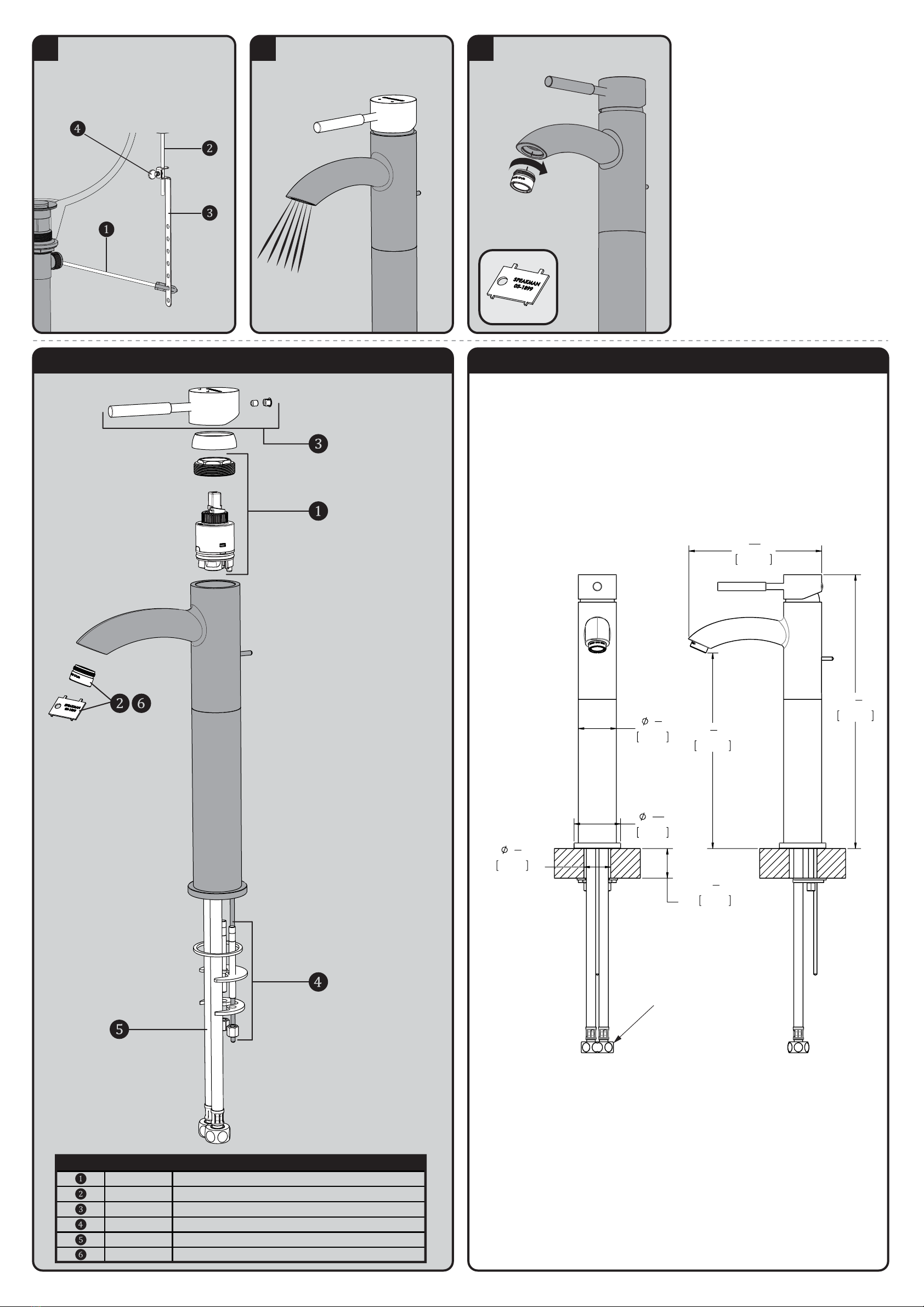

SB-1004 REPAIR PARTS

ITEM NO. PART NO. DESCRIPTION

RPG05-0986 CARTRIDGE AND RETAINING NUT

RPG05-0989 1.5 GPM VANDAL RESISTANT AERATOR ASSEMBLY

RPG04-0442 LEVER HANDLE, SCREW, AND INDEX

RPG05-0985 MOUNTING HARDWARE GROUP

RPG63-0099 24” LONG HOSES (2)

RPG05-40005 1.2 GPM VANDAL RESISTANT AERATOR ASSEMBLY

157mm

231mm

12 3

324mm

45mm

55mm

35mm

MAXIMUM DECK

THICKNESS

32mm

MINIMUM

HOLE DIAMETER

3/8 COMPRESSION FITTINGS

(9/16-24 THREAD)

SB-1004 ROUGH-IN DIAGRAM

ALL DIMENSIONS ARE IN INCHES (MILLIMETERS) UNLESS

OTHERWISE SPECIFIED. DIMENSIONS SUBJECT TO

CHANGE WITHOUT NOTICE.
