Sony TRINITRON AE-6B Manual de usuario

AE-6B (KV-32LS65AUS) CHASSIS

OPERATION MANUAL

TABLE OF CONTENTS

Chapter 1. AE-6B Chassis Concept 1

1.1 Features 1

1.2 Specifications 2

1.3 21 Pin Connector 3

1.4 Board Overview 4

Chapter 2. Power Supply Circuit 5

2.1 Power Supply Block Overview 5

2.2 Function Overview 5

2.3 Overvoltage Protection 10

2.4 Overcurrent Protection 10

2.5 Protection Circuit of Power Block 10

Chapter 3. Video Processing Circuit 13

3.1 VSP9407 Features 14

3.2 Features of CRT Driver (CXA2100) 17

Chapter 4. Micro Controller 19

4.1 Features of SAA5667 Micro Controller 19

Chapter 5. Audio Circuit 20

5.1 Features of MSP3411G-B9 22

5.2 Features of TDA7497 Triple Amplifier 22

Chapter 6. Deflection Circuit 24

6.1 Deflection Block AE-6B (Protection) 29

Chapter 1 AE-6B Chassis Concept

1.1 Features

This is a new Chassis but some circuits are referred from other

chassis. The Deflection Circuit and the Back End (CXA2100) are

based on AE-5 chassis. Besides, its Power Supply Circuit is almost the

same as FE-2 chassis.

It is a 100 Hz FD Trinitron and Digital Plus (ABAB) model with 16:9

lifestyle cosmetic design concept. Its Digital Noise Reduction (DNR)

allows users to reduce the picture noise visible in the broadcast signal.

Virtual Dolby sound effect can simulate the sound effect of “Dolby

Surround Pro logic”. Dolby Surround sound effect could be created

by simulating the sound of four speakers with two speakers provided

the broadcast audio signal is Dolby Surround encoded.

BBE High Definition Sound system enhances clarity, detail and

presence of sound for better intelligibility and musical realism.

AE-6B chassis has Menu that is similar to FE-2 chassis. There is 1

Tuner for PIP.

Besides, it has Auto Format option that enables the aspect ratio of the

screen to be automatically changed.

There are three Scarts (Scart 1, Scart 2 and Scart 3) at the rear, which

are the 21-pin Euro connector. The pin diagram is shown as Figure

1.1. Scart 1 and Scart 2 are inputs for YUV while Scart 3 is input for S

Video.

Figure 1.2 shows the board overview of AE-6B for KV-32LS65AUS

model.

1.2 Specifications

Picture Audio Terminals

100 Hz Digital Plus Right and left speaker REAR

Digital Noise Reduction (DNR) 2X20W (Music Power) 1: 21-

pin Euro Connector

Inputs for audio and video signals.

2X10W (RMS) (CENELEC Standard)

Inputs for YUV

Outputs of TV video and audio signals.

Other Features Others 2: 21-pin Euro Connector

Inputs for audio and video signals.

Teletext Auto Volume Adjust Inputs for YUV

Fastext/ TOPtext Virtual Dolby Outputs of TV video and audio signals (Monitor Out).

Sleep Timer BBE 3: 21-pin Euro Connector

Inputs for audio and video signals.

PIP (1 Tuner) Inputs for S Video.

Auto Format Remote Commander Outputs of TV video and audio signals (selectable).

RM-934 Phono Jacks Output connectors variable for audio signals.

SIDE

Power Requirement S Video Input 4 Pin DIN

220 –240V Video Inputs Phono Jacks

Audio Inputs Phono Jacks

Headphone Jack Stereo Mini Jack

1.3 21 Pin Connector

Figure 1.1 21-pin Euro connector

1.4 Board Overview

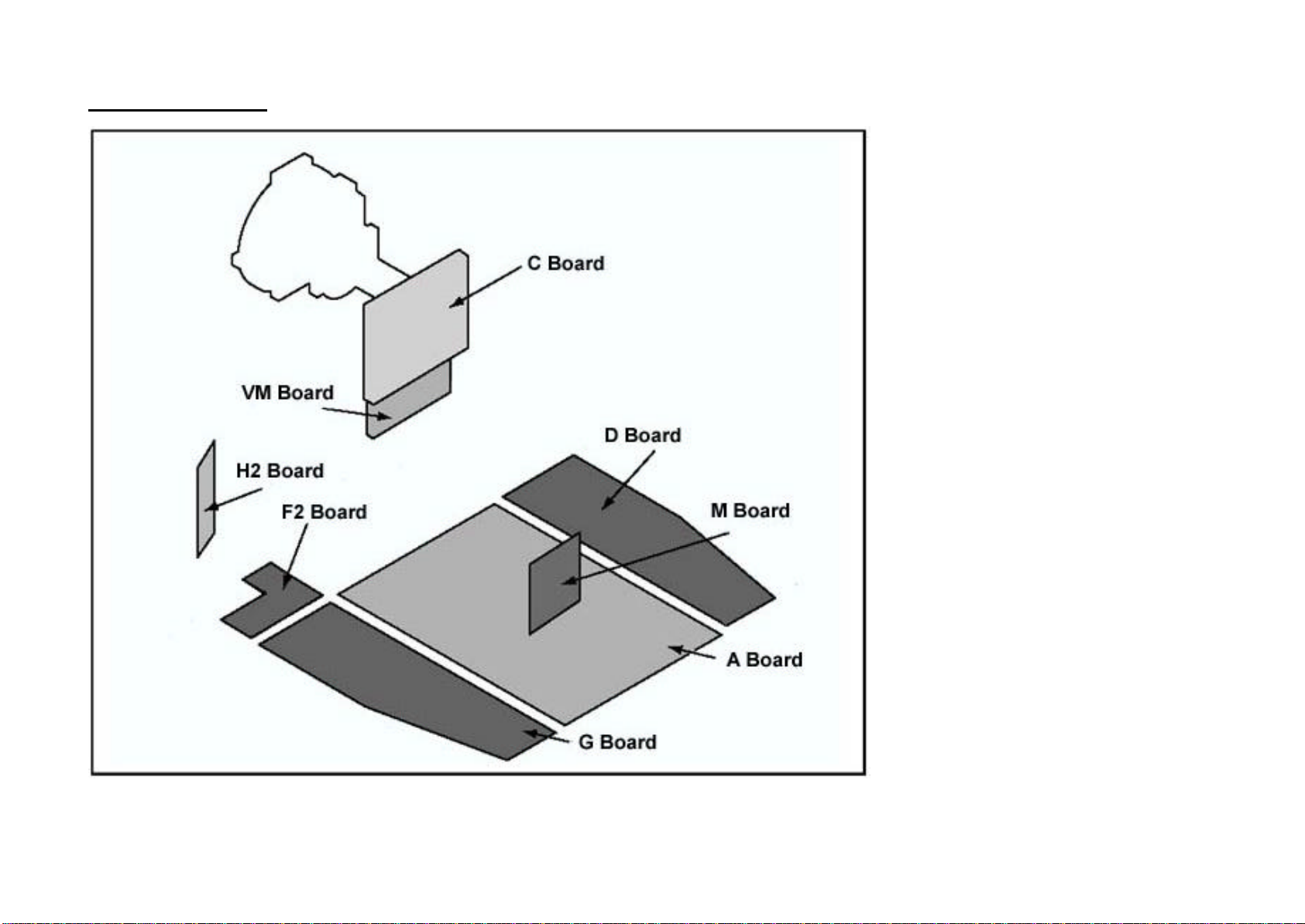

Figure 1.2 Board Overview (KV-32LS65AUS)

Chapter 2 Power Supply Circuit

2.1 Power Supply Block Overview

Figure 2.1 Power Supply Block Overview

2.2 Function Overview

The main power supply diagrams in AE-6B chassis are shown as

Figure 2.2 and Figure 2.3. It is similar to FE-2 and LE-3 chassis.

Meanwhile, the power supply circuit for AE-6B and AE-6D chassis is

almost similar. The difference is there is an additional G1 board in AE-

6D chassis.

The primary power supply on the AE-6B chassis G board consists of

three parts:

1. Oscillator 2. Output stage 3. Regulator Stage

The oscillator starts up to produce an initial signal for the output stage.

The output stage develops voltage to continue running the oscillator

stage, supply the regulating stage and provide normal output for the

TV. One of the normal TV outputs is used to start the secondary power

supply.

Oscillator Start Up

The oscillator within IC6001 starts if the VSENSE input voltage at pin 1

is above 1.3 VDC but less than 8 VDC. The block diagram of IC6001 is

shown in Figure 2.4.

Sample voltage from pin 18 is then used to run the internal oscillator.

The initial frequency is approximately 230 kHz. The low amplitude

initial oscillator signal is output IC6001 / pins 12 and 16 into the

driver/output stage.

Driver / Output Stage

The oscillator voltage output at pins 12 and 16 use drivers Q6006 and

Q6007 to develop T6002 secondary voltages. IC6001’s oscillator will

shut down if the driver transistor’s current is excessive. To prevent

premature shutdown, the timer capacitor C6007 (refer to Figure2.3)

delays the shutdown.

VC1 Powers IC6001

Although the oscillator is running at the initial frequency of 200 kHz,

there is insufficient current from T6002 to produce any unregulated

output voltage because of the load. There is a little load on D6008

(refer to Figure 2.3). This voltage is returned to IC6001 / pin 8 (VC1) to

serve as regulated +B for the IC.

IC6001 Normal Operation

At start up, IC6001 initially uses current limit +B from pin 18 to power

internal drivers. These internal drivers amplify the oscillator signal and

get out to pins 12 and 16. When the power supply stage works, the

power comes for the bottom driver, VG(L); pin 12 from pin 10 (VC2)

and for the top driver, VG(H); pin 16 from pin 14 (VB). The VB voltage

is approximately +5V (average) above the reference voltage at

IC6001/pin15.

Regulator Stage

This voltage supplies the top internal driver that amplifies the oscillator

signal that leaves IC6001/pin 16. The regulating stage uses error

detector IC6003 and optical isolator PH6001 to monitor the output from

T6002. If the output is low, the voltage fed back to IC6001/pin 2 goes

HIGH, decreasing the oscillator frequency. The decrease in frequency

increases the output of T6002.

Figure 2.2 Main power supply circuit diagram.

Figure 2.3 Main power supply circuit diagram.
