Sony Trinitron KV-PF21 Manual de usuario

TrinitronColor TV

KV-PF21

KV-PF14

4-076-171-11 (1)

K70

 !" !"

 !"

• = !"#== !"#== =I=== !

== !"#K

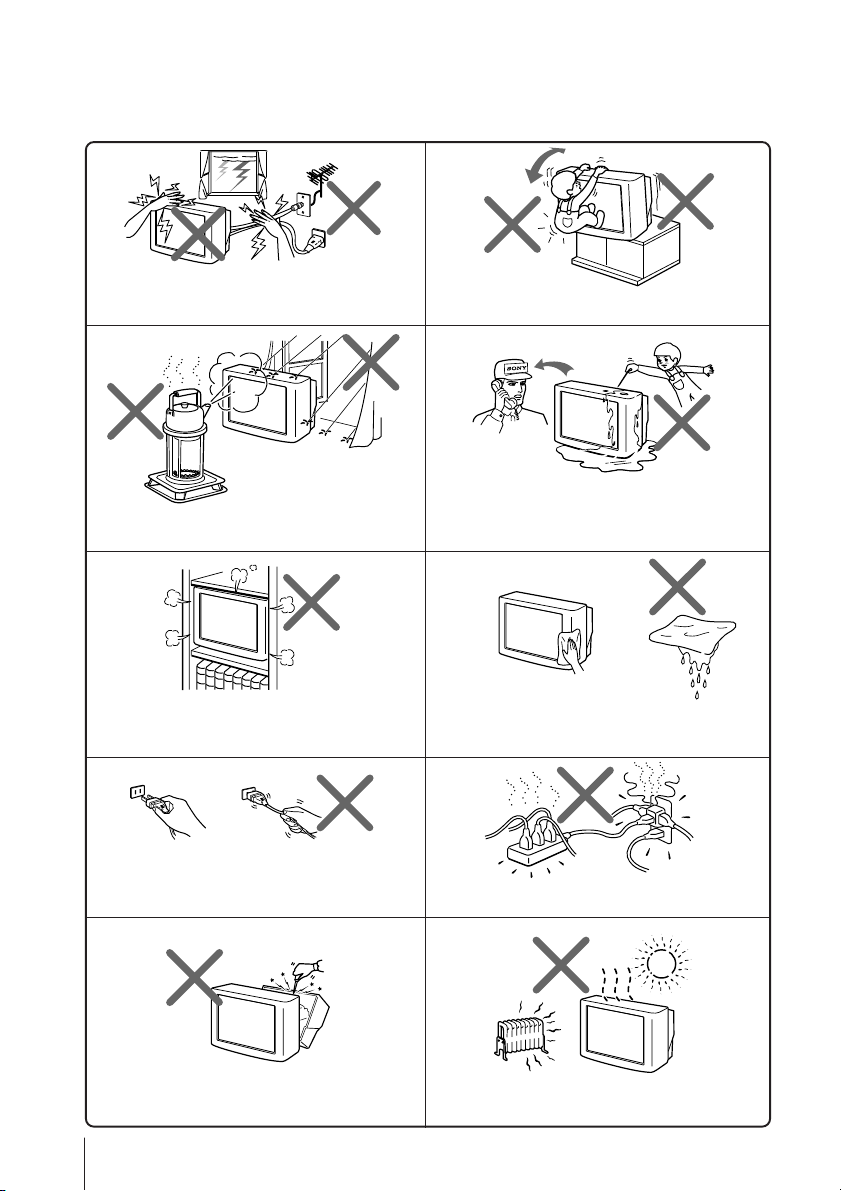

WARNING

• Dangerously high voltages are present inside the TV.

• Operate the TV only between 110 – 220 V AC.

To prevent fire or shock hazard, do not expose

the TV to rain or moisture.

Do not operate the TV if any liquid or solid object

falls into it. Have it checked immediately by

qualified personnel only.

Do not open the cabinet and the rear cover of the

TV. Refer servicing to qualified personnel.

Do not install the TV in hot, humid or excessively

dusty places.

Do not install the TV in a confined space, such

as a bookcase or built-in cabinet.

Do not block the ventilation openings of the TV.

Install the TV in a stable position. Do not allow

children to climb onto it.

Do not plug in too many appliances to the same

power socket. Do not damage the power cord.

Clean the TV with a dry and soft cloth.

Do not use benzine, thinner, or any other chemicals

to clean the TV. Do not scratch the picture tube.

For your own safety, do not touch any part of the

TV, the power cord and the antenna cable during

lightning storms.

Pull the power cord out by the plug. Do not pull

the power cord itself. Disconnect the TV if you

are not going to use it for several days.

Advanced Operations

Customizing the picture and sound ....................................................... 13

Viewing your favorite channels ............................................................... 15

Blocking the channels (“CHILD LOCK”) .............................................. 16

Additional Information

Self-diagnosis function.............................................................................. 17

Troubleshooting ......................................................................................... 18

Identifying parts and controls ................................................................. 21

Specifications .............................................................................. Back cover

Using Your New TV

The features you will enjoy include:

• “FAVORITE CH” for quick and easy channel selection (page 15)

• “PICTURE MODE”/“SOUND MODE” for customizing your TV (pages 13, 14)

Your TV also offers the following setup features:

•On-screen display language options – English / Korean (page 11)

• “CHILD LOCK” for preventing children from watching certain program (page 16)

Table of Contents

WARNING

Using Your New TV

Getting Started ............................................................................................. 4

Step 1: Connect the antenna .................................................................. 4

Step 2: Insert the batteries into the remote .......................................... 5

Step 3: Preset the channels automatically ........................................... 5

Connecting optional components ............................................................. 6

Securing the TV (KV-PF21K70 only) ......................................................... 7

Presetting channels ...................................................................................... 8

Watching the TV ........................................................................................ 10

4Using Your New TV

VIDEO

VIDEO IN

VIDEO 1

MONITOR

OUT

VIDEO OUT

AUDIO

Getting Started

Step 1

Connect the antenna

If you wish to connect a VCR, see the “Connecting a VCR” diagram below.

Using Your New TV

F connector

(not supplied)

To video and

audio outputs

VCR

Antenna cable (not supplied)

To VIDEO IN 1

(video input)

Audio/Video cable

(not supplied)

Antenna cable

(not supplied)

Rear of TV

antenna

: Signal flow

VIDEO (yellow)

AUDIO (black)

To antenna

output

Connecting a VCR

To watch the video, press VIDEO (see page 11).

Using Your New TV

Notes

• If you connect a stereo VCR, connect the yellow plug to VIDEO

(the yellow jack) and the white plug to AUDIO (the black jack).

• When no signal is input to the connected video equipment, the TV screen

becomes blue.

CAUTION

Do not connect the power cord until you have completed making all other

connections; otherwise a minimum leakage current might flow through the antenna

and other terminals to ground.

Step 2

Note

• Do not use old batteries nor use different types of batteries together.

Step 3

Insert the batteries

into the remote

Front of TV

Preset the channels automatically

Tips

• If you want to stop automatic channel presetting, press SELECT once.

• If your TV has preset an unwanted channel or cannot preset a particular

channel, then preset your TV manually (see page 9).

• The AUTO PROGRAM button on the remote works as the AUTO

PROGRAM button on the TV.

Now You Are Ready. . .

To watch your TV, see page 10.

AUTO PROGRAM

CABLE TV : ON

SLEEP

CABLE

AUTO

PROGRAM

ADD/

ERASE

PIC MODE

POWER

AUTO

PROGRAM

1 2 3

6Using Your New TV

Connecting optional components

You can connect optional video components, such as a VCR, multi disc player,

camcorder or video game.

To watch the picture of the connected equipment, press VIDEO (see page 11).

Connecting a camcorder/video game equipment

using the VIDEO IN jacks

Note

• You can also connect video equipment to the VIDEO IN 1 jacks at the rear

of your TV.

Connecting video equipment using the MONITOR

OUT jacks

Note

• When connecting a stereo VCR, connect the yellow plug to VIDEO (the

yellow jack) and the white plug to AUDIO (the black jack).

VIDEO 2 INPUT

VIDEO AUDIO

Front of TV

Camcorder

Video game

equipment

To video and

audio outputs

VIDEO (yellow)

AUDIO (black)

Rear of TV

antenna

output

To video and

audio inputs

VCR

: Signal flow

To VIDEO 2 INPUT

To monitor

output

Audio/Video cable (not supplied)

Antenna cable (not supplied)

Audio/Video cable (not supplied)

AUDIO VIDEO

VIDEO 1

MONITOR

OUT

Using Your New TV

Securing the TV

(KV-PF21K70 only)

To prevent the TV from falling, secure the TV using one of the following methods:

AWith the supplied screws, attach the band to the TV stand and to the rear of

the TV using the provided hole.

BPut the cord or chain through the clamps to secure the TV against a wall or

pillar.

Note

• Use only the supplied screws. Use of other screws may damage the TV.

3.8 mm

8Using Your New TV

Presetting

channels

You can preset up to 125 TV channels in

numerical sequence from program

number 1 using the remote and the

buttons on your TV as well.

Presetting channels automatically

1Press POWER on the TV to

turn on the TV.

2Press CABLE to select

“CABLE: ON”.

3Press AUTO PROGRAM.

Notes

• If you select “CABLE: ON”, you will receive cable TV program.

If there is no cable TV programs, you will receive VHF or UHF broadcast

channel.

• If you select “CABLE: OFF”, you will receive VHF or UHF broadcast

channels only.

123

789

POWER

DISPLAY

VIDEO

MUTING

MTS

SOUND

MODE

FAVORITE

WAKE UP

SLEEP

CABLE

AUTO

PROGRAM

ADD/

ERASE

JUMP

ENT

CHVOL

SELECT

PIC MODE

AUTO

PROGRAM

123

AUTO PROGRAM

CABLE

POWER

CABLE : ON

CABLE

Using Your New TV

Presetting the channels

manually

To receive a new channel or a channel with a weak signal, preset the channel

manually.

1Press number buttons to select the desired channel, then press ENT.

2Press ADD/ERASE.

“+” appears beside the

channel number, indicating

that presetting is complete.

Disabling channels

By disabling unused or unwanted channels, you can skip those channels when you

press CH +/–.

1Press CH +/– until the unused or unwanted channel appears on the screen.

2Press ADD/ERASE.

“–” appears beside the

channel number, indicating

that disabling is complete.

To cancel the skip setting

Preset the channel automatically again.

ADD/

ERASE

–25

+25

ADD/

ERASE

ADD/ERASE

ENT

CH +/–

Number buttons

123

789

SOUND

MODE

FAVORITE

WAKE UP

SLEEP

CABLE

AUTO

PROGRAM

ADD/

ERASE

JUMP

ENT

CHVOL

SELECT

PIC MODE

10 Using Your New TV

1Press POWER to turn on

the TV.

When the TV is in the

standby mode (the STANDBY

indicator on the TV is lit red),

press POWER on the remote

or CHANNEL +/– on the TV.

2To select the TV program,

press the number buttons

and then press ENT, or

press CH +/–.

3Press VOL +/– to adjust

the volume.

Watching the TV

This section explains functions used

while watching the TV. Most operations

can be done using the remote.

MUTING

Number buttons

+ or –

123

789

POWER

DISPLAY

VIDEO

MUTING

MTS

SOUND

MODE

FAVORITE

WAKE UP

SLEEP

CABLE

AUTO

PROGRAM

ADD/

ERASE

JUMP

ENT

CHVOL

SELECT

PIC MODE

JUMP

VOL

123

456

ENT

VOL +/–

DISPLAY

POWER

VIDEO

CH +/–

SELECT

WAKE UP

SLEEP

POWER

CHANNEL

POWER
