Sony BKPF-R70 Manual de usuario

ROUTING SWITCHER CONTROLLER

BKPF-R70

INSTALLATION MANUAL

1st Edition

Serial No. 10001 and Higher

!WARNING

This manual is intended for qualified service personnel only.

To reduce the risk of electric shock, fire or injury, do not perform any servicing other than that

contained in the operating instructions unless you are qualified to do so. Refer all servicing to

qualified service personnel.

!WARNUNG

Die Anleitung ist nur für qualifiziertes Fachpersonal bestimmt.

Alle Wartungsarbeiten dürfen nur von qualifiziertem Fachpersonal ausgeführt werden. Um die

Gefahr eines elektrischen Schlages, Feuergefahr und Verletzungen zu vermeiden, sind bei

Wartungsarbeiten strikt die Angaben in der Anleitung zu befolgen. Andere als die angegeben

Wartungsarbeiten dürfen nur von Personen ausgeführt werden, die eine spezielle Befähigung

dazu besitzen.

!AVERTISSEMENT

Ce manual est destiné uniquement aux personnes compétentes en charge de l’entretien. Afin

de réduire les risques de décharge électrique, d’incendie ou de blessure n’effectuer que les

réparations indiquées dans le mode d’emploi à moins d’être qualifié pour en effectuer d’autres.

Pour toute réparation faire appel à une personne compétente uniquement.

1 (E)

BKPF-R70

Table of Contents

Manual Structure

Purpose of this manual ........................................................................................ 3 (E)

Contents ............................................................................................................... 3 (E)

Related manuals................................................................................................... 4 (E)

1. Installation

1-1. Installing the Board ...............................................................................1-1 (E)

1-2. System Configuration............................................................................1-3 (E)

1-3. Components...........................................................................................1-4 (E)

1-4. Location and Function of the Connectors .............................................1-4 (E)

1-5. Connecting Connectors and Cables ......................................................1-5 (E)

1-6. Signal Input/Output ...............................................................................1-6 (E)

1-7. Location and Function of Switches/ LEDs ...........................................1-7 (E)

1-8. Connection ..........................................................................................1-11 (E)

1-9. The Cautions Relative to Power Supply .............................................1-12 (E)

1-10. Setup....................................................................................................1-12 (E)

1-11. ISR (Interactive Status Reporting) ......................................................1-14 (E)

3 (E)

BKPF-R70

Purpose of this manual This manual is the installation manual of Routing Switcher Controller BKPF-R70.

This manual is intended for use by trained system and service engineers, and

describes the information for installing.

Contents This manual is organized by following sections.

Section 1 Installation

1-1. Installing the Board

This section explains the board installation into the Digital Video Interface Unit

PFV-D20/D50/D100A/D200A/D300, with taking PFV-D300 as an example.

1-2. System Configuration

This section explains the connection between BKPF-R70 and switchers, remote

control units, monitors, and a personal computer.

1-3. Components

This section explains the items composed BKPF-R70.

1-4. Location and Function of the Connectors

This section explains the location and function of connectors at the rear panel.

1-5. Connecting Connectors and Cables

This section explains the type of connectors at the rear panel and the matching

connectors and cables.

1-6. Signal Input/Output

This section explains the connector pin assignments at the rear panel.

1-7. Location and Function of Switches/ LEDs

This section explains the name and function of the switches and LEDs on the

CPU-256 board and factory setting.

1-8. Connection

This section explains the precautions when connecting the BKPF-R70 to the

system.

1-9. The Cautions of Power-ON

This section explains the precautions in power on when the backup BKPF-R70 is

installed in another PFV which installs the main BKPF-R70.

Manual Structure

4 (E) BKPF-R70

1-10. Setup

This section explains the connection (between BKPF-R70 and a control terminal)

and the sample screen when sets the devices connecting to the S-BUS line.

1-11. ISR (Interactive Status Reporting)

This section explains the overview of the ISR system.

Related manuals The following manuals are prepared for BKPF-R70.

• Operation Manual (Supplied with BKPF-R70)

This manual describes the notes on operating, and the locations and functions of

parts and controls of BKPF-R70.

• Maintenance Manual (Optional manual)

This manual describes the information for periodic maintenance and detailed

service.

For obtaining the maintenance manual, please contact to your local Sony’s sales/

service office.

1-1 (E)

BKPF-R70

1-1. Installing the Board

This section describes how to install the board into the

PFV-D300. If the board is installed into other PFV, refer to

the manual supplied with the PFV. The board can be

installed in any slot of the PFV-D300.

Turn off the power of the PFV-D300 and unplug the power

plug from the outlet before installing or removing the

board.

Main board installation

1. Loosen the four screws (with stoppers) and remove the

front panel.

2. Remove the six screws and remove the board retainers.

Fig1-01E

Section 1

Installation

3. Insert the main board along the board guide rails.

Fig1-02E

PSW 3x6

PSW 3x6Board retainers

Board guide rail

Component side

Main board

1-2 (E) BKPF-R70

Connector panel installation

Insert the connector panel to the slot in which the main

board has been installed.

1. Remove the two screws at the slot which the main

board has been installed and remove the blank panel.

Keep the removed blank panel.

fig1-04E

2. Insert the connector panel.

3. Secure the connector panel with the two screws

securing the blank panel.

fig1-05E

Do not open the slot for air-cooled effect of the

PFV-D300. Install the blank panel to a dead slot.

4. Turn the board levers in the direction of the arrows 1

after inserting the main board to the end of the slot by

hand.

Fig1-03E

5. Stick the slot label supplied with the optional board

onto the board lever.

6. Install the board retainers.

7. Install the front panel.

When removing the main board, turn the board levers in

the direction of the arrows 2, and pull out the board

toward you.

1Install

2Remove

Board

lever

Board

lever

B 3x6

Blank panel

B 3x6

Connector panel

1-1. Installing the Board

1-3 (E)

BKPF-R70

1-2. System Configuration

fig1-06E

.Terminal Emulator Software

.Data Backup Software (BZR-10)

REMOTE 3

Routing Switcher Controller

BKPF-R70

(A)

ABC

Routing Switcher Controller

BKPF-R70

(B)

ABC

REMOTE 1

BKS-R3210

BKS-R3209

DVS-V6464B

BKPF-300

(PFV-D300)

BKDS-7700

BKS-R3281

DVS-7000

RS-422A

Digital Video Interface Unit (PFV-xxx)

: S-BUS

: RS-232C

: RS-422A

: T bridge (B)

: 75 Zterminator

(A) and (B) of the BKPF-R70 mean

the main (A)/backup (B) switch setting

on the board.

Primary

station

Secondary

station

Personal computer

1-2. System Configuration

1-4 (E) BKPF-R70

1-3. Components

The BKPF-R70 is composed of the following items.

.Main board (CPU-256 board) (1)

.Connector panel (CN-1515 board) (1)

.Operation Manual (1)

.Installation Manual (1)

.Slot number label (1)

.Data Backup Software (BZR-10) (1)

1-4. Location and Function of the Connectors

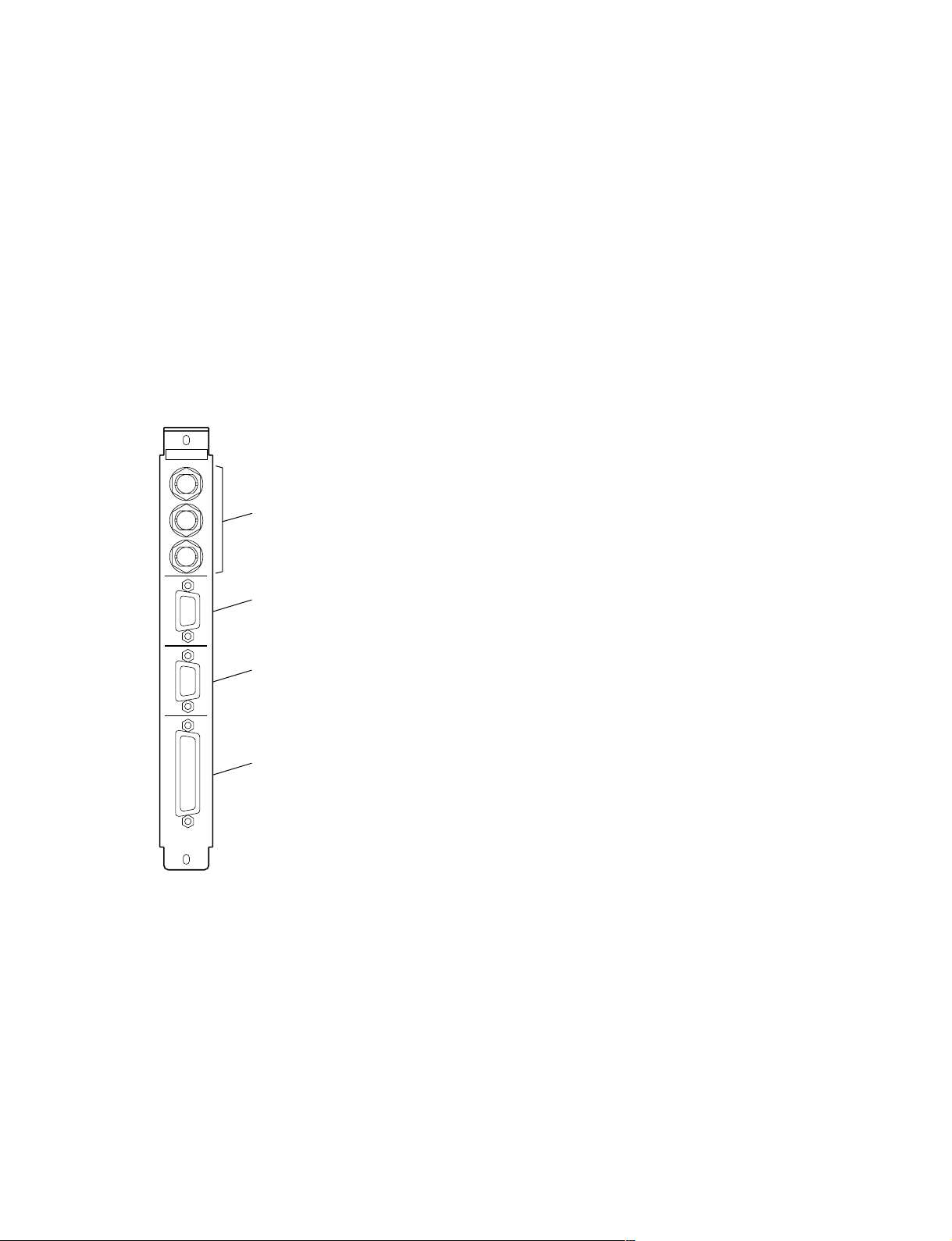

fig1-08E

1REMOTE 1 connectors (BNC type)

These connectors are used for S-BUS control.

The devices of the secondary station can be

connected to the A, B, or C connectors.

For the fast-response communication, connect the

devices as follows.

Connector A: Routing switchers

Connector B and C: Remote control units

2REMOTE 2 connector (D-sub 9-pin type)

This connector is used for RS-422A control.

The control command input from this connector is

converted to S-BUS (REMOTE 1) in the

BKPF-R70.

3REMOTE 3 connector (D-sub 9-pin type)

This connector is used for RS-232C control.

4MAIN-BACKUP connector (D-sub 25-pin type)

This connector is used to connect between the main

board and backup board.

If connects the backup board to the main board and

installs two boards in a PFV, the PFV has a dual

controller.

1-3. Components

1-4. Location and Function of the Connectors

MAIN-BACKUP

BKPF-R70

REMOTE 3

RS232C A

REMOTE 2

C B A

REMOTE 1

CONTROLLER
