SERVICE MANUAL

9-929-573-11 Sony Corporation

2001B0500-1 Audio Entertainment Group

C2001.2 General Engineering Dept.

Ver 1.0 2001.02

SPEAKER SYSTEM

US Model

Canadian Model

E Model

SS-CN295/CR305/SR305

SPECIFICATIONS

[SS-CN295]

Speaker system 2-way, magnetically shielded

Speaker units Woofer: 12 cm, cone type ×2

Tweeter: 2.5 cm, balance drive type

Enclosure type Bass reflex

Rated impedance 8 ohms

Power handling capacity Maximum input power: 120 watts

Sensitivity level 89 dB (1 W, 1 m)

Frequency range 85 Hz - 20,000 Hz

Dimensions (w/h/d) Approx. 380 ×150 ×168 mm, not including

front grill

Mass Approx. 3.5 kg

Supplied accessories Speaker cord 2.5 m (1)

Foot (4)

[SS-SR305]

Speaker system Full range

Speaker unit 12 cm, cone type

Enclosure type Bass reflex

Rated impedance 8 ohms

Power handling capacity Maximum input power: 100 watts

Sensitivity level 86 dB (1 W, 1 m)

Frequency range 85 Hz - 20,000 Hz

Dimensions (w/h/d) Approx. 190 ×150 ×168 mm, not including

front grill

Mass Approx. 1.5 kg

Supplied accessory Speaker cord 10 m (2)

Design and specifications are subject to change without notice.

Photo: SS-SR305Photo: SS-CN295

SS-CR305

Center Speaker SS-CN295

Surround Speaker SS-SR305

COMPONENT MODEL NAME FOR THESE SYSTEM

SS-CR305 is composed of following models.

• SS-CN295 is sold as single model too.

SS-CN295/CR305/SR305

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

1 X-4953-666-1 FRAME ASSY, GRILLE

2 4-874-614-11 SCREW (4) (3.5X14), TAPPING

3 A-4735-201-A CABINET (CN) ASSY, SPEAKER

4 1-537-332-11 TERMINAL BOARD

5 1-775-758-11 LEAD (WITH CONNECTOR)

SP1 1-544-804-11 SPEAKER (12cm)

SP2 1-544-778-11 SPEAKER (2cm)

EXPLODED VIEWS AND PARTS LIST

• The mechanical parts with no reference num-

ber in the exploded views are not supplied.

NOTE:

• Items marked “*” are not stocked since they

are seldom required for routine service. Some

delay should be anticipated when ordering

these items.

• Color Indication of Appearance Parts

Example:

KNOB, BALANCE (WHITE) . . . (RED)

↑↑

Parts Color Cabinet's Color

•Abbreviation

CND: Canadian

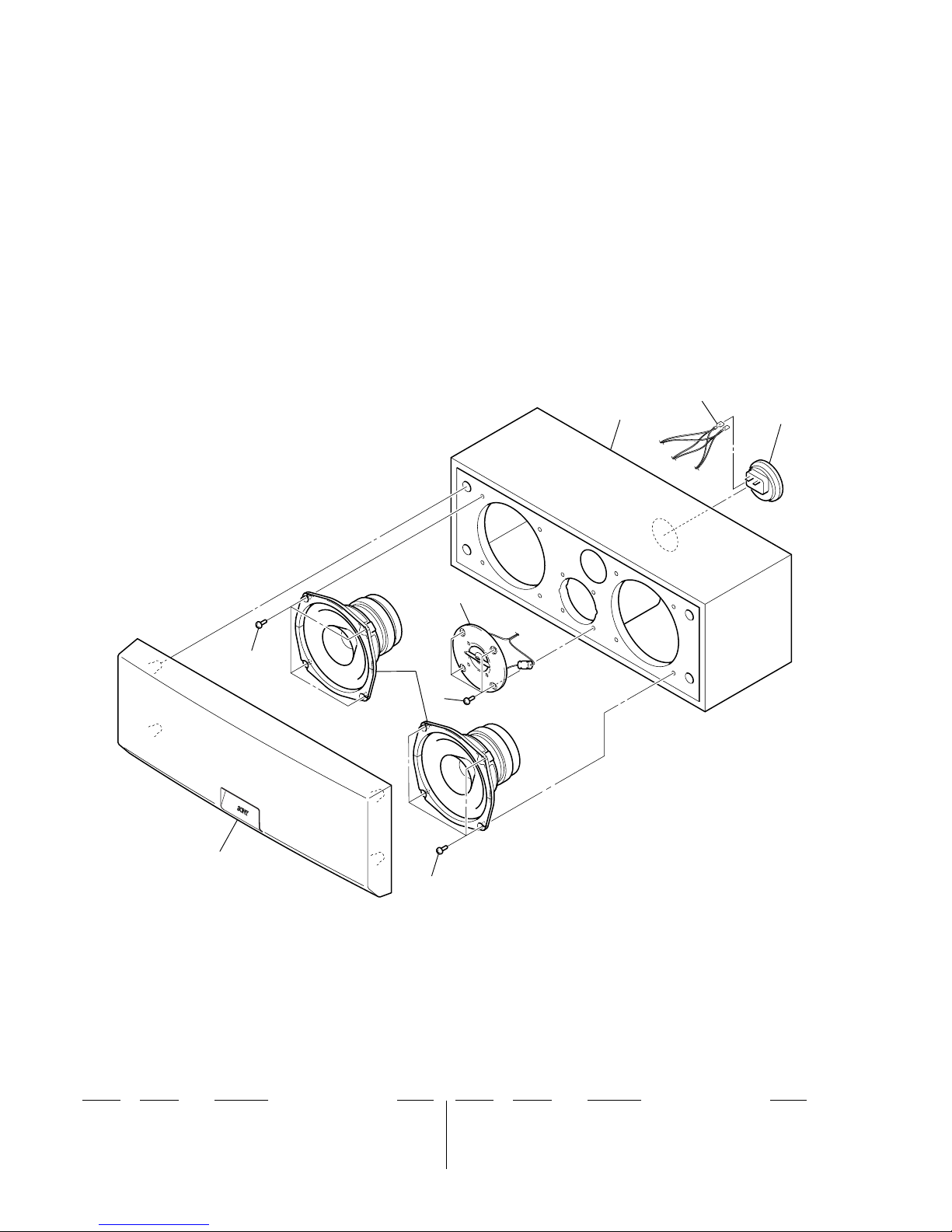

(1) SS-CN295

SP1

SP2

SS-CN295/CR305/SR305

(2) SS-SR305

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

1 X-4953-751-1 FRAME ASSY (SR), GRILLE

2 4-874-614-11 SCREW (4) (3.5X14), TAPPING

3 A-4735-199-A CABINET (SR) ASSY, SPEAKER

4 4-983-074-01 BRACKET, HOOK

5 7-621-849-10 SCREW, WOOD +R 3.1X13

6 1-537-332-11 TERMINAL BOARD

7 1-775-758-11 LEAD (WITH CONNECTOR)

SP1 1-544-805-11 SPEAKER (12cm)

SP1

SS-CN295/CR305/SR305

Ref. No. Part No. Description Remark

ACCESSORIES & PACKING MATERIALS

*******************************

1-769-433-11 CORD, SPEAKER (10m) (for SS-SR305)

1-769-433-21 CORD, SPEAKER (2.5m) (for SS-SR295)

4-234-104-11 MANUAL, INSTRUCTION

(ENGLISH, FRENCH, SPANISH, PORTUGUESE,

TRADITIONAL CHINESE,

SIMPLIFIED CHINESE)

4-234-201-11 MANUAL, INSTRUCTION

(ENGLISH, FRENCH, SPANISH, PORTUGUESE,

TRADITIONAL CHINESE,

SIMPLIFIED CHINESE) (SS-CN295)

4-972-322-01 FOOT (Y)

SS-CN295/CR305/SR305

MEMO

SS-CN295/CR305/SR305

REVISION HISTORY

Clicking the version allows you to jump to the revised page.

Also, clicking the version at the upper right on the revised page allows you to jump to the next revised

page.

Ver. Date Description of Revision

1.0 2001.02 New
