Sony SS-CT71 Manual de usuario

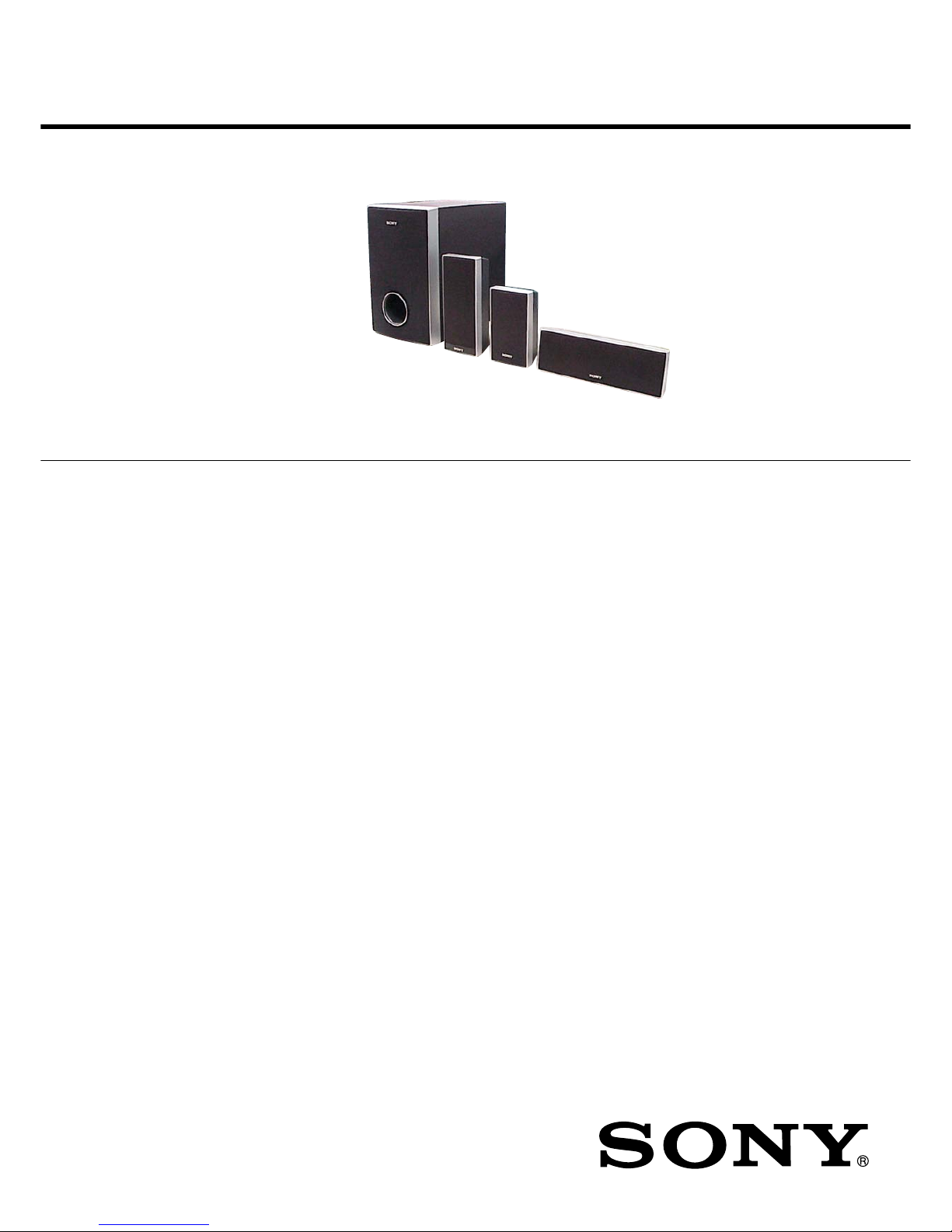

SERVICE MANUAL

Sony Corporation

Home Audio Division

Published by SonyTechno Create Corporation

US Model

Canadian Model

SS-CT71/TS71/TS72/WS71

AEP Model

UK Model

SS-CT71/TS71/WS71

E Model

SS-CT71/TS71

Australian Model

SS-CT71/TS71/TS72

SPEAKER SYSTEM

9-887-522-03

2007D16-1

Ver. 1.2 2007.04

SS-CT71/TS71/TS72/WS71

•SS-CT71 is the speaker section in

DAV-DZ150K/DZ151KB/DZ230/DZ231/

DZ250M/DZ530/DZ555K/DZ555M/DZ556KB/

DZ630/DZ750K/HDX265/HDX266/HDX267W/

HDX465/HDX466/HDX665/HDZ235.

•SS-TS71 is the speaker section in

DAV-DZ150K/DZ151KB/DZ230/DZ231/

DZ250M/DZ530/DZ555K/DZ555M/DZ556KB/

HDX265/HDX266/HDX267W/HDX465/

HDX466/HDX501W/HDZ235.

•SS-TS72 is the speaker section in DAV-HDX265/

HDX266/HDX267W/HDX500/HDZ235.

•SS-WS71 is the speaker section in DAV-DZ230/

DZ231/DZ530/DZ630/HDZ235.

SPECIFICATIONS

SS-WS71 SS-TS72

SS-CT71

SS-TS71

SS-TS72

Speaker system Bass reflex, magnetically

shielded

Speaker unit 65 mm (2 5/

inches) dia,

cone type

Rated impedance 3.0 ohms

Dimensions (approx.) 93 ×221 ×75 mm (3 5/

8 3/

×3 inches) (w/h/d)

Mass (approx.) 0.7 kg (1 lb 9 oz)

SS-CT71

Speaker system Bass reflex, magnetically

shielded

Speaker unit 65 mm (2 5/

inches) dia,

cone type

Rated impedance 3.0 ohms

Dimensions (approx.) 261 ×91 ×80 mm (10 3/

3 5/

×3 1/

inches) (w/h/d)

Mass (approx.) 0.7 kg (1 lb 9 oz)

SS-TS71

Speaker system Bass reflex, magnetically

shielded

Speaker unit 65 mm (2 5/

inches) dia,

cone type

Rated impedance 3.0 ohms

Dimensions (approx.) 93 ×162 ×75 mm (3 3/

6 1/

×3 inches) (w/h/d)

Mass (approx.) 0.6 kg (1 lb 6 oz)

SS-WS71

Speaker system Bass reflex, magnetically

shielded

Speaker unit 160 mm (6 3/

inches) dia,

cone type

Rated impedance 3.0 ohms

Dimensions (approx.) 197 ×322 ×345 mm (7 7/

×12 3/

×13 5/

inches)

(w/h/d)

Mass (approx.) 5.6 kg (11 lb 15 oz)

Design and specifications are subject to change

without notice.

SS-CT71/TS71/TS72/WS71

EXPLODED VIEWS

NOTE:

•The mechanical parts with no reference

numberin the exploded viewsarenot supplied.

•XX and -X mean standardized parts, so they

may have some difference from the original

one.

•Abbreviation

AR : Argentine model

AUS:Australian model

CND : Canadian model

E3 : 220 – 240V AC area in E model

E12 : 220 – 240V AC area in E model

SS-CT71/TS71/TS72

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

1A-1218-472-A SS-CT71 (AEP, UK, RU, E12, E3, SP)

1A-1218-473-A SS-CT71 (US, CND, KR, AUS)

1A-1218-474-A SS-CT71 (AR, MX, E32)

1A-1247-089-A SS-CT71 (EA)

2A-1218-412-A SS-TS71 FL (for FRONT L ch)

(AEP, UK, RU, E12, E3, SP)

2A-1218-413-A SS-TS71 FR (for FRONT R ch)

(AEP, UK, RU, E12, E3, SP)

2A-1218-414-A SS-TS71 SL (for SURROUND L ch)

(AEP, UK, RU, E12, E3, SP)

2A-1218-415-A SS-TS71 SR (for SURROUND R ch)

(AEP, UK, RU, E12, E3, SP)

2A-1218-416-A SS-TS71 FL (for FRONT L ch) (KR, AUS)

2A-1218-417-A SS-TS71 FR (for FRONT R ch) (KR, AUS)

2A-1218-418-A SS-TS71 SL (for SURROUND L ch)

(US, CND, KR, AUS)

2A-1218-419-A SS-TS71 SR (for SURROUND R ch)

(US, CND, KR, AUS)

2A-1218-420-A SS-TS71 FL (for FRONT L ch) (AR, E32, MX)

2A-1218-421-A SS-TS71 FR (for FRONT R ch) (AR, E32, MX)

2A-1218-422-A SS-TS71 SL (for SURROUND L ch)

(AR, E32, MX)

2A-1218-423-A SS-TS71 SR (for SURROUND R ch)

(AR, E32, MX)

2A-1247-088-A SS-TS71 (EA)

3A-1221-365-A SS-TS72 FL (for FRONT L ch) (US, CND, AUS)

3A-1221-366-A SS-TS72 FR (for FRONT R ch) (US, CND, AUS)

3A-1221-367-A SS-TS72 SL (for SURROUND L ch) (US, CND)

(for HDX500)

3A-1221-368-A SS-TS72 SR (for SURROUND R ch) (US, CND)

(for HDX500)

3A-1256-952-A SS-TS72 FL (for FRONT L ch) (E3)

3A-1256-953-A SS-TS72 FR (for FRONT R ch) (E3)

Ver. 1.2

E32 : 110 – 240V AC area in E model

EA : Saudi Arabia model

KR : Korean model

MX : Mexican model

RU : Russian model

SP : Singapore model

SS-CT71/TS71/TS72/WS71

SS-WS71

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

51 A-1218-491-A OVERALL ASSY (SS-WS71)

52 X-2159-721-1 GRILLE FRAME ASSY

not

supplied not

supplied

not

supplied

SP1

53 2-893-658-01 FRONT PANEL (S)

SP1 1-826-552-11 LOUDSPEAKER (16CM)

REVISION HISTORY

Clicking the version allows you to jump to the revised page.

Also, clicking the version at the upper right on the revised page allows you to jump to the next revised

page.

SS-CT71/TS71/TS72/WS71

Ver. Date Description of Revision

1.0 2007.01 New

1.1 2007.02

Addition of Argentine,Australian, E12 (220

–

240V AC area in E model),

E3 (220

–

240V AC area in E model), E32 (110

–

240V AC area in E

model), Saudi Arabia, Mexican and Singapore model for SS-CT71/TS71

Addition of Australian model for SS-TS72

1.2 2007.04 Addition of Russian model and Korean model for SS-CT71/TS71

Addition of E3 (220 – 240V AC area in E model) model for SS-TS72
