Sony XC-ST51 Manual de usuario
2003 Sony Corporation
CCD Black-and-White
Video Camera Module
XC-ST51/ST51CE
XC-ST50/ST50CE
XC-ST30/ST30CE
A-BG7-100-11 (1)
Technical Manual
2
XC-ST51/ST51CE
XC-ST50/ST50CE
XC-ST30/ST30CE
Table of Contents
Overview
Features ..................................................................... 3
System Components................................................. 4
Connection Diagram ................................................. 5
Location and Function of Parts and Controls ........ 6
Front/Top/Bottom........................................................ 6
Rear Panel ................................................................. 7
Mode Settings
About the Electronic Shutter.................................... 9
DIP Switches on the Rear Panel ................................ 9
Normal Shutter ........................................................... 9
External Trigger Shutter.............................................. 9
Restart/Reset ........................................................... 10
To Set Restart/Reset Mode ...................................... 10
ExternalTrigger Shutter .......................................... 12
To Set the External Trigger Shutter .......................... 12
Timing Chart ............................................................ 14
When set to Mode 1 (Non-reset mode).................... 14
When set to Mode 2 (Reset mode) .......................... 20
Specifications
Specification Comparison ...................................... 22
Main Specifications................................................. 22
Spectral Response Characteristics
(TypicalValue) ....................................................... 24
Comparison of Spectral Response Characteristics
(TypicalValue) ....................................................... 24
CCD Output WaveformTiming Chart ..................... 25
XC-ST51/ST50/ST30 ............................................... 25
XC-ST51CE/ST50CE/ST30CE ................................ 27
Dimensions .............................................................. 29
Various Lens Selection ........................................... 30
XC-ST51/ST51CE, XC-ST50/ST50CE and
XC-ST30/ST30CE compatibility ............................ 30
3
Overview
XC-ST51/ST51CE
XC-ST50/ST50CE
XC-ST30/ST30CE
Overview
The XC-ST series is a monochrome video camera
module using an interline transfer CCD (Charge
Coupled Device) solid state image sensor.
Features
High image quality
The interline transfer CCD provides a high-resolution
image with 768 (H) ×494 (V) pixels (XC-ST51/ST50/
ST30) or 752 (H) ×582 (V) pixels (XC-ST51CE/
ST50CE/ST30CE).
Various mode settings
Rear panel switches allow the following mode settings.
•Gain: Auto/Fixed/Manual
•
γ
compensation
•Synchronized input/output
•Potential accumulation: FRAME/FIELD
•75 Ωtermination
•Trigger pulse polarity: +/–
•Shutter speed: Normal/Trigger shutter
External synchronization
HD (horizontal drive), VD (vertical drive) signals:
The camera module automatically determines
whether to operate in interlace or noninterlace
mode from the HD and VD signals input for
external synchronization.
VS (Video/Sync) signals: External synchronization
with a video or composite sync signal. (The unit
switches automatically between HD/VD and VS
synchronization.)
Internal sync signal output
You can output the HD and VD signals from the 12-
pin connector by changing the rear panel switch.
Electronic shutter function
Shutter speed can be selected from a wide range (1/125
to 1/10000 sec.) or in flickerless (FL) mode.
Body fixing
These mounting screw holes are provided in the
reference plane on the lower surface of the body,
allowing mounting with the absolute minimum
deviation of the optical axis.
The connector complies with the new EIAJ
12-pin pin assignment.
The new pin arrangement allows the connector to
accept a trigger pulse and a WEN signal.
4
Overview
XC-ST51/ST51CE
XC-ST50/ST50CE
XC-ST30/ST30CE
System Components
The followings are the components making up the
system based on XC-ST51/ST51CE, XC-ST50/
ST50CE, and XC-ST30/ST30CE Video Camera
Module.
Video camera module
XC-ST51/ST51CE
XC-ST50/ST50CE
XC-ST30/ST30CE
Camera cables
CCXC-12P02N (2 m)
CCXC-12P05N (5 m)
CCXC-12P10N (10 m)
CCXC-12P25N (25 m)
Camera adaptor
DC-700/700CE
Tripod adaptor
VCT-ST70I (Isolated
type)
C-mount lenses
VCL-50Y-M
VCL-25Y-M
VCL-16Y-M
VCL-12YM
VCL-08YM
Close-up ring kit
LO-77ERK
Junction box
JB-77
5
Overview
XC-ST51/ST51CE
XC-ST50/ST50CE
XC-ST30/ST30CE

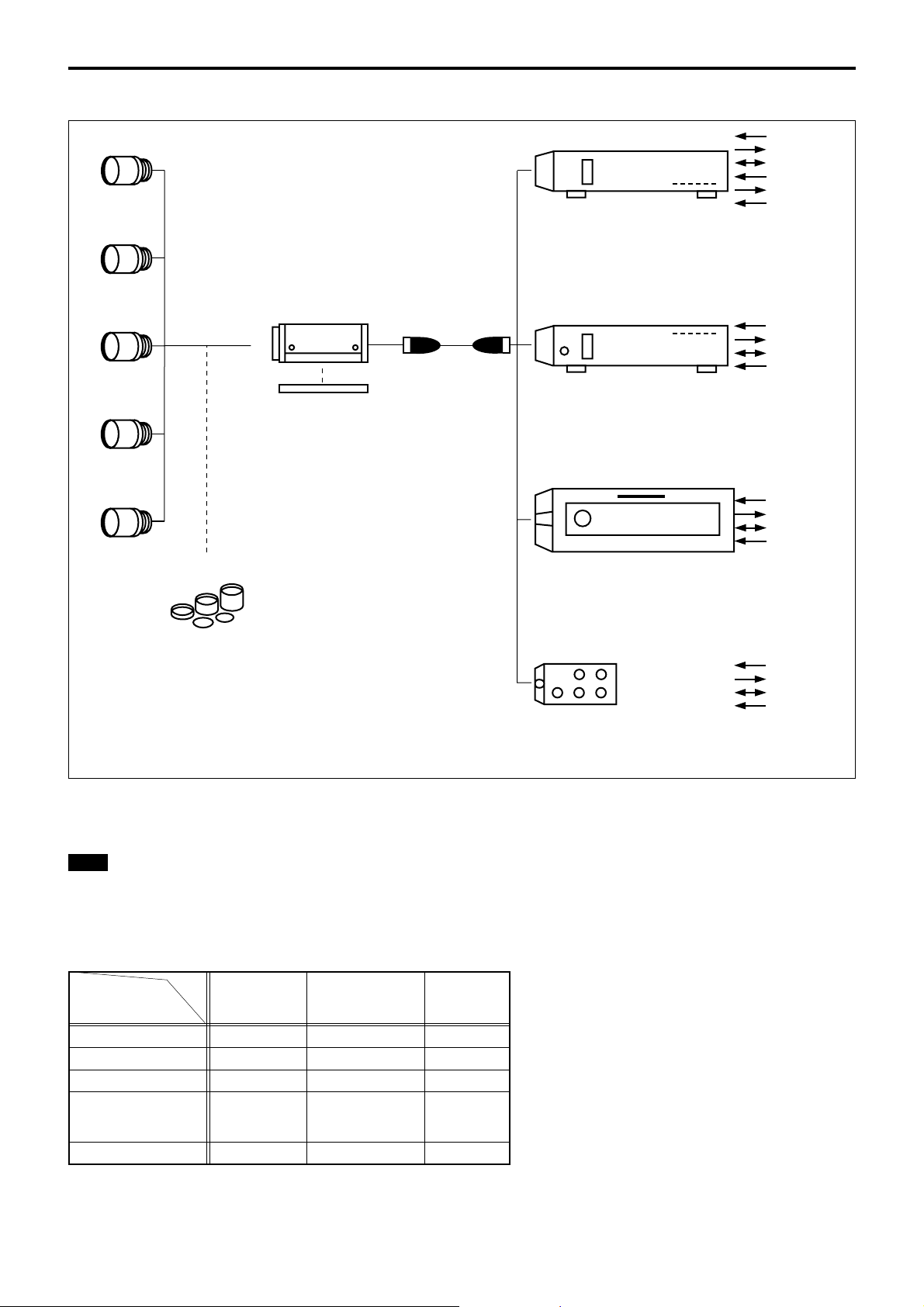

Connection Diagram
LO-77ERK
VCL-08Y-M
VCL-12Y-M
VCL-16Y-M
VCL-25Y-M
XC-ST50/ST50CE
XC-ST30/ST30CE
XC-ST51/ST51CE
Tripod adaptor
VCT-ST70I
CCXC-12P02N
C-mount lens
Close-up ring kit
VCL-50Y-M
AC
VIDEO OUT
VS
*2
HD/VD
*1
AC
VIDEO OUT
VS
*2
*3
*3
HD/VD
*1
AC
VIDEO OUT
VS
*2
HD/VD
*1
TRIG
WEN
DC +12 V
VIDEO OUT
VS
*2
HD/VD
*1
Camera cable
Camera adaptor
DC-77RR/77RRCE
(No trigger input terminal is provided.)
Camera adaptor
DC-777/777CE
(No trigger input terminal is provided.)
Camera adaptor
DC-700/700CE
(Conforms to new EIAJ and uses 12-pin assignment.)
Junction box
JB-77
(No trigger input terminal is provided.)
CCXC-12P05N
CCXC-12P10N
CCXC-12P25N
*1: An HD/VD signal cannot be used simultaneously with a VS signal.
*2: A VS signal cannot be used simultaneously with an HD/VD signal.
*3: Production and sale have been discontinued.
Note
Not all functions of the XC-ST51/ST51CE, XC-ST50/
ST50CE and XC-ST30/ST30CE can be used when
using DC-777/777CE, DC-77RR/77RRCE, and JB-77.
Refer to the table shown below.
XC-ST51/ST51CE
XC-ST30/ST30CE
DC-777/777CE DC-77RR/77RRCE JB-77
XC-ST50/ST50CE
Normal aaa
Normal shutter aaa
Restart/Reset aaa
Restart/Reset
+aaa
shutter
External trigger shutter ×××
a: Can be used.
×: Cannot be used.
6
Overview
XC-ST51/ST51CE
XC-ST50/ST50CE
XC-ST30/ST30CE
Location and Function of Parts and Controls
Front/Top/Bottom
1Lens mount (C-mount)
Attach any C-mount lens or other optical equipment.
Note
The lens must not project more than 7 mm (9/32 inch)
from the lens mount.
2Reference holes (at the top)
These precision screw holes are for locking the camera
module. Locking the camera module using these holes
secures the optical axis alignment.
3Reference holes/Tripod screw holes (at the
bottom)
These precision screw holes are for locking the camera
module. Locking the camera module using these holes
secures the optical axis alignment.
You can install the camera on a tripod. To install on a
tripod, you will need to install the VCT-ST70I tripod
adaptor using the reference holes on the bottom of the
camera.
1
2
3
Lens mount (C-mount)
Reference holes
Reference holes/Tripod screw holes
7
Overview
XC-ST51/ST51CE
XC-ST50/ST50CE
XC-ST30/ST30CE
1
2
3
Rear Panel
1HD/VD signal input/output switch
Set the switch to INT to output HD/VD signals from
the camera module.
Set the switch to EXT to input HD/VD signals from an
external unit. (Factory setting: EXT)
2VIDEO OUT (Video signal output) connector
(BNC)
You can use this connector for video signal output
from the camera module.
3
γ
compensation ON/OFF switch
Turn on this switch for γcompensation. (Factory
setting: OFF)
4GAIN switch
This switch selects AGC (A), fixed gain (F), or manual
gain control (M). (Factory setting: F)
5Manual gain control
Adjust the gain using this control. GAIN switch 4
must have been set to M (Manual).
6Shutter speed/Mode setting DIP switch
1Shutter speed (bits 1 – 4)
Set an appropriate shutter speed. (Factory
setting: Shutter off)
2Potential accumulation mode (bit 5)
Factory setting: FRAME
3Restart reset/External trigger shutter mode
switch (bits 6 – 8)
Factory setting: Normal
Notes
• Do not use any other settings for Restart reset/
External trigger shutter mode except those
shown in page 12. Using other settings may
cause the camera to malfunction.
• If you set the External trigger shutter mode, set
0 in bits 1 – 4.
775 Ωtermination switch
Turn off if you do not terminate. (Factory setting: ON)
8TRIG polarity switch
Select + or – according to the trigger pulse input from
an external unit. (Factory setting: +)
9DC IN/SYNC (DC power input/sync signal I/O)
connector (12-pin)
Connect a CCXC-12P05N camera cable to this
connector the +12 V DC power supply and the video
signal output from the camera module. When a sync
signal generator is connected to this connector, the
camera module is synchronized with the external sync
signals.
1HD/VD signal input/output switch
2VIDEO OUT (Video signal output)
connector (BNC)
3γcompensation ON/OFF switch
4GAIN switch
5Manual gain control
9DC IN/SYNC (DC power input/sync
signal I/O) connector (12-pin)
8TRIG polarity switch
775 Ωtermination switch
6Shutter speed/Mode
setting DIP switch
8
Overview
XC-ST51/ST51CE
XC-ST50/ST50CE
XC-ST30/ST30CE
DC IN/SYNC connector pin assignments
Pin No. Camera sync output
External mode (HD/VD) External mode (VS)
Restart/Reset External trigger shutter
1Ground Ground Ground Ground Ground
2+12V DC +12V DC +12V DC +12V DC +12V DC
3Video output (Ground) Video output (Ground) Video output (Ground) Video output 1 (Ground) Video output (Ground)
4Video output (Signal) Video output (Signal) Video output (Signal) Video output 1 (Signal) Video output (Signal)
5HD output (Ground) HD input (Ground) — HD input (Ground) HD input (Ground)
6HD output (Signal) HD input (Signal) — HD input (Signal) HD input (Signal)
7VD output (Signal) VD input (Signal) VS input (Signal) Reset (Signal) VD input (Signal)
8— — ———
9— — ———
10 — — — — WEN output (Signal)
11 — — — —
Trigger pulse input (Signal)
12 VD output (Ground) VD input (Ground) VS input (Ground) Reset (Ground) Reset (Ground)*
Rear panel
Factory mode settings of rear panel
No. Switch Factory setting mode
1HD/VD signal input/output switch EXT
2
γ
compensation ON/OFF switch OFF
3GAIN switch F
4Manual gain control – 1)
5Shutter speed/Mode Shutter speed (bits 1 – 4) Shutter OFF
setting DIP switches Potential accumulation mode (bit 5) FRAME
Restart reset/External trigger shutter mode switch (bits 6 – 8) Normal
675Ωtermination switch ON
7TRIG polarity switch +
1) This unit is shipped from the factory with the GAIN switch being set to F
(fix), so the Manual gain control knob is not operative unless the switch
setting is changed. When the GAIN switch is set to M (manual), you can
rotate this knob to adjust gain over the range 0 to 18 dB.
4
3
2
1
6
7
5
9
Mode Settings
XC-ST51/ST51CE
XC-ST50/ST50CE
XC-ST30/ST30CE
Mode Settings
About the Electronic
Shutter
There are two shutter types: normal shutter and
external trigger shutter. Select them with the DIP
switches on the rear panel.
DIP Switches on the Rear Panel
Normal Shutter
This mode provides continuous video output with the
electronic shutter selected by switches to capture a
high-speed moving object clearly.
Rear panel
DIP switches
Switches 1 to 4: Shutter speed
Switch 5: Potential accumulation mode
Switches 6 to 8: Restart reset/External trigger
shutter mode switch 1) If you set the mode to flickerless, the positions of DIP
switches 1 to 3 are optional.
Note
The DIP switch 5 position is optional. (The field
setting is recommended.) The field setting can obtain a
sensitivity that is twice that of the frame setting.
ExternalTrigger Shutter
By inputting an external trigger pulse, the camera is
able to capture fast-moving objects clearly.
For more information, see “External Trigger Shutter” (page
12).
Normal shutter speed settings
(Unit: seconds)
Shutter
OFF 1/125 1/250 1/500 1/1000
1/2000 1/4000 1/10000 Flickerless1)
1/100 (EIA)
1/120 (CCIR)
10
Mode Settings
XC-ST51/ST51CE
XC-ST50/ST50CE
XC-ST30/ST30CE
Restart/Reset
To Set Restart/Reset Mode
The information on one screen can be extracted at any
time by externally inputting Restart/Reset signals (HD/
VD). To enter this mode, set the trigger shutter switches
(6 to 8) on the rear panel of the camera as shown in the
figure below.
The Reset/Restart mode is especially effective for frame
image output with long exposure or a strobe light.
Long exposure
The Restart/Reset function extends the CCD
accumulation time, resulting in highly sensitive
image capture. This function is effective when you
cannot gain satisfactory sensitivity under normal
operating conditions, or when you want to observe
the trail of a moving object. Extend the VD interval
(T) between external VD pulses.
Rear panel
DIP switches
EXT HD
TTT
EXT VD
Sample input timing chart 1
Continuous signal: 15.734 kHz (XC-ST51/ST50/ST30) Allowable frequency value ±1%,
15.625 kHz (XC-ST51CE/ST50CE/ST30CE) Allowable frequency value ±1%
VD interval (T): 262.5 H or more (XC-ST51/ST50/ST30) and less than 1 second (Recommended),
312.5 H or more (XC-ST51CE/ST50CE/ST30CE) and less than 1 second (Recommended)
Four or more VD pulses are required.
Exposure time for the Odd field
Exposure time for the Even field
Frame Accumulation (Factory setting)
Video output
Odd and even fields are determined by the phase of the EXT HD/VD signal input from the outside.
Invalid image Valid frame image
Odd image Even image
Este manual sirve para los siguientes modelos
5
Tabla de contenidos
Otros manuales de Cámara de seguridad de Sony
Sony
Sony SNC-RX550N - IPELA Network Camera Manual de usuario
Sony
Sony EVI-HD1 Manual de usuario
Sony
Sony FCB-EX980S, FCB-EX980SP, FCB-E Manual de usuario
Sony
Sony Ipela SNC-DH210T Manual de usuario
Sony
Sony IPELA SNC-DS10 Manual de usuario
Sony
Sony IPELA SNC-DH120 Manual de usuario
Sony
Sony SNC-RZ30N/2 Manual de usuario
Sony
Sony IPELA PCSA-CG70 Manual de usuario
Sony
Sony IPELA SNC-DF40N Manual de usuario
Sony
Sony XCL-C130 Manual de usuario
Sony
Sony CD-1453 Manual de usuario
Sony
Sony 1/3" DSP COLOR CAMERA Manual de usuario
Sony
Sony SNC-RS46N Manual de usuario
Sony
Sony Ipela SNC-CS50N Manual de usuario
Sony
Sony SNCVM600B Manual de usuario
Sony
Sony Ipela SNC-DH140 Manual de usuario
Sony
Sony Ipela SNC-DH240T Manual de usuario
Sony
Sony Network Video Monitoring Manual de usuario
Sony
Sony SIR-4260V Manual de usuario
Sony
Sony Ipela SNC-P1 Manual de usuario
