Sony IPELA NSR-100 Manual de usuario
NETWORK SURVEILLANCE RECORDER
NSR-100
NSR-50
NSR-25
SYSTEM SETUP MANUAL
Volume 3 1st Edition
NSR-100/50/25 SYSETUPV3
Table of Contents
Manual Structure .................................................................... 1 (E)
1. Outline ......................................................................... 2 (E)
2. Addition of External Storage Device ........................... 4 (E)
2-1. NAS Settings ...................................................... 4 (E)
2-2. NSR Settings ...................................................... 8 (E)
2-2-1. External Storage Device Connection Settings ... 9 (E)
2-2-2. External Storage Device Addition Settings ...... 10 (E)
2-2-3. Storage Assignment to Camera ........................ 11 (E)
3. Deletion of External Storage Device ......................... 11 (E)
3-1. Stopping Recording .......................................... 11 (E)
3-2. Deletion of Recorded Data ............................... 12 (E)
3-3. Deletion of Storage Assignment to Camera ..... 13 (E)
3-4. Deletion of External Storage Device ................ 13 (E)
3-5. Deletion of Settings for External Storage
Device ............................................................... 14 (E)
4. Replacement of External Storage Device .................. 15 (E)
5. Notes on Operation .................................................... 15 (E)
1 (E)
NSR-100/50/25 SYSETUPV3
Manual Structure
Purpose of this manual This manual describes the procedure to connect external storage devices to Sony
Network Surveillance Recorder NSR-100/50/25.
Trained engineers intend this manual for use.
Related manuals Besides this manual, the following manuals are available.
..
..
.NSR Series User’s Guide (Supplied with NSR-100/50/25)
Part number: 3-869-888-1X
This manual is necessary for application and operation of NSR-100/50/25.
..
..
.NSR Series Installation Manual (Supplied with NSR-100/50/25)
Part number: 3-869-887-0X
This manual is necessary to install NSR-100/50/25, NSR-RM1 Rack Mount Kit,
and RM-NS10 Remote Control Unit.
..
..
.NSBK-250 Installation Manual (Available on request)
Part number: 9-968-289-0X
This manual describes the procedure to install Sony Hard Disk Drive NSBK-250
into NSR-25.
..
..
.NSR-100/50/25 System Setup Manual Volume 1 (Available on request)
Part number: 9-968-293-0X
This manual describes the procedure to save the configuration files of NSR-100/
50/25 to a USB memory or a CF card, and to restore the files to NSR-100/50/25
from the memory.
..
..
.NSR-100/50/25 System Setup Manual Volume 2 (Available on request)
Part number: 9-968-294-0X
This manual describes the procedure to update the OS and the application software
of NSR-100/50/25.
..
..
.NSR-100/50/25 Service Manual (Available on request)
Part number: 9-968-230-0X
This is the service manual for NSR-100/50/25.
2 (E) NSR-100/50/25 SYSETUPV3
1. Outline
Sony Network Surveillance Recorder NSR-100/50/25 can expand its recording capacity by connecting
external storage devices.
This manual describes procedures for addition, deletion, and replacement of external storage devices and
notes on operation.
The external storage device is called NAS.
NAS: Network Attached Storage
Applicable Units
NSR-100/50/25 with version V2.1.0 or above
nVersion of your NSR
Click “Configuration” in the GUI screen, “General”, and then “Main” to display the Main screen.
“Software” shows the version number of the NSR.
Available NAS for NSR
DL100G2 made by Hewlett-Packard
The following are available as of Apr/2006.
.DL100G2 Storage Server 640 GB model (about 480 GB effective in RAID-5)
.DL100G2 Storage Server 1 TB model (about 750 GB effective in RAID-5)
.DL100G2 Storage Server 2 TB model (about 1.5 TB effective in RAID-5)
OS: Windows Storage Server 2003 Workgroup Edition is preinstalled.
Cabinet: 1U Rack-mount type
Refer to the Web site shown below for further information.
http://h18006.www1.hp.com/products/storageworks/dl100g2storageserver/index.html
n
Be sure to read the DL100 release note.
Connection Condition
The NAS can be connected to an NSR at four mounting points maximum. Add an NSR to connect NAS
more than four units.
The picture data of frame rate up to 120 fps*(in case of VGA) can be recorded and played back per one
NAS. This is a limitation when recording and playback are done simultaneously. If the whole area is
allocated for recording only, some frames may be not recorded when playback is done at the same time.
Even if picture data is recorded to a NAS, set so that the total frame rate of recording and playback of the
local storage and the NAS does not exceed the maximum frame rate to be able to record to the NSR local
storage.
*fps: frame per second
3 (E)
NSR-100/50/25 SYSETUPV3
Hardware Connection for NSR-100/50
Connect DL100G2 to LAN port 3 of the NSR-100/50 as shown below.
Use the LAN port 3 for NAS connection only.
Don’t share the NAS with other NSR or other system.
nNetwork switch (hub)
Even if one NAS only is used, it is recommended to connect the NAS to the NSR via a network
switch.
Direct connection with a cross cable may cause network condition unstable. If condition is still
unstable after 10 minutes, reboot the system. If condition is still unstable after rebooting several
times, connect them via a network switch.
Hardware connection for NSR-25
NSR-25 has one LAN port only.
Connect the DL100G2, cameras, and a remote client to LAN 1 port of the NSR via a network switch as
shown below.
Recording/playback performance may go down due to network traffic.
LAN 2
Camera
LAN 1 LAN 3
DL100G2
(Max. of 4 units)
NAS
Network SW
Network SW Network SW Network SW
Remote
Client
NSR-100/50
Camera
LAN 1
DL100G2
(Max. of 4 units)
NAS
Network SW
Network SW
NSR-25 Remote
Client
4 (E) NSR-100/50/25 SYSETUPV3
2. Addition of External Storage Device
This section describes an example setting. Set your system according to the actual configuration.
2-1. NAS Settings
Hardware Connection
It is needed that the NAS has been set as follows for the external storage of an NSR. DL100G2 is a kind
of Windows machine.
.A share file can be mounted with CIFS*protocol.
.Administrator user can access with full read/write authority.
Complete the settings for NAS operation such as OS and network in advance.
*CIFS: Common Internet File System
n
The IP address and the shared path name of the NAS are requested for NSR Settings.

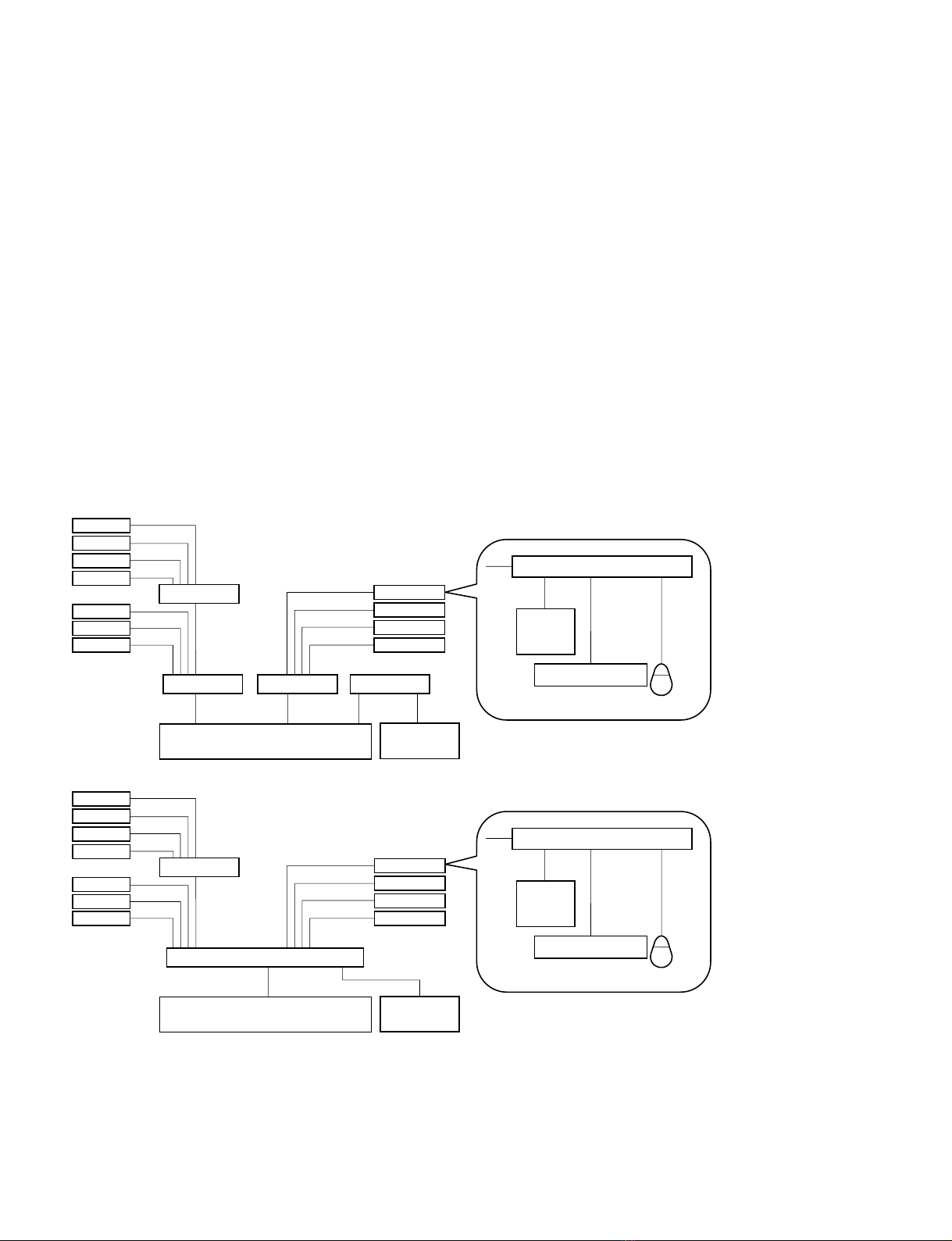

Connect a VGA monitor, a PS/2 keyboard, and a PS/2 mouse to the DL-100G2 as shown below.
MouseKeyboardVGA
LAN 2
Camera
LAN 1 LAN 3
DL100G2
(Max. of 4 units)
NAS
Network SW
Network SW Network SW Network SW
Remote
Client
NSR-100/50
Camera
LAN 1
DL100G2
(Max. of 4 units)
NAS
Network SW
Network SW
NSR-25 Remote
Client
PS/2 Keyboard
DL100G2
VGA
Monitor
PS/2 Mouse
MouseKeyboardVGA
PS/2 Keyboard
DL100G2
VGA
Monitor
PS/2 Mouse
5 (E)
NSR-100/50/25 SYSETUPV3
Setting
Carry out settings to share the share files with CIFS and settings for write authority as follows.
Refer to the manual for DL100 in detail.
1. Open the Server Administration screen of Web base.
2. Click “Shares”, and then “Shares” in the second line to open the General setting screen of the Share
Properties.
3. Click “New...” to display the next screen.
6 (E) NSR-100/50/25 SYSETUPV3
4. Set as below to set the share type and the folder name of the share folder.
.“Share name” →Enter some name. “nfs1” is entered in the screen below.
.“Share path” →Enter in Windows format. The screen below is a sample that the path is the nfs1
folder of the NAS E drive.
.“Select the clients for which you want to allow access to the share”
→Windows (Microsoft SMB)
7 (E)
NSR-100/50/25 SYSETUPV3
5. Click “Windows Sharing” to open the Windows Sharing setting screen of the Share Properties.
6. Set the write authority as follows.
.“Users allowed to connect to the share simultaneously” →Unlimited
.“Offline Settings” →Only the files and programs that users specify will be available offline
.“Users and groups” →Everyone
.“Allow” →Full Control
.“Deny” →None
7. Click “→OK”. “OK” becomes dim, and the settings are saved.
8. Carry out the settings above for other NAS to be connected.
9. Proceed to the next section.
8 (E) NSR-100/50/25 SYSETUPV3
2-2. NSR Settings
This section describes settings for the NSR to use the NAS that has been set to be accessible as a Win-
dows share server.
Hardware Connection
Carry out setting using the VGA monitor, the USB keyboard, and the USB mouse of the NSR.
USB Mouse
USBUSBVGA
LAN 2
Camera
LAN 1 LAN 3
DL100G2
(Max. of 4 units)
NAS
Network SW
Network SW Network SW Network SW
Remote
Client
NSR-100/50
Camera
LAN 1
DL100G2
(Max. of 4 units)
NAS
Network SW
Network SW
NSR-25 Remote
Client
VGA
Monitor
USB Keyboard
USB Mouse
USBUSBVGA
VGA
Monitor
USB Keyboard
