Sony VPCL211FX Guía
VPCL2 Series Optical Disk Drive
Replacement Instructions
FOR TECHNICAL SUPPORT IN THE US CALL TOLL FREE 1-866-651-7669 FROM 9:00 AM TO 11:00 PM EST
P/N 989202624 Rev. B 1/4
Disconnect the AC Adapter
Step 2. The A/C Adapter connects to the
unit under the Stand. Reach behind the
Stand to disconnect the A/C Adapter
from the unit and remove.
Prepare the Computer
CAUTION:Make sure the
computer is turned off and the AC
Adapter is disconnected. Failure to do
so can result in damage to the
computer.
Step 1. Place the computer, with the
LCD Panel facing down, on a protected
surface with the Stand facing you.
Hard Drive Door Removal
(Steps 3-4)
Step 3. Using the enclosed magnetic
screwdriver, remove the four (4)
screws securing the Hard Drive Door.
Put the Screws aside to re-secure
the Hard Drive Door later in the
procedure.
These easy instructions will guide you through the Hard Drive replacement process.
Before you begin, place your notebook computer on a clean or covered surface to avoid
damage to the computer's case.*
Follow the ESD (Electrostatic Discharge) damage prevention instructions:
oHold parts by the edges, away from exposed circuitry when possible.
oDo not walk around excessively as this promotes static build-up.
Before you begin, remove any jewelry you may be wearing to prevent scratches to the surface
of your notebook computer.*
The appearance of the electronic components shown in the illustrations may differ from the
components shipped. This slight difference does not affect the accuracy of these instructions.
* Sony is not responsible for damage caused by incorrect handling of the notebook computer.
IMPORTANT!
PLEASE READ BEFORE YOU START
Hard Drive Door
VPCL2 Series Optical Disk Drive
Replacement Instructions
FOR TECHNICAL SUPPORT IN THE US CALL TOLL FREE 1-866-651-7669 FROM 9:00 AM TO 11:00 PM EST
P/N 989202624 Rev. B 2/4
Step 4. Grasp the Door stand and rotate
up to disengage the Tabs holding the
Door in place. When the Tabs release,
lift the Door straight up to remove.
Optical Drive Removal
(Steps 5-7)
Step 5. Using the enclosed magnetic
screwdriver, remove the two (2) screws
securing the Optical Drive Assembly.
Step 6. Insert a non-marking tool into
the hole in the ODD Bracket and slide
to the Left.
Step 7. Carefully remove the ODD
Assembly from the unit.
Step 8. Set the Optical Drive (Label Side
Down) on a clean work surface. Identify
the six (6) screws which secure the
brackets to the Hard Drive.
Step 9. Remove two screws from
each Bracket.
Put the Screws aside to secure the
Bracket to the new Hard Dive later
in the procedure.
Optical Drive Disassembly
(Steps 8-10)
VPCL2 Series Optical Disk Drive
Replacement Instructions
FOR TECHNICAL SUPPORT IN THE US CALL TOLL FREE 1-866-651-7669 FROM 9:00 AM TO 11:00 PM EST
P/N 989202624 Rev. B 3/4

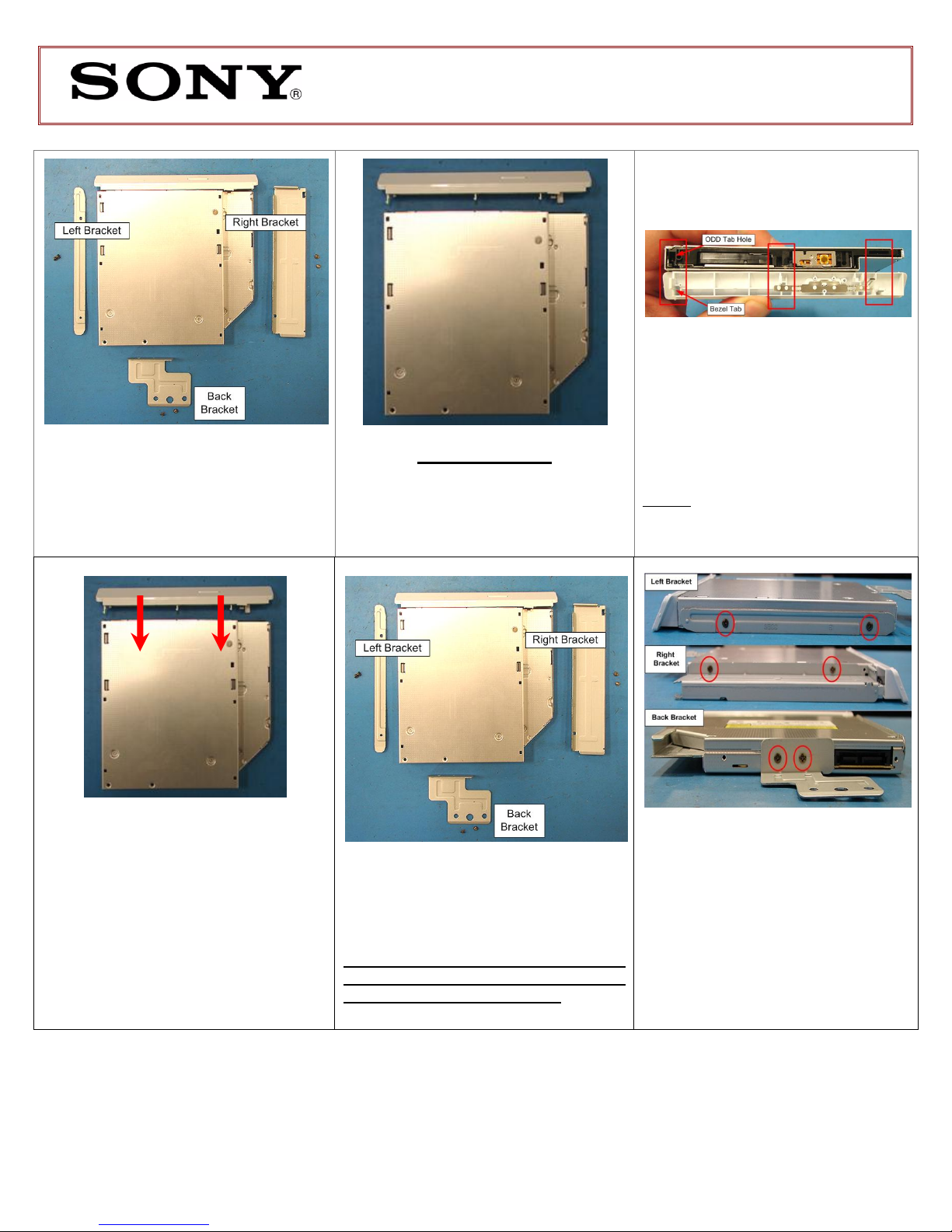

NOTE: Identify tabs on the Bezel and
tab holes located on the ODD.
Step 10.Arrange the Brackets & screws
as shown above. Set the old ODD aside.
ODD Assembly
(Steps 11-14)
Step 11. Take the new ODD and Bezel
provided in the CRU kit and prepare for
assembly.
Step 12. Align the tabs on the Bezel with
the tab holes located on the ODD.
Carefully press the Bezel into place.
Step 13. Position the new ODD (Label
side down) and identify the correct
Bracket with the corresponding ODD
side (as shown).
Take note of the different shapes for
each bracket and the proper
alignment of the screw holes.
Step 14. Using the ODD Screws,
install the ODD Brackets onto the new
ODD.
Old Hard Drive
DriveDrive
VPCL2 Series Optical Disk Drive
Replacement Instructions
FOR TECHNICAL SUPPORT IN THE US CALL TOLL FREE 1-866-651-7669 FROM 9:00 AM TO 11:00 PM EST
P/N 989202624 Rev. B 4/4
NOTE: After installation, all brackets
should sit flush with the ODD. The
stamped letters located on the
brackets should all be facing the
same direction.
ODD Installation
(Steps 14-20)
Step 15. Align the ODD assembly
properly (label side down) and slide into
the Computer.
Step 16. Make sure the new ODD is
seated flush on the edge of the
Computer.
Step 17. Reinstall the two (2) ODD Bay
screws to secure the ODD Drive Bay.
Step 18. Align the Tabs on the Top of
the Hard Drive Door with the Notches at
the top of the Hard Drive Bay. Slide the
Hard Drive Door up to secure the Tabs.
Step 19. Press the Door down to seat
the remaining Door Tabs. Verify that
the Door sits flush with the unit.
Step 20. Re-install the four (4) Hard
Drive Door Screws to secure the Door.
Step 21. Reconnect the AC Adaptor.
Power on your computer and continue
with the recovery process by following
the instructions described on the back of
the recovery disk’s case.
Return the old Optical Drive to
Sony using the included
shipping instructions.
