Sony DRU-710A Manual de usuario

Operating Instructions

2-188-002-11 (2)

7819900902

DVD/CD

Rewritable Drive

DRU-710A

Safety Regulations

WARNING

You are cautioned that any changes or modifications not expressly approved in this manual

could void your authority to operate this equipment.

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.

CAUTION:

As the laser beam in the DRU-710A is harmful to the eyes, do not attempt to disassemble the

cabinet. Refer servicing to qualified personnel only.

The use of optical instruments with this product will increase eye hazard.

The use of controls or adjustments or performance of procedures other than those specified

herein may result in hazardous radiation exposure.

This label is located on the drive unit's internal chassis.

Dieses Etikett befindet sich auf dem inneren Chassis des Laufwerkes.

This label is located on the top of the drive unit enclosure.

Dieses Etikett befindet sich am Boden des Laufwerksgehauses.

The DRU-710A is classified as a CLASS 1 LASER PRODUCT.

The CLASS 1 LASER PRODUCT label is located at the top of the enclosure.

DANGER

VISIBLE AND INVISIBLE LASER RADIATION WHEN

OPEN. AVOID DIRECT EXPOSURE TO BEAM.

VORSICHT

SICHTBARE UND UNSICHTBARE LASERSTRAHLUNG. WENN

ABDECKUNG GEÖFFNET. NICHT DEM STRAHL AUSSETZEN.

Bei diesem DRU-710A handelt es sich um ein Laser-Produkt der Klasse 1.

Das Etikett mit der Aufschrift LASER KLASSE 1 PRODUKT befindet sich auf der Oberseite

des Gehäses.

CE Sicherheitsbestimmungen

Diese Ausrustung erfullt die Europaischen EMC-Bestimmungen fur die Verwendung in

folgender / folgenden Umgebung(en):

• Wohngegenden

• Gewerbegebiete

• Leichtindustriegebiete

(Diese Ausfuhrung erfullt die Bestimmungen der Norm EN55022, Klasse B.)

CLASS 1

LASER PRODUCT

LASER KLASSE 1

PRODUKT

LUOKAN 1 LASERLAITE

KLASS 1 LASER APPARAT

Table of Contents

Safety Regulations ..........................2

Introduction

Unpacking the Package Contents ...6

Features ...........................................6

System Requirements .....................7

Part Names and Functions ..............8

Setup

Setting up the Drive ......................10

Appropriate Jumper Settings ........15

Replacing your current optical

drive with the DVD/CD rewritable

drive ............................................15

Installing the DVD/CD rewritable

drive as a second drive ...............16

Installing the DVD/CD rewritable

drive as a third drive ...................17

Installing the DVD/CD rewritable

drive as a fourth drive ................18

Operation

Using the Drive .............................19

Supplied Software ......................19

Displaying the contents of CDs

and DVDs ...................................20

Using Generic Software with the

Drive ...........................................20

Compatible Discs ..........................21

Recommended Writable Discs ...23

Writable Disc Features ...............24

Precautions when Writing Data to

Disc ...............................................27

Maximizing Performance .............29

User Support Web Site ...............29

Updating the Firmware ...............29

Using 48x Reading Speed

(Turbo Boost Function) ..............29

Miscellaneous

Precautions for Use .......................30

Specifications ................................31

Support Overview .........................32

User Support Web Site ...............32

Update the Drive Firmware ........32

Product and Support

Information .................................32

• is a trademark of Sony Corporation.

• Pentium is a registrated trademark of Intel Corporation.

• Microsoft, MS, MS-DOS and Windows are registered trademarks of Microsoft Corporation.

• Other system and product names used herein are registered trademarks or trademarks of their

respective manufacturers, although the ™ and ® marks are not used in the text.

❑Our product warranty is validonly when the supplied accessories (including software) are

used in the specified or recommended system environment, in accordance with the

documentation, and applies only to this DVD/CD rewritable drive. Our customer service

and user support apply only under these product warranty conditions.

❑Please note that we cannot accept responsibility for failure of the computer or other

devices, incompatibility with special hardware, operating problems caused by improper

installation of software, loss of data, discs or other accidental or incidental damage that

might occur when using this product.

❑The guarantee and user support for this productare valid only within the countries or sales

regions specified on the warranty card.

❑Copyright laws prohibit the copying in part or in full of the supplied software and

documentation, or loaning the software, without obtaining permission of the copyright

holder.

❑We cannot accept responsibility for any direct or indirect financial damage or loss of profit

that might occur when using the supplied software.

❑The supplied software can only be used with this product.

❑Specifications of the supplied software may be changed without notice in the interest of

product improvement.

Please Record Responsibly

Before copying anything onto a disc, please be sure that you are not violating copyright

laws. Most software companies allow you to make a backup or archive copy of software.

Check your software’s license agreement for details.

BIntroduction

Unpacking the

Package Contents

Please verify that the package contains the

following when unpacking.

If any of these items appear to be missing

and/or damaged, please contact your dealer.

•Drive

• 40-pin ATAPI (IDE) flat cable

•Screws(×4)

• Quick start guide

• Software quick start guide

• Operating instructions

(this document)

• Front panel replacement guide

• Front panel replacement kit

• Software disc

• Warranty card

Note

Make sure that you back up the supplied software

disc on another disc because the software disc is

not distributed independently.

Features

This product offers the following features.

❑An internal DVD/CD rewritable drive

with ATAPI (EIDE) interface for

computers.

❑Can be used horizontally or vertically.

❑The drive can write to DVD+R Double

Layer discs.

❑You can write at a maximum of 16×

when using high speed DVD+R discs.

❑The drive can write to seven types of

disc.

❑Features the

technology to prevent buffer underrun

errors.

❑You can replace the front panel of the

drive with the supplied replacement

front panel.

Introduction

System

Requirements

The drive should be used with a system that

meets the following requirements1).

❑PC/AT-compatible computer

❑CPU: Pentium III, 800 MHz or higher

(with Nero Vision Express: Pentium 4,

1.6 GHz recommended)

❑256 MB RAM or more

❑1 GB (with Nero Vision Express:

10 GB) free hard disk space

❑One available EIDE (ATAPI) interface

connection with DMA capability2)

❑One empty 5-inch half-height drive bay

❑One available internal +12 V/+5 V

power connector3)

❑Operating system:

Windows 2000 Professional

(referred to as Windows 2000),

Windows XP Home Edition or

Windows XP Professional

(referred to as Windows XP)

1) The above requirements are the minimum

necessary requirements to write to disc

normally. Under actual operating conditions,

the requirements imposed by your software

must also be met. For details, refer to your

software documentation.

2) The drive does not support ATAPI, therefore

do not connect it to the IDE (ATAPI) interface

connector of your computer's motherboard.

3) The drive consumes a lot of power when

operating at high speeds. You should therefore

make sure that the rated power output of the

power outlet where you connect all your drives

is sufficient to power all the drives, including

this one. For details about each drive's power

consumption rating, refer to their

documentation.

Part Names and Functions

Front Panel

Rear Panel

Introduction

ADisk tray

Insert discs here, label side up.

Hint

When you insert a disc into the drive, make

sure that it is under the four pins. When using

thedrive vertically, make sure that you set the

disc inside the two lower pins.

BEject button

Press to open and close the disc tray.

CBusy indicator

Indicates the drive status.

Lit : The drive is reading data,

playing back an audio CD, or

writing packets.

Blinking: The drive is writing data

(disc-at-once,track-at-once),

formatting a disc, or

deleting1) data from a disc.

Off : The drive is in a state other

than those outlined above.

1) Some drives indicate this state with the lit

indicator.

DEmergency eject hole

If you cannot open the disc tray with the

eject button, turn off your computer, and

then insert a thin, elongated object into

this hole to eject the disc tray manually.

EDo not use.

FDo not use.

GAnalog audio connector

Analog stereo audio output. Using an

audio cable, connect to the audio

connector of a computer with a sound

card.

HJumper

A jumper is set on the appropriate pins

before connecting the drive.

IIDE connector

Connect to the computer with the

supplied IDE flat cable.

JPin 1

The location of this pin determines the

proper orientation of the connection

cable.

KPower connector

Connectthe connectorof thecomputer’s

internal power supply.

About 40 mm (1.6 in)

CS EL

SLAVE

MASTER

CS EL

SLAVE

MASTER

Jumper pinsJumper pins

5V GND 12V

DC INPUT

BSetup

Setting up the Drive

Theinstallation and setup procedures outlined below assume that youareusing

a standard computer. For details about how to install peripheral devices into

your computer, refer to the instructions supplied with your computer.

Before installing the drive

Referring to “Unpacking the Package Contents” on page 6, verify that the

contents of the drive package are complete.

Note

Avoid touching any exposed electronic conductors or contacts on the circuit boards of the

drive or your computer, as they can be damaged by electrostatic discharges from your body.

Make sure that you discharge any static electricity from your body before performing this

operation.

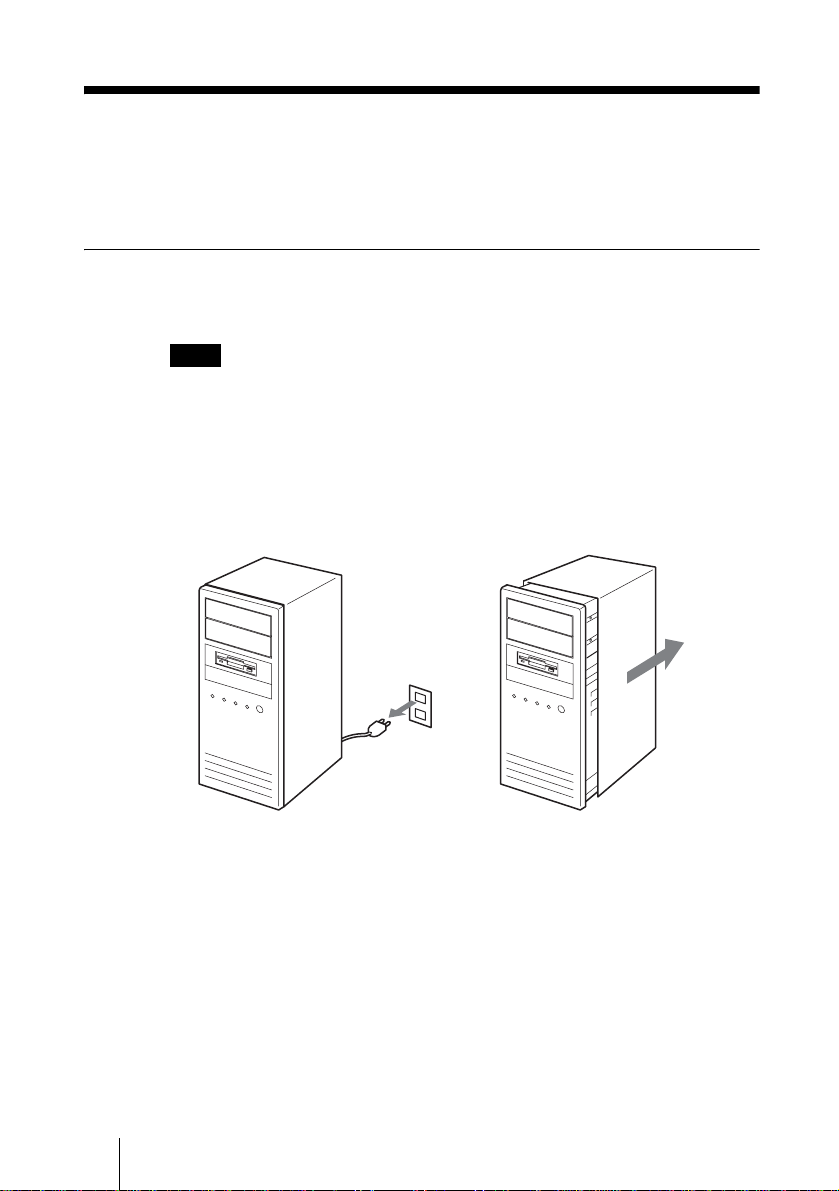

1Turn off your computer, disconnect the power cable from the

outlet, and then remove the computer cover.

Otros manuales para DRU-710A

Tabla de contenidos

Otros manuales de Unidad de DVD de Sony

Sony

Sony VRD-VC20 Manual de usuario

Sony

Sony AW-G170A-B2 Hoja de especificaciones

Sony

Sony ODS-D280U Manual de usuario

Sony

Sony VAIO PCGA-CDRW52 Manual de usuario

Sony

Sony DRX-820UL Manual de usuario

Sony

Sony VGP-UDRW1 - VAIO - DVD±RW Manual de usuario

Sony

Sony VRD MC5 - DVDirect - DVD±RW Drive Manual de uso y mantenimiento

Sony

Sony DVDirect VRD-MC3 Manual de usuario

Sony

Sony VPCL211FX Guía

Sony

Sony DDU1681S Hoja de datos

Sony

Sony Vaio PCGA-CRWD1 Manual de usuario

Sony

Sony 2-586-675-11 (1) Manual de usuario

Sony

Sony DVDirect Express VRD-P1 Manual de usuario

Sony

Sony VRD-VC10 Manual de uso y mantenimiento

Sony

Sony DRX-840U - DVD±RW / DVD-RAM Drive Manual de usuario

Sony

Sony DRX-700UL Manual de usuario

Sony

Sony VRD-MC1 Nero 6 Manual de usuario

Sony

Sony DRXS50U - DRX S50U Manual de usuario

Sony

Sony VRD-VC10 Manual de usuario

Sony

Sony PDW-U4 Manual de usuario

Sony

Sony DRU110A Manual de usuario

Sony

Sony VGP-DDRW4 - DVD±RW / DVD-RAM Drive Manual de usuario

Sony

Sony DRXS50U - DRX S50U Manual de usuario

Sony

Sony XDCAM XDBK-J102 Manual de usuario

Manuales populares de Unidad de DVD de otras marcas

Panasonic

Panasonic CFVDM732U - DVD Manual de usuario

LG GSA-4160B Manual de usuario

Panasonic

Panasonic VW-BN1 - DVD-RW / DVD-RAM Drive Manual de usuario

LG GSA-2164D Manual de usuario

Plextor

Plextor PX-755SA Manual de usuario

Pioneer

Pioneer BDC-TD03RS Manual del propietario

Samsung

Samsung SM-332B Manual de usuario

Freecom

Freecom MOBILE DVD RW II Manual de usuario

Plextor

Plextor PX-712 Manual de usuario

NEC

NEC ND-3550A Manual de usuario

Emprex

Emprex Slim Writer DVD R/RW USB 2.0 External Drive Manual de usuario

Philips

Philips PCA532K Manual de usuario

Philips

Philips PCDV5016 Series Guía de referencia

Pioneer

Pioneer LaserMemory DVD-115 Manual de usuario

Samsung

Samsung SE-S224Q Manual de usuario

IBM

IBM 71P7285 Manual de usuario

Pioneer

Pioneer DVR-A04 Manual de usuario

IBM

IBM 27L2579 Manual de usuario
