Sony DSC-S2100 Cyber-shot® Manual de usuario

4-170-176-43(1)

DSC-S2000/S2100

GB Digital Still Camera/Instruction Manual

RU Цифровой фотоаппарат/Инструкция по эксплуатации

UA Цифровий фотоапарат/Посібник з експлуатації

Owner’s Record

The model and serial numbers are located on the bottom. Record the serial number in the

space provided below. Refer to these numbers whenever you call upon your Sony dealer

regarding this product.

Model No. DSC-S2000/S2100

Serial No. ______________________________

To reduce fire or shock hazard, do not expose the unit to rain or

moisture.

UL is an internationally recognized safety organization.

The UL Mark on the product means it has been UL Listed.

If you have any questions about this product, you may call:

Sony Customer Information Center

1-800-222-SONY (7669)

The number below is for the FCC related matters only.

[Regulatory Information

English

WARNING

For Customers in the U.S.A.

Declaration of Conformity

Trade Name: SONY

Model No.: DSC-S2000

Responsible Party: Sony Electronics Inc.

Address:16530 Via Esprillo,

San Diego, CA 92127 U.S.A.

Telephone No.: 858-942-2230

This device complies with Part15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and (2)

this device must accept any interference received, including interference that may cause

undesired operation.

[CAUTION

You are cautioned that any changes or modifications not expressly approved in this manual

could void your authority to operate this equipment.

[Note:

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in

a residential installation. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

– Reorient or relocate the receiving antenna.

– Increase the separation between the equipment and receiver.

– Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

– Consult the dealer or an experienced radio/TV technician for help.

The supplied interface cable must be used with the equipment in order to comply with the

limits for a digital device pursuant to Subpart B of Part 15 of FCC Rules.

Declaration of Conformity

Trade Name: SONY

Model No.: DSC-S2100

Responsible Party: Sony Electronics Inc.

Address:16530 Via Esprillo,

San Diego, CA 92127 U.S.A.

Telephone No.: 858-942-2230

This device complies with Part15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and (2)

this device must accept any interference received, including interference that may cause

undesired operation.

[Notice for the customers in the countries applying EU Directives

The manufacturer of this product is Sony Corporation, 1-7-1 Konan Minato-ku Tokyo,

108-0075 Japan. The Authorized Representative for EMC and product safety is Sony

Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany. For any service or

guarantee matters please refer to the addresses given in separate service or guarantee

documents.

This product has been tested and found compliant with the limits set out in the EMC

Directive for using connection cables shorter than 3 meters (9.8 feet).

[Attention

The electromagnetic fields at the specific frequencies may influence the picture and sound

of this unit.

[Notice

If static electricity or electromagnetism causes data transfer to discontinue midway (fail),

restart the application or disconnect and connect the communication cable (USB, etc.)

again.

[Disposal of Old Electrical & Electronic Equipment (Applicable in

the European Union and other European countries with separate

collection systems)

This symbol on the product or on its packaging indicates that this product

shall not be treated as household waste. Instead it shall be handed over to

the applicable collection point for the recycling of electrical and electronic

equipment. By ensuring this product is disposed of correctly, you will help

prevent potential negative consequences for the environment and human

health, which could otherwise be caused by inappropriate waste handling

of this product. The recycling of materials will help to conserve natural

resources. For more detailed information about recycling of this product,

please contact your local Civic Office, your household waste disposal service or the shop

where you purchased the product.

For Customers in Europe

[Disposal of waste batteries (applicable in the European Union

and other European countries with separate collection systems)

This symbol on the battery or on the packaging indicates that the battery

provided with this product shall not be treated as household waste.

On certain batteries this symbol might be used in combination with a

chemical symbol. The chemical symbols for mercury (Hg) or lead (Pb) are

added if the battery contains more than 0.0005% mercury or 0.004% lead.

By ensuring these batteries are disposed of correctly, you will help prevent

potentially negative consequences for the environment and human health which could

otherwise be caused by inappropriate waste handling of the battery. The recycling of the

materials will help to conserve natural resources.

In case of products that for safety, performance or data integrity reasons require a

permanent connection with an incorporated battery, this battery should be replaced by

qualified service staff only. To ensure that the battery will be treated properly, hand over

the product at end-of-life to the applicable collection point for the recycling of electrical

and electronic equipment.

For all other batteries, please view the section on how to remove the battery from the

product safely.

Hand the battery over to the applicable collection point for the recycling of waste batteries.

For more detailed information about recycling of this product or battery, please contact

your local Civic Office, your household waste disposal service or the shop where you

purchased the product.

Table of contents

Getting started

Refer to “Cyber-shot Handbook” (PDF) on supplied

CD-ROM .................................................................................... 7

Checking the accessories supplied .......................................... 7

Notes on using the camera........................................................ 7

Identifying parts ....................................................................... 10

Inserting the batteries/a memory card (sold separately)......... 11

Setting the clock ...................................................................... 15

Shooting/viewing images

Shooting still images ................................................................ 16

Shooting movies ...................................................................... 17

Viewing images........................................................................ 18

“Cyber-shot Handbook” (PDF)

Learning more about the camera (“Cyber-shot

Handbook”).............................................................................. 19

Others

List of icons displayed on the screen ...................................... 20

Number of still images and recordable time of movies........... 22

Precautions .............................................................................. 23

Specifications .......................................................................... 25

Checking the accessories supplied

• LR6 (size AA) alkaline batteries (2)

• Dedicated USB cable (1) (Sony Corporation 1-837-597-)

• Wrist strap (1)

•CD-ROM(1)

– Cyber-shot application software

– “Cyber-shot Handbook”

• Instruction Manual (this manual) (1)

Notes on using the camera

Changing the language setting

The screen language can be changed if necessary.

To change the language setting, press the MENU button, then select

(Settings) t(Main Settings) t[Language Setting].

Internal memory and memory card back up

Do not turn off the camera, remove the batteries, or remove the memory card

while the access lamp is lit. Otherwise, the internal memory data or the

memory card may be damaged. Be sure to make a backup copy to protect your

data.

Refer to “Cyber-shot Handbook” (PDF)

on supplied CD-ROM

For details on advanced operations, please read “Cyber-

shot Handbook” (PDF) on the CD-ROM (supplied) using a

computer.

Refer to “Cyber-shot Handbook” for in-depth instructions

on shooting or viewing images and connecting the camera

to your computer or printer (page 19).

Notes on recording/playback

• To ensure stable operations of the memory card, we recommend that you use

this camera to format any memory card being used with this camera for the

first time. Note that formatting will erase all data recorded on the memory

card. This data cannot be restored. Be sure to back-up any important data to a

PC or other storage location.

• Before you start recording, make a trial recording to make sure that the

camera is working correctly.

• The camera is neither dust-proof, nor splash-proof, nor water-proof. Read

“Precautions” (page 23) before operating the camera.

• Avoid exposing the camera to water. If water enters inside the camera, a

malfunction may occur. In some cases, the camera cannot be repaired.

• Do not aim the camera at the sun or other bright light. It may cause the

malfunction of the camera.

• Do not use the camera near a location that generates strong radio waves or

emits radiation. Otherwise, the camera may not properly record or play back

images.

• Using the camera in sandy or dusty locations may cause malfunctions.

• If moisture condensation occurs, remove it before using the camera.

• Do not shake or strike the camera. It may cause a malfunction and you may

not be able to record images. Furthermore, the recording media may become

unusable or image data may be damaged.

• Clean the flash surface before use. The heat of flash emission may cause dirt

on the flash surface to become discolored or to stick to the flash surface,

resulting in insufficient light emission.

Notes on the LCD screen and lens

• The LCD screen is manufactured using extremely high-precision technology

so over 99.99% of the pixels are operational for effective use. However,

some tiny black and/or bright dots (white, red, blue or green) may appear on

the LCD screen. These dots are a normal result of the manufacturing process,

and do not affect the recording.

• When the battery level becomes low, the lens might stop moving. Insert new

batteries or charged Nickel-Metal Hydride batteries and turn on the camera

again.

On camera’s temperature

Your camera and battery may get warm due to continuous use, but it is not a

malfunction.

On image data compatibility

• The camera conforms with DCF (Design rule for Camera File system)

universal standard established by JEITA (Japan Electronics and Information

Technology Industries Association).

• Sony does not guarantee that the camera will play back images recorded or

edited with other equipment, or that other equipment will play back images

recorded with the camera.

Warning on copyright

Television programs, films, videotapes, and other materials may be

copyrighted. Unauthorized recording of such materials may be contrary to the

provisions of the copyright laws.

No compensation for damaged content or recording failure

Sony cannot compensate for failure to record or loss or damage of recorded

content due to a malfunction of the camera or recording media, etc.

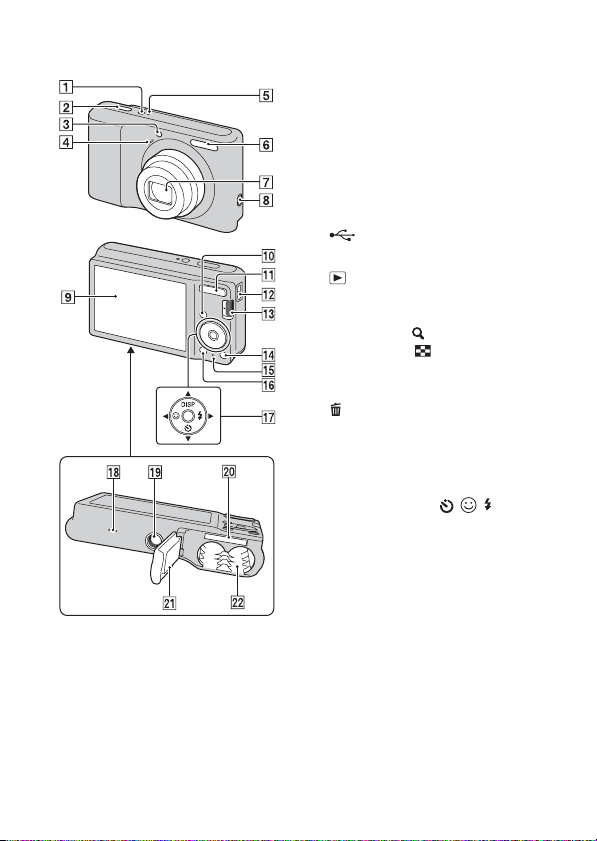

Identifying parts

AON/OFF (Power) button

BShutter button

CSelf-timer lamp/Smile Shutter

lamp

DMicrophone

EON/OFF (Power) lamp

FFlash

GLens

H(USB) jack

ILCD screen

J(Playback) button

KFor shooting: W/T (Zoom)

button

For viewing: (Playback

zoom) button/ (Index) button

LHook for wrist strap

MMode switch

N(Delete) button

OAccess lamp

PMENU button

QControl button

MENU on: v/V/b/B/z

MENU off: DISP/ / /

RBuzzer

STripod receptacle

• Use a tripod with a screw less than

5.5 mm (7/32 inches) long.

Otherwise, you cannot firmly

secure the camera, and damage to

the camera may occur.

TMemory card slot

UBattery/Memory card cover

VBatteries insertion slot

Bottom

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Cámara digital de Sony

Sony

Sony Cyber-shot DSC-W570 Manual de usuario

Sony

Sony ZV-E10 Manual de usuario

Sony

Sony DSLR-A230Y - Dslr-a230 + Sal-1855 Manual de usuario

Sony

Sony ILCE7RM3/B Manual de usuario

Sony

Sony DSC-RX0M2 Guía de referencia

Sony

Sony DSC-TX7 - Cyber-shot Digital Still Camera Manual de usuario

Sony

Sony DSC-T90/B Cyber-shot® Manual de usuario

Sony

Sony DSC-H55 - Cyber-shot Digital Still Camera Manual de usuario

Sony

Sony Cyber-shot DSC-HX5 Manual de usuario

Sony

Sony Cyber-shot DSC-S600 Manual de usuario

Sony

Sony Cyber-shot DSC-S600 Manual de usuario

Sony

Sony DSC-T2 Manual de usuario

Sony

Sony DSC-W220/L Manual de usuario

Sony

Sony DSC-WX300 Manual de instrucciones de instalación

Sony

Sony Cyber-shot PRO DSC-D700 Manual de usuario

Sony

Sony MHS-TS55 Manual de operación y mantenimiento

Sony

Sony DSC-TX7 - Cyber-shot Digital Still Camera Manual de usuario

Sony

Sony DSC-S980/B - Cyber-shot Digital Still Camera Manual de usuario

Sony

Sony Cyber-shot DSC-T20 Manual de usuario

Sony

Sony Cyber-Shot DSC-T11 Manual de usuario

Sony

Sony NEX32LENSKIT Manual de usuario

Sony

Sony Mavica MVC-FD81 Manual de usuario

Sony

Sony MVC-CD350 - Digital Still Camera Mavica Cd... Manual de usuario

Sony

Sony Cyber-shot DSC-S600 Manual de usuario

Manuales populares de Cámara digital de otras marcas

Mercury

Mercury 350K Manual de usuario

Pentax

Pentax Optio LS 465 Manual de usuario

Sanyo

Sanyo VPC-S1085 Manual de usuario

GE SMART A1255 Manual de usuario

Point Grey

Point Grey Gazelle Manual de usuario

Nikon

Nikon COOLPIX A Manual de usuario

Pentax

Pentax P-5 Manual de usuario

BlazeVideo

BlazeVideo A280 Manual de usuario

ATIK Cameras

ATIK Cameras One Manual de usuario

CohuHD Costar

CohuHD Costar 3930 Series Manual de usuario

Leica

Leica M10-R Manual de usuario

FujiFilm

FujiFilm FinePix A700 Manual de usuario

Lorex

Lorex LNZ81P25 Series Manual de usuario

GE J1470S Manual de usuario

Canon

Canon EOS ELAN7 Manual de usuario

Nikon

Nikon Coolpix 100 Manual de usuario

Samsung

Samsung SCC-C4253 Manual de usuario

JVC

JVC GT-HM890 Manual de usuario
