Sony Cyber-shot DSC-W690 Manual de usuario

DSC-W690

4-421-444-81(1)

DSC-W690

4-421-444-81(1)

DSC-W690

Printed in China

The number in parentheses indicates the number of pieces.

• Camera (1)

• Battery charger BC-CSN/BC-CSNB (1)

• Power cord (mains lead) (not supplied in the USA and Canada) (1)

• Rechargeable battery pack NP-BN (1)

(This rechargeable battery pack cannot be used with Cyber-shot that are

supplied with the NP-BN1 battery pack.)

• Dedicated USB cable (1)

• Wrist strap (1)

• Instruction Manual (this manual) (1)

English

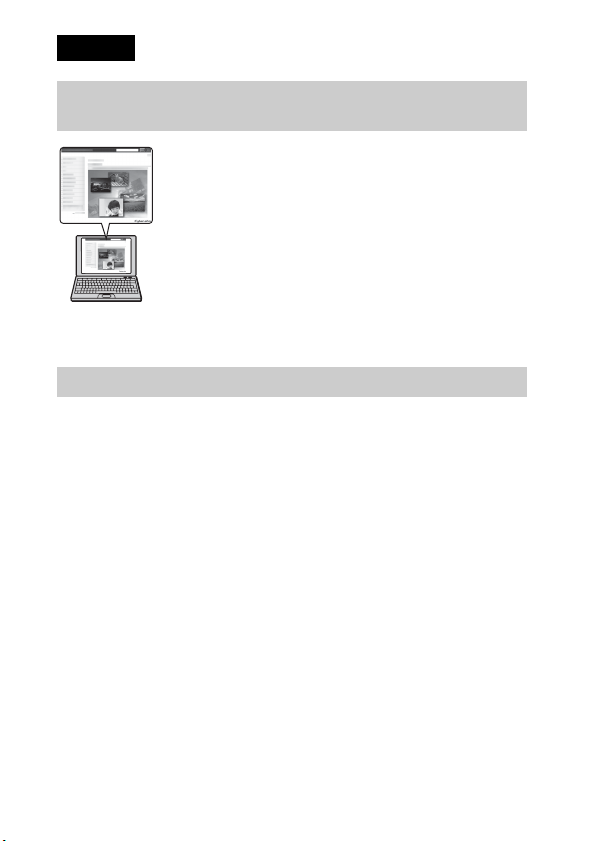

Learning more about the camera (“Cyber-shot

User Guide”)

Checking the supplied items

“Cyber-shot User Guide” is an on-line manual. Refer to it

for in-depth instructions on the many functions of the

camera.

1Access the Sony support page.

http://www.sony.net/SonyInfo/Support/

2Select your country or region.

3Search for the model name of your camera within the

support page.

• Check the model name on the bottom of your camera.

Owner’s Record

The model and serial numbers are located on the bottom. Record the serial number in the

space provided below. Refer to these numbers whenever you call your Sony dealer

regarding this product.

Model No. DSC-W690

Serial No. _____________________________

To reduce fire or shock hazard, do not expose the unit to rain or

moisture.

IMPORTANT SAFETY INSTRUCTIONS

-SAVE THESE INSTRUCTIONS

DANGER

TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK, CAREFULLY FOLLOW THESE

INSTRUCTIONS

If the shape of the plug does not fit the power outlet, use an attachment plug adaptor of the

proper configuration for the power outlet.

[Battery pack

If the battery pack is mishandled, the battery pack can burst, cause a fire or even chemical

burns. Observe the following cautions.

• Do not disassemble.

• Do not crush and do not expose the battery pack to any shock or force such as

hammering, dropping or stepping on it.

• Do not short circuit and do not allow metal objects to come into contact with the battery

terminals.

• Do not expose to high temperature above 60°C (140°F) such as in direct sunlight or in a

car parked in the sun.

• Do not incinerate or dispose of in fire.

• Do not handle damaged or leaking lithium ion batteries.

• Be sure to charge the battery pack using a genuine Sony battery charger or a device that

can charge the battery pack.

• Keep the battery pack out of the reach of small children.

WARNING

CAUTION

• Keep the battery pack dry.

• Replace only with the same or equivalent type recommended by Sony.

• Dispose of used battery packs promptly as described in the instructions.

[Battery charger

Even if the CHARGE lamp is not lit, the battery charger is not disconnected from the AC

power source (mains) as long as it is connected to the wall outlet (wall socket). If some

trouble occurs while using the battery charger, immediately shut off the power by

disconnecting the plug from the wall outlet (wall socket).

[RECYCLING LITHIUM-ION BATTERIES

Lithium-Ion batteries are recyclable.

You can help preserve our environment by returning your used

rechargeable batteries to the collection and recycling location nearest

you.

For more information regarding recycling of rechargeable batteries,

call toll free

1-800-822-8837, or visit http://www.rbrc.org/

Caution: Do not handle damaged or leaking Lithium-Ion batteries.

[Battery pack

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation.

This Class B digital apparatus complies with Canadian ICES-003.

UL is an internationally recognized safety organization.

The UL Mark on the product means it has been UL Listed.

For Customers in the U.S.A. and Canada

For Customers in the U.S.A.

If you have any questions about this product, you may call:

Sony Customer Information Center

1-800-222-SONY (7669).

The number below is for the FCC related matters only.

[Regulatory Information

[CAUTION

You are cautioned that any changes or modifications not expressly approved in this manual

could void your authority to operate this equipment.

[Note:

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in

a residential installation. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

– Reorient or relocate the receiving antenna.

– Increase the separation between the equipment and receiver.

– Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

– Consult the dealer or an experienced radio/TV technician for help.

The supplied interface cable must be used with the equipment in order to comply with the

limits for a digital device pursuant to Subpart B of Part 15 of FCC Rules.

Declaration of Conformity

Trade Name: SONY

Model No.: DSC-W690

Responsible Party: Sony Electronics Inc.

Address: 16530 Via Esprillo,

San Diego, CA 92127 U.S.A.

Telephone No.: 858-942-2230

This device complies with Part15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and (2)

this device must accept any interference received, including interference that may cause

undesired operation.

[Notice for the customers in the countries applying EU Directives

The manufacturer of this product is Sony Corporation, 1-7-1 Konan Minato-ku Tokyo,

108-0075 Japan. The Authorized Representative for EMC and product safety is Sony

Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany. For any service or

guarantee matters please refer to the addresses given in separate service or guarantee

documents.

This product has been tested and found compliant with the limits set out in the EMC

Directive for using connection cables shorter than 3 meters (9.8 feet).

[Attention

The electromagnetic fields at the specific frequencies may influence the picture and sound

of this unit.

[Notice

If static electricity or electromagnetism causes data transfer to discontinue midway (fail),

restart the application or disconnect and connect the communication cable (USB, etc.)

again.

[Disposal of Old Electrical & Electronic Equipment (Applicable in

the European Union and other European countries with separate

collection systems)

This symbol on the product or on its packaging indicates that this product

shall not be treated as household waste. Instead it shall be handed over to

the applicable collection point for the recycling of electrical and electronic

equipment. By ensuring this product is disposed of correctly, you will help

prevent potential negative consequences for the environment and human

health, which could otherwise be caused by inappropriate waste handling

of this product. The recycling of materials will help to conserve natural

resources. For more detailed information about recycling of this product,

please contact your local Civic Office, your household waste disposal service or the shop

where you purchased the product.

For Customers in Europe

[Disposal of waste batteries (applicable in the European Union

and other European countries with separate collection systems)

This symbol on the battery or on the packaging indicates that the battery

provided with this product shall not be treated as household waste.

On certain batteries this symbol might be used in combination with a

chemical symbol. The chemical symbols for mercury (Hg) or lead (Pb) are

added if the battery contains more than 0.0005% mercury or 0.004% lead.

By ensuring these batteries are disposed of correctly, you will help prevent

potentially negative consequences for the environment and human health which could

otherwise be caused by inappropriate waste handling of the battery. The recycling of the

materials will help to conserve natural resources.

In case of products that for safety, performance or data integrity reasons require a

permanent connection with an incorporated battery, this battery should be replaced by

qualified service staff only. To ensure that the battery will be treated properly, hand over

the product at end-of-life to the applicable collection point for the recycling of electrical

and electronic equipment.

For all other batteries, please view the section on how to remove the battery from the

product safely.

Hand the battery over to the applicable collection point for the recycling of waste batteries.

For more detailed information about recycling of this product or battery, please contact

your local Civic Office, your household waste disposal service or the shop where you

purchased the product.

A moulded plug complying with BS 1363 is fitted to this equipment for your safety and

convenience.

Should the fuse in the plug supplied need to be replaced, a fuse of the same rating as the

supplied one and approved by ASTA or BSI to BS 1362, (i.e., marked with an or

mark) must be used.

If the plug supplied with this equipment has a detachable fuse cover, be sure to attach the

fuse cover after you change the fuse. Never use the plug without the fuse cover. If you

should lose the fuse cover, please contact your nearest Sony service station.

Notice for customers in the United Kingdom

AON/OFF (Power) button/Power

lamp

BShutter button

CFlash

DSelf-timer lamp/Smile Shutter

lamp/AF illuminator

EMicrophone

FLens

GLCD screen

H(Playback) button

IFor shooting: W/T (Zoom)

button

For viewing: (Playback

zoom) button/ (Index) button

JMode switch: (Still Image)/

(Movie)/ (Sweep

Panorama)

KHook for wrist strap

L/ (In-Camera Guide/Delete)

button

MMENU button

NControl button

MENU on: v/V/b/B/z

MENU off: DISP/ / / /

Tracking focus

OAccess lamp

PBattery eject lever

QBattery insertion slot

RTripod receptacle

• Use a tripod with a screw less

than 5.5 mm (7/32 inches) long.

Otherwise, you cannot firmly

secure the camera, and damage to

the camera may occur.

SSpeaker

TBattery/memory card cover

UUSB / A/V OUT jack

VMemory card slot

Identifying parts

Charging time

Full charge time: approx. 245 min.

Normal charge time: approx. 185 min.

• The above charging times apply when charging a fully depleted battery pack at a

temperature of 25°C (77°F). Charging may take longer depending on conditions of

use and circumstances.

• Connect the battery charger to the nearest wall outlet (wall socket).

• When charging is finished, disconnect the power cord (mains lead) from the wall

outlet (wall socket), and remove the battery pack from the battery charger.

• Be sure to use the battery pack or the battery charger of the genuine Sony brand.

• BC-TRN2 battery charger (sold separately) is able to quick-charge the NP-BN

rechargeable battery pack supplied with this model. BC-TRN battery charger (sold

separately) is not able to quick-charge the NP-BN rechargeable battery pack

supplied with this model.

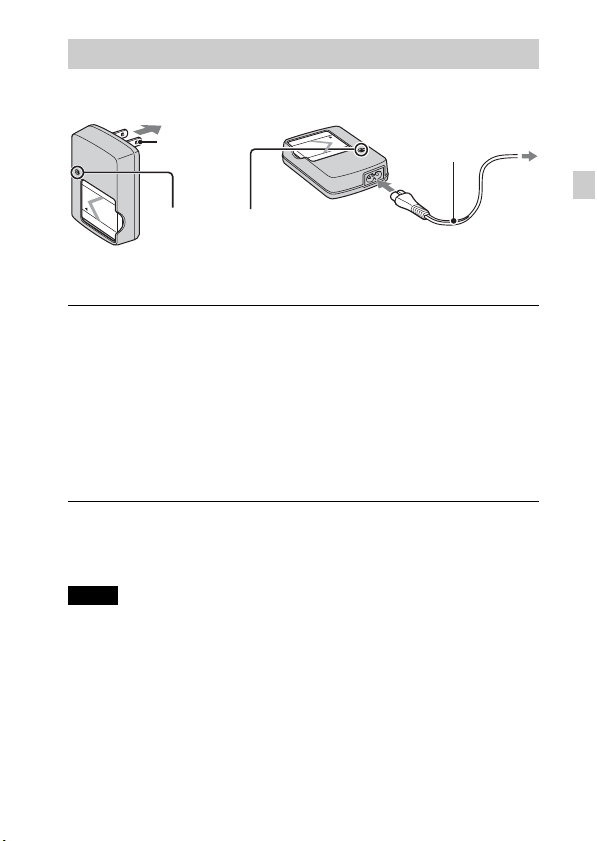

Charging the battery pack

1Insert the battery pack into the battery charger.

• You can charge the battery even when it is partially charged.

2Connect the battery charger to the wall outlet (wall

socket).

• If you continue charging the battery pack for about one more hour after

the CHARGE lamp turns off, the charge will last slightly longer (Full

charge).

• When the CHARGE lamp flashes and charging is not finished, remove

and re-insert the battery pack.

Notes

Plug

For customers in the USA

and Canada

CHARGE lamp

Power cord

(Mains lead)

For customers in countries/regions

other than the USA and Canada

Lit: Charging

Off: Charging finished (Normal charge)

Flash: Charging error

Battery life and number of images you can record/

view

• The number of images that can be recorded is an approximate number when

shooting with a fully charged battery pack. The number may be less depending on

the circumstances.

• The number of images that can be recorded is when shooting under the following

conditions:

– Using Sony “Memory Stick PRO Duo” (Mark2) media (sold separately).

– When a fully charged battery pack (supplied) is used at an ambient temperature

of 25°C (77°F).

• The number of still images that can be recorded is based on the CIPA standard,

and is for shooting under the following conditions.

(CIPA: Camera & Imaging Products Association)

– [Disp. Resolution] is set to [Standard].

– [Panel Brightness] is set to [3].

– Shooting once every 30 seconds.

– The zoom is switched alternately between the W and T ends.

– The flash strobes once every two times.

– The power turns on and off once every ten times.

• The battery life for movies is when shooting under the following conditions:

– Recording mode: 720 FINE

– When continuous shooting ends because of set limits (page 21), press the shutter

button down again and continue shooting. Shooting functions such as the zoom

do not operate.

Battery life (min.) Number of images

Shooting still images Approx. 110 Approx. 220

Viewing still images Approx. 220 Approx. 4400

Shooting movies Approx. 85 —

Notes

Otros manuales para Cyber-shot DSC-W690

Tabla de contenidos

Idiomas:

Otros manuales de Cámara digital de Sony

Sony

Sony Cyber-shot DSC-S600 Manual de usuario

Sony

Sony Cyber-shot DSC-U20 Manual de usuario

Sony

Sony Cyber-shot DSC-W710 Manual de usuario

Sony

Sony Alpha SLT-A99 Manual de usuario

Sony

Sony Cyber-shot DSC-T100 Manual de usuario

Sony

Sony DSC-W310/P Manual de usuario

Sony

Sony Cyber-Shot DSC-KW1 Manual de usuario

Sony

Sony Cyber-shot DSC-W125 Manual de usuario

Sony

Sony DSCW90 - Cybershot 8.1MP Digital Camera Manual de usuario

Sony

Sony Cyber-shot DSC-S600 Manual de usuario

Sony

Sony Cyber-shot DSC-W510 Manual de usuario

Sony

Sony A 7 R IV Manual de usuario

Sony

Sony Cyber-shot DSC-W690 Manual de usuario

Sony

Sony NEX-3N Manual de instrucciones de instalación

Sony

Sony Cyber-shot DSC-P100 Manual de usuario

Sony

Sony Cyber-shot DSC-T200 Manual de usuario

Sony

Sony Alpha ILCE-7 Instrucciones de funcionamiento

Sony

Sony Mavica FD87 Guía del usuario

Sony

Sony FD Mavica MVC-FD200 Manual de usuario

Sony

Sony Alpha SLT-A37 Manual de usuario

Sony

Sony Cyber-shot DSC-WX70 Manual de usuario

Sony

Sony DSC-S980/B - Cyber-shot Digital Still Camera Manual de usuario

Sony

Sony GV-D1000E - Digital Video Cassette Recorder Manual de uso y mantenimiento

Sony

Sony Cyber-Shot DSC-H3 Manual de usuario

Manuales populares de Cámara digital de otras marcas

Mercury

Mercury 350K Manual de usuario

Pentax

Pentax Optio LS 465 Manual de usuario

Sanyo

Sanyo VPC-S1085 Manual de usuario

GE SMART A1255 Manual de usuario

Point Grey

Point Grey Gazelle Manual de usuario

Nikon

Nikon COOLPIX A Manual de usuario

Pentax

Pentax P-5 Manual de usuario

BlazeVideo

BlazeVideo A280 Manual de usuario

ATIK Cameras

ATIK Cameras One Manual de usuario

CohuHD Costar

CohuHD Costar 3930 Series Manual de usuario

Leica

Leica M10-R Manual de usuario

FujiFilm

FujiFilm FinePix A700 Manual de usuario

Lorex

Lorex LNZ81P25 Series Manual de usuario

GE J1470S Manual de usuario

Canon

Canon EOS ELAN7 Manual de usuario

Nikon

Nikon Coolpix 100 Manual de usuario

Samsung

Samsung SCC-C4253 Manual de usuario

JVC

JVC GT-HM890 Manual de usuario
