Sony Cyber-shot DSC-TX55 Manual de usuario

DSC-TX55

Printed in Japan

4-294-603-61(1)

DSC-TX55

4-294-603-61(1)

Digital Still Camera / Instruction Manual GB

Kamera digital / Manual Arahan MY

Kamera Digital / Panduan Pengguna ID

4-294-603-61(1)

DSC-TX55

Owner’s Record

The model and serial numbers are located on the bottom. Record the serial number in the

space provided below. Refer to these numbers whenever you call your Sony dealer

regarding this product.

Model No. DSC-TX55

Serial No. ______________________________

Model No. AC-UB10/UB10B

Serial No. ______________________________

To reduce fire or shock hazard, do not expose the unit to rain or

moisture.

IMPORTANT SAFETY INSTRUCTIONS

-SAVE THESE INSTRUCTIONS

DANGER

TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK, CAREFULLY FOLLOW THESE

INSTRUCTIONS

If the shape of the plug does not fit the power outlet, use an attachment plug adaptor of the

proper configuration for the power outlet.

[Battery pack

If the battery pack is mishandled, the battery pack can burst, cause a fire or even chemical

burns. Observe the following cautions.

• Do not disassemble.

• Do not crush and do not expose the battery pack to any shock or force such as

hammering, dropping or stepping on it.

• Do not short circuit and do not allow metal objects to come into contact with the battery

terminals.

• Do not expose to high temperature above 60°C (140°F) such as in direct sunlight or in a

car parked in the sun.

• Do not incinerate or dispose of in fire.

English

WARNING

CAUTION

• Do not handle damaged or leaking lithium ion batteries.

• Be sure to charge the battery pack using a genuine Sony battery charger or a device that

can charge the battery pack.

• Keep the battery pack out of the reach of small children.

• Keep the battery pack dry.

• Replace only with the same or equivalent type recommended by Sony.

• Dispose of used battery packs promptly as described in the instructions.

[AC Adaptor

Connect the AC Adaptor to the nearest wall outlet (wall socket).

If some trouble occurs while using the AC Adaptor, immediately shut off the power by

disconnecting the plug from the wall outlet (wall socket).

The power cord (mains lead), if supplied, is designed specifically for use with this camera

only, and should not be used with other electrical equipment.

[RECYCLING LITHIUM-ION BATTERIES

Lithium-Ion batteries are recyclable.

You can help preserve our environment by returning your used

rechargeable batteries to the collection and recycling location nearest

you.

For more information regarding recycling of rechargeable batteries,

call toll free

1-800-822-8837, or visit http://www.rbrc.org/

Caution: Do not handle damaged or leaking Lithium-Ion batteries.

[Battery pack

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation.

This Class B digital apparatus complies with Canadian ICES-003.

UL is an internationally recognized safety organization.

The UL Mark on the product means it has been UL Listed.

If you have any questions about this product, you may call:

Sony Customer Information Center

1-800-222-SONY (7669).

The number below is for the FCC related matters only.

For Customers in the U.S.A. and Canada

For Customers in the U.S.A.

[Regulatory Information

[CAUTION

You are cautioned that any changes or modifications not expressly approved in this manual

could void your authority to operate this equipment.

[Note:

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in

a residential installation. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

– Reorient or relocate the receiving antenna.

– Increase the separation between the equipment and receiver.

– Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

– Consult the dealer or an experienced radio/TV technician for help.

The supplied interface cable must be used with the equipment in order to comply with the

limits for a digital device pursuant to Subpart B of Part 15 of FCC Rules.

Declaration of Conformity

Trade Name: SONY

Model No.: DSC-TX55

Responsible Party: Sony Electronics Inc.

Address: 16530 Via Esprillo,

San Diego, CA 92127 U.S.A.

Telephone No.: 858-942-2230

This device complies with Part15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and (2)

this device must accept any interference received, including interference that may cause

undesired operation.

[Notice for the customers in the countries applying EU Directives

The manufacturer of this product is Sony Corporation, 1-7-1 Konan Minato-ku Tokyo,

108-0075 Japan. The Authorized Representative for EMC and product safety is Sony

Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany. For any service or

guarantee matters please refer to the addresses given in separate service or guarantee

documents.

This product has been tested and found compliant with the limits set out in the EMC

Directive for using connection cables shorter than 3 meters (9.8 feet).

[Attention

The electromagnetic fields at the specific frequencies may influence the picture and sound

of this unit.

[Notice

If static electricity or electromagnetism causes data transfer to discontinue midway (fail),

restart the application or disconnect and connect the communication cable (USB, etc.)

again.

[Disposal of Old Electrical & Electronic Equipment (Applicable in

the European Union and other European countries with separate

collection systems)

This symbol on the product or on its packaging indicates that this product

shall not be treated as household waste. Instead it shall be handed over to

the applicable collection point for the recycling of electrical and electronic

equipment. By ensuring this product is disposed of correctly, you will help

prevent potential negative consequences for the environment and human

health, which could otherwise be caused by inappropriate waste handling

of this product. The recycling of materials will help to conserve natural

resources. For more detailed information about recycling of this product,

please contact your local Civic Office, your household waste disposal service or the shop

where you purchased the product.

For Customers in Europe

[Disposal of waste batteries (applicable in the European Union

and other European countries with separate collection systems)

This symbol on the battery or on the packaging indicates that the battery

provided with this product shall not be treated as household waste.

On certain batteries this symbol might be used in combination with a

chemical symbol. The chemical symbols for mercury (Hg) or lead (Pb) are

added if the battery contains more than 0.0005% mercury or 0.004% lead.

By ensuring these batteries are disposed of correctly, you will help prevent

potentially negative consequences for the environment and human health which could

otherwise be caused by inappropriate waste handling of the battery. The recycling of the

materials will help to conserve natural resources.

In case of products that for safety, performance or data integrity reasons require a

permanent connection with an incorporated battery, this battery should be replaced by

qualified service staff only. To ensure that the battery will be treated properly, hand over

the product at end-of-life to the applicable collection point for the recycling of electrical

and electronic equipment.

For all other batteries, please view the section on how to remove the battery from the

product safely.

Hand the battery over to the applicable collection point for the recycling of waste batteries.

For more detailed information about recycling of this product or battery, please contact

your local Civic Office, your household waste disposal service or the shop where you

purchased the product.

A moulded plug complying with BS 1363 is fitted to this equipment for your safety and

convenience.

Should the fuse in the plug supplied need to be replaced, a fuse of the same rating as the

supplied one and approved by ASTA or BSI to BS 1362, (i.e., marked with an or

mark) must be used.

If the plug supplied with this equipment has a detachable fuse cover, be sure to attach the

fuse cover after you change the fuse. Never use the plug without the fuse cover. If you

should lose the fuse cover, please contact your nearest Sony service station.

Notice for customers in the United Kingdom

For details on advanced operations, please read “Cyber-shot User Guide”

(HTML) on the CD-ROM (supplied) using a computer.

For Windows users:

1Click [User Guide] t[Install].

2Start “User Guide” from the shortcut on the desktop.

For Macintosh users:

1Select the [User Guide] folder and copy [eng] folder stored in [User Guide]

folder to your computer.

2After copying is complete, double-click “index.html” in [eng] folder.

• Camera (1)

• Rechargeable battery pack NP-BN (1)

(This rechargeable battery pack cannot be used with Cyber-shot that are

supplied with the NP-BN1 battery pack.)

• Multi-use terminal USB cable (1)

• AC Adaptor AC-UB10/UB10B (1)

• Power cord (mains lead) (not supplied in the USA and Canada) (1)

• Paint pen (1)

• Wrist strap (1)

• Tripod adaptor (1)

•CD-ROM(1)

– Cyber-shot application software

– “Cyber-shot User Guide”

• Instruction Manual (this manual) (1)

Refer to “Cyber-shot User Guide” (HTML) on

supplied CD-ROM

Checking the supplied items

Insert the CD-ROM into the CD-ROM drive.

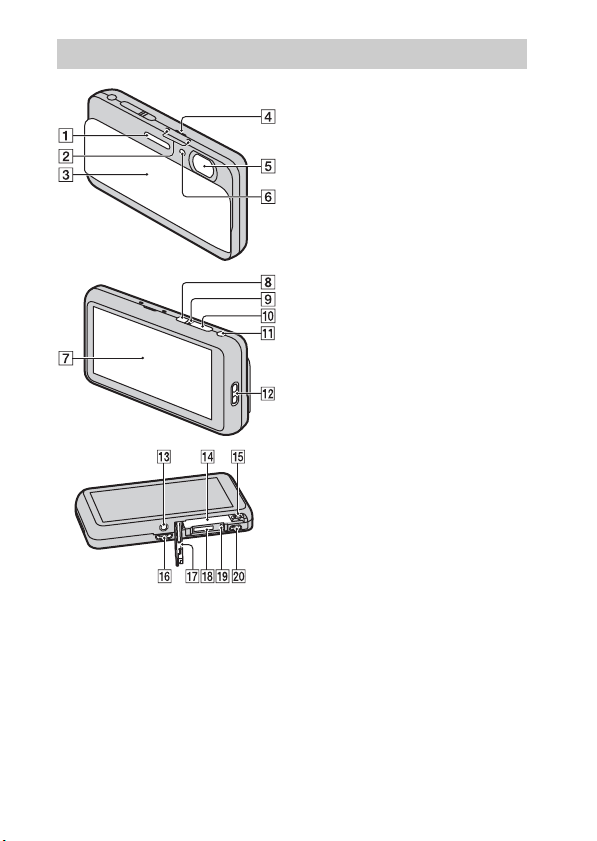

AFlash

BMicrophone

CLens cover

DSpeaker

ELens

FSelf-timer lamp/Smile Shutter

lamp/AF illuminator

GScreen/Touch panel

HON/OFF (Power) button

IPower/Charge lamp

JShutter button

KW/T (zoom) lever

LHook for wrist strap

MThread groove

NBattery insertion slot

OBattery eject lever

PMulti connector (Type3b)

QBattery/Memory card cover

RMemory card slot

SAccess lamp

THDMI connector

Identifying parts

Inserting the battery pack

1Open the cover.

2Insert the battery pack.

• While sliding the battery eject lever, insert the battery pack as

illustrated. Make sure that the battery eject lever locks after insertion.

• Closing the cover with the battery inserted incorrectly may damage the

camera.

Charging the battery pack

Battery eject lever

Power cord (Mains

lead)

For customers in the USA, Canada

For customers in countries/regions

other than the USA and Canada

Power/Charge lamp

Lit: Charging

Off: Charging finished

Flashing:

Charging error

Charging paused due to

overheating

• If the Power/Charge lamp on the camera flashes when the AC Adaptor is

connected to the wall outlet (wall socket), this indicates that charging is

temporarily stopped because the temperature is outside the recommended range.

When the temperature gets back within the appropriate range, the charging

resumes. We recommend charging the battery pack in an ambient temperature of

between 10°C to 30°C (50ºF to 86ºF).

• Connect the AC Adaptor (supplied) to the nearest wall outlet (wall socket). If

malfunctions occur while using the AC Adaptor, disconnect the plug from the wall

outlet (wall socket) immediately to disconnect from the power source.

• When charging is finished, disconnect the AC Adaptor from the wall outlet (wall

socket).

• Be sure to use only genuine Sony brand battery packs, multi-use terminal USB

cable (supplied) and AC Adaptor (supplied).

• BC-TRN2 battery charger (sold separately) is able to quick-charge the NP-BN

rechargeable battery pack supplied with this model. BC-TRN battery charger (sold

separately) is not able to quick-charge the NP-BN rechargeable battery pack

supplied with this model.

Charging time

The charging time is approximately 140 min. using the AC Adaptor

(supplied).

• The above charging time applies when charging a fully depleted battery pack at a

temperature of 25°C (77°F). Charging may take longer depending on conditions of

use and circumstances.

1Connect the camera to the AC Adaptor (supplied),

using the multi-use terminal USB cable (supplied).

2Connect the AC Adaptor to the wall outlet (wall socket).

The Power/Charge lamp lights orange, and charging starts.

• Turn off the camera while charging the battery.

• You can charge the battery pack even when it is partially charged.

• When the Power/Charge lamp flashes and charging is not finished,

remove and re-insert the battery pack.

Notes

Note

Otros manuales para Cyber-shot DSC-TX55

Tabla de contenidos

Idiomas:

Otros manuales de Cámara digital de Sony

Sony

Sony Cyber-shot DSC-W320 Manual de usuario

Sony

Sony A7C Guía del usuario

Sony

Sony alpha 3000 Manual de usuario

Sony

Sony Cyber-shot DSC-W520 Manual de usuario

Sony

Sony Cybershot,Cyber-shot DSC-W110 Manual de usuario

Sony

Sony Cyber-shot DSC-T20 Manual de usuario

Sony

Sony DSC T500 - Cyber-shot Digital Camera Manual de usuario

Sony

Sony DSLR-A390 - alpha; Digital Single Lens Reflex... Manual de usuario

Sony

Sony Mavica MVC-FD83 Manual de usuario

Sony

Sony DSC-S950/B - Cyber-shot Digital Still Camera Manual de usuario

Sony

Sony M-100MC - Microcassette Dictaphone Manual de usuario

Sony

Sony MVC-CD350 - Digital Still Camera Mavica Cd... Manual de usuario

Sony

Sony ILCE-5000 Guía de referencia

Sony

Sony SLT-A57 &alpha Manual de usuario

Sony

Sony DSC-D770 - Cyber-shot Digital Still Camera Manual de usuario

Sony

Sony Cyber-shot DSC-S600 Manual de instrucciones

Sony

Sony DSC-TX20/B Manual de usuario

Sony

Sony Cyber-shot DSC-W730 Manual de usuario

Sony

Sony Cyber-shot DSC-HX9V Manual de usuario

Sony

Sony Cyber-shot DSC-T110D Manual de usuario

Sony

Sony ILCE-6500 Manual de usuario

Sony

Sony DSC-F55 Manual de usuario

Sony

Sony DSC-H90 Manual de usuario

Sony

Sony DIGITAL STILL CAMERA DSC-R1 Manual de usuario

Manuales populares de Cámara digital de otras marcas

Mercury

Mercury 350K Manual de usuario

Pentax

Pentax Optio LS 465 Manual de usuario

Sanyo

Sanyo VPC-S1085 Manual de usuario

GE SMART A1255 Manual de usuario

Point Grey

Point Grey Gazelle Manual de usuario

Nikon

Nikon COOLPIX A Manual de usuario

Pentax

Pentax P-5 Manual de usuario

BlazeVideo

BlazeVideo A280 Manual de usuario

ATIK Cameras

ATIK Cameras One Manual de usuario

CohuHD Costar

CohuHD Costar 3930 Series Manual de usuario

Leica

Leica M10-R Manual de usuario

FujiFilm

FujiFilm FinePix A700 Manual de usuario

Lorex

Lorex LNZ81P25 Series Manual de usuario

GE J1470S Manual de usuario

Canon

Canon EOS ELAN7 Manual de usuario

Nikon

Nikon Coolpix 100 Manual de usuario

Samsung

Samsung SCC-C4253 Manual de usuario

JVC

JVC GT-HM890 Manual de usuario
