INSTALLATION MANUAL
1st Edition (Revised 2)
Serial No. 10001 and Higher (BKSI-2010)
Serial No. 10001 and Higher (BKSI-2011)
DISK CONTROLLER MEMORY BOARD
BKSI-2011
DISK CONTROL BOARD
BKSI-2010
PRECAUTIONS
Do not install with turning the power on
Touching the power contact portion or the primary
winding circuit may cause electric shock. Turn off
the power and unplug the appliance from the outlet
before installing.
!WARNING
This manual is intended for qualified service personnel only.
To reduce the risk of electric shock, fire or injury, do not perform any servicing other than that
contained in the operating instructions unless you are qualified to do so. Refer all servicing to
qualified service personnel.
!WARNUNG
Die Anleitung ist nur für qualifiziertes Fachpersonal bestimmt.
Alle Wartungsarbeiten dürfen nur von qualifiziertem Fachpersonal ausgeführt werden. Um die
Gefahr eines elektrischen Schlages, Feuergefahr und Verletzungen zu vermeiden, sind bei
Wartungsarbeiten strikt die Angaben in der Anleitung zu befolgen. Andere als die angegeben
Wartungsarbeiten dürfen nur von Personen ausgeführt werden, die eine spezielle Befähigung
dazu besitzen.
!AVERTISSEMENT
Ce manual est destiné uniquement aux personnes compétentes en charge de l’entretien. Afin
de réduire les risques de décharge électrique, d’incendie ou de blessure n’effectuer que les
réparations indiquées dans le mode d’emploi à moins d’être qualifié pour en effectuer d’autres.
Pour toute réparation faire appel à une personne compétente uniquement.
1(E)
BKSI-2010
Table of Contents
Manual Structure
Purpose of this manual .............................................................................................. 2
Contents ..................................................................................................................... 2
Related manuals ......................................................................................................... 2
INSTALLATION
1. Overview.......................................................................................................... 1-1
1-1. Overview .......................................................................................... 1-1
1-2. Configuration ................................................................................... 1-1
1-3. Disk Control Concept ...................................................................... 1-2
2. Information of BKSI-2010 .............................................................................. 1-3
2-1. Plug-in Board Installation ................................................................ 1-3
2-2. Connector Panel Installation ............................................................ 1-4
2-3. Notice in Power on .......................................................................... 1-4
2-4. Location and Function of Connectors .............................................. 1-5
2-5. Connecting Connector and Cable .................................................... 1-6
2-6. Signal Input/Output .......................................................................... 1-6
2-7. Location and Function of Switches/LEDs ....................................... 1-8
2-7-1. SCS-4 Board ............................................................................... 1-8
2-7-2. IO-116 Board ............................................................................. 1-9
2-8. NOVRAM Setup ............................................................................ 1-10
3. Information of BKSI-2011 ............................................................................ 1-16
3-1. Installation to BKSI-2010 .............................................................. 1-16
4. Specifications ................................................................................................. 1-17
5. ISR ................................................................................................................. 1-18
5-1. Overview ........................................................................................ 1-18
5-2. ISR Use Environment .................................................................... 1-21
2(E) BKSI-2010
Purpose of this manual
This manual is the installation manual of Disk Control Board BKSI-2010 and Disk
Control Memory Board BKSI-2011.
This manual is intended for use by trained system and service engineers, and
described the information when installing.
Contents
This manual is organized by following sections.
1. Overview
This section describes the overview of the BKSI-2010/2011.
2. Information of BKSI-2010
This section describes how to install the plug-in board and connector panel to the
System Interface Unit SIU-80 and function of switches and LEDs.
3. Information of BKSI-2011
This section describes how to install the board to the BKSI-2010.
4. Specifications
This section describes the specifications of BKSI-2010/2011.
5. ISR
This section describes the overview of the ISR system.
Manual Structure
Related manuals
The following manual is prepared for this unit.
• Maintenance Manual (Optional manual)
This manual describes the information for periodic maintenance and detailed
service.
For obtaining the Maintenance Manual, please contact to your local Sony’s sales/
service office.
1-1(E)
BKSI-2010
INSTALLATION
1. Overview
1-1. Overview
BKSI-2010
Disk Control Board BKSI-2010 records the audio/video signal or data from other BKSI-2010 or Encoder
Board to SCSI devices (DDs:Disk Drives), and provides these signal or data played back from the disk
drives to the other BKSI-2010 or Decoder Board.
Interface between BKSI-2010 and other boards (including other BKSI-2010) is Serial Digital Data
Interface (SDDI), and interface between BKSI-2010 and disk drives is SCSI.
BKSI-2010 can process one channel signal for input, and two channel signals for output through the
SDDI. When BKSI-2011 is mounted on BKSI-2010, the BKSI-2010 can process four channel signals for
output.
One BKSI-2010 can control up to seven disk drives.
n
• BKSI-2010 does not receive Serial Digital Interface (SDI) signal.
BKSI-2011
Disk Controller Memory Board BKSI-2011 is for expanding the memory capacity of Disk Control Board
BKSI-2010.
By installing this BKSI-2011 onto BKSI-2010, BKSI-2010 can multiplex the three or four channel
signals into SDDI.
1-2. Configuration
BKSI-2010
• Plug-in Board (SCS-4 board) (1pc)
• Connector Panel (IO-116 board) (1pc)
• Installation Guide (1pc)
• Installation Manual (1pc)
• Model Labels (2pcs)
BKSI-2011
• Board (MY-72 board) (1pc)
• Installation Guide (1pc)
• Brackets/Screws (PWH 3X6) (3 sets)
1-2(E) BKSI-2010
1-3. Disk Control Concept
1. Overview
APPLICATION
SMS
(Software)
IDC EDITOR
VS-BUS RS-422A
VS-BUS
I/F
RS-422A
I/F
CPU
SDDI
SDDI
SDDI
I/F
AV
BUFFER
SDDI
I/F
AV
BUFFER
SPC SCSI DD
BKSI-2040
BKSI-2010
SMS : Server Management System (Software)
IDC : Intelligent Device Controller
SDDI : Serial Digital Data Interface
SPC : SCSI Protocol Controller
DD : Disk Drive
1-3(E)
BKSI-2010
2. Information of BKSI-2010
Flow for installation
2-1. Plug-in Board Installation
General information for installation
•The plug-in board (SCS-4 board) is inserted into any slot
No.1 to No.8 in the front of SIU-80.
•One of the model label supplied with BKSI-2010 is
attached to the shield plate to prevent the board inserting
into the incorrect slot when the board replacement and
others.
•BKSI-2011 (MY-72 board) is used to mount on BKSI-
2010.
A maximum of four combinations (BKSI-2010 + BKSI-
2011) can be installed in SIU-80.
Follow the precautions below when install the combina-
tion.
(1) Install the combination to the slot of even number.
(2) For realizing the heat radiation, set a dead slot (of
odd number) on BKSI-2011.
•In the board replacing, set the setting of the switch
S3301 on a new board to the setting of the removed
board.
Procedures
1. Turn off the power of the SIU-80 and remove the front
panel and shield plate.
(Refer to the Installation Manual supplied with SIU-80.)
2. Insert the board into a slot, and then turn the board
levers in the direction of the arrow 1and connect the
board securely to the connector of the SIU-80’s mother
board.
3. Install the shield plate.
Then, attach the model label on the right side of the
shield plate.
This label position should be aligned with the slot
installing the board.
4. Install the front panel.
n
If removing the board, turn the board levers in the direction
of the arrow 2, and remove the board from the slot.
2. Information of BKSI-2010
Start
Slot selection
Cable connection
Plug-in board installation : SCS-4 board
Model labels attachment
End
Connector panel installation : IO-116 board
1
2
1
212
Board lever Board lever
1Install
2Remove
SIU-80
Front panel
PSW 3×6
Shield plate
SIU-80
Model label
1-4(E) BKSI-2010
2. Information of BKSI-2010
2-2. Connector Panel Installation
General information for installation
•The connector panel is inserted into the slot with the
same number as the plug-in board installed in the front
of SIU-80.
•The model label supplied with the BKSI-2010 is at-
tached in the chassis to prevent the panel inserting into
the incorrect slot when the connector panel replacement
and others.
w
Do not install with turning the power on
Touching the power contact portion or the primary wind-
ing circuit may cause electric shock.
For safety reason, turn off the power and unplug the
appliance from the outlet before starting the installation.
Procedures
1. Turn off the power of SIU-80 and unplug the appli-
ance from the outlet.
2. Remove the rear blank panel. (Refer to the Installation
Manual supplied with the SIU-80.)
3. Attach the model label supplied with the BKSI-2010 in
the chassis near the slot to install the board.
n
After the connector panel is inserted into a slot, the
model label cannot be seen.
4. Insert the connector panel to the matching slot and fix
the panel by the two screws securing the rear blank panel.
Connector panel removal
1. Turn off the power of SIU-80 and unplug the appli-
ance from the outlet.
2. Remove the two screws securing the connector panel
and remove the connector panel.
m
•When removing the connector panel, move the panel
to the right and left slowly until the connection with
the mother board is sufficiently loose, then remove
the connector panel slowly.
•Panels must be held by the plugs of the cables which
are connected to the BNC cables.
2-3. Notice in Power on
After installing BKSI-2010 into SIU-80, turn on the power
of SIU-80.
Before turning on the power of SIU-80, always make sure
that the power of the disk drives is set to off. If the power
of the disk drive is turned on before SIU-80, an error may
occur in the disk drives.
If so, turn off the power of SIU-80 first, and next the disk
drives.
Then, turn on the power in the sequence of SIU-80 and
disk drives.
SIU-80
Rear blank panel
BVTT 3×6
SIU-80
BVTT 3×6
Connector panel
Model label
1-5(E)
BKSI-2010
2. Information of BKSI-2010

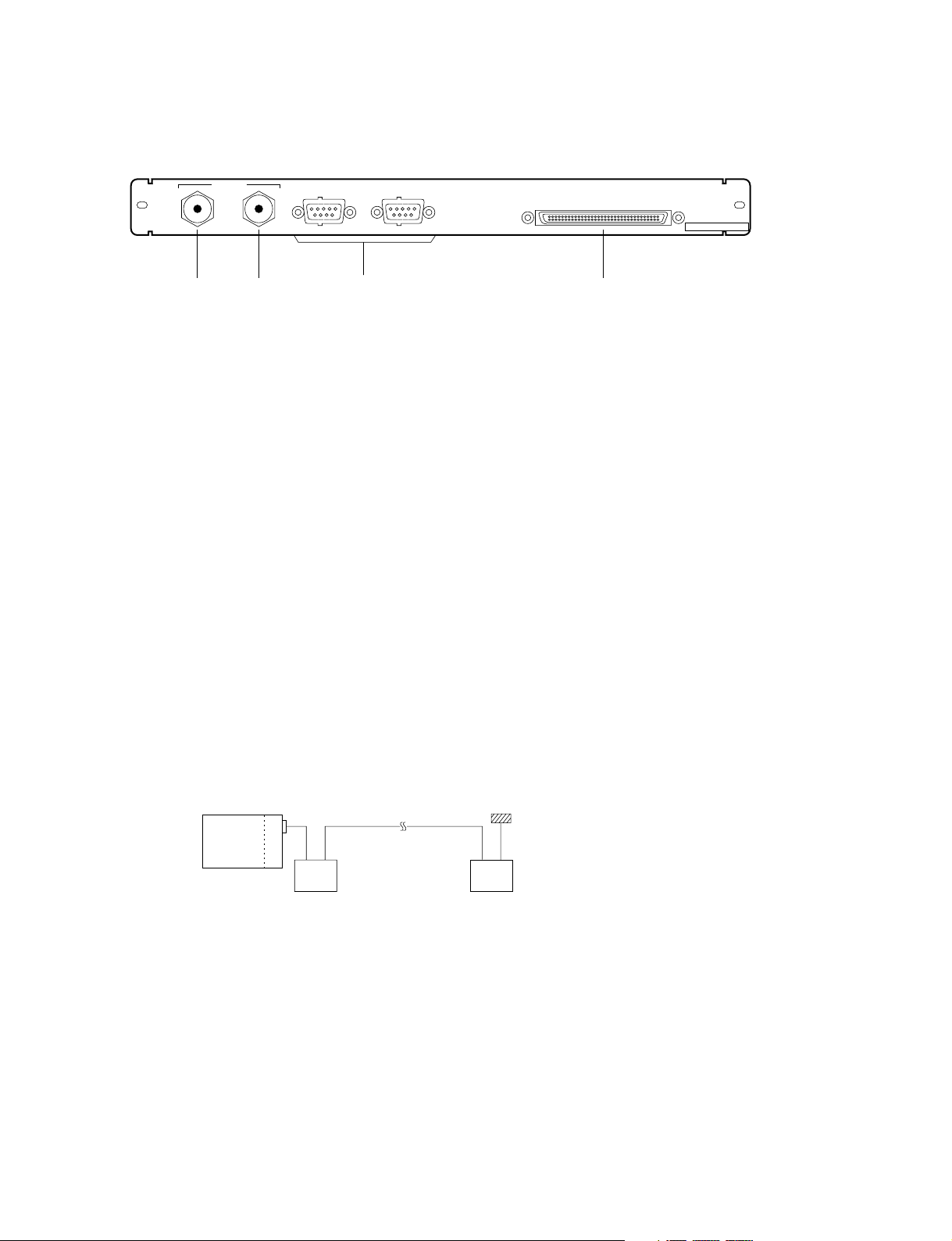

2-4. Location and Function of Connectors
1SDDI IN (Serial Digital Data input) connector :BNC type
Receives the Serial Digital Data Interface (SDDI) signal.
n
This connector does not receive the Serial Digital Interface (SDI) signal.
2SDDI OUT (Serial Digital Data output) connector :BNC type
Provides the Serial Digital Data Interface (SDDI) signal.
3RS-422A connectors :D-sub 9-pin
Used for RS-422A remote control. SONY DISK PROTOCOL signal is available for this terminal.
n
This connector does not accept SONY VTR PROTOCOL signal.
4SCSI connector :Differential-P type 68-pin
Connects to SCSI devices using a 68-pin cable corresponding to FAST-WIDE (10 Mbyte/s, 16 bits)
differential type SCSI, which is standard product.
n
•When connecting or disconnecting the SCSI cable, turn off the power of all units.
•Install differential-type 68-pin terminator at the end of SCSI bus.
Disk
Drive
• • • Disk
Drive
SCS-4 board/IO-116 board 68-pin terminator
BKSI-2010
REMOTE A
SDDI
IN OUT
DATA CONTROL
1 2
REMOTE B SCSI
3 4
1-6(E) BKSI-2010
2. Information of BKSI-2010
2-5. Connecting Connector and Cable
If any cable is connected to the connectors on the connector panel when installing or servicing, use the
connector or cable listed below or equivalent.
BKSI-2010 Matching Connector/Cable
Panel Indication Connector Connector Sony Part No.
SDDI IN/OUT BNC BNC 1-560-069-11
BELDEN 8281 cable
REMOTE A D-sub 9-pin, Female D-sub 9-pin, Male 1-560-651-00(Connector)
REMOTE B 1-561-749-00(Shell)
RCC-5G/10G/30G Cable*11-751-019-81 (5G)
1-751-019-91 (10G)
1-751-020-21 (30G)
SCSI Differential-P, Female Differential-P, Male Standard product
Differential-P Cable Standard product
*1: Each length of cables is 5 m, 10 m, and 30 m.
2-6. Signal Input/Output
Input and output signals of connector on the connector panel are shown below.
<External View>
REMOTE A/REMOTE B : RS-422A (D-sub 9-pin, Female)
Pin No. signal
1 FRAME GROUND
2TX–
3 RX+
4 GROUND
5NC
6 GROUND
7 TX+
8RX–
9 FRAME GROUND
5
96
1
Este manual sirve para los siguientes modelos
1
Tabla de contenidos
Otros manuales de Controladores de Sony
Sony
Sony RM-E700 Manual de usuario
Sony
Sony HomeShare RMN-U1 Manual de instrucciones de instalación
Sony
Sony ZRD-1 Manual de usuario
Sony
Sony DSBK-2020 Manual de usuario
Sony
Sony RM-V210 - Universal Remote Manual de usuario
Sony
Sony JumboTron JME-SA200 Manual de usuario
Sony
Sony BKM-36H Manual de usuario
Sony
Sony PlayStation Portable Manual de instalación y funcionamiento
Sony
Sony ZRD-1 Manual de usuario
Sony
Sony HKSP-R80 Manual de usuario
Sony
Sony Jumbotron JME-UA200 Manual de usuario
Sony
Sony HomeShare RMN-U1 Manual de usuario
Sony
Sony RM-V301 Manual de usuario
Sony
Sony RM-E300 Manual de usuario
Sony
Sony UPA-PC500 Manual de usuario
Sony
Sony PS3 CECH-ZCS1E Manual de usuario
Sony
Sony JumboTron Manual de usuario
Sony
Sony HKSP-R80 Manual de usuario
Sony
Sony BKSI-2440 Series Manual de usuario
Sony
Sony RM-AV2100B Operating Instructions (primary... Manual de usuario
