SonicWALL TZ 170 SP Manual de usuario

COMPREHENSIVE INTERNET SECURITY™

SSSSSSSSSSSSSSonicWALL Security Appliances

SonicWALL TZ 170 SP Wireless

Getting Started Guide

SonicWALL TZ 170 SP Wireless Getting Started Guide Page 1

SonicWALL TZ 170 SP Wireless Security Appliance

Getting Started Guide

The SonicWALL®TZ 170 SP Wireless is a total security platform that delivers enterprise-

class wireless and wired security to small networks, and ensures continuous network

uptime for critical, secure data connectivity through integrated and automated fail-over

and fail-back. The TZ 170 SP Wireless delivers broadband to analog WAN redundancy,

integrates 802.11b/g wireless networks, high-performance deep packet inspection,

firewall protection, an IPSec VPN gateway, and support for SonicWALL security services,

such as Content Filtering Service, Network Anti-Virus Service, Gateway Anti-Virus, Anti-

Spyware, and Intrusion Prevention Service.

This Getting Started Guide provides instructions for basic installation and configuration of

the SonicWALL TZ 170 SP Wireless running SonicOS Enhanced. After you complete

this guide, computers on your Local Area Network (LAN) will have secure Internet

access.

Note: For complete documentation, refer to the SonicOS Enhanced Administrator’s

Guide on the SonicWALL Resource CD or at:

<http://www.sonicwall.com/support/documentation.html>.

SonicWALL TZ 170 SP Wireless Configuration Steps

Before You Begin page 2

Setting Up the SonicWALL TZ 170 SP Wireless page 6

Connecting the SonicWALL TZ 170 SP Wireless page 8

Accessing the Management Interface page 9

Using the SonicWALL Setup Wizard page 10

Testing Your Connection page 19

Registering Your SonicWALL TZ 170 SP Wireless page 20

Activating SonicWALL Security Services page 23

Connecting Wireless Clients to the SonicWALL TZ 170 SP Wireless page 26

Connecting Computers to Your SonicWALL TZ 170 SP Wireless page 29

Page 2

Before You Begin

Check Package Contents Any Items Missing?

If any items are missing from your package,

contact:

SonicWALL Support

Web: <http://www.sonicwall.com/support/>

1. One SonicWALL TZ 170 SP Wireless

security appliance

2. One Getting Started Guide

3. One Release Note

4. One straight-through Ethernet cable

5. One RJ45 CLI cable*

6. One 5 Volt DC power supply

7. One power cord**

8. One mounting kit (not pictured)

9. One pair of antennae

10. One SonicWALL TZ 170 SP Wireless Resource CD

*The RJ45 CLI cable is only included with the purchase of a

SonicWALL TZ 170 SP Wireless with SonicOS Enhanced.

**A power cord is included only with units shipped to North America.

** Das eingeschlossene Netzkabel ist für Gebrauch in Nordamerikas nur vorgehabt.

Für Europaïsche Union (EU) Kunden, ist ein Netzkabel nicht eingeschlossen.

SonicWALL TZ 170 SP Wireless Getting Started Guide Page 3

SonicWALL TZ 170 SP Wireless Front and Back Panels Overview

Power Light

WAN

PoE Indicator

LAN 1-5

Link, Activity

Test Light

opt

WiFiSec

Enforcement

Wireless

On/Activity Modem

Console Port

LAN Ports 1-5

WAN Port

Power

Opt Port

Modem Port

Front Panel Feature Description

Power Light Indicates the SonicWALL TZ 170 Series appliance is powered on.

PoE Indicator Indicates that Power over Ethernet is available.

LAN: Link, Activity Indicates a LAN link (green), or LAN activity (blinking) on the specified port.

Wireless

On/Activity

Indicates enabled wireless signal (green), or wireless activity (blinking).

WiFiSec

Enforcement

Indicates that WiFi Security is in place and being enforced.

Optional Zone Indicates a link (green), or LAN activity (blinking) on the opt port.

WAN Indicates a link (green), or LAN activity (blinking) on the WAN port.

Modem Indicates a link (green), or LAN activity (blinking) on the modem port.

Test Light Indicates the SonicWALL TZ 170 Series appliance is in test mode.

Rear Panel Feature

Console Port Provides access to command-line interface (only for use with

SonicOS Enhanced).

Modem Port Provides a primary or failover WAN connection VIA a modem.

WAN Port Provides a primary (Ethernet) connection to the Internet (WAN).

Optional Port Provides and optional configurable port.

LAN Ports Provide multiple connections to your LAN.

Power Provides power connection using the supplied power cord and

power supply.

Page 4

SonicWALL TZ 170 SP Wireless Getting Started Guide Page 5

Collecting Internet Service Provider (ISP) Information

Collect the following information about your Internet service:

If you connect via You probably use Please record

Cable modem,

DSL with a router

DHCP No Internet connection information usually required.*

*Some service providers require a host name. Check

with your ISP.

Host Name:

Home DSL PPPoE User Name:

Password:

Note: Your ISP may require your user name in the

format: name@ISP.com

T1,

Static broadband,

Cable or DSL with

a static IP

Static IP IP Address:

Subnet Mask:

Default Gateway

(Router IP Address):

Primary DNS:

Secondary DNS (optional):

Dial in to a server PPTP Server Address:

User Name:

Password:

Note: If you are not using one of the network configurations above, refer to the

SonicOS Enhanced Administrator’s Guide.

Other Information

These are the default settings for accessing your SonicWALL TZ 170 SP Wireless Web-

based management interface:

User Name: admin

Password: (Default: password)

Modem

Dial-up Access Number:

What You Need to Begin

• A computer to use as a management station for initial configuration of the

SonicWALL TZ 170 SP Wireless

• A Web browser supporting Java and HTTP uploads. Internet Explorer 5.0 or higher,

Netscape Navigator 4.7 or higher, Mozilla 1.7 or higher, or Firefox are recommended

• An Internet connection

Page 6

Setting Up the SonicWALL TZ 170 SP Wireless

Physically setting up your SonicWALL security appliance involves:

• Installing the Antennas

• Adjusting the Antennas

• Applying Power

• Applying Power with the SonicWALL Power over Ethernet (PoE) Injector

Installing the Antennas

To use the wireless feature of the SonicWALL TZ 170 SP Wireless, you must install the

antennas on the back of the appliance. Remove the antennas from the bag and place

one on each connector. Finger tighten the fittings on the connectors.

Adjusting the Antennas

You can adjust the antennas for best radio reception. In most cases, the antennas

should be pointing straight up and perpendicular to the box. Start from that position, and

move them until you notice better reception. Certain area, such as the area directly

below the SonicWALL TZ 170 SP Wireless, have relatively poorer reception.

SonicWALL TZ 170 SP Wireless Getting Started Guide Page 7

Applying Power

Plug the power supply into the back of the SonicWALL security appliance and into an

appropriate power outlet.

Alert: Only use a SonicWALL-approved 5V, 2.4A power supply.

The Power LED on the front panel lights up green when you plug in the power supply.

The Test LED lights up and may blink while the SonicWALL TZ 170 SP Wireless

performs a series of diagnostic tests. When the Test light is no longer lit, the SonicWALL

security appliance is ready.

If the Test LED remains lit, restart the SonicWALL security appliance.

For more trouble shooting information, refer to the SonicOS Enhanced Administrator’s

Guide.

Applying Power with the SonicWALL Power over Ethernet (PoE)

Injector

The SonicWALL TZ 170 SP Wireless can use a regular power supply, or it can get power

through the LAN 1 Ethernet port using the an 802.3af standard PoE injector, like the

SonicWALL PoE Injector. To apply power with the PoE injector:

1. Plug the power cord of the PoE injector into the power outlet.

2. Connect an Ethernet cable to the Data and Power out port on the PoE Injector and

connect the other end of the cable to the LAN 1 port on the back of your

SonicWALL TZ 170 SP Wireless.

Alert: The PoE Injector Ethernet cable must be inserted into the LAN 1 port only to

power the SonicWALL TZ 170 SP Wireless

SonicWALL

PoE Injector

Data in

Data and

Power out

To LA N

To power source

Ethernet cable

LAN 1

Page 8

Connecting the SonicWALL TZ 170 SP Wireless

Connecting the WAN Cable to the Internet

WAN

DSL or Cable

Modem

Internet

1. Connect one end of an Ethernet cable to your Internet connection, such as a DSL

modem or cable modem.

This cable may already be connected between your computer and your modem. If

so, disconnect it from your computer, and leave it connected to the Internet.

2. Connect the other end of the cable to the WAN port on the back of your

SonicWALL TZ 170 SP Wireless.

The WAN LED on the front panel light up indicating an active connection.

Connecting the LAN Cable to Your Management Station

Management

Station

LAN port #1

1. Connect one end of an Ethernet cable to the computer you are using to manage the

SonicWALL TZ 170 SP Wireless.

2. Connect the other end of the cable to port # 1on the back of your

SonicWALL TZ 170 SP Wireless.

The port # 1LEDs on the front panel light up indicating an active connection.

SonicWALL TZ 170 SP Wireless Getting Started Guide Page 9

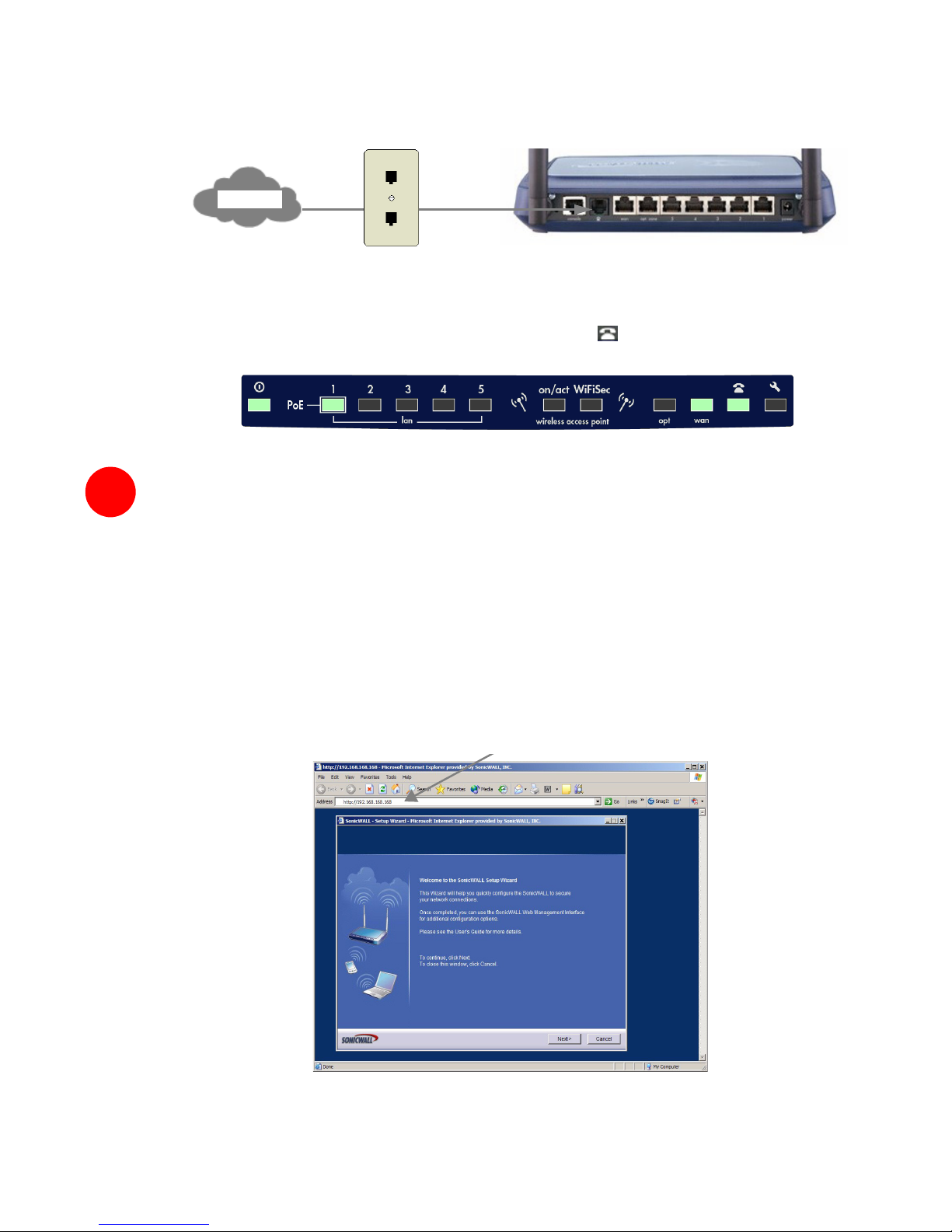

Connecting the Modem (Optional)

Modem

Phone Line

Internet

If you are using a modem for your primary Internet connection or as a failover for your

WAN connection, connect one end of a standard phone cable to your telephone line jack.

Connect the other end of the cable to the Modem port of the

SonicWALL TZ 170 SP Wireless. The modem LED lights up indicating a connection.

Accessing the Management Interface

The computer you use to manage the SonicWALL TZ 170 SP Wireless must be set up to

accept a dynamic IP address, or have an unused IP address in the 192.168.168.x/24

subnet, such as 192.168.168.20. For instructions on configuring your IP address, see

“Connecting Computers to Your SonicWALL TZ 170 SP Wireless” on page 29.

To access the Web-based management interface of the

SonicWALL TZ 170 SP Wireless:

1. On the computer you just connected, start your Web browser.

2. Enter 192.168.168.168 (the default LAN management IP address) in the Location or

Address field.
