Roll Up Basic 28 WF RTS Li-ion EN

ORIGINAL INSTRUCTIONS

These instructions apply to all Roll Up Basic 28 WF RTS Li-ion drives, the different

versions of which are available in the current catalogue.

CONTENTS

Prior information...........................................................................................

1.1.

Field of application............................................................................

1.2.

Liability ...............................................................................................

Installation......................................................................................................

2.1.

Assembly ............................................................................................

2.2.

Wiring .................................................................................................

2.3.

Commissioning ..................................................................................

2.4.

Tips and advice on installation.........................................................

Use and maintenance ....................................................................................

3.1.

Mode selection: Roller or Tilting Mode..........................................

3.2.

Controlling Up, Down, my: in Roller mode ....................................

3.3.

Controlling Up, Down, my: in Tilting mode....................................

3.4.

Favourite position (my) ....................................................................

3.5.

Tips and advice on operation...........................................................

Technical data ................................................................................................

EN Roll Up Basic 28 WF RTS Li-ion

GENERAL INFORMATION

Safety instructions

DANGER

Indicates a danger which may result in immediate death or

serious injury.

WARNING

Indicates a danger which may result in death or serious

injury.

PRECAUTION

Indicates a danger which may result in minor or moderate

injury.

CAUTION

Indicates a danger which may result in damage to or

destruction of the product.

Roll Up Basic 28 WF RTS Li-ion EN

1.PRIOR INFORMATION

1.1.Field of application

The Roll Up 28 drives are designed to motorise all types of:



Interior vertical blinds which front rail moves solely by gravity with a mass less

than 15kg.

1.2.Liability

Before installing and using the drive, please read these instructions carefully.

In addition to the instructions provided in this guide, please also comply with the

instructions provided in the attached Safety instructions document.

The drive must be installed by a home motorisation and automation

professional, in accordance with Somfy’s instructions and the applicable

regulations in the country of installation.

Any operation of the drive outside the field of application described above is

prohibited. Such use, and any failure to comply with the instructions given in this guide

and in the attached Safety instructions document, absolves Somfy of any liability and

invalidates the warranty.

After installing the drive, the installer must inform his customers of the operating and

maintenance conditions for the drive and must provide them with the operating and

maintenance instructions, and the attached Safety instructions document. Any After-

Sales Service operation on the drive must be performed by a home motorisation and

automation professional.

Never begin installing without first checking the compatibility of this product with the

associated equipment and accessories. If in doubt when installing this product and/or

to obtain additional information, contact a Somfy representative or visit the website

www.somfy.com.

Using this drive with any products which are not listed in the attached

«Compatibility matrix» document shall also render invalid any Somfy warranty

and release Somfy from any liability.

EN Roll Up Basic 28 WF RTS Li-ion

2.INSTALLATION

CAUTION

•

These instructions are mandatory for the home motorisation and

automation professional installing the drive.

•

Never drop, knock or puncture the drive or immerse it in liquid.

•

Install an individual control point for each drive.

NOTICE

Make sure that LED, programming button and input connection remain visible and

easily accessible after installation.

2.1.Assembly

2.1.1.Preparing the drive

CAUTION

Roll Up Basic 28 WF RTS Li-ion : interior diameter of the tube has to be Ø26.6

mm or greater.

1] Fit the crown (a) and drive wheel (b) to the

motor.

2] Measure the length (L) between the end of

the drive wheel and the head end.

(a)(b)

2.1.2.Preparing the tube

1] Cut the tube to the required length.

2] Deburr the tube and remove the debris.

1] 2]

Roll Up Basic 28 WF RTS Li-ion EN

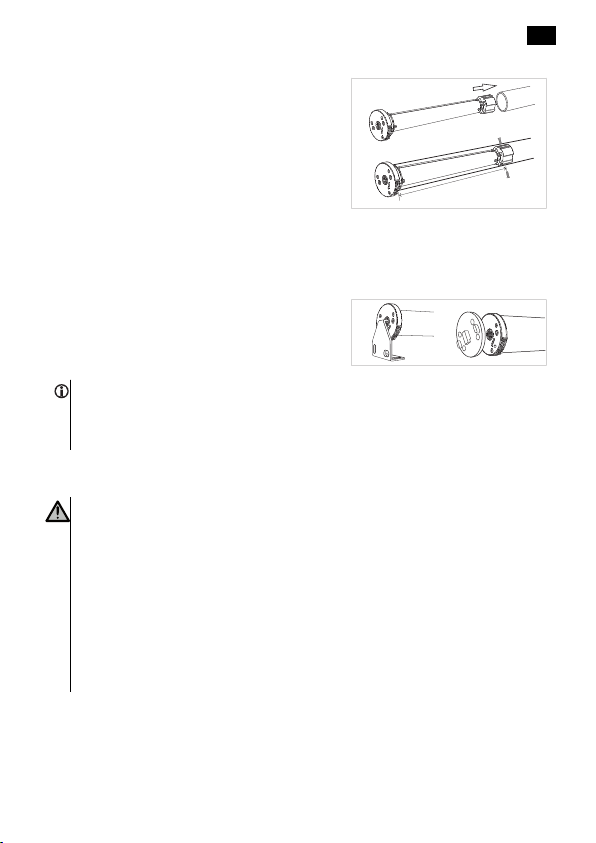

2.1.3.Assembling the drive-tube

1] Slide the drive into the tube. Insert the

wheel by aligning the wheel to the tube

profile. Insert the drive half way and then

slide the crown down the drive and insert

it in the tube. Finally, push the motor

inside the tube.

2] Not required, but if needed, fix the tube to

the drive with self-tapping screws or steel

pop rivets depending on the dimension (L).

2.1.4.Mounting the tube-drive assembly on the brackets

(a) Standard bracket.

(b) Drive plate for specific bracket.

(a) (b)

NOTICE

For optimal radio reception, the motor antenna should be kept straight and

should be positioned outside of headrail (if used).

2.2.Wiring

WARNING

•

To ensure electrical safety, this Class III drive must be powered by a «SELV»

voltage source (Safety Extra Low Voltage).

•

Improper using battery pack may cause overheat, fire, explosion, resulting in

serious injury or death.

•

This drive contains batteries that are only replaceable by skilled persons.

•

Do not expose the drive or battery to excessive temperatures.

•

There is a risk if terminals of the battery-operated drive or battery being

short circuited by metal objects.

EN Roll Up Basic 28 WF RTS Li-ion

CAUTION

•

For the purposes of recharging the battery, only use the detachable supply

unit provided with this appliance.

•

Using this drive with any products which are not listed in the attached

Compatibility matrix document shall also render invalid any Somfy warranty

and release Somfy from any liability.

•

Ensure battery is fully charged prior to installation on site.

•

Before setting, it is necessary to charge the battery only if the LED blinks red

5 times when you press any button on the paired control point.

1] Connect the charger to the drive.

2] When charging is complete, disconnect and store charger for later use.

Motor LED illuminates Behaviour

Green LED blinks twice every 10

seconds. Charging is near completion.

Solid Green. Charging is complete.

NOTICE

The drive will go back to sleep if left untouched for 15 minutes.

2.3.Commissioning

NOTICE

- Orange LED blinks continuously in setting mode.

- Green LED blinks once when any order from paired remote is received.

2.3.1.Waking up the drive

For initial unpackaging of drive, wake up the drive

by briefly pressing the drive head programming

button or plugging on the charger.

→The motorised product briefly moves up and

down 3 times and LED lights orange.

Roll Up Basic 28 WF RTS Li-ion EN

2.3.2.Pre-programming the control point

Press the Up and Down buttons simultaneously

on the control point:

→ The motorised product moves up and down.

The control point is pre-programmed.

2.3.3.Checking the direction of rotation

Press the Up button on the control point:

a] If the motorised product rises, the direction of

rotation is correct: move onto section Setting

the end limits.

b] If the motorised product lowers, the direction

of rotation is incorrect: move onto the next step.

b1] Press the my button on the control point until

the motorised product moves up and down: The

direction of rotation has been modified.

b2] Press the Up button on the control point to

check the direction of rotation.

b1] b2]

2.3.4.Setting the end limits

NOTICE

The end limits can be set in any order.

1] Press and hold the Up button to move the

motorised product to the desired up

position. If necessary, adjust the up

position using the Up or Down buttons.

2] To memorize the upper end limit: Press

the my and Down buttons simultaneously

and release once the motorised product

begins to move. The upper end limit is

now memorized and green LED blinks 5

times.

1] 2]

EN Roll Up Basic 28 WF RTS Li-ion

3] Press the my button when the motorised

product reaches the desired down

position. If necessary, adjust the down

position using the Up or Down buttons.

4] To memorize the lower end limit: Press

the my and Up buttons simultaneously

and release when the motorised product

begins to move and green LED blinks 5

times. The lower end limit is now

memorized. The motorised product

moves up and stops at its upper end limit.

5] To confirm and complete end limits

programming: Press and hold the my

button until the motorised product briefly

moves up and down. The end limits are

now programmed.

2.3.5.Activating/Deactivating “RTS” radio technology when

control point is temporarily preprogrammed (not

paired) to the motorised product

NOTICE

This function is used to deactivate the radio transmission to save the battery life

during shipment, or when the product will not be used for an extended amount of

time (eg: storage).

1] To deactivate the “RTS” Radio

Technology Somfy: Press the Up, my and

Down buttons simultaneously, until the

motorised product briefly moves up and

down once and green LED blinks 5 times.

2] To activate the “RTS” Radio

Technology Somfy: Briefly press the drive

head programming button, the motorised

product briefly moves up and down twice

and green LED blinks 5 times.
