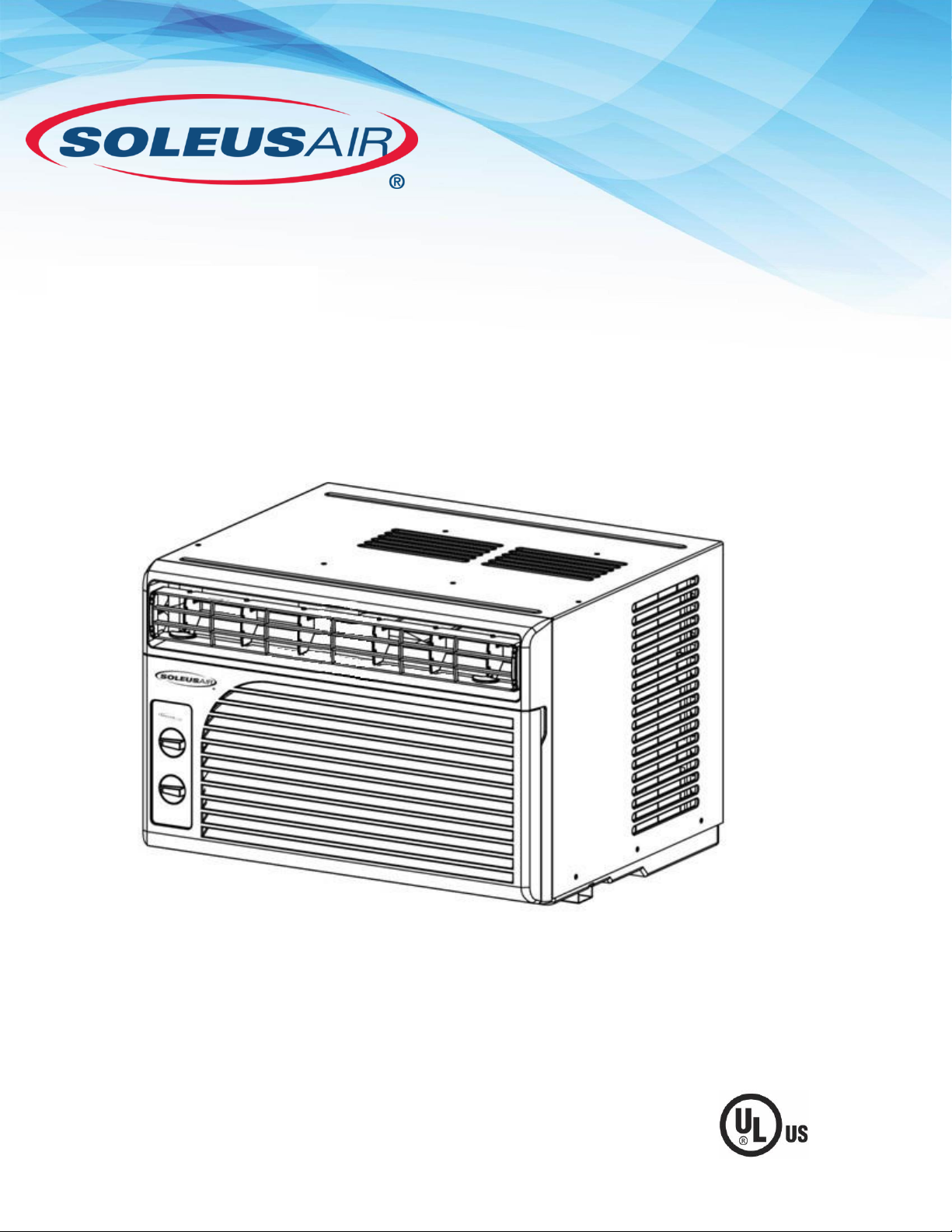

Soleus Air WM1-05M2-01 Manual de usuario

Model

5,400 BTU

Window Air Conditioner

Operating Instructions

V170210

WM1-05M2-01

Thank you for choosing a Soleus Air Air Conditioner. This owner’s manual will provide you with

valuable information necessary for the proper care and maintenance of your new product. Please take

a few moments to thoroughly read the instructions and familiarize yourself with all the operational

aspects of your new air conditioner.

For your own records, please attach a copy of your sales receipt to this manual. Also, write the store

name/location, date purchased, and serial number below:

Store Name:

Location:

Date Purchased:

Serial Number (located on back of unit):

Before installing and using your air conditioner, please read this owner’s manual carefully. Store this

manual in a safe place for future reference. Your safety and the safety of others is very important to

us. Please pay attention to all safety messages outlined in this owner’s manual.

WARNING: To reduce the risk of fire, electrical shock or injury when using your air conditioner, follow

the following basic precautions:

Plug into a grounded 3 prongoutlet.

Do not remove the ground prong.

Do not use a plug adapter.

Do not use an extensioncord.

Unplug the air conditioner before servicing

Use two or more people to move and install theair

conditioner

SAFETY INSTRUCTIONS

PURCHASE INFORMATION

This is a safety alert symbol.

This symbol alerts you to potential hazards that can harm you or others or even cause

death.

All safety messages will directly follow the safety alert symbol and/or the words

“DANGER” or “WARNING”.

All Safety messages alert you of potential hazards, how to reduce the chance of injury,

and what can happen if instructions are not followed correctly.

Failure to immediately follow these

instructions may cause serious injury

or even death.

This air conditioner is equipped with an LCDI (Leakage Current Detection and Interruption) power cord

and plug as required by US National Electric Code 440.65. This cord consists of a length of shielded flexi-

ble cord with no termination on the load side and a LCDI attachment plug on the line side.

The LCDI power cord and plug will remove the supply source via electrical disconnect (circuit trip) if the

nominal current leakage between the cord shield and either load conductor exceeds a predetermined

value. The cord will remain de-energized until the devise has been manually reset. This is intended to re-

duce the risk of a fire in the power cord or combustible materials nearby. The cord shields are notgrounded

and they must be considered a shock hazards if exposed. The cord shield must not be connected to ground

or to any exposed metal.

The test and reset buttons on the LCDI Plug are used to check if the plug is functioning properly. To test:

1. Plug power cord into wall outlet. The LED light will turn on.

2. Press TEST Button, circuit should trip, cutting power to the air conditioner. When this occurs,

the LED light will turn off.

3. Press RESET button to restore power to the machine. Once power is restored, the LED light

will turn on again.

If test button is pressed and unit can still be turned on, current leakage has been detected. Do not use the air

conditioner or attempt to reset the LCDI Plug. Contact Soleus Air Customer Service for troubleshooting

recommendations.

LED LIGHT

Note: Your units power cord and plug may differ from the one shown.

WARNING:

1. DO NOT press the TEST button while the air conditioner isoperating.

2. The TEST and RESET buttons should not be used as “ON” and “OFF”switches.

3. The cord and plug are not intended to offer protection to externally connected loads or supplycircuits.

4. The cord and plug are intended for indoor use only.

POWER CORD AND PLUG

Top Mounting Rail

Air Conditioner

Owner'

Manual

Form Seal

Top

Curtain

Short Screw Long Screw Curtain Lock

Sash Lock

Part List:



Window Air Conditioner (1)



Top Mounting Rail (1)



Insert Strip (1)



Short Screw (8)



Curtain (2)



Sash Lock (2)



Foam Seal (1)



Long Screw for Window Locking Bracket & Curtains (12)



Curtain Lock (2)



Owner’s Manual (1)

PACKAGE CONTENTS

Mounting Rail

Insert Strip

WM1-06E-01

1/115/60

6,400

495

4.3

12.1

55/58

330/300/270

31 Pints per day

23 x 18.625 x 15

46/55

R-410A

NEMA 5-15P

Noise level is measured at a distance of 3.28 ft away from the front of the unit in cooling mode.

Power consumption is measured when the fan runs at the highest speedsetting.

These specifications are for reference only. For actual data, please refer to the rating label on the back of the unit.

Model WM1-05M2-01

Power Supply (Ph/V/Hz) 1/115/60

Rated Cooling Capacity (BTU/h) 5,400

Cooling Power Input (Watts) 458

Rated Current Cooling (Amperage) 3.99

EER 10.9

Noise Level dB(A) (L/H) 56/60

Airflow CFM 194

Dehumidifying Capacity 22 Pints per day

Product Dimensions (W” x H” x D”) 16.125 x 11.825 x 15.5

Package Dimensions (W” x H” x D”) 17.9 x 15 x 17.2

Net/Gross Weight (Lbs) 40/45

Refrigerant Type R-410A

Plug Type NEMA 5-15P

SPECIFICATIONS

DISCLAIMER

ALL INFORMATION AND THE TECHNICAL SPECIFI-

CATIONS PRESENTED IN THIS USER’S MANUAL

ARE THE PRESENTATION OF THE MANUFAC-

TURER. SOLEUS N.A HAS NOT CON-DUCTED

INDEPENDENT TEST TO THE INFORMA- TION AND

THE SPECIFICATIONS PRESENTED HEREWITHIN.

WARNING:

Avoid fire hazard or electronic shock,

DONOTuse an extension cord or an adapter plug.

DONOT remove any prong from the power cord.

DO NOT

under any circumstances,

cut, remove, or bypass the

grounding prong!!

Power supply cord with 3-prong grounding

plug and current detection device

ELECTRICAL SAFETY

Window Preparation

Please read all instructions prior to installing your air conditioner. Two people are recommended to install this product. If

a new electrical outlet is required, have the outlet installed by a qualified electrician before installing the unit.

Before installing the unit, check the dimensions of your window to make sure the air conditioner will fit. This unit is made

to fit inside a standard double-hung window. Make sure the window is in good shape and able to firmly hold the needed

screws. If not, make repairs prior to installing the unit.

Storm Window Requirements

A storm window frame will not allow the air conditioner to tilt properly which in turn will keep it from draining properly. To

adjust for this, attach a board or piece of wood to the sill. The board or wood piece should have a depth of at least 1 1/2”.

Make sure the board or piece of wood is approximately 1/2” higher than the storm window frame. This will allow the air

conditioner to tilt enough for proper drainage. (See FIG. 2).

MIN

FIG. 1

Prior to Installing the Air Conditioner

1. Check for anything that could block airflow. Check the area outside of the window for things such as shrubs, trees,or

awnings. Check the inside area to make sure curtains, drapes, or blinds will not prevent proper airflow.

2. Check the available electrical outlet. The power supply must be the same as shown on the unit serial nameplate

(located on the left side of the unit, near the front faceplate). Be sure the outlet is close enough for the power cord to

reach.

3. Carefully unpack the air conditioner. Remove all packing material and make sure the floor is protected when remov-

ing. Due to the large size of this air conditioner, two people should move the unit together.

Model

WM1-05M2-01

Unit Height

11 7/8"

Unit Width

16 1/8"

Min.Window Opening(See FIG 1)

Min. Window Width

20 1/2"

Max Window Width

34"

When handling the unit, be careful to avoid cuts from

the sharp metal edges and aluminum fins on the front

and rear coils.

13 1/4"

13 1/4" MIN

FIG .2

INSTALLATION

NOTE: Top Rail and the side Panels are offset to provide the proper pitch to the rear of (5/16”). This is necessary for

proper condensation utilization and drainage. If you are not using the side panels, the rear pitch must still be maintained.

1. Attach the top rail onto the top of the outer case using four Short Screws.

TOP RAIL INSTALLATION

Curtain Installation

Top Mounting Rail

Placing the Unit Inside a Normal Window

Set the unit in the window so that is centered. Place

the unit so that from edge of the bottom rail is against

the back edge of the sill.

Bring the window down so that the front edge ofthe

top rail is in front of the window. Be sure the unit is

tilting slightly to theoutside.

Window

Frame

1/4”

Top Rail

Bottom Rail

Flange Bottom Rail Flange 3. Once the air conditioner is placed, extend the left and

right curtains to the width of the window.

Insert the side curtains into the upper and lower railsof

the air conditioner. Fasten the curtains to the unit with-

short screws as shown above.

Slide the free end of the curtain into the side panel of

the air conditioner. Do this for each side. The flange

for securing the curtain into the window sill will befac-

ing the room side wheninstalled.

4. Place the curtain lock between the curtain extensions

and the window sill, drive long screws through the lock

and into the sill as shown below:

Foam Seal

Once properly sized, remove the backing toexpose

the adhesive tape.

Window Sill

Curtain Lock Flange

Curtain

Secure the left and right flanges on end bottom side

of the curtain with longscrews.

Drive long screws through upper frame holes into win-

dow sash.

Attach the sash lock to the place between the upper

and lower sashes and secure it with long screws.Each

side uses 2 longscrews.

Cut the foam seal to the window width and insert the

sash seal between the glass and the window to pre-

vent air and insect from getting into theroom.

For added insulation, the insert strip can be inserted

between the air conditioner and window sill. This is

optional.

INSTALLATION

Sash Lock

IF AC is Blocked by a Storm Window

A storm window frame will not allow the air conditioner to

tilt properly which in turn will keep it from draining properly.

To adjust for this, attach a board or piece of wood to the

sill. The board or wood piece should have a depth of at

least 1 1/2”. Make sure the board or piece of wood is ap-

proximately 1/2” higher than the storm window frame. This

will allow the air conditioner to tilt enough for proper drain-

age. (See FIG. 4).

Removing the Air Conditioner from the

Window

1. Turn the air conditioner off, and disconnect thepower

cord.

2. Remove the sash seal from between windows, and

unscrew sash lock.

3. Remove the screws installed through the frameand

frame lock.

4. Close (slide) the side panels into frame.

5. Keeping a firm grip on air conditioner, raise the sash

and carefully “rock” air conditioner backward to drain

any condensate water in base of unit. Be careful not to

spill any remaining water while lifting unit from window.

6. Store parts with the air conditioner in thebox.

Note:

All supporting parts must be secured to firmedwood,

masonry, or metal

The air conditioner can be installed without thecurtai-

ns to fit in a narrow windowopening.

The electric outlet must be within reach of thepower

cord.

INSTALLATION

Tabla de contenidos

Otros manuales de Acondicionador de aire de Soleus Air

Soleus Air

Soleus Air LX-140 Manual de usuario

Soleus Air

Soleus Air Soleus LX-100 LX-100 Manual de usuario

Soleus Air

Soleus Air SG-WAC-06ESE-F Manual de usuario

Soleus Air

Soleus Air PE2-07R-62 Manual de usuario

Soleus Air

Soleus Air WM1-12E-01 Manual de usuario

Soleus Air

Soleus Air WS1-05M2-02 Manual de usuario

Soleus Air

Soleus Air KC-15U Manual de usuario

Soleus Air

Soleus Air KY4-100 Manual de usuario

Soleus Air

Soleus Air WS1-05M2-02 Manual de usuario

Soleus Air

Soleus Air PH1-12R-03 Manual de usuario

Soleus Air

Soleus Air MAC 7500 Manual de usuario

Soleus Air

Soleus Air HCC-C09HP-A Manual de usuario

Soleus Air

Soleus Air GL-PAC-08E4 Manual de usuario

Soleus Air

Soleus Air HCC-W08ES-A1 Manual de usuario

Soleus Air

Soleus Air PH1-14R-03 Manual de usuario

Soleus Air

Soleus Air HCC-C09H26-A Manual de usuario

Soleus Air

Soleus Air PE1-09R-30 Manual de usuario

Soleus Air

Soleus Air GH-PAC-12E1 Manual de usuario

Soleus Air

Soleus Air SG-PAC-08E3 Manual de usuario

Soleus Air

Soleus Air WS2-06E-201 Manual de usuario

Soleus Air

Soleus Air KY-120HP Manual de usuario

Soleus Air

Soleus Air LX-140 Manual de usuario

Soleus Air

Soleus Air GM-WAC-10ESE-C Manual de usuario

Soleus Air

Soleus Air HCB-P13HP-D Manual de usuario

Manuales populares de Acondicionador de aire de otras marcas

Spheros

Spheros CC 355 Manual de usuario

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manual de usuario

Panasonic

Panasonic CS-E12HKEW Manual de usuario

nedis

nedis ACMB1WT7 Manual de usuario

Samsung

Samsung AR KV Series Guía

Daikin

Daikin FCFV50A Manual de usuario

Fujitsu

Fujitsu Inverter ASBA30JFC Manual de usuario

Toshiba

Toshiba RAS-M10SMUV-E Manual de usuario

Daikin

Daikin FXLQ20MAVE Manual de usuario

Hitachi

Hitachi RAS-E24CAK Manual de usuario

CIAT

CIAT Magister 2 Series Guía

Bestron

Bestron AAC6000 Manual de usuario

Hisense

Hisense 7K Manual técnico

Frigidaire

Frigidaire FFRE0533S1E0 Manual de usuario

Samsung

Samsung AS09HM3N Manual de usuario

Frigidaire

Frigidaire CRA073PU11 Manual del propietario

McQuay

McQuay MCK020A Manual de usuario

Webasto

Webasto Frigo Top 25 DS Manual de usuario
