K-ScanPCUserManual文書番号：SFT-20070171



Page3of35 

≪CONTENTS≫

１INTRODUCTION......................................................................................................................................4

２OVERVIEW...............................................................................................................................................4

２-１ENVIRONMENT...........................................................................................................................................4

２-２SYSTEM OVERVIEW....................................................................................................................................4

２-３INSTALLATION ...........................................................................................................................................5

２-４FOLDER COMPOSITION ..............................................................................................................................5

３COMMON FUNCTION ............................................................................................................................6

３-１SYSTEM MENU...........................................................................................................................................6

３-２TOOLBAR....................................................................................................................................................7

３-３STATUS BAR...............................................................................................................................................8

４SPECIFICATION FUNCTION ................................................................................................................9

４-１TITLE VIEW................................................................................................................................................9

４-２DATA VIEW LARGE ..................................................................................................................................10

４-２-１Select Data Items...........................................................................................................................11

４-３DATA VIEW ..............................................................................................................................................12

４-４GRAPH VIEW............................................................................................................................................13

４-４-１Graph Setting.................................................................................................................................15

４-５ACTIVE TEST............................................................................................................................................16

４-６DIAGNOSIS...............................................................................................................................................18

４-７DATA RECORDING....................................................................................................................................20

４-７-１Select Data Items...........................................................................................................................22

４-７-２Data Recording Setting..................................................................................................................23

４-８LOG FILE VIEW........................................................................................................................................24

４-８-１Log File View Setting.....................................................................................................................26

４-９TRANSFER SETTING.................................................................................................................................27

４-１０ LANGUAGE SETTING............................................................................................................................28

４-１１ THROTTLE SETTING.............................................................................................................................29

４-１２ ECU INFORMATION .............................................................................................................................30

４-１３ VIN SETTING.......................................................................................................................................31

４-１４ ABOUT K-SCAN....................................................................................................................................32

５OTHERS..................................................................................................................................................33

５-１MESSAGE LIST.........................................................................................................................................33



Page4of35 

１Introduction

This document describes the K-Scan System for PC.

２Overview

２-１ Environment

Item Condition Remarks

OS Microsoft Windows XP

Resolution SVGA(800 x 600 ~ )

Table 1 Software Requirements

２-２ System Overview

Figure 1 shows the system composition. The K-Scan gives instructions of Active Test, gathers

and displays sensor values of the ECU.

K-Scan(PDA) ECU Engine

Sensor

RS232C

Figure 1 System Composition Chart



Page5of35 

２-３ Installation

1. Execute ‘Setup.exe’ to show component setup wizard.

2. Click [Install] button in ‘component install’ screen to install ‘Visual C++ Runtime

Libraries(x86)’.

3. After installed the component, K-Scan setup wizard will be shown.

A) Click [Next] button in a ‘Welcome to the K-Scan Setup Wizard’ screen.

B) Select installation folder and user button in a ‘Select Installation Folder’ screen, then

click [Next].

C) Click [Next] button in a ‘Confirm Installation’ screen to start installing.

D) Click [Close] button in a ‘Confirm Installation’ screen to finish.

２-４ Folder Composition

[C:¥Program Files¥K-Scan]

K-Scan.exe ・・・Execute File

K-Scan.ini ・・・Main Setting File

GraphSetting.txt ・・・Graph Setting File

MakerCodeSetting.txt ・・・Maker Code Setting File

ActiveTestSetting.txt ・・・Active Test Setting File

PCodeSetting.csv ・・・PCode Setting File

K-Scan.pdf ・・・User Manual(this document)

[¥Image]

English.bmp ・・・ American National Flag for the Language Screen.

Italy.bmp ・・・ Italian National Flag for the Language Screen

French.bmp ・・・ French National Flag for the Language Screen

German.bmp ・・・ German National Flag for the Language Screen

Spanish.bmp ・・・ Spanish National Flag for the Language Screen

Portuguese.bmp ・・・ Portuguese National Flag for the Language Screen

Logo.bmp ・・・ Logo Image for the Title Screen

ActiveTest_ID**.bmp ・・・ Active Test Images.

[¥Log] ・・・ Folder for Log

[¥DLL]

English.dll ・・・ DLL File for English

Italy.dll ・・・ DLL File for Italy

French.dll ・・・ DLL File for French

German.dll ・・・ DLL File for German

Spanish.dll ・・・ DLL File for Spanish

Portuguese.dll ・・・ DLL File for Portuguese



Page6of35 

３Common Function

３-１ System Menu

Following table shows the system menu composition.

Group Name Overview Link

File Open Log File Show common dialog to open a log file.

[Available Screen]

・４-８Log File View

４-８

Save Show common dialog to save screen data.

[Available Screen]

・４-３Data View

・４-６Diagnosis

−

Print Show common dialog to print screen data or

screen image.

[Available Screen]

・４-２Data View Large

・４-３Data View

・４-４Graph View

・４-６Diagnosis

・４-８Log File View

−

Print Preview Display print preview window.

[Available Screen]

・４-２Data View Large

・４-３Data View

・４-４Graph View

・４-６Diagnosis

・４-８Log File View

−

Print Setting Show common dialog to set printer

configuration. −

Exit Exit the application. −

View Title View Move to Title screen. ４-１

Data View Large Move to Data View Large Screen.

４-２

Data View Move to Data View Screen. ４-３

Graph View Move to Graph View Screen. ４-４

Active Test Move to Active Test Screen. ４-５

Diagnosis Move to Diagnosis Screen. ４-６

Data Recording Move to Data Recording Screen. ４-７

Log File View Move to Log File View Screen. ４-８

Setting View Setting Set a channel data.

Show a dialog according to the current

screen.

[Available Screen]

・４-２Data View Large

→Select Data Items

・４-４Graph View

→Graph Setting

・４-７Data Recording

→Select Data Items

４-２-１

４-４-１

４-７-１

４-８-１



Page7of35 

・４-８Log File View

→Log File View Setting

Transfer Setting Show Transfer Setting Dialog. 0

Language Setting Show Language Setting Dialog. ４-１０

Data Recording Setting Show Data Recording Setting Dialog.

[Available Screen]

・４-７Data Recording

４-７-２

Throttle Setting Display Throttle Setting Dialog. ４-１１

ECU Information Show ECU Information Dialog. ４-１２

VIN Setting Show VIN Setting Dialog. ４-１３

Unit Select a unit mode.

SI: (Deg C, kPa )

USA: (Deg F, inHg) −

Help Help Display this document. −

About K-Scan Display About K-Scan Dialog. ４-１４

３-２ Toolbar

Following table shows the toolbar composition.

And some buttons that are only available in particular screens.

Group Icon Name Overview

File

Open Log File Show common dialog to load a log file.

[Available Screen]

・４-８Log File View

Save Show common dialog to save screen data.

[Available Screen]

・４-３Data View

・４-６Diagnosis

Print Show common dialog to print screen data

or screen image.

[Available Screen]

・４-２Data View Large

・４-３Data View

・４-４Graph View

・４-６Diagnosis

・４-８Log File View

View Title View Move to Title View screen.

Data View Large Move to Data View Large Screen.

Data View Move to Data View Screen.

Graph View Move to Graph View Screen.

Active Test Move to Active Test Screen.

Diagnosis Move to Diagnosis Screen.

Data Recording Move to Data Recording Screen.



Page8of35 

Log File View Move to Log File View Screen.

Setting

View Setting Set a channel data.

Show a setting dialog according to the

current screen.

[Available Screen]

・４-２Data View Large

→Select Data Items

・４-４Graph View

→Graph Setting

・４-７Data Recording

→Select Data Items

・４-８Log File View

→Log File View Setting

Throttle Setting Show Throttle Setting Dialog.

ECU Information Show ECU Information Dialog.

VIN Setting Show VIN Setting Dialog.

Data Recording Setting Show Data Recording Setting Dialog.

[Available Screen]

・４-７Data Recording

Operation

Unit Switch Switch unit mode.

SI: (Deg C, kPa )

USA: (Deg F, inHg)

History Clear Clear historic DTC errors.

[Available Screen]

・４-６Diagnosis

Help Help Show About K-Scan Dialog.

３-３ Status Bar

Following table shows the status bar compositions.

Unit Mode Display ‘SI’ or ‘USA’.

It is possible to switch the unit mode by clicking this area in all

screens. Remarks that only following screens use the unit mode.

・４-２Data View Large

・４-３Data View

・４-４Graph View

・４-７Data Recording

ECU Connection Display used COM port number and ECU connection state.



Page9of35 

４Specification Function

４-１ Title View

This is the start screen of the application.

Figure 2 Title View Screen

1 Image Display a logo image.



Page10of35 

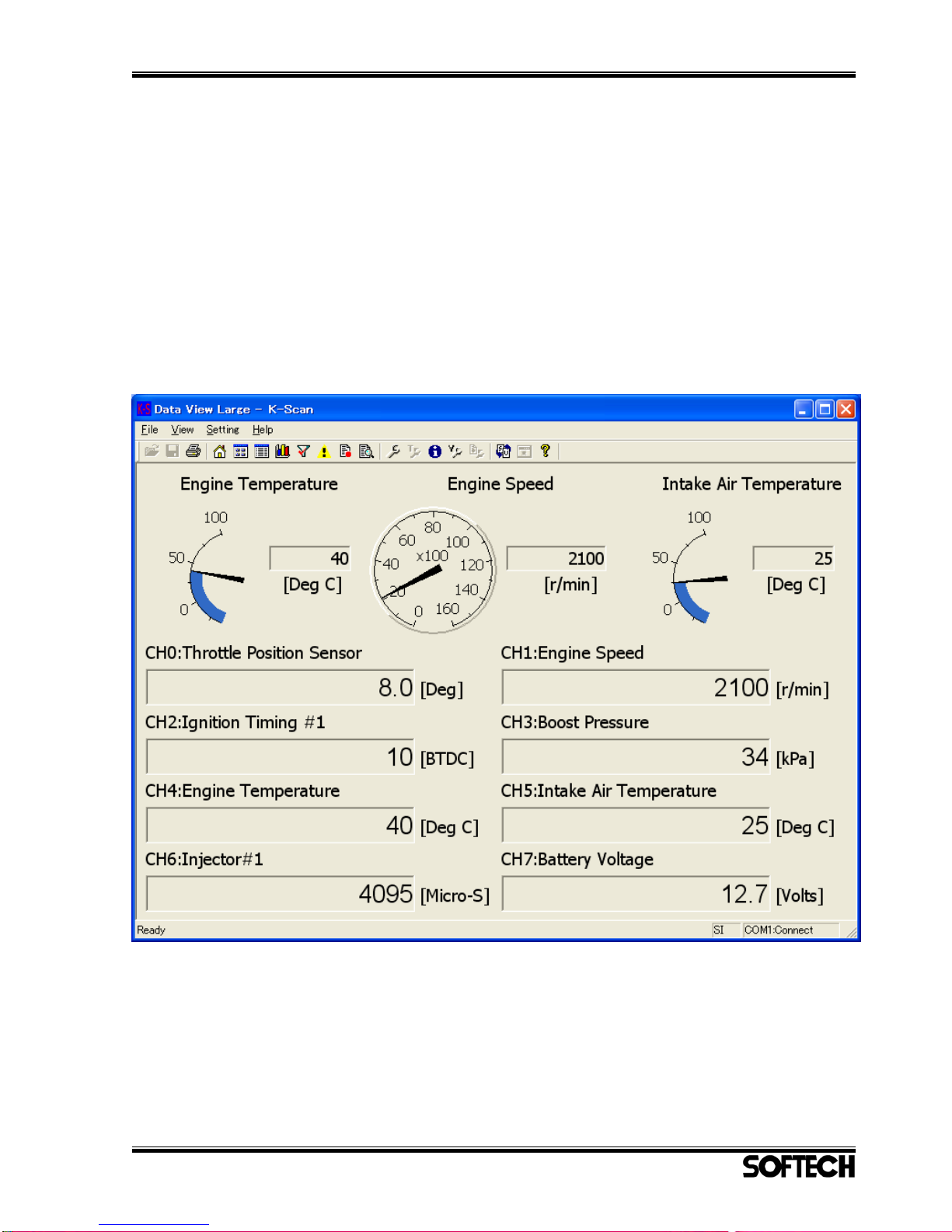

４-２ Data View Large

This screen is to display sensor values of 8 Data Items and 3 fixed Data Items.

3 fixed Data Items, Engine Temperature, Engine Speed and Intake Air Temperature, are

displayed by meters and values.

You can select 8 Data Items using Select Data Items Dialog that is shown by clicking View

Setting menu, or toolbar button. If a selected Data Item does exist on ECU, ‘No Item’ will be

shown.

The application remembers selected Data Items and save it to the setting file when you exit

application. Engine Speed meter is updated by 0.1 seconds and other Data Items are update

by 0.5 seconds.

Figure 3Data View Large Screen



Page11of35 

1 Engine Temperature Display Data Item 「Engine Temperature」by meter

and value.

2 Engine Speed Display Data Item 「Engine Speed」by meter and

value.

3 Intake Air Temperature Display Data Item「Intake Air Temperature」by meter

and value.

4 Selected Data Item Display selected Data Item by value.

5 [Toolbar]

View Setting button Show Select Data Item dialog to select 8 Data Items.

(See ４-２-１Select Data Items）

6 [Toolbar]

Print button Print a screen image.

7 [Toolbar]

Unit Switch button Switch unit mode.

8 When this screen is displayed When the ECU is not connected, the ECU connection

will be started. If failed to connect to the ECU, the

message 7 will be shown(See ５-１Message List).

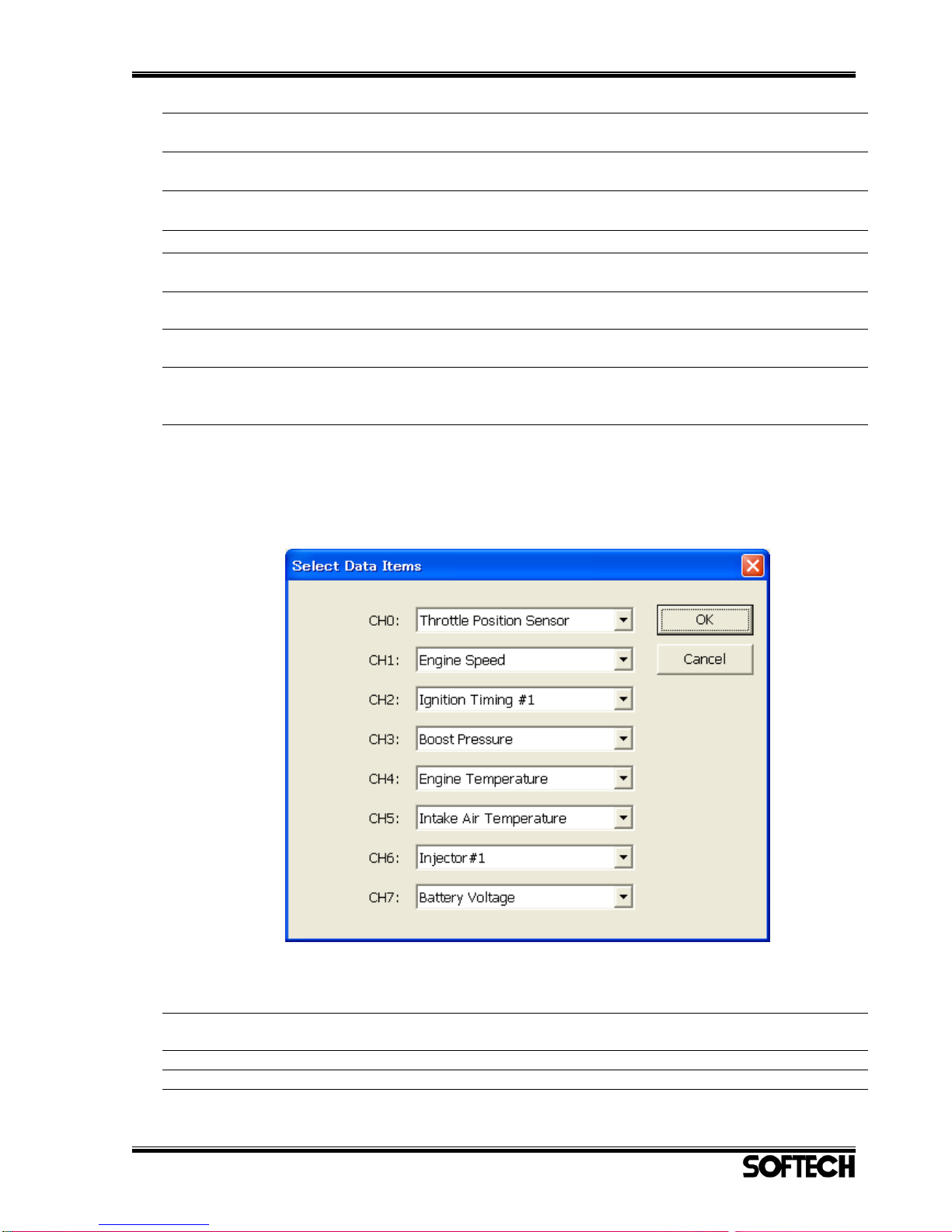

４-２-１ Select Data Items

This dialog is to select 8 Data Items.

Figure 4Select Data Items Dialog

1 CH0 - CH7 combo box Select a Data Item from list.

The list is created when this dialog is created.

2 [OK] button Save selection of Data Items and close this dialog.

3 [Cancel] button Cancel selection of Data Items and close this dialog.



Page12of35 

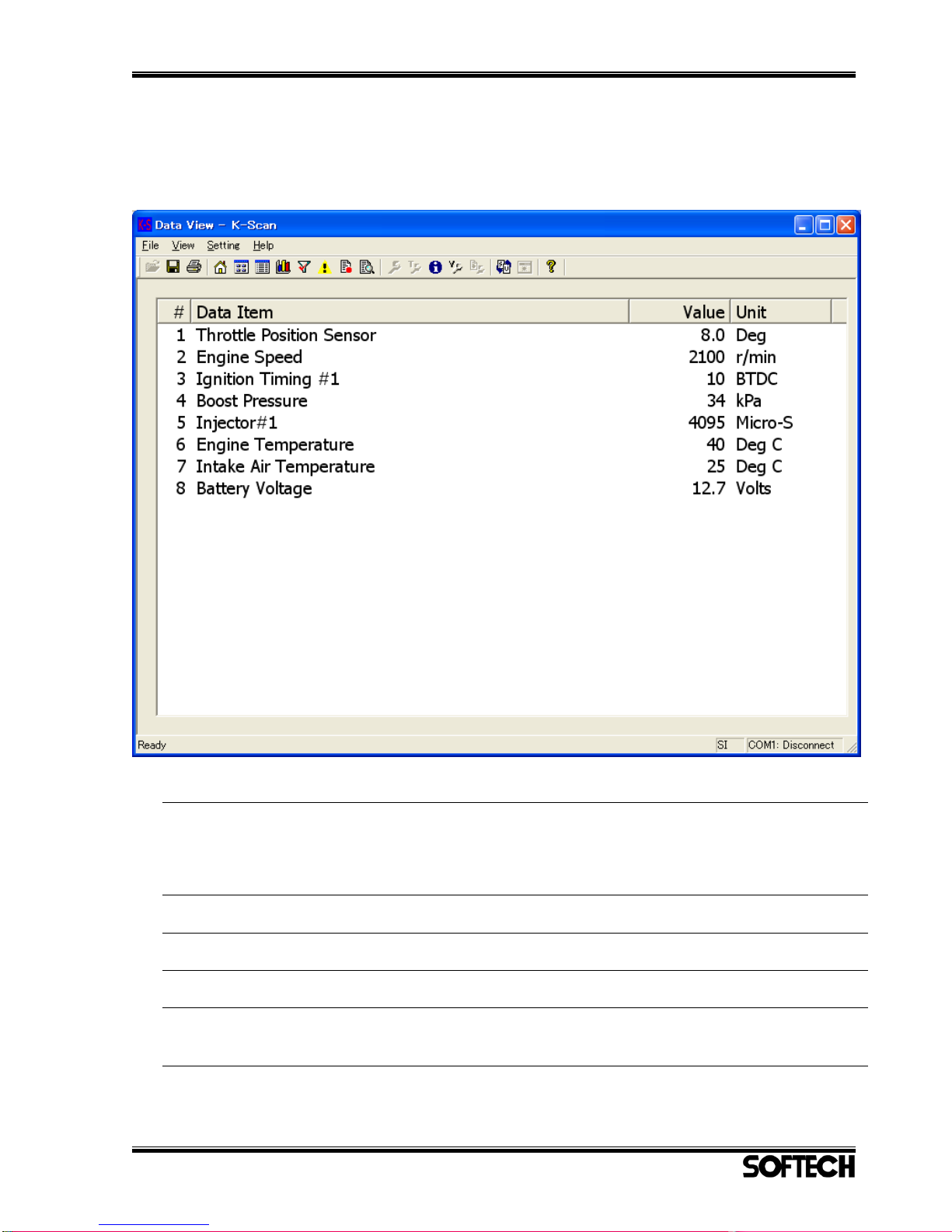

４-３ Data View

This screen is to display sensor values of Data Items. Sensor values are updated by every 0.5

seconds.

Figure 5 Data View Screen

1 List box Display all Data Items that the ECU corresponds.

#: Index

Data Item: name of each Data Item.

Value: sensor values of each Data Item.

Unit: units of each Data Item.

2 [Toolbar]

Save button Save a screen data as csv format file.

3 [Toolbar]

Print button Print a screen data.

4 [Toolbar]

Unit Switch button Switch unit mode.

5 When this screen is displayed When the ECU is not connected, the ECU connection

will be started. If failed to connect to the ECU, the

message 7 will be shown(See ５-１Message List).

Este manual sirve para los siguientes modelos

Tabla de contenidos

Manuales populares de Software de otras marcas

COMPRO

COMPRO COMPROFM Manual de usuario

Muratec

Muratec OFFICEBRIDGE ONLINE Manual de usuario

Oracle

Oracle Contact Center Anywhere 8.1 Manual de usuario

Adobe

Adobe 65007312 - Photoshop Lightroom Manual

Avaya

Avaya NULL One-X for RIM Blackberry Manual de usuario

HP ProLiant BL420c Manual de usuario

PS Audio

PS Audio PowerPlay Manual del propietario

Brady

Brady LOCKOUT PRO 3.0 Manual de servicio

Avaya

Avaya Interaction Center Manual de usuario

Texas Instruments

Texas Instruments TI-83 Plus Silver Edition Manual

Novell

Novell GROUPWISE 8 - INTERNET AGENT Manual de usuario

Oracle

Oracle Application 9i Manual de usuario

Acer

Acer RDM Manual de usuario

Canon

Canon Vixia HF21 Manual de usuario

Canon

Canon ZR950 Manual de usuario

Samsung

Samsung Auto Backup Manual de usuario

Polycom

Polycom Vortex EF2201 Instrucciones de instalación y funcionamiento

Brocade Communications Systems

Brocade Communications Systems Brocade 8/12c Manual de usuario
