Walk-Behind Broadcast Spreader

SP-85 & SP-85SS

Owner's Manual and Installation Instructions

Original Instructions

February 1, 2019

Lit. No. 83678, Rev. 01

CAUTION

Read this document before operating or

servicing the spreader.

This document supersedes all editions with an earlier date.

This document is for SnowEx®SP-85 walk-behind broadcast spreaders

with serial numbers beginning with PD-102588 and higher, and SP-85SS walk-behind

broadcast spreaders with serial numbers beginning with PE-100800 and higher.

Lit. No. 83678, Rev. 01 February 1, 2019

Lit. No. 83678, Rev. 01 3 February 1, 2019

TABLE OF CONTENTS

PREFACE..................................................................................................................................................................5

Owner's Information Form ..................................................................................................................................5

SAFETY ....................................................................................................................................................................6

Safety Deﬁnitions................................................................................................................................................6

Labels .................................................................................................................................................................6

Safety Precautions..............................................................................................................................................7

Personal Safety...................................................................................................................................................7

Noise................................................................................................................................................................... 7

Vibration..............................................................................................................................................................7

LOADING ..................................................................................................................................................................8

Loading Your Spreader .......................................................................................................................................8

Material Weights .................................................................................................................................................8

ASSEMBLY...............................................................................................................................................................9

Assembly Instructions.........................................................................................................................................9

OPERATING THE SPREADER.............................................................................................................................. 11

Using the Spreader ........................................................................................................................................... 11

Spreading Tips.................................................................................................................................................. 11

Accessories ...................................................................................................................................................... 11

Poly Deﬂector Kit (PDK-020)...................................................................................................................... 11

MAINTENANCE...................................................................................................................................................... 12

Lubrication ........................................................................................................................................................ 12

Storage & Maintenance .................................................................................................................................... 12

TROUBLESHOOTING............................................................................................................................................ 13

Model #SP-85 & SP-85SS ............................................................................................................................... 13

Lit. No. 83678, Rev. 01 February 1, 2019

Lit. No. 83678, Rev. 01 5 February 1, 2019

PREFACE

This manual has been prepared to acquaint you with

the safety information, operation, and maintenance

of your new walk-behind spreader. Please read this

manual carefully and follow all recommendations. This

will help ensure proﬁtable and trouble-free operation

of your spreader. Keep this manual accessible. It is a

handy reference in case minor service is required.

When service is necessary, bring your walk-behind

spreader to your distributor. They know your spreader

best and are interested in your complete satisfaction.

OWNER'S INFORMATION

Owner's Name: _______________________________________________________________________

Date Purchased: ______________________________________________________________________

Outlet Name: ______________________________________________ Phone: ___________________

Outlet Address: _______________________________________________________________________

Spreader Type (Model):________________________________ Weight: ____________________ lb/kg

Spreader Serial Number:________________________________________________________________

Lit. No. 83678, Rev. 01 6 February 1, 2019

SAFETY

SAFETY DEFINITIONS

NOTE: Indicates a situation or action that can lead

to damage to your spreader and vehicle or other

property. Other useful information can also be

described.

CAUTION

Indicates a potentially hazardous situation

that, if not avoided, may result in minor or

moderate injury. It may also be used to alert

against unsafe practices.

WARNING

Indicates a potentially hazardous situation

that, if not avoided, could result in death or

serious personal injury.

LABELS

Please become familiar with the labels on the

spreader.

NOTE: If labels are missing or cannot be read, see

your sales outlet.

www.snowexproducts.com

Serial Number Label

www.snowexproducts.com

Code Deﬁnition

YY 2-Digit Year

MM 2-Digit Month

DD 2-Digit Day

LL 2-Digit Location Code

#### 4-Digit Sequential Number

SP-85 Model Number

SP-85SS Model Number

Lit. No. 83678, Rev. 01 7 February 1, 2019

SAFETY

SAFETY PRECAUTIONS

Improper installation and operation could cause

personal injury and/or equipment and property

damage. Read and understand labels and this

Owner's Manual before assembling, operating, or

making adjustments.

WARNING

• Always make sure personnel are clear of

areas of danger when using equipment.

• Before working with the spreader, secure all

loose-ﬁtting clothing and unrestrained hair.

• Do not climb into or ride on spreader.

• Never attempt to lift a unit with material in it.

• Always inspect unit for defects and

replace any broken, missing, or worn parts

immediately.

• Always check areas to be spread to be sure

no hazardous conditions or substances are

in the area.

CAUTION

• Do not operate a spreader in need of

maintenance.

• Before operating the spreader, reassemble

any parts or hardware removed for cleaning

or adjusting.

• Before operating the spreader, remove

materials such as cleaning rags, brushes,

and hand tools from the spreader.

• Never use wet materials or materials with

foreign debris with this spreader. This

unit is designed to handle dry, clean,

free-ﬂowing material.

CAUTION

DO NOT leave unused material in

hopper. Material can freeze or solidify,

causing unit to not work properly.

Empty and clean after each use.

NOTE: Lubricate grease ﬁttings after each use.

Use a good quality multipurpose grease.

PERSONAL SAFETY

• Wear only snug-ﬁtting clothing while working on

your spreader.

• Do not wear jewelry or a necktie, and secure long

hair.

• Wear safety goggles to protect your eyes from dirt

and dust.

NOISE

Airborne noise emission during use is below 70 dB(A)

for the spreader operator.

VIBRATION

Operating spreader vibration does not exceed 2.5 m/s2

to the hand-arm or 0.5 m/s2to the whole body.

Lit. No. 83678, Rev. 01 8 February 1, 2019

MATERIAL WEIGHTS

Density

Material (lb/ft3)(lb/yd

3)(kg/m

Salt 80 2160 1282

Sand 100 2700 1602

Material densities are approximate and are based on

dry, loose material. It is the responsibility of the operator

to know the weight of the material to be spread and the

vehicle/spreader carrying capacity.

LOADING YOUR SPREADER

Capacity: 2 ft3hopper

WARNING

Never remove spreader from vehicle with

material in it as this could cause damage to

the frame assembly.

WARNING

Do not overload spreader. Use chart below

to calculate weight of material. Weights of

material are an average for dry materials.

CAUTION

DO NOT leave unused material in

hopper. Material can freeze or solidify,

causing unit to not work properly.

Empty and clean after each use.

CAUTION

Read and adhere to manufacturer's

ice-control material package

labeling including Safety Data

Sheet requirements.

WARNING

Never leave materials in hopper for long

periods of time; salt is hygroscopic, will

attract atmospheric moisture and harden up.

Lit. No. 83678, Rev. 01 9 February 1, 2019

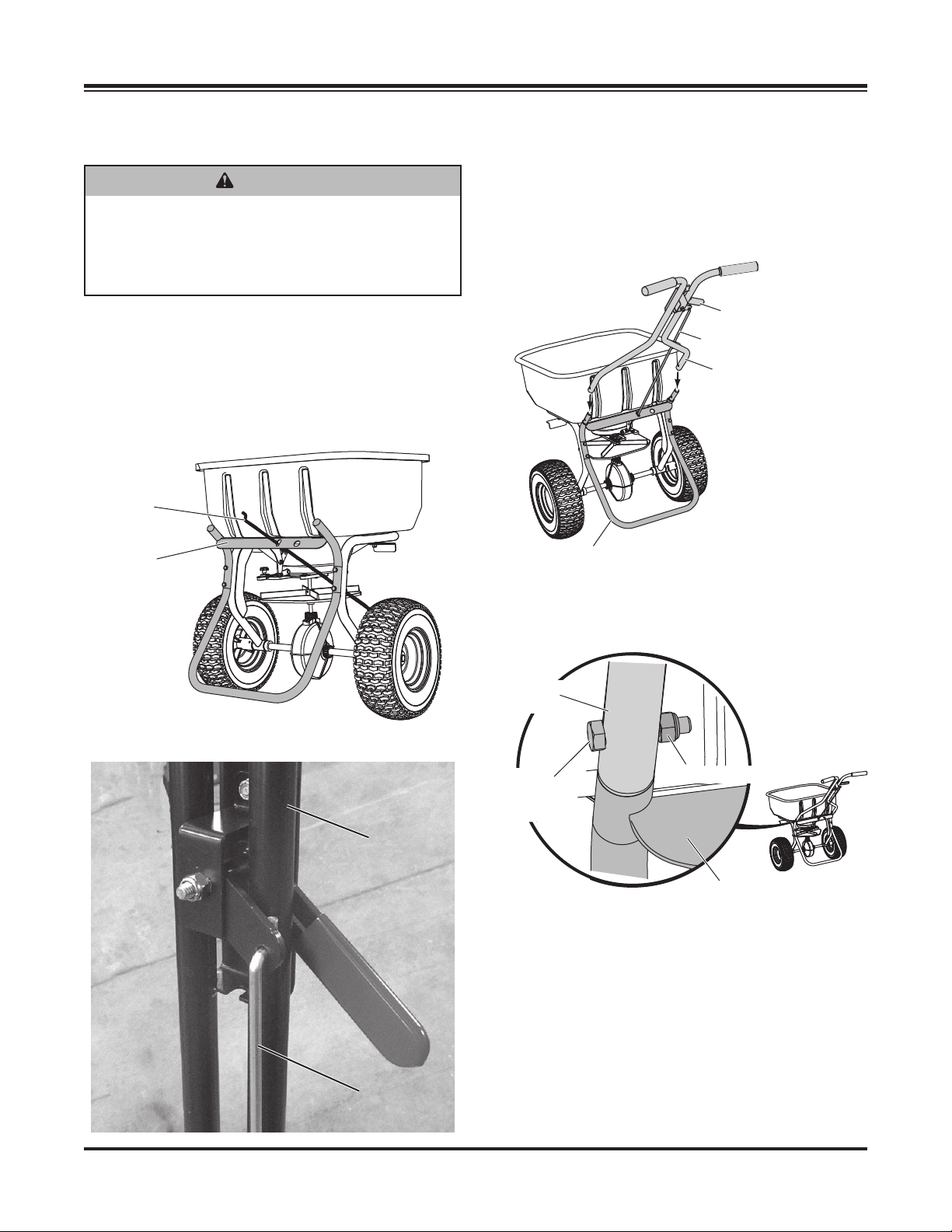

3. Attach the gate actuator rod to the push spreader

handle assembly.

4. With the gate handle in the down position, slide

the push spreader handle assembly onto the frame

stand.

5. Secure the handle assembly with the 1/4" x 1-3/8"

cap screws and 1/4" locknuts from the hardware

kit.

ASSEMBLY INSTRUCTIONS

1. The spreader is shipped with tires partially

inﬂated. Using a manual pump, fully inﬂate the

tires to the psi setting shown on the tire sidewall.

2. Slide the gate actuator rod down through the

leyhole slot in the frame stand at the rear of the

spreader.

ASSEMBLY

Gate

Actuator

Rod

Frame

Stand

Push Spreader

Handle

Frame Stand

Gate handle in

down position.

Gate Actuator Rod

Push Spreader

Handle

1/4" x 1-3/8"

Cap Screw

1/4" Locknut

Frame

Stand

WARNING

Use safety glasses and gloves when inﬂating

and installing the tires. Use manual pump

only to inﬂate. Refer to the tire sidewall for

manufacturer's recommended pressure. Do

not exceed the maximum inﬂation pressure.

Handle

Assembly

Gate

Actuator

Rod

Lit. No. 83678, Rev. 01 10 February 1, 2019

8. Place the weather cover on the hopper.

9. After assembly is complete, tighten all hardware.

6. Attach the gate actuator rod to the gate cam.

Secure with the hairpin cotter.

7. Install the material deﬂectors using the supplied

5/16" x 3/4" cap screws, 3/8" ﬂat washers, and

5/16" locknuts. Verify that the material deﬂectors

sit on top of the deﬂector support brackets.

NOTE: Install the notched material deﬂector to the

front of the spreader, beneath the lift handle.

ASSEMBLY

Material

Deflector

5/16" x 3/4"

Cap Screw

Clamp

5/16"

Locknut

3/8" Flat

Washer

Notched

Material

Deflector

Lift

Handle

Weather Cover

Hairpin

Cotter

Gate

Actuator Rod

Gate

Cam
