COB (Calibration On Board)

Installation instructions

NetPrinter

17886-022-1

NPDS

NP812

1

2

NETPRINTER

COB

THE COB KIT 18955.040.1 IS MADE UP OF:

Description Part Number Quantity

ArtixScan 1100 002113210 1

Kit software* 18074.105.9 1

*The kit software 18074.105.9 is made up of:

•N°1 CDROM Netprinter including:

-CORE SW W-15 Installation

-COB V-50 Installation

-SMI1200 3.xx Installation

-PRINT MATE Installation

-TEST IMAGES Copy to D:\

•Software Installation Instructions

•COB Installation Instructions

•Print Mate Program User’s guide

•NetPrinter Operating Manual

•N°1 Set EPROMs

TOOLS REQUIRED:

Standard service tools

3

KIT INSTALLATION

1. Switch OFF the PC and

disconnect the plug from the

mains power supply.

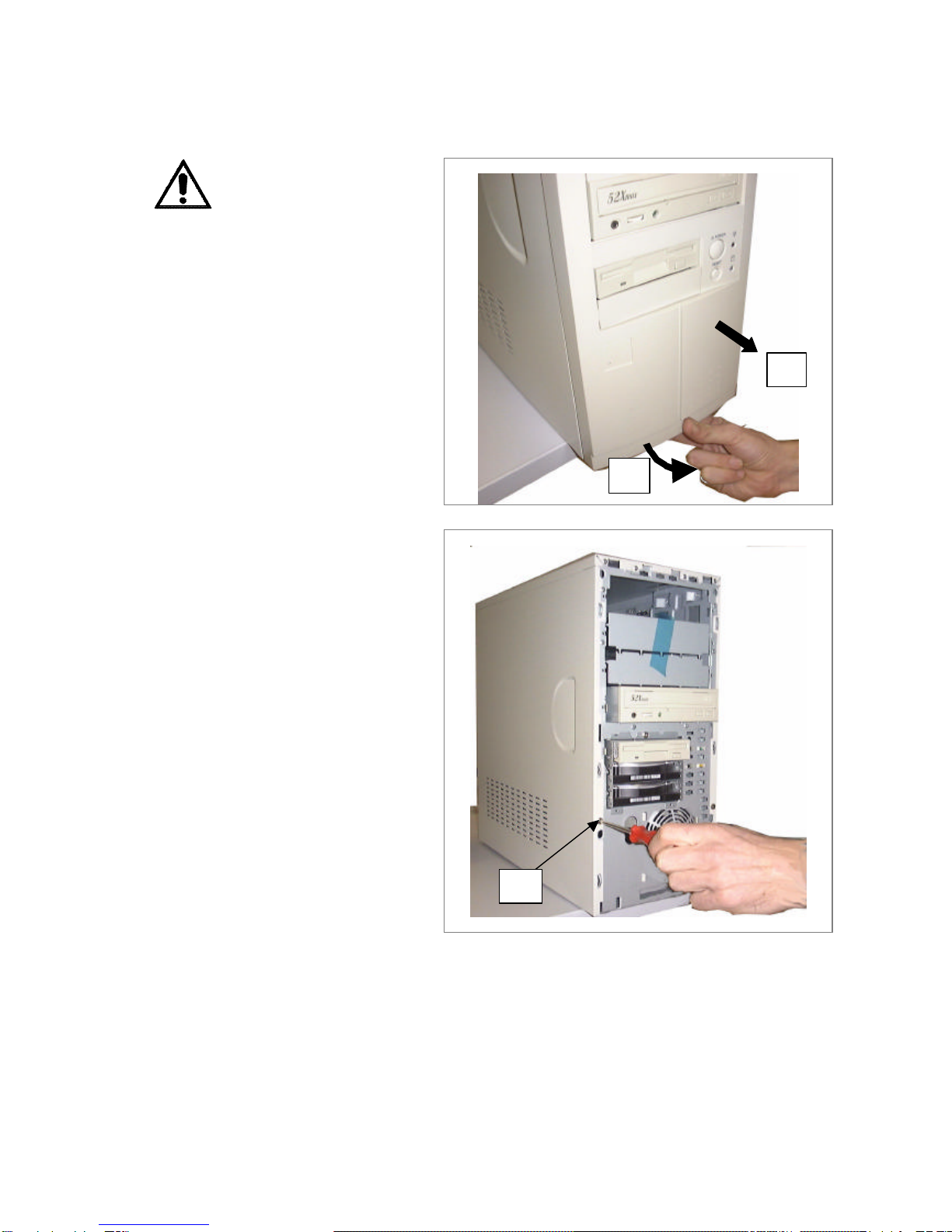

2. Release the PC front panel by

unlocking at the bottom with a

finger. Remove the panel

3. Remove screw A

A

1

2

4

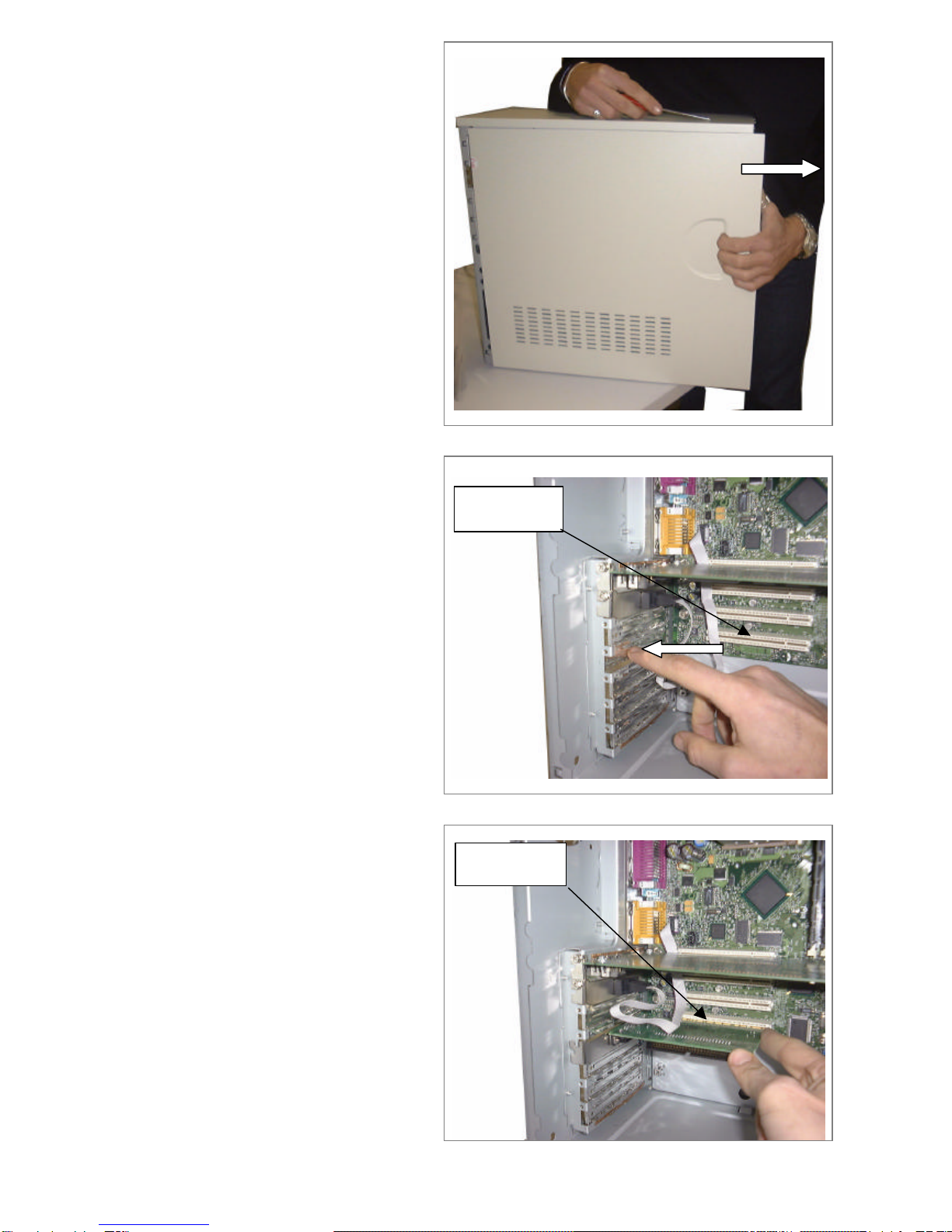

4. Pull off the left lateral panel

5. Remove the metal plate on the PC

back panel to insert theSCSI

board

6. Insert the SCSIboard in the PCI

slot

PCI slot

PCI slot

5

7. Secure the SCSI board with a

appropriate screw C.

8. Reinsert the lateral panel and

remount the PC front panel

9. Insert the scanner driver CD in the

PC

10. Suht down the SMI 1200

software

11. From Windows select

Start/Settings/Control

Panel/SCSI Adapters

C

6

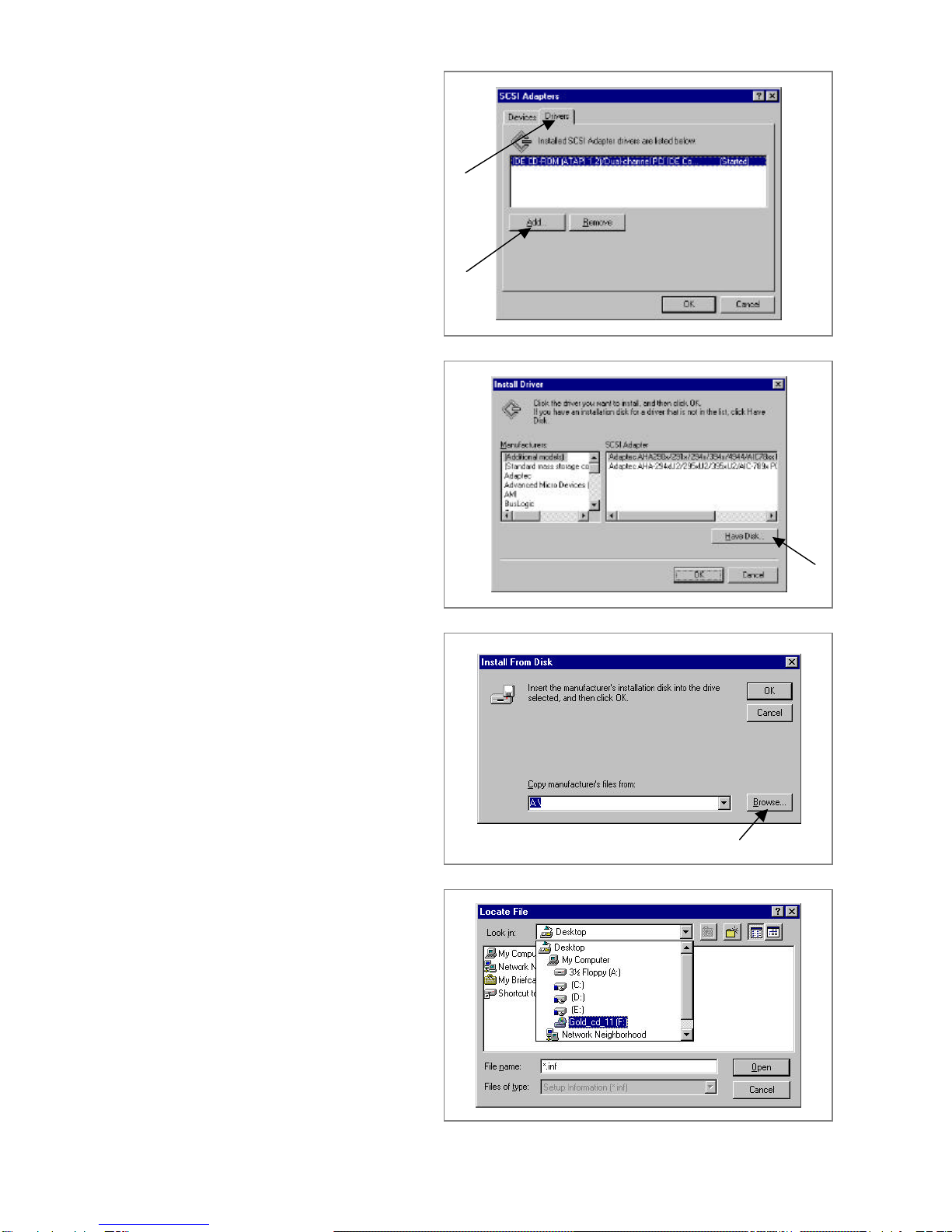

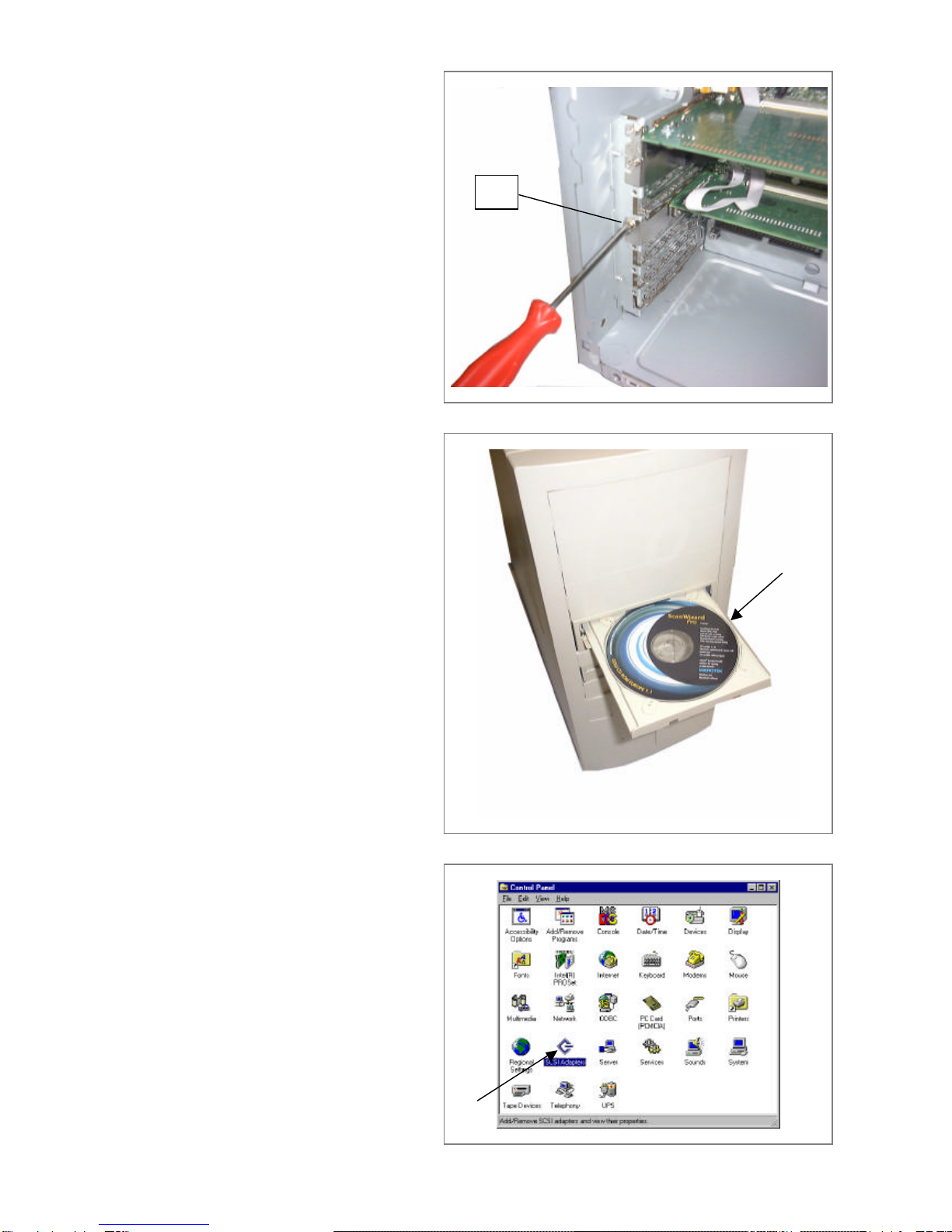

12. Select Drivers and Add

13. Click on Have Disk

14. With Browse select the CD

ROM (F:\)

15. In Locate File select

Adaptec_NT.inf., click on

OPEN and confirm with OK

7

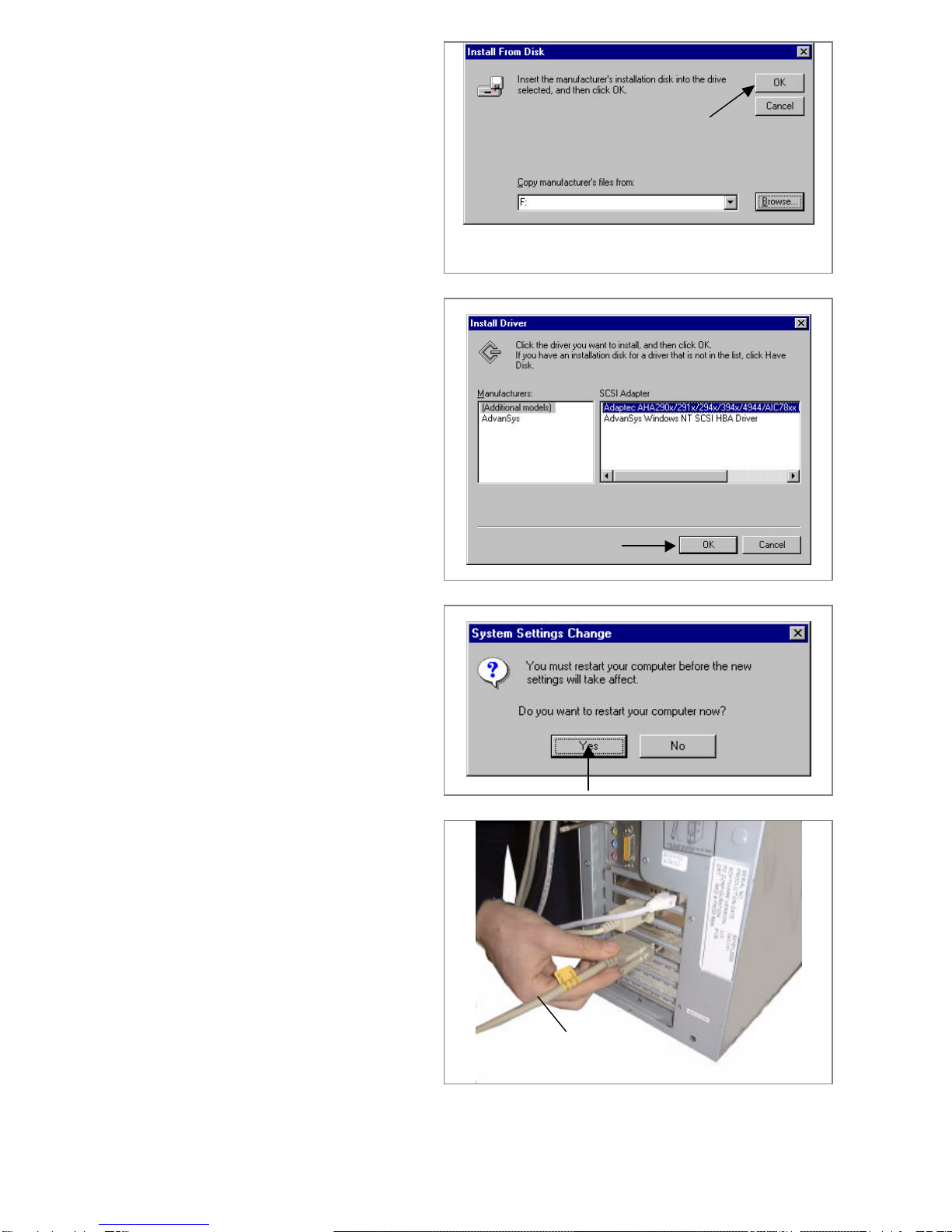

16. Click OK

17. Select the first option (Adaptec

HAH290x/……) and confirm

with OK.The scanner drive

program is installed

18. Click on Yes to restart the PC

19. If no SCSI error messages

appear, switch OFF the PC.

20. Connect the SCSI cable to the

scanner board connection

SCSI cable

8

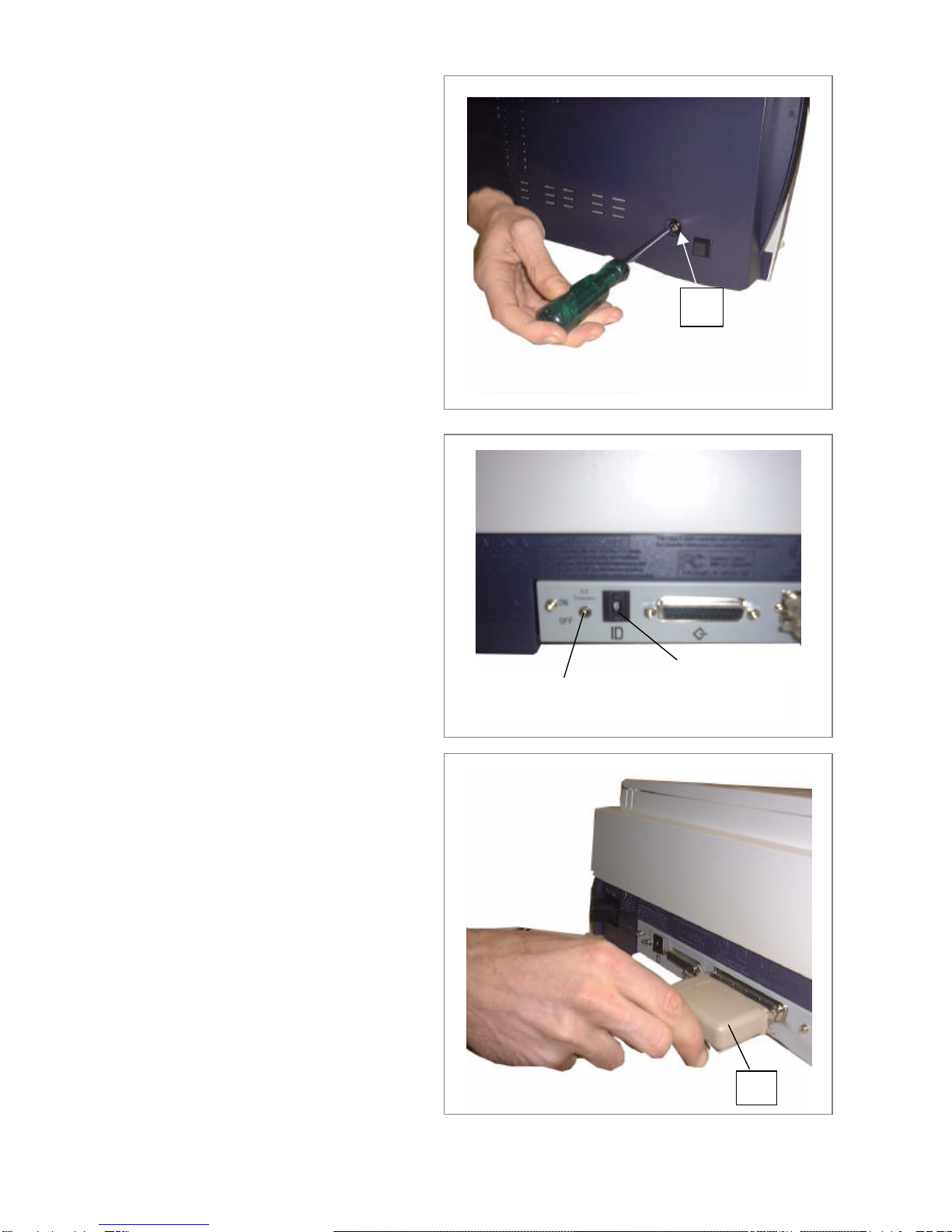

21. Rest the scanner on a side and

turn the blocking screw Eat the

bottom, to unlock the optics

22. Position the ID selector on 6

and the SCSI TERMINATOR

at ON (towards the top)

23. Insert the SCSI cable connector

Din the scanner connection

24. Connect the mains cord to the

scanner and to the mains

power supply

ID selector

SCSI TERMINATOR selector

E

D

9

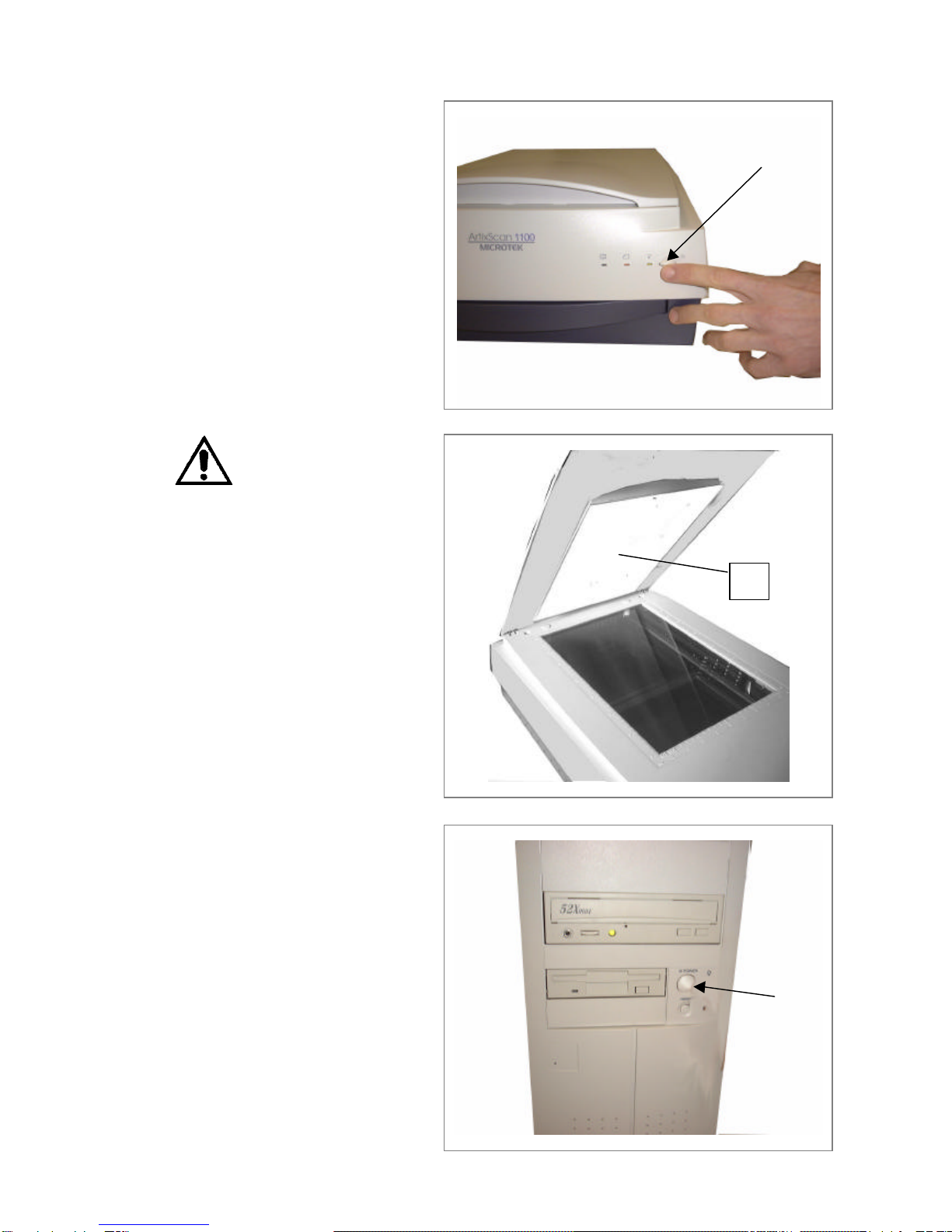

25. Press the ON/OFF button to

switch ON the scanner

26. The inside of the cover

Fmust be white.

If black, then cover it with a

white paper sheet having the

same dimensions and use

transparent sticky tape to

secure this paper to the inside

of the scanner

27. Switch ON the PC

28. Close the SMI 1200 software

F
