SMC Networks SMCBR14VPN Manual de usuario

After unpacking the SMCBR14VPN, please check the contents of the box to be sure

you have received the following components:

•1Barricade™ VPN 4-Port Broadband Router (SMCBR14VPN).

•SMC EZ Installation and Documentation CD.

•Quick Installation Guide.

•1Ethernet Cable.

•1Power Supply.

Immediately inform your dealer in the event of any incorrect, missing or

damaged parts. If possible, please retain the carton and original packing

materials in case there is a need to return the product.

Please register this product and upgrade the product warranty at the SMC's Web site:

www.smc.com or www.smc-europe.com.

To install and connect to the SMCBR14VPN, you must have:

•APC running Windows 9x/Me/2000/XP, MAC OS 8.X or above, or Linux/Unix.

•Each PC should have a wired network adapter correctly installed.

•Internet Explorer/Netscape Navigator 5.0 or higher.

•An external Cable, xDSL, ISDN, or Dial-Up modem.

•ACD-ROM drive*.

Note: A CD-ROM drive is only required if you want to use the EZ 3-Click Installation

Wizard application to configure your Barricade™ Router. The process can be

completed manually through the web interface.

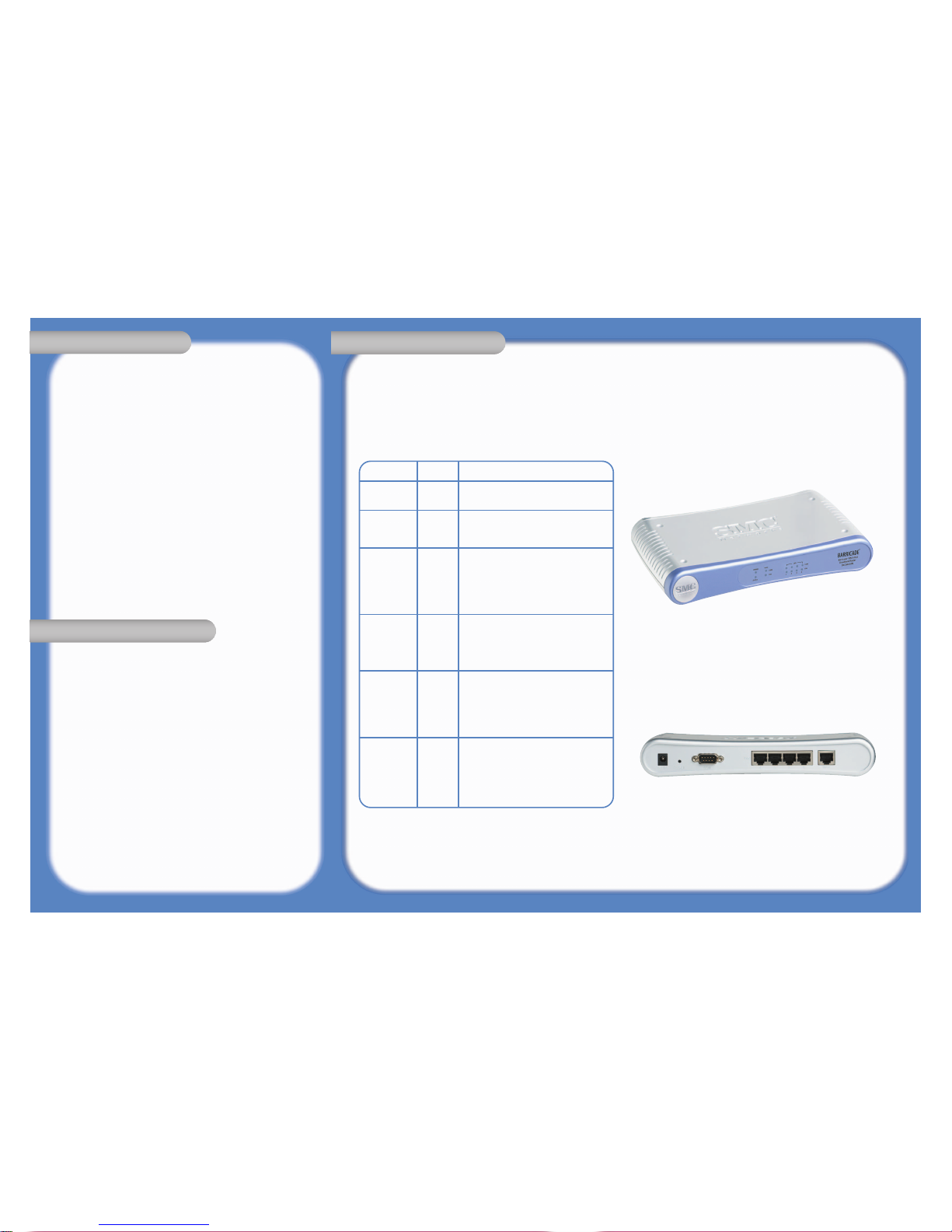

The Barricade™ VPN 4-Port Broadband Router router is equipped with:

•1Auto-Sensing 10/100 Mbps RJ-45 WAN connection.

•4Auto-Sensing 10/100 Mbps RJ-45 LAN connections.

•1Power connection.

•1Reset button.

•1COM connection for ISDN or external dial-up modem.

There are 6 Front Panel LED Indicators:

LED (Label)

Power (Power)

Status (Status)

WAN (100M)

WAN (10M)

LAN (100M)

LAN (10M)

Activity

Solid LED indicates that the unit is powered on.

No light indicates the unit is powered off.

Solid LED indicates the device is in process

of boot up or firmware upgrade.

Blinking LED indicates device is working correctly.

Solid LED indicates a LAN connection was

detected at 100Mbps.

Blinking LED indicates traffic is being transmitted

through the WAN connection.

No light indicates a WAN connection was not

detected or was detected at 10Mbps.

Solid LED indicates a LAN connection was detected.

Blinking LED indicates traffic is being transmitted

through the WAN connection.

No light indicates a WAN connection was not

detected or detected at 100Mbps.

Solid LED indicates a LAN connection is detected

at 100Mbps.

Blinking LED indicates traffic is being transmitted

through the WAN connection.

No light indicates a LAN connection was not

detected or detected at 10Mbps.

Solid LED indicates a LAN connection is detected

at 10Mbps.

Blinking LED indicates traffic is being transmitted

through the WAN connection.

No light indicates a LAN connection was not

detected or detected at 100Mbps.

Color

Green

Orange

Green

Orange

Green

Orange

Package contents Hardware description

System requirements

FOR TECHNICAL SUPPORT, CALL:

From U.S.A. and Canada

(24 hours a day, 7 days a week)

(800) SMC-4-YOU;

Phn: (949) 679-8000;

Fax: (949) 679-1481

From Europe: Contact details can be found

on www.smc-europe.com or www.smc.com.

INTERNET

E-mail addresses:

[email protected]

european.techsupport@smc-europe.com

World Wide Web:

http://www.smc.com/

http://www.smc-europe.com/

If you are looking for further contact

information, please visit www.smc.com

or www.smc-europe.com.

Model Number: SMCBR14VPN

Driver updates:

http://www.smc.com/index.cfm?action=tech_support_drivers_downloads

BROADBAND

MODEM

Current Setup BarricadeTM Setup

COMPUTER

ETHERNET CABLE

CABLE

OR DSL

BROADBAND

MODEM

BARRICADE

ROUTER

ETHERNET CABLE

POWER CORD

ETHERNET CABLE

CABLE

OR DSL

COMPUTER

4Finally, when you have connected

both your Broadband modem and

computer to the Router, you can

connect the BarricadeTM s power cord

into an available electrical outlet.

Unplug your existing Broadband

Modem s Ethernet cable from the

back of your computer.

Connect this same Ethernet

cable connector to the WAN/ port

on the BarricadeTM Router. Using the Ethernet cable

included in the box, connect one

end to LAN Port-1 on the

BarricadeTM Router and then

connect the other end to the

Ethernet port connection on your

computer.

BarricadeTM VPN

4-Port Broadband Router

EZ Installation CD Using The EZ 3-Click Wizard

Hardware installation

Congratulations on your purchase of the Barricade™ VPN 4-Port Broadband Router (SMCBR14VPN). This EZ Quick Installation Guide will guide you through a simple process

to get your new Barricade™ Router online in 3 mouse clicks. For additional information and advanced settings configurations please refer to the User Guide included on

the CD-ROM.

Before you can use the EZ 3-Click Wizard you need to connect your new Barricade™ Router to your Broadband Modem and to at least one computer. To setup your initial network,

follow the steps below:

When you have completed the network setup outlined in the previous section, put

the SMC EZ Installation and Documentation CD into your CD-ROM drive.

For initial setup, it is recommended that you use the EZ 3-Click Install Wizard on

the computer that was originally connected to your Broadband Internet connection.

The EZ 3-Click Wizard should auto-run to display the splash screen below. If it does not

browse the contents of your CD-ROM drive and double-click on the Router icon.

To begin the installation of your new Barricade™ Router, click the [Start EZ 3-Click

Wizard] button.

Note: The EZ 3-Click Installation wizard only works on a Windows-based computer.

If you are using any other operating system, please configure the Barricade™

through the web-based interface.

Macintosh / Linux Users!

If you are setting up this Router in a non-Windows network environment,

please refer to the User Guide located in the manual folder on the CD-ROM.

The EZ 3-Click Installation Wizard is not compatible with the Mac or Linux OS.

BarricadeTM Web Management:

You can access the web-based management tools using a java-enabled web browser

by typing http://192.168.2.1 in the Browser Address bar.

If you are unable to access the web-based management, please refer to the User Guide

to confirm your web-browser is configured correctly.

Default Settings:

Router IP Address: 192.168.2.1

Default Password: smcadmin

Quick Installation Guide

SMCBR14VPN

Information furnished by SMC Networks, Inc. (SMC) is believed to be accurate and reliable.

However, no responsibility is assumed by SMC for its use, nor for any infringements of

patents or other rights of third parties, which may result from its use. No license is

granted by implication or otherwise under any patent or patent rights of SMC.

SMC reserves the right to change specifications at any time without notice.

SMC is a registered trademark; and BarricadeTM is a trademark of SMC Networks, Inc.

Other product and company names are trademarks or registered trademarks of their

respective holders.
