SMC Networks EZ Networking SMC2209USB/ETH Manual de usuario

Information furnished by SMC Networks, Inc. (SMC) is believed to be accurate and reliable.

However, no responsibility is assumed by SMC for its use, nor for any infringements of patents or

other rights of third parties which may result from its use. No license is granted by implication or

otherwise under any patent or patent rights of SMC. SMC reserves the right to change

specifications at any time without notice.

SMC Networks, Inc.

38 Tesla

Irvine, California 92618

Trademarks

SMC is a registered trademark; and EZ Connect and EZ Hub are trademarks of SMC Networks,

Inc. Other product and company names are trademarks or registered trademarks of their

respective holders.

Compliances

FCC - Class B

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with instructions, may

cause harmful interference to radio communications. However, there is no guarantee that the

interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment

off and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

• Reorient the receiving antenna

• Increase the separation between the equipment and receiver

• Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected

• Consult the dealer or an experienced radio/TV technician for help

FCC Caution: To assure continued compliance, (example - use only shielded interface cables

when connecting to computer or peripheral devices). Any changes or modifications not expressly

approved by the party responsible for compliance could void the user’s authority to operate this

equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause undesired operation.

CAUTION STATEMENT:

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with a minimum distance of 5

centimeters between the radiator and your body. This transmitter must not be co-located or

operating in conjunction with any other

antenna or transmitter. Note: In order to maintain compliance with the limits of a Class B digital

device, SMC requires that you use a quality interface cable when connecting to this device.

Changes or modifications not expressly approved by SMC could void the user’s authority to

operate this equipment.

Attach unshielded twisted-pair cable (UTP) to the RJ-45 port and shielded USB cable to the USB

port.

EC Conformance Declaration – Class B

SMC contact for these products in Europe is:

SMC Networks Europe,

Edificio Conata II

Calle Fructuos Gelabert 6-8, 2o, 4a

08970 – Sant Joan Despi

Barcelona, Spain

This information technology equipment complies with the requirements of the Council Directive

89/336/EEC on the Approximation of the laws of the Member States relating to Electromagnetic

Compatibility and 72/23/EEC for electrical equipment used within certain voltage limits and the

Amendment Directive 93/68/EEC.

1 | Hardware Description

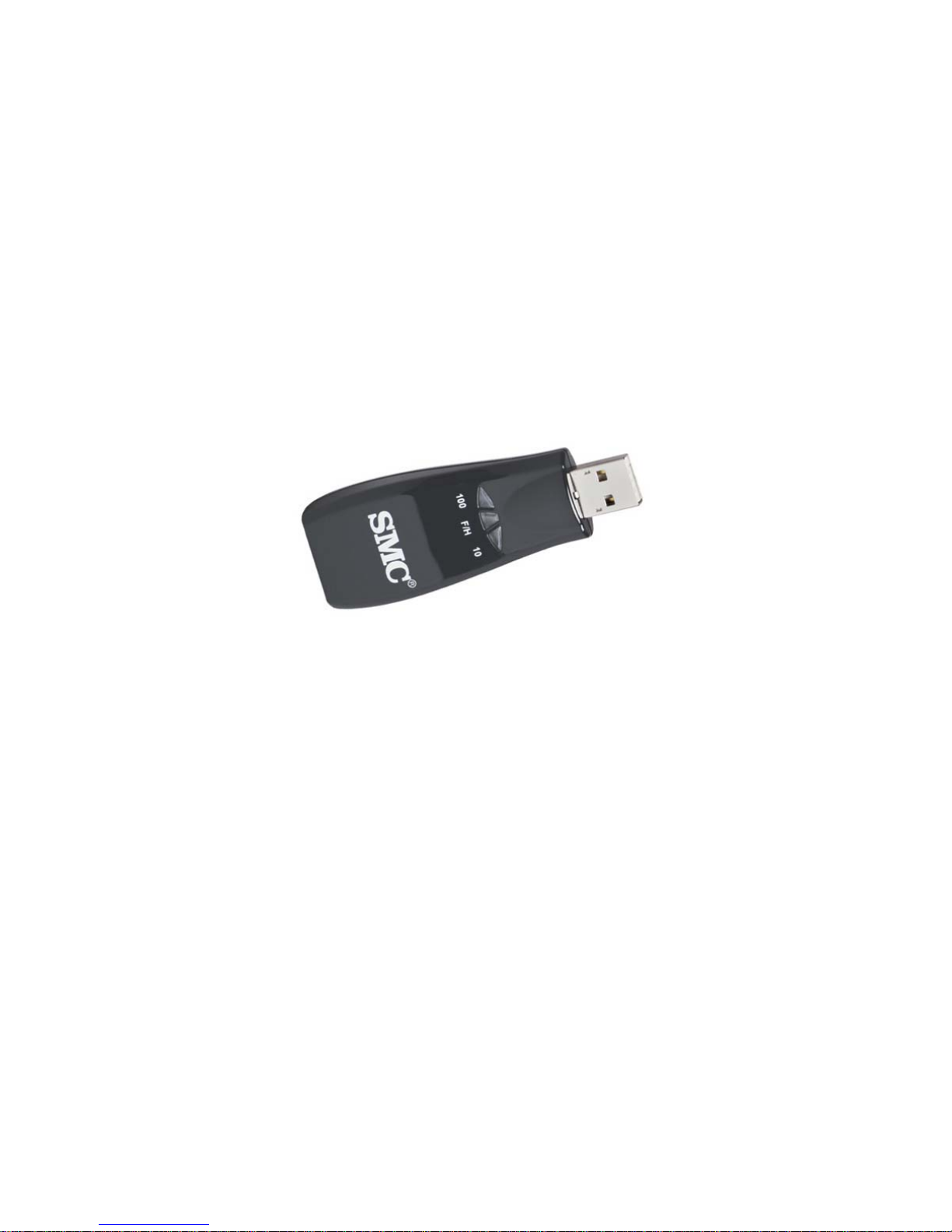

The SMC2209USB/ETH Compact USB 2.0 to 10/100 Mbps Ethernet Adapter is equipped with:

•1 RJ-45 connector for 10/100 Mbps connections

•3 LED Indicators – 10, 100, F/H (Full/Half Duplex)

o10/ACT: Solid light indicates a 10 Mbps Ethernet connection and a blinking light

indicates traffic

o100/ACT: Solid light indicates a 100 Mbps Ethernet connection and a blinking

light indicates traffic

oF/H Dupliex: Solid light indicates full duplex and no light indicates half duplex

Section 1.1 | Features / Benefits

•Backwards Compatible with USB 1.0/1.1 USB Ports

•Compact Design facilitates ease of use with both Desktop and Notebook PCs

oAlso features easy to read LEDs

•Powered by Host PC so no external power supply is needed

•Driver support for Windows 98, Me, 2000, and XP

•Plug-and-Play Compatible with Windows 98, Me, 2000, and XP

oThe SMC2209USB/ETH provides compatibility with your computer and

interoperability with your existing network products by providing drivers for the

major Windows Operating Systems.

•Connects at Full 100Mbps via USB 2.0, up to 40 times faster than a USB 1.1 adapter!

oHi-Speed USB 2.0 allows for 480 Mbps transfer speeds for rapid data transfer of

digital content.

•Full and Half Duplex support for both 10 and 100 Mbps speeds

•Auto-negotiation selects 10/100 Mbps and half/full duplex automatically

•Supports IEEE 802.3 10 Mbps and IEEE 802.3u 100 Mbps Ethernet function

•Supports USB suspend/resume logic

2 | Package Contents

After unpacking the SMC2209USB/ETH, check the contents of the box to be sure you have

received the following components:

•1 SMC2209USB/ETH Ethernet Adapter

•1 SMC2209USB/ETH EZ Installation Wizard and Documentation CD

•1 EZ Quick Installation Guide

Immediately inform your dealer in the event of any incorrect, missing or damaged parts. If

possible, please retain the carton and original packing materials in case there is a need to return

the product.

Please register this product and upgrade the product warranty at SMC's Web site:

http://www.smc.com

3 | System Requirements

To use the SMC2209USB/ETH, you must have:

•A host PC that supports the Universal Serial Bus (USB 2.0 recommended for maximum

throughput)

•200mhz or faster processor

•64 MB of RAM (recommended)

•Windows 98, Me, 2000, or XP

4 | Driver Installation – Option 1 (Recommended)

Windows 98/Me/2000/XP

NOTE: Installation processes will require the use of your original, licensed copy of Windows.

Please have your Windows CD available BEFORE proceeding with the installation.

This Installation method makes the process as simple and Plug-and-Play as possible. Simply run

the driver/utility program, reboot your machine and insert your SMC2209USB/ETH Ethernet

Adapter. It's as easy as 1-2-3.

Step 1: Insert the EZ Installation Wizard and Documentation CD.

Step 2: Click the [Install Driver] button.

Step 3: Please shut down your machine and insert your SMC2209USB/ETH. Once the Windows

Operating System is booted up, it will find the new hardware and automatically install it.

Section 4.1 | Other Setup Processes

The following are Operating System-specific options that may appear during this installation

procedure:

Windows 98/Me: If you are using Windows 98 or Me, you must have your original Windows

CD on hand. The system may request it near the end of the installation process.

Windows 2000/XP: Select [Install the software automatically] if prompted and click [Next] to

complete the installation.

5 | Driver Installation – Option 2

Windows 98/Me/2000/XP

Section 5.1 | Windows 98

NOTE: Installation processes will require the use of your original, licensed copy of Windows.

Please have your Windows CD available BEFORE proceeding with the installation.

Step 1: After you have inserted the SMC2209USB/ETH in your machine, the Operating System

will automatically recognize the adapter and prompt you for the appropriate drivers. Click the

[Next >] button to begin the installation.

Step 2: Insert the EZ Installation Wizard and Documentation CD and select the [Search for the

best driver for your device] option and click [Next >].

Step 3: Clear all checkboxes except for [Specify a location:]. Then press the [Browse] button

and look for the drivers on your CD-ROM. Browse to the root directory - ?:\. (Note: The "?"

equals the letter of your CD-ROM drive. In most cases, this is D.)

Step 4: The system should find the drivers. Click the [Next >] button to continue the installation.

The wizard will show "SMC EZ Networking Compact 10/100 USB 2.0 Adapter”.

(Note: If the system could not find the drivers, click the [< Back] button, and select the [Display

a list of all the drivers...] option. Select [Network Adapters] from the list of devices, press [Have

Disk] and once again browse to the location of the drivers)

Step 5: Once the system has copied the SMC drivers from the CD, it may then request files from

your original Windows disk. Please insert the Windows CD at this time.

Step 6: The system will copy the files. Do NOT press [Cancel].

Step 7: Once all the necessary files are copied from the Windows CD, the driver install process

will be complete. Click [Finish] to exit the wizard.

Step 8: You will then be prompted to reboot the machine. Press [Yes]. Upon reboot, the

SMC2209USB/ETH will be initialized and ready for use.

Section 5.2 |Windows Me

NOTE: Installation processes will require the use of your original, licensed copy of Windows.

Please have your Windows CD available BEFORE proceeding with the installation.

Step 1: After you have inserted the SMC2209USB/ETH in your machine and turned it back on,

the OS will automatically recognize the adapter and prompt you for the appropriate drivers.

Select the [Specify the location of the driver] option. Then click the [Next >] button to begin the

installation.

Step 2: Insert the Driver CD and select the [Specify a location:] option. Clear the [Removable

Media] checkbox. Then press the [Browse] button and look for the drivers on your CD. This

should be located in the root directory - ?:\. (Note: The ? equals the letter of your CD-ROM drive.

In most cases, this is D.) Then click [Next >].

Step 3: The system should find the drivers. Click the [Next >] button to continue the installation.

(Note: If the system could not find the drivers, click the [< Back] button, and select the [Display

a list of all the drivers] option. Select [Network Adapters] from the list of devices, press [Have

Disk] and once again browse to the location of the drivers)

Step 4: Once all the necessary files have been copied, the driver installation is complete. Click

[Finish] to exit the wizard.

Step 5: You will then be prompted to reboot the machine. Press [Yes]. Upon reboot, the

SMC2209USB/ETH will be initialized and ready for use.

Section 5.3 | Windows 2000/XP

Step 1: After you have inserted the SMC2209USB/ETH in your machine and turned it back on,

the Operating System will automatically recognize the adapter and prompt you for the

appropriate drivers. Click the [Next >] button to begin the installation.

Step 2: Insert the EZ Installation Wizard and Documentation CD and select the [Search for a

suitable driver...] option. Then click [Next >].

Step 3: Clear all checkboxes except for [Specify a location]. Then click [Next >].

Step 4: You will then be prompted to enter the location of the drivers. This should be ?:\. (Note:

The ? equals the letter of your CD-ROM drive. In most cases, this is D.) Then click [OK]. You can

also click [Browse] and browse to the root directory of the CD for the drivers for further

verification.

Step 5: The system should find the drivers. Click the [Next >] button to continue the installation.

(Note: If the system could not find the drivers, click the [< Back] button, and select the [Display

a list of the known drivers...] option. Select [Network Adapters] from the list of devices, press

[Have Disk] and once again browse to the location of the drivers)

Step 6: You have now completed the driver installation. Click [Finish] to initialize the adapter.

6 | Driver Verification

Windows 98/Me/2000/XP

Section 6.1 | Windows 98/Me

Step 1: Right-click the My Computer icon on your desktop and click [Properties].

Step 2: Then go to the [Device Manager] tab and open the [Network adapters] section. You

should see your SMC EZ Networking Compact 10/100 USB 2.0 Adapter in this menu. Highlight it

and click [Properties].

Step 3: The Device Status shows that the "This device is working properly". If there are any

error messages displayed here, you will need to click the SMC adapter and click [Remove]. Then

reboot the machine and go through the installation process again.

Section 6.2 | Windows 2000

Step 1: Right-click the My Computer icon on your desktop and click [Properties].

Step 2: Then go to the Hardware tab and click [Device Manager]. Open the [Network adapters]

section. You should see your SMC EZ Networking Compact 10/100 USB 2.0 Adapter in this menu.

Right-click your adapter and click [Properties].

Step 3: The Device Status shows that the "This device is working properly". If there are any

error messages displayed here, you will need to right-click the SMC adapter and click [Uninstall].

Then reboot the machine and go through the installation process again.

Section 6.3 | Windows XP

Step 1: Click [Start] and click [Control Panel]. Then click the [Performance and Maintenance]

icon and select [System].

Step 2: Then go to the Hardware tab and click [Device Manager]. Open the [Network adapters]

section. You should see your SMC EZ Networking Compact 10/100 USB 2.0 Adapter in this menu.

Right-click the adapter and click [Properties].

Step 3: The Device Status shows that "This device is working properly". If there are any error

messages displayed here, you will need to right-click the SMC adapter and click [Uninstall]. Then

reboot the machine and go through the installation process again.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Adaptador de SMC Networks

SMC Networks

SMC Networks EZ-Connect SMCHP1D-ETH Manual de usuario

SMC Networks

SMC Networks WCB-G2 FICHE Guía de instalación

SMC Networks

SMC Networks SMCWCB-GM Manual de usuario

SMC Networks

SMC Networks EZ Connect g SMCWUSBT-G2 Manual de usuario

SMC Networks

SMC Networks SMCHT-ETH Manual de usuario

SMC Networks

SMC Networks SMCWAA-B Manual de usuario

SMC Networks

SMC Networks EZ Connect SMC2662W Manual de usuario

SMC Networks

SMC Networks SMCWAPS-G Manual de usuario

SMC Networks

SMC Networks WUSBS-N3 Manual de usuario

SMC Networks

SMC Networks Elite16 Series Manual de usuario

SMC Networks

SMC Networks SMCWUSB-N Manual de usuario

SMC Networks

SMC Networks SMC EZ Connect Turbo SMC2402W Manual de usuario

SMC Networks

SMC Networks 2209USB/ETH Manual de usuario

SMC Networks

SMC Networks EZ Connect SMC2435W Manual de usuario

SMC Networks

SMC Networks SMCWCB-G Manual de usuario

SMC Networks

SMC Networks EZ Connect SMCHPAVH-ETH Manual de usuario

SMC Networks

SMC Networks SMC2335W EZ Connect Manual de usuario

SMC Networks

SMC Networks SMCBT-EDR Manual de usuario

SMC Networks

SMC Networks SMCWUSBT-G Manual de usuario

SMC Networks

SMC Networks SMCHPAVH-ETH Manual de usuario

SMC Networks

SMC Networks HPAV-ESW - FICHE TECHNIQUE Instrucciones de funcionamiento y seguridad

SMC Networks

SMC Networks SMCWUSBS-N Manual de usuario

SMC Networks

SMC Networks SMC EZ Connect N Draft 11n Wireless Cardbus Adapter... Manual de usuario

SMC Networks

SMC Networks SMC EZ Connect g SMCWCBT-G Manual de usuario

Manuales populares de Adaptador de otras marcas

PCB Piezotronics

PCB Piezotronics 090B274 Manual de usuario

Auvidea

Auvidea J20 Manual del producto

Gossen MetraWatt

Gossen MetraWatt AT3-III E Manual de usuario

Akribis

Akribis ITF-21-BISS-MIT Manual de usuario

Tenda

Tenda W54U Manual de usuario

ROHO

ROHO AGILITY Manual de usuario

PROLiNK

PROLiNK WN2001 Manual de usuario

Hawking

Hawking HUF2 Manual de usuario

Airlink101

Airlink101 AWLC4030 Manual de usuario

NETGEAR

NETGEAR XAV101v1 - Powerline AV Ethernet Adapter Manual de usuario

Philips

Philips SWA4554S/10 Manual de usuario

JVC

JVC TS-C9D2B Manual de instrucciones

NETGEAR

NETGEAR A6100 Manual de usuario

D-Link

D-Link DWA-121 Manual de usuario

Philips

Philips SWA2037 Manual de usuario

Basalte

Basalte 0610-20 Manual de usuario

Yealink

Yealink EHS40 Manual de usuario

Balluff

Balluff BIC 1B0-IT1A7-Q40KFU-SM4A4A Manual de usuario
