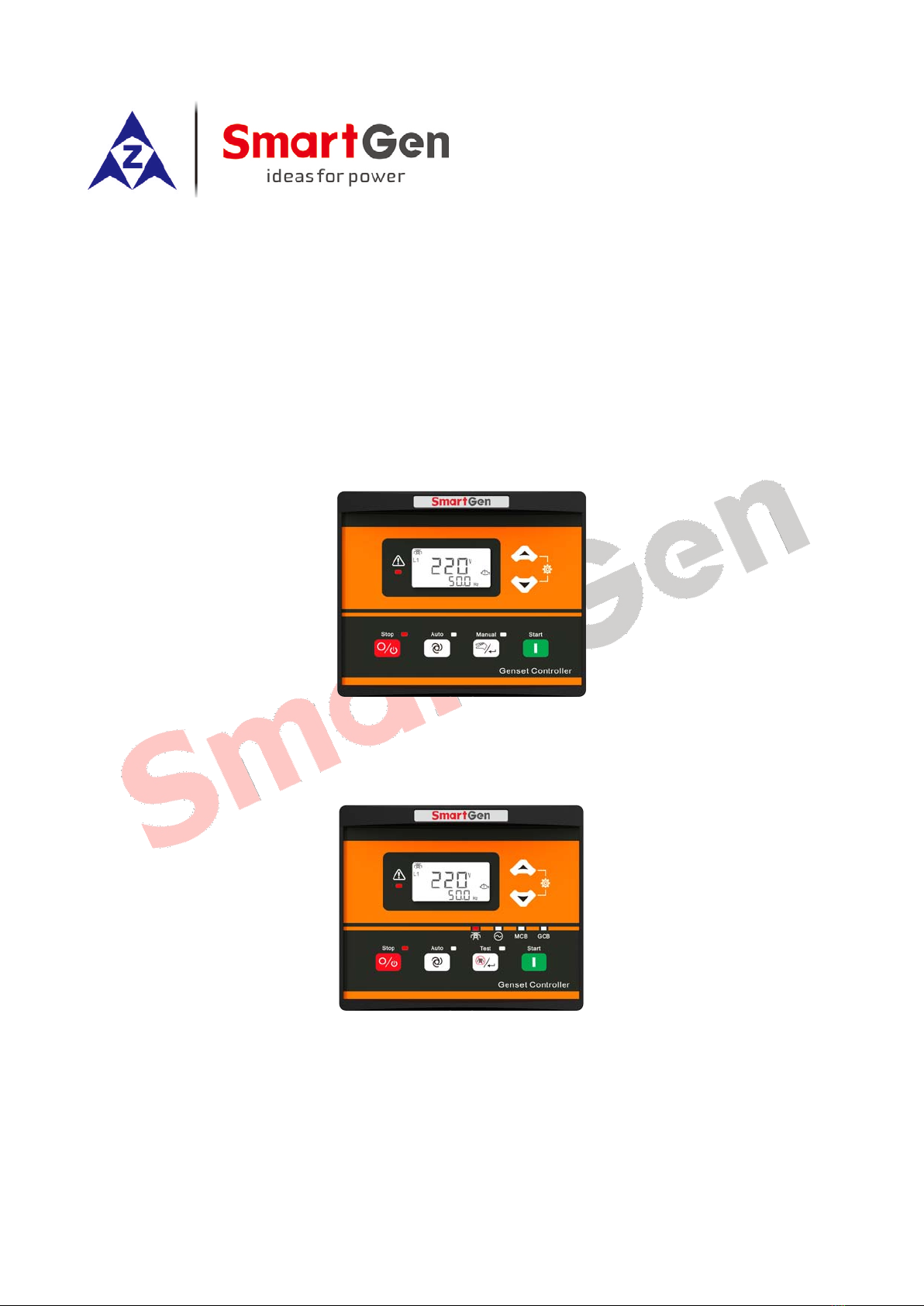

Smartgen GENSET CONTROLLER MGC310 Manual de usuario

MGC310/MGC320

GENSET CONTROLLER

USER MANUAL

SMARTGEN (ZHENGZHOU) TECHNOLOGY CO., LTD.

MGC300 Series Genset Controller User Manual Page 2 of 26

Chinese trademark

English trademark

SmartGen — make your generator smart

SmartGen Technology Co., Ltd.

No.28 Jinsuo Road, Zhengzhou, Henan Province, China

Tel: +86-371-67988888/67981888/67992951

+86-371-67981000 (overseas)

Fax: +86-371-67992952

Web: www.smartgen.com.cn/ www.smartgen.cn/

Email: sales@smartgen.cn

photocopying or storing inany medium by electronic means or other)withoutthe written permission of the

Applications for the copyright holder’s written permission to reproduce any part of this publication should

be addressed to SmartGen Technology at the address above.

Any reference to trademarked product names used within this publication is owned by their respective

companies.

SmartGen Technology reserves the right to change the contents of this document without prior notice.

Table 1 Software Version

Date Version Content

2019-10-15 1.0 Original release.

2020-01-04 1.1 Fixed application diagram.

2020-08-18 1.2 1. Fixed typical application diagram terminal 17-20 to R,S, T, N1;

2. Added note 1 of remote start.

2020-12-12 1.3 1. Added description of remote start input port/power port;

2. Modified generator poles description.

MGC300 Series Genset Controller User Manual Page 3 of 26

CONTENT

1 OVERVIEW............................................................................................................................................. 4

2 PERFORMANCE AND CHARACTERISTICS ........................................................................................ 5

3 SPECIFICATION..................................................................................................................................... 6

4 OPERATION............................................................................................................................................ 7

4.1 FRONT PANEL DESCRIPTION....................................................................................................... 7

4.2 KEYS FUNCTION DESCRIPTION................................................................................................... 8

4.3 LCD ICONS DESCRIPTION ............................................................................................................ 9

4.4 DISPLAY DESCRIPTION............................................................................................................... 10

4.4.1 LOW POWER CONSUMPTION OPERATION.........................................................................11

4.4.2 INSTRUCTION..........................................................................................................................11

4.4.3 AUTO START SEQUENCE.......................................................................................................11

4.4.4 AUTO STOP SEQUENCE ....................................................................................................... 12

4.4.5 MANUAL START/STOP OPERATION..................................................................................... 12

5 PROTECTION....................................................................................................................................... 13

6 CONNECTION...................................................................................................................................... 14

7 DEFINITION AND RANGE OF PARAMETERS.................................................................................... 16

7.1 PARAMETER SETTING CONTENTS AND RANGE ..................................................................... 16

7.2 DEFINABLE CONTENTS OF OUTPUT PORTS........................................................................... 19

7.3 DEFINABLE CONTENTS OF INPUT PORTS ............................................................................... 19

7.4 SENSOR SELECTION................................................................................................................... 20

8 CONTROLLER PARAMETER SETTINGS........................................................................................... 21

9 SENSOR SETTING............................................................................................................................... 22

10 COMMISSIONING .............................................................................................................................. 23

11 TYPICALAPPLICATION ..................................................................................................................... 24

12 INSTALLATION ................................................................................................................................... 25

12.1 FIXING CLIPS .............................................................................................................................. 25

12.2 OVERALLAND CUTOUT DIMENSIONS..................................................................................... 25

13 FAULT FINDING.................................................................................................................................. 26

MGC300 Series Genset Controller User Manual Page 4 of 26

1OVERVIEW

MGC300 Series Genset Controller is applicable for single unit automation control to realize auto

start of single unit and AMF. The controller integrates digitalization with intelligence and applies LCD

graphic display, which is simple for operation and reliable for running.

MGC300 Series Genset Controller applies 32-bit micro-processor technology, realizing precise

measuring for various parameters, set-value adjustment, timing, and threshold setting functions etc. A

majority of parameters can be adjusted from the front panel, and all parameters can be configured by

RS485 port via PC. It has compact structure, simple wiring, high reliability, which can be used for all

types of genset automation system.

MGC300 Series Genset Controller includes true low power consumption (power off) and feign low

power consumption (awakened, but screen light not on, only stop indicator flashing, not do any action).

MGC300 Series Genset Controller User Manual Page 5 of 26

2PERFORMANCE AND CHARACTERISTICS

— Graphic LCD display (backlight), LED indicators, push-button operation;

— Acrylic material for hard screen protection;

— Wide power supply range DC (8~35)V, which can suits different environments of starting

battery voltages;

— Collect and display mains/gen 3-phase voltage, 3-phase current, frequency, and power

parameters;

Mains Gen

Line voltage (L12, L23, L31) Line voltage (L12, L23, L31)

Phase voltage (L1, L2, L3) Phase voltage (L1, L2, L3)

Frequency (Hz) Frequency (Hz)

Load

Current (Ia, Ib, Ic) Unit: A

Total active power P Unit: kW

— Mains has over volt, under volt, over frequency, under frequency, and loss of phase functions;

Gen has over volt, under volt, over frequency, under frequency, over current, over power, and

loss of phase functions;

— Precisely collect all parameter values of engines:

Temperature °C Fuel level %

Battery voltage V Accumulated running time H (max. 9999 hours)

Speed RPM Accumulated start times (max. 90000000 times, display only on PC software)

— Genset fault protection and display function;

— Controller has 4 working modes: manual, auto, stop, and test mode, and MGC310 has stop,

manual, auto modes, and MGC320 has manual, auto, stop, and test mode;

— Parameter setting function: allows users to change and set the parameters, which won't be lost

in case of system power off; a majority of parameters can be adjusted from front panel, and all

parameters can be configured by RS485 via PC;

— 1 digital input port, 2 fixed input ports;

— 2 fixed relay output ports (fuel output, starting output);

— 2 digital relay output ports;

— All parameters are adjusted digitally, improving the whole reliability and stability;

— Sealing gasket is designed between the enclosure and the control panel, whose dustproof and

waterproof performance can be reached to IP65;

— Metal fixing clips are used to stable the controller;

— Modular structure design, pluggable wiring terminal, and built-in installation, make it compact in

structure and easy to install.

MGC300 Series Genset Controller User Manual Page 6 of 26

3SPECIFICATION

Table 2 Technical Parameters

Items Contents

Working Voltage DC (8.0~35.0)V continous power supply

Overall Consumption ≤1.4W (Standby mode: ≤0.35W, 0W=low power consumption)

AC Volt Input:

3 phase 4 wire

3 phase 3 wire

Single phase 2 wire

2 phase 3 wire

30V AC ~ 360V AC (ph-N)

30V AC ~ 620V AC (ph-ph)

15V AC ~ 360V AC (ph-N)

Alternator Frequency 50Hz/60Hz

Crank Relay Output 7A 24V DC power supply

Fuel Relay Output 7A 24V DC power supply

Digital Relay Output Port 1 7A 250V AC volt free output

Digital Relay Output Port 2 7A 250V AC volt free output

Overall Dimensions 126mm x 106mm x 46.5mm

Panel Cutout 111mm x 91mm

CT Secondary Current Rated: 62.5mA

Working Condition Temperature:(-25~+70)°C Humidity:(20~93)% RH

Storage Condition Temperature: (-30~+80)°C

Protection Level Front panel IP65

Insulation Intensity Apply AC2.2kV voltage between high voltage te

rminal and low

voltage terminal and the leakage current is not more than 3mA within

1min.

Weight 0.27kg

MGC300 Series Genset Controller User Manual Page 7 of 26

4OPERATION

4.1 FRONT PANEL DESCRIPTION

Fig. 1 MGC310 Panel Indication

Fig. 2 MGC320 Panel Indication

MGC300 Series Genset Controller User Manual Page 8 of 26

4.2 KEYS FUNCTION DESCRIPTION

Table 3 Keys Description

Icons Function Description

Stop/On

Stop the running genset both in manual mode and in auto mode;

In alarm status, press this button to reset any shutdown alarms;

In stop mode, press this button and Up to test if LCD icons and LED

indicators are OK;

In stop mode, press this button and Down to set backlight always on;

In stop process, re-press this button to stop generator immediately;

In parameter setting process, press this button to exit the setting quckly;

In stop status, press this button to start;

In start status, press longer for 3s and release to stop;

Auto Press this key

and controller enters to Auto mode; under this mode,

genset can be controlled by remote start input signals;

Start Press this key and genset will start;

Down/Decrease LCD page scroll;

In parameter settings, decrease the value where

the cursor is;

Press the two keys

simultaneously to enter

parameter settings

page;

Up/Increase LCD page scroll;

In parameter settings, increase the value where

the cursor is;

Manual/Confirm

Confirm key for parameter settings page;

Manual key for other pages and

press it to make controller in Manual

mode;

This key is especially for MGC310;

Test/Confirm Confirm key for parameter settings page;

Test key for other pages and press it to make controller commissoning;

This key is especially for MGC320.

MGC300 Series Genset Controller User Manual Page 9 of 26

4.3 LCD ICONS DESCRIPTION

Table 4 LCD Icons

Icon Definition Icon Definition

Gen power indication Fuel level sensor indication

Mains power indication AC phase voltage indication

Start countdown (crank disconnect is

satisfied) L12 AC line voltage indication

Over frequency alarm Battery voltage indication

Under frequency alarm Load current unit

Temp high alarm Accumulated running time unit

Fuel level low Frequency unit

Outside input alarm Temperature unit

Engine oil pressure low alarm Speed unit (r/min)

Crank failure Active power unit

Stop failure Voltage unit

Battery voltage abnormal

Percentage

Gen voltage high

I# Mains Close

Gen voltage low

II# Gen Close

Load over current

MGC300 Series Genset Controller User Manual Page 10 of 26

4.4 DISPLAY DESCRIPTION

Mains: Phase Voltage L1, Frequency F Mains: Phase Voltage L2, Frequency F

Mains: Phase Voltage L3, Frequency F Gen: Phase Voltage L1, Curent IA

Gen: Phase Voltage L2, Current IB Gen: Phase Voltage L3, Current IC

Mains: Line Voltage L12, Frequency F Mains: Line Voltage L23, Frequency F

Mains: Line Voltage L31, Frequency F Gen: Line Voltage L12, Frequency F

Gen: Line Voltage L23, Frequency F Gen: Line Voltage L31, Frequency F

Battery Voltage, Speed Fuel Level, Temp.

Active Power, Accumulated Running Time

NOTE1: When temp. and fuel level sensor are not displayed, it means they are not used; when OFF is

displayed, it means that sensor is open.

Otros manuales para GENSET CONTROLLER MGC310

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Controladores de Smartgen

Smartgen

Smartgen HAT600R Series Manual de usuario

Smartgen

Smartgen HGM1790N Manual de usuario

Smartgen

Smartgen HGM9600 Series Manual de usuario

Smartgen

Smartgen HGM8140D Manual de usuario

Smartgen

Smartgen HGM6100K Series Manual de usuario

Smartgen

Smartgen HMAT880 Manual de usuario

Smartgen

Smartgen GENSET CONTROLLER MGC310 Manual de usuario

Smartgen

Smartgen HGMS62 Manual de usuario

Smartgen

Smartgen HGM9420N Manual de usuario

Smartgen

Smartgen HAT700 SERIES Manual de usuario

Smartgen

Smartgen HAT600P Series Manual de usuario

Smartgen

Smartgen HMU8-9570 Manual de usuario

Smartgen

Smartgen HAT160 Manual de usuario

Smartgen

Smartgen HGM8110DC-2 Manual de usuario

Smartgen

Smartgen HGM6110U Manual de usuario

Smartgen

Smartgen HGM7100N Series Manual de usuario

Smartgen

Smartgen APC615 Manual de usuario

Smartgen

Smartgen HGM9510N Manual de usuario

Smartgen

Smartgen MGC100 Manual de usuario

Smartgen

Smartgen HGM400 Series Manual de usuario

Smartgen

Smartgen HAT552 Manual de usuario

Smartgen

Smartgen HEM8500 Manual de usuario

Smartgen

Smartgen HGM9520N Manual de usuario

Smartgen

Smartgen HGM410E Manual de usuario

Manuales populares de Controladores de otras marcas

Digiplex

Digiplex DGP-848 Instrucciones de funcionamiento

YASKAWA

YASKAWA SGM series Manual de usuario

Sinope

Sinope Calypso RM3500ZB Manual de usuario

Isimet

Isimet DLA Series Style 2 Manual de instalación

LSIS

LSIS sv-ip5a Manual de usuario

Rockwell Automation

Rockwell Automation 1769-L31 Manual de usuario

Airflow

Airflow Uno hab Manual de usuario

ABB

ABB ACS580-01 drives Manual de usuario

Panasonic

Panasonic GM1 Series Manual de usuario

Emerson

Emerson SW93 Manual de usuario

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manual de usuario

Panasonic

Panasonic FP? Positioning Unit RTEX Manual de usuario

Samson

Samson Type 5824 Manual de servicio

Alpha IP

Alpha IP MIOB 21001 Manual de usuario

Siemens

Siemens OpenAir GMA 1 Series Manual de usuario

Surecom

Surecom SR-629 Manual de usuario

Fishman

Fishman TriplePlay Manual de usuario

Regulus

Regulus SRS1 T Manual de usuario
