SMART-AVI SM-HDN-4D Manual de usuario

SM-HDN-4D

Quick Start Guide

A full Manual can be downloaded from

www.smartavi.com/SM-HDN-4D/

Advanced KVM Switch

TECHNICAL SPECIFICATIONS

VIDEO

Format HDMI

Input Interface (8) HDMI 19-pin

Output Interface (2) HDMI 19-pin

Resolution Up to 4K (3840x2160 @30Hz)

DDC 5 volts p-p (TTL)

Input Equalization Automatic

Input Cable Length Up to 20 ft.

Output Cable Length Up to 20 ft.

USB

Signal Type USB 2.0, 1.1, and 1.0 w/ internal

hub

Input Interface (4) USB Type B

Output Interface

(2) USB 1.1 Type A for KVM Devices

(2) USB 2.0 Type A Transparent

AUDIO

Input (4) 3.5 mm Stereo Audio

Output (1) 3.5 mm Stereo Audio

POWER

Power Requirements 12V DC, 2A power adapter with

center-pin positive polarity

ENVIRONMENT

Operating Temp 32° to 104° F (0° to 40° C)

Storage Temp -4° to 140° F (-20° to 60° C)

Humidity 0-80% RH, non-condensing

CONTROL

Front Panel Push Buttons with LED indicators

RS-232 Via Serial @ 115200 bps

Hot Keys Via Keyboard

OTHER

Emulation Keyboard, Mouse and Video

WHAT’S IN THE BOX

PART NO. QTY DESCRIPTION

SM-HDN-4D-S 1 4-Port HDMI KVM Switch with Audio

and USB 2.0 Support.

PS12VD2A 1 12V DC, 2A power adapter with

center-pin positive polarity.

1 Quick Start Guide

NOTICE

The information contained in this document is subject

to change without notice. SMART-AVI makes no war-

ranty of any kind with regard to this material, includ-

ing but not limited to, implied warranties of merchant-

ability and fitness for particular purpose. SMART-AVI

will not be liable for errors contained herein or for

incidental or consequential damages in connection

with the furnishing, performance or use of this materi-

al. No part of this document may be photocopied,

reproduced, or translated into another language with-

out prior written consent from SMART-AVI, Inc.

Toll Free: (800) AVI-2123

Phone: (702) 800-0005

2455 W. Cheyenne Ave, Suite 112

North Las Vegas, NV 89032

smartavi.com

DUAL HEAD 4-PORT HDMI

KVM SWITCH WITH USB 2.0

SHARING

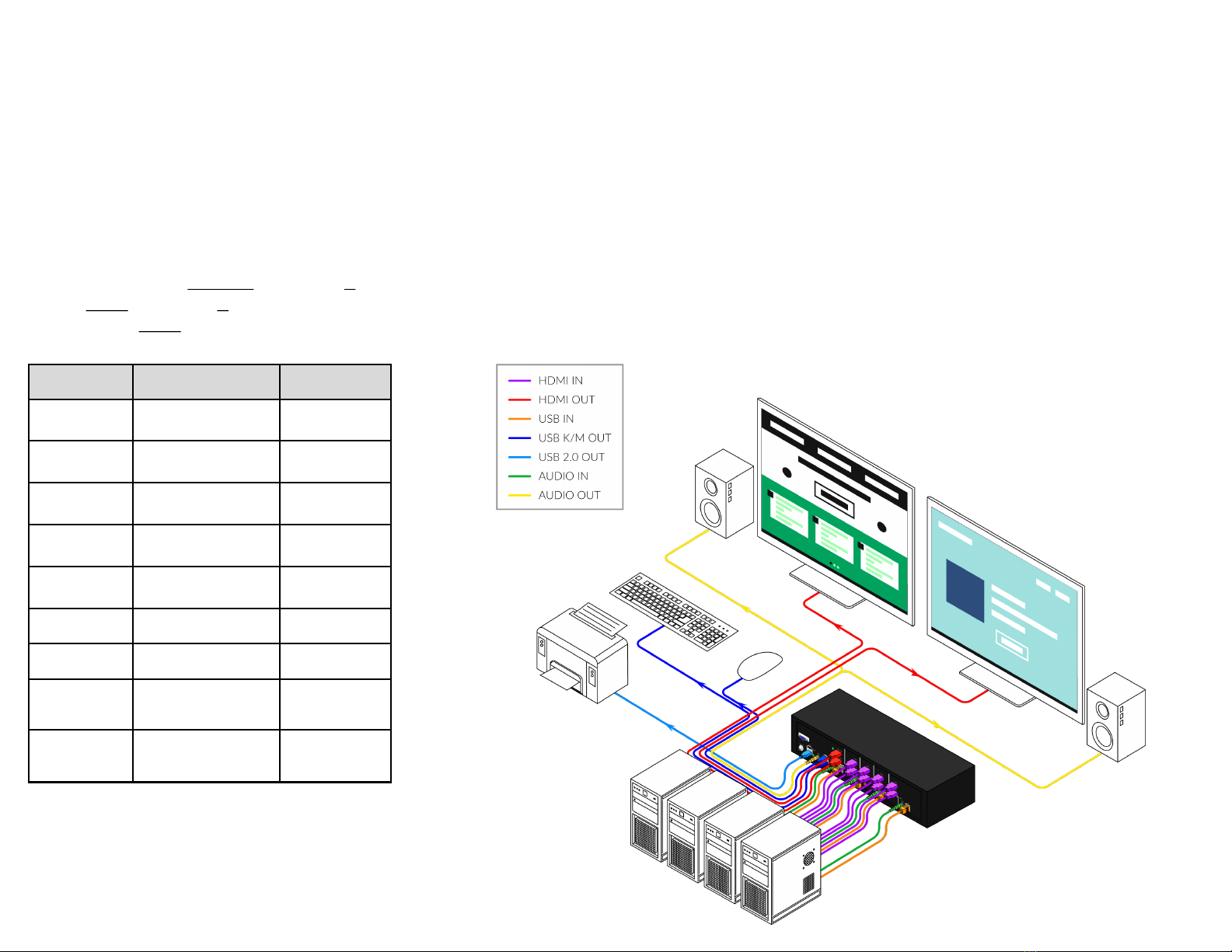

HARDWARE INSTALLATION

1. Ensure that power is turned off or disconnected from the unit and the computers.

2. Use HDMI cables to connect the HDMI output ports from each computer to the correspond-

ing HDMI ports of the unit.

3. Use a USB cable (Type-A to Type-B) to connect a USB port on each computer to the respec-

tive USB ports of the unit.

4. Optionally connect a stereo audio cable (3.5mm to 3.5mm) to connect the audio output of

the computers to the AUDIO IN ports of the unit.

5. Connect monitors to the HDMI console ports of the unit using HDMI cables.

6. Connect a USB keyboard and mouse in the two USB console ports.

7. Optionally connect stereo speakers to the AUDIO OUT port of the unit.

8. Finally, power on the KVM by connecting a 12VDC power supply to the power connector, and

then turn on all the computers.

Note: You can connect up to 4 computers to the 4 port KVM.

EDID LEARN

The KVM is designed to learn a connected

monitor’s EDID upon power up. In the event

of connecting a new monitor to the KVM, a

power re-cycle is required.

SYSTEM CONTROL

There are three ways to control the SM-HDN:

Keyboard HotKeys, RS-232 Serial

Commands, and Front Panel Buttons.

The settings for the serial connection are as

follows: Baud rate: 115200; Data Bits: 8;

Parity: None; Stop Bits: 1;

Flow Control: None.

Command HotKey RS-232

Switch KVM [CT][CT]m[#]<CR> //m[#]<CR>

Audio Only [CT][CT]a[#]<CR> //a[#]<CR>

KM Only [CT][CT]c[#]<CR> //c[#]<CR>

USB Only [CT][CT]u[#]<CR> //u[#]<CR>

Learn EDID [CT][CT]e<CR> //e<CR>

SW Reset [CT][CT]r//r <CR>

Status Query N/A //?? <CR>

Current HK

Trigger

[Alt][Alt][Alt]

k0 <CR>

//hk <CR>

Update HK

Trigger

[HK][HK] k

[1|2|3] <CR>

N/A

Chart Key

[CT] = Ctrl

<CR> = Carriage Return (Enter Key)

[HK] = Current Hot Key Trigger

1 = Ctrl (Default) | 2 = Shift | 3 = Scroll Lock
