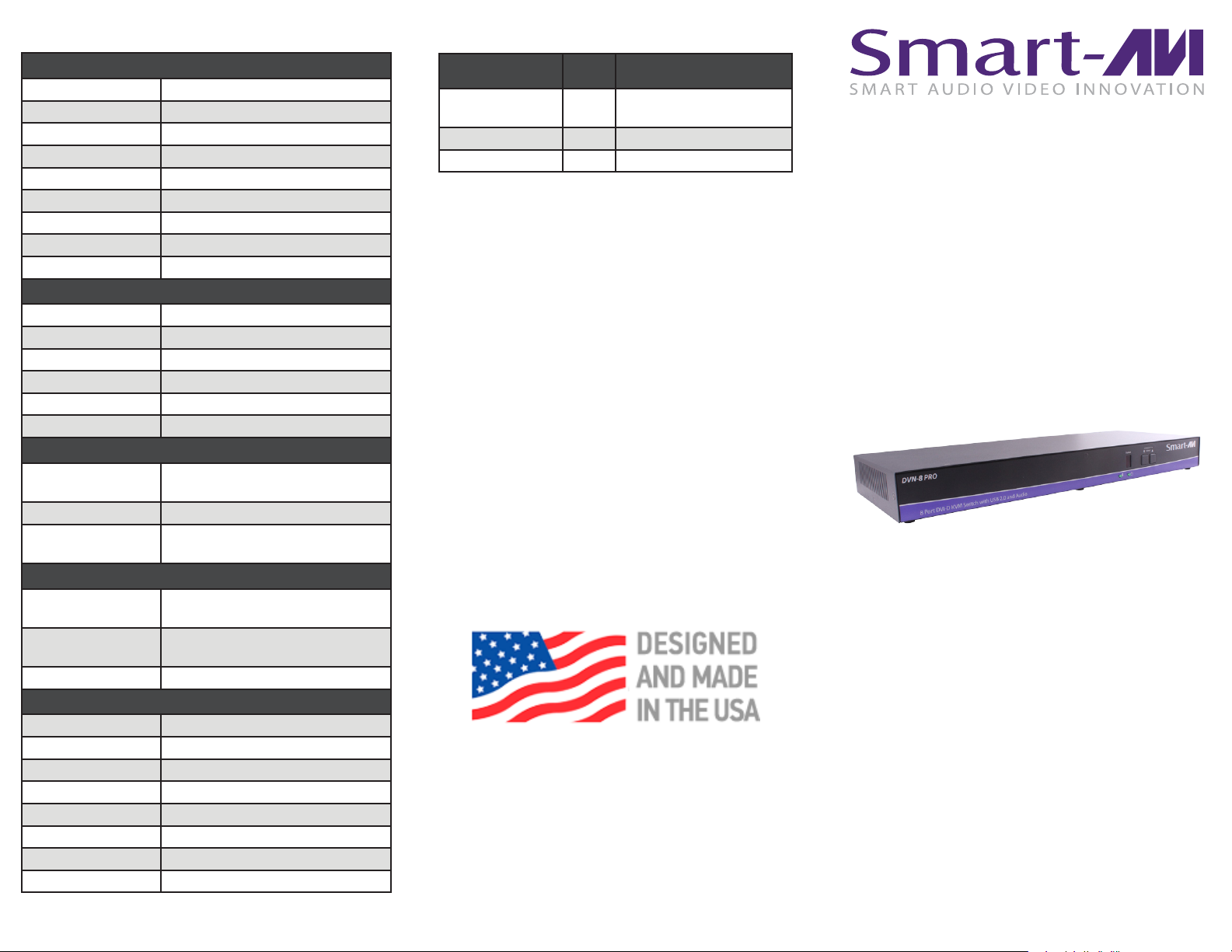

SMART-AVI DVN-8PRO Manual de usuario
8-Port DVI-D KVM Switch
with USB 2.0 and Audio
ACCESS AND CONTROL
8 COMPUTERS USING
ONLY ONE USB KEYBOARD,
USB MOUSE AND
DVI-D MONITOR
Quick Start Guide
VIDEO
Format DVI-D Single Link, DVI 1.0
Maximum Pixel Clock 165 MHz
Input Interface (8) DVI-D 29-pin
Output Interface (1) DVI-D 29-pin
Resolution Up to 1920 x 1200 @60Hz
DDC 5 volts p-p (TTL)
Input Equalization Automatic
Input Cable Length Up to 20 ft
Output Cable Length Up to 20 ft
AUDIO
Input Interface (8) 3.5 mm Stereo Audio
Output Interface (1) 3.5 mm Stereo Audio
Impedance 600 Ohm
Frequency Response 20 Hz to 20 kHz
Nominal Level 0-1.0 V
Common Mode Rejection at 60 dB
USB
Signal Type USB 2.0, 1.1, and 1.0
w/ internal hub
Input Interface (8) USB Type B
Output Interface (2) USB 1.1 Type A for KVM Devices;
(2) USB 2.0 Type A Transparent
CONTROL
Front Panel Tactile Switch,
with Seven Segment Display
RS-232 Via Control @ 9600 bps N,8,1,
No Flow Control
Hot Keys Via Keyboard
OTHER
Power External 100-240 VAC/ 5VDC4A
Dimensions 16.9” W x 1.7” H x 6.5“ D
Weight 2.6 lbs
Approvals UL, CE, ROHS Compliant
Operating Temp. 0-55 °C (32-131°F)
Storage Temp. -20-85 °C (-4-185 °F)
Humidity Up to 95%
Emulation Keyboard and Mouse
NOTICE
The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and tness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
800.AVI.2131, 702.800.0005
2455 W Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
SmartAVI.com
TECHNICAL SPECIFICATION
DVN-8PRO
WHAT’S IN THE BOX
PART NO. Q-TY DESCRIPTION
DVN-8PRO-S 1 8x1 DVI-D, USB 2.0,
Audio Switch
PS5VDC4A 1 PS5VD4A Power Supply
Quick Start Guide 1
ABOUT SFX
DVN-8Pro is a dedicated multi-platform KVM switch capable
of managing up to 8 different computers through a single
DVI-D monitor, USB keyboard & mouse, a single set of
speakers and a USB 2.0 Device.
The USB emulation technology utilized by DVN-8Pro enables
immediate hotkey source switching through a remote USB
keyboard and mouse. DVN-8Pro uses single link connectors
providing high resolutions of up to 1920x1200 with zero
pixel loss from TMDS signal correction.
FEATURES
• Supports Mac, PC, Linux and Sun Mac OS, Sun OS,
Unix
• Supports High Resolution 1920x1200 60Hz WUXGA
• Uses universal DVI Single Link connectors
• Zero pixel loss with TMDS signal correction
• Supports all USB 2.0 Devices
• Control Sun, Mac or PC computers from a common
KVM console
• Compatible with all major software including Windows,
Linux, Mac OS, Sun OS, Unix
• Rack mountable in a standard 19 inch rack
• Flash upgradeable rmware
• Front panel keys for selecting users and channels
manually
• Supports USB keyboard and mouse
• Balanced stereo audio output
• RS-232 control for remote control
• Optional TCP/IP control
• Hot-key commands for quick channel selection.
• Independent (asynchronous) switching of KVM and
peripheral USB/audio ports. Users can listen to audio
from one computer while working on the other or scan
a document and save in another computer.
• Complete keyboard emulation for error free booting
• Superior video quality - 1920 x 1200 @ 60 Hz
1. Ensure that power is disconnected from DVN-8Pro.
2. Connect the DVI cables, USB cables (male-A to male-B), and audio cables (Optionally) from the computers to the
respective ports on the DVN-8Pro.
3. Optionally connect RS-232 for control functions.
4. Connect the USB keyboard & mouse to the two USB ports labeled for keyboard & mouse.
5. Optionally connect USB peripherals to the 2 USB ports labeled USB 2.0.
6. Optionally connect the speakers to the Audio Out port.
7. Connect the display monitor to the DVI OUT connector on the DVN-8Pro.
8. Power on the DVN-8Pro.
DVN-8PRO FRONT DVN-8PRO BACK
HARDWARE INSTALLATION
