SKYDANCE V1-T Manual de usuario
Operation temperature
Case temperature (Max.)
Environment
IP20
IP rating
Dimming data
Dimming range
RF 2.4GHz
0/1-10V
Push Dim
15m
4096 levels
0 -100%
Technical Parameters
Output power 240W/480W
(12V/24V)
Output voltage 12-24VDC
Output current 1CH,20A
Input and Output
Input voltage 12-24VDC
Input current 20.5A
Safety and EMC
EMC standard (EMC) EN301 489,EN 62479
Radio Equipment(RED) EN300 328
Certification CE,EMC,LVD,RED
EN60950
Safety standard(LVD)
Output type Constant voltage
Warranty and Protection
5 years
Protection Reverse Polarity
Warranty
Input signal
Control distance
Dimming level
Ta: -30
O
C ~ +55
O
C
T c: +85
O
C
RED
Model No.: V1-T
Single Color LED Controller
3-in-1 dimming/RF remote/0-10V/Push Dim/20A output/Auto-transmitting/Synchronize
Features
● RF remote, 0/1-10V, Push Dim (3-in-1) dimming.
● Match with Skydance’s 2.4G dimming remote control,
one RF controller accept up to 10 remote control.
● Auto-transmitting function: Controller automaticly transmit
signal to another controller with 15m control distance.
● Synchronize on multiple number of controllers.
● Connect with external push switch to achieve on/off and
dimming function.
500Hz
PWM Frequency
Dimming curve Logarithmic
User Manual Ver 1.0.2 2018.11.01 Page 1
www.iskydance.com
V1-T Single Color LED Controller

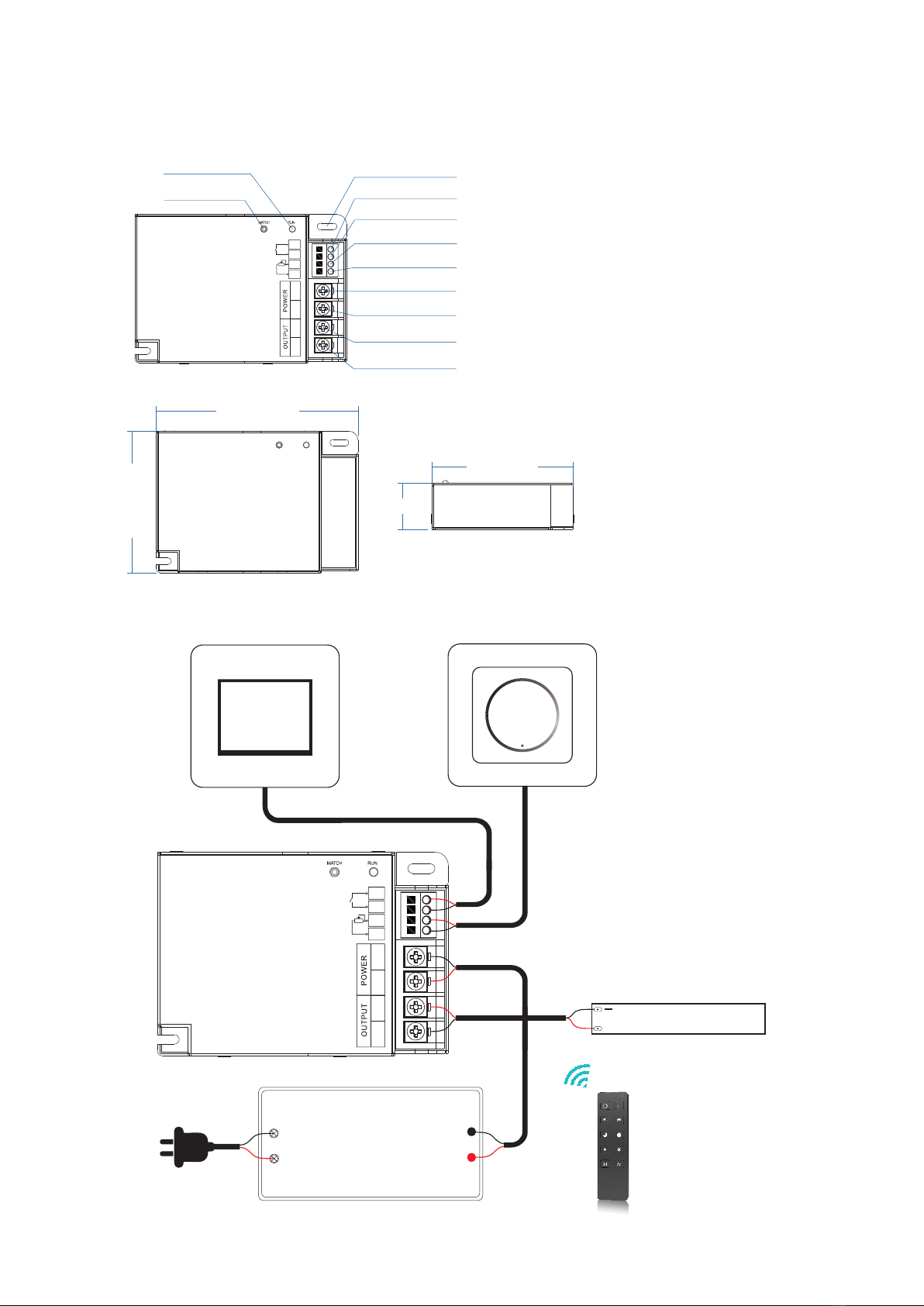

Mechanical Structures and Installations
LED output -
LED output +
Power input -
Power input +
LED indicator
Match key
Push switch com
Push switch in
Installation rack
Push Switch
Power Supply
12-24VDC
Constant Voltage
0/1-10V Dimmer
V1-T
+
+
--
PU SH
DI M
IN PUT
0/ 1-1 0V
+
+
- -
LED Dimmer
+Single color LED strip
AC100-240V
107.00 mm
75.00 mm
24.50 mm
75.00 mm
+
+
--
PU SH
DI M
IN PU T
0/ 1- 10V
+
+
- -
0/1-10V input
GND
User Manual Ver 1.0.2 2018.11.01 Page 2
www.iskydance.com
Push Dim Function
● Short press:
Turn on or off light.
● Long press (1-6s):
Press and hold to step-less dimming,
With every other long press, the light level goes to the opposite direction.
● Dimming memory:
Light returns to the previous dimming level when switched off and on again, even at power failure.
Match Remote Control (two match ways)
Use the controller’s Match key
Match:
Short press match key, immediately press on/off
key (single zone remote) or zone key (multiple zone
remote) of the remote.
Use Power Restart
Match:
Switch off the power, then switch on power again,
immediately short press on/off key (single zone remote)
or zone key (multiple zone remote) 3 times on the remote.
The light blinks 3 times means match is successful.
.
Delete:
Switch off the power, then switch on power again,
immediately short press on/off key (single zone remote)
or zone key (multiple zone remote) 5 times on the remote.
The light blinks 5 times means all matched remotes were
deleted.
Delete:
Press and hold match key for 5s to delete all match,
The light blinks 5 times means all matched remotes
were deleted.
End user can choose the suitable match/delete ways. Two options are offered for selection:
● 0-100% dimming.
● Compliant with 0-10V, 1-10V, 10V PWM, RX(4 in 1).
0/1-10V Dimming
Page 3
www.iskydance.com
V1-T Single Color LED Controller
User Manual Ver 1.0.2 2018.11.01
Malfunctions Analysis & Troubleshooting
Malfunctions
Causes Troubleshooting
1. Output cable is too long.
2. Wire diameter is too small.
3. Overload beyond power supply capability.
4. Overload beyond controller capability.
1. Reduce cable or loop supply.
2. Change wider wire.
3. Replace higher power supply.
4. Add power repeater.
No response
from the remote
1. The battery has no power.
2. Beyond controllable distance.
3. The controller did not match the remote.
1. Replace battery.
2. Reduce remote distance.
3. Re-match the remote.
1. No power.
2. Wrong connection or insecure.
1. Check the power.
2. Check the connection.
No light
Uneven intensity
between front and
rear,with voltage drop
100
90
80
70
60
50
40
30
20
10
PWM duty(%)
5.0 6.0. 7.0 8.0 9.0 10.0
0/1-10V(V)
1.0 2.0 3.0 4.0
Gamma=1.6
Dimming Curve
0/1-10V dimming
100
90
80
70
60
50
40
30
20
10
PWM duty(%)
50 60 70 80 90 100
Brightness(%)
10 20 30 40
Gamma=1.6
RF and Push dimming
Page 4
www.iskydance.com
V1-T Single Color LED Controller
User Manual Ver 1.0.2 2018.11.01
