Sitecom MD-300 Instrucciones de instalación

MD-300

PC on TV

Full Manual

All manuals and user guides at all-guides.com

all-guides.com

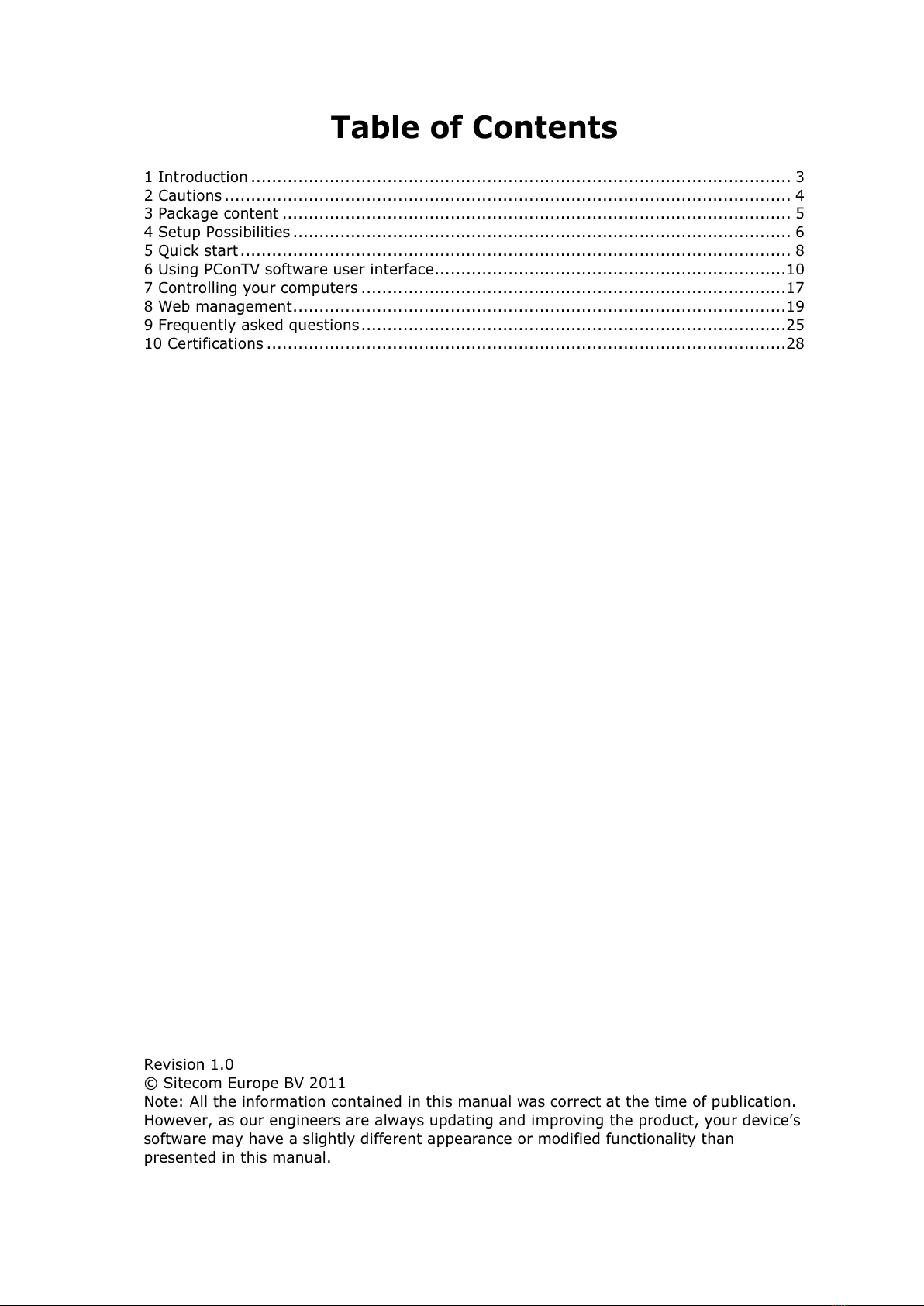

Table of Contents

1 Introduction ....................................................................................................... 3

2 Cautions ............................................................................................................ 4

3 Package content ................................................................................................. 5

4 Setup Possibilities ............................................................................................... 6

5 Quick start ......................................................................................................... 8

6 Using PCon V software user interface...................................................................10

7 Controlling your computers .................................................................................17

8 Web management..............................................................................................19

9 Frequently asked questions.................................................................................25

10 Certifications ...................................................................................................28

Revision 1.0

Note: All the information contained in this manual was correct at the time of publication.

However, as our engineers are always updating and improving the product, your device’s

software may have a slightly different appearance or modified functionality than

presented in this manual.

All manuals and user guides at all-guides.com

1 Introduction

hank you for purchasing the MD-300 PConTV. he MD-300 PConTV is the first device

that can show all content of your Windows as well as Mac computers on your V

wirelessly. You can easily control up to 8 computers with your mouse and/or keyboard.

You can share any content from your computers with your friends and family in your

living room.

All manuals and user guides at all-guides.com

2 Cautions

his device’s design and manufacturer has your safety in mind. In order to safely and

effectively use this device, please read the following before usage.

Usage Cautions

he user should not modify this device. he environmental temperature should be within

+0 ~ +40 degrees Celsius.

Power

he device’s power voltage is DC 5V 2.5A.

When using this device, please connect the supplied AC adapter or AC adapter cable to

the device’s power jack. When placing the adapter cable, make sure it can not get

damaged or be subject to pressure. o reduce the risk of electric shock, unplug the

adapter first before cleaning it. Never connect the adapter to the device in a humid or

dusty area. Do not replace the adapter or cable’s wire or connector.

Repair

If the device has a problem, you should take it to an appointed repair centre and let the

specialists do the device. Never repair the device yourself, you might damage the device

or endanger yourself.

Disposing of the device

When you dispose of the device, be sure to dispose it appropriately. Some countries may

regulate disposal of an electrical device, please consult with your local authority.

Others

When using this device, please do not let it come into contact with water or other liquids.

If water is accidentally spilled on the device, please use a dry cloth to absorb the spillage.

Electronic products are vulnerable, when using please avoid shaking or hitting the device,

and do not press the buttons too hard.

- Do not let the device come into contact with water or other liquid.

- Do not disassemble the device, repair the device or change the design of the device,

any damage done will not be included in the repair policy.

- Avoid hitting the device with a hard object, avoid shaking the device and stay away

from magnetic fields.

- If during electrostatic discharge or a strong electromagnetic field the device will

malfunction, unplug the power cable. he device will return to normal performance the

next time it is powered on.

All manuals and user guides at all-guides.com

On/Off button

Ethernet

USB

Antenna

HDMI

Antenna

Power

3 Package content

he following items are included in your PConTV package:

•PConTV device

•Quick Installation Guide

•2 WiFi antennae

•Universal power adaptor

•Installation CD

•User’s Manual (on CD)

•Warranty Card

All manuals and user guides at all-guides.com

4 Setup Possibilities

1. Ethernet setup (recommended : Optimal performance

Local client PC’s and PConTV in full Ethernet setup.

2. Homeplug power-line modem Setup: Optimal performance

Local client PC’s and PConTV in Home Plug** setup.

All manuals and user guides at all-guides.com

all-guides.com

3. Partly wireless, Partly Ethernet Setup

Local client PC’s wireless* and PConTV in Ethernet setup.

4. Wireless Setup

Local client PC’s and PConTV in full wireless setup.*

* Performance depends on wireless performance of home ADSL or cable router.

** HomePlug devices sold separately.

All manuals and user guides at all-guides.com

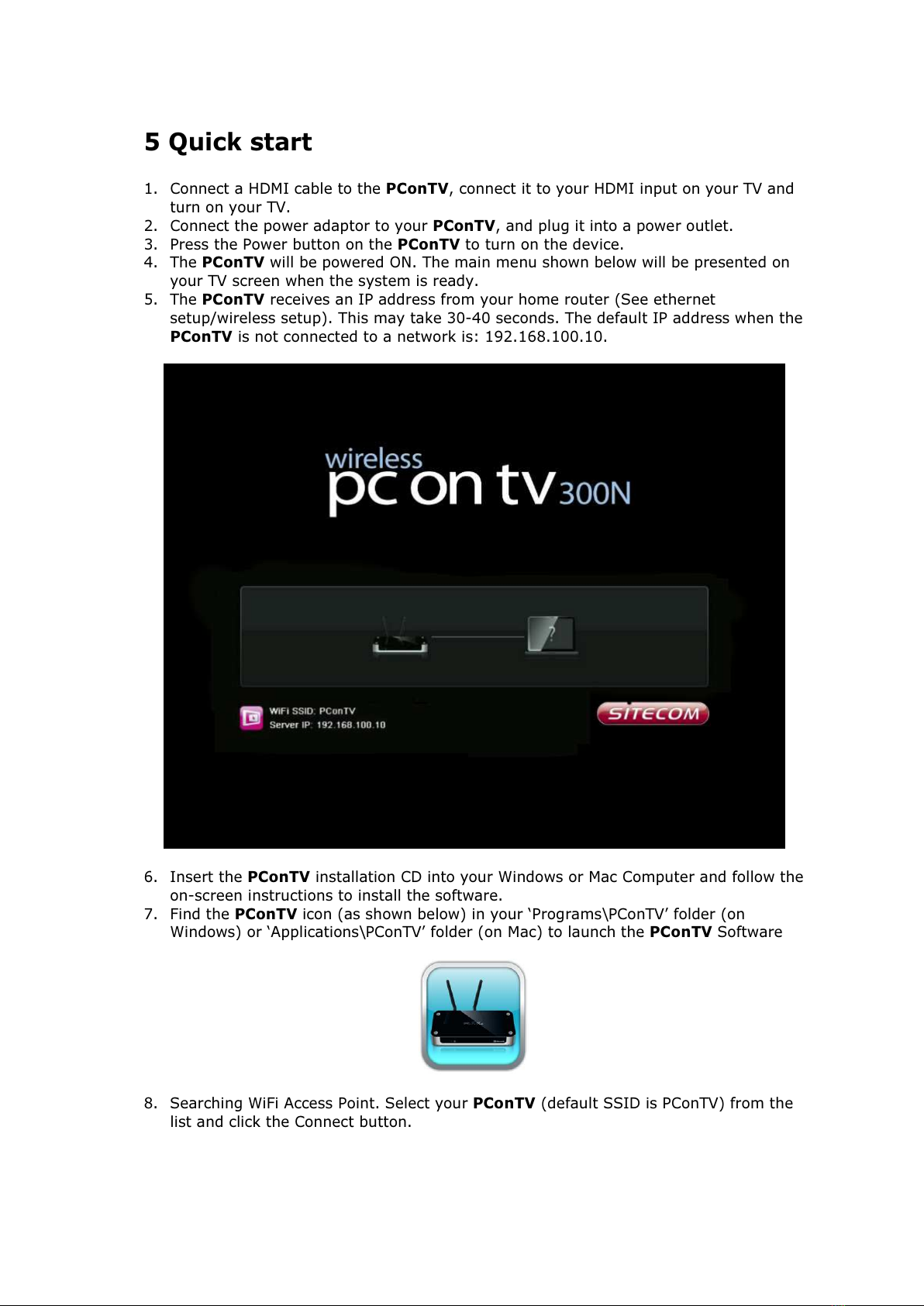

5 Quick start

1. Connect a HDMI cable to the PConTV, connect it to your HDMI input on your V and

turn on your V.

2. Connect the power adaptor to your PConTV, and plug it into a power outlet.

3. Press the Power button on the PConTV to turn on the device.

4. he PConTV will be powered ON. he main menu shown below will be presented on

your V screen when the system is ready.

5. he PConTV receives an IP address from your home router (See ethernet

setup/wireless setup). his may take 30-40 seconds. he default IP address when the

PConTV is not connected to a network is: 192.168.100.10.

6. Insert the PConTV installation CD into your Windows or Mac Computer and follow the

on-screen instructions to install the software.

7. Find the PConTV icon (as shown below) in your ‘Programs\PCon V’ folder (on

Windows) or ‘Applications\PCon V’ folder (on Mac) to launch the PConTV Software

8. Searching WiFi Access Point. Select your PConTV (default SSID is PCon V) from the

list and click the Connect button.

All manuals and user guides at all-guides.com

9. Connect to selected access point.

10. Connecting to PConTV server. If only one server is found, it will automatically

connect to the server.

11. he application will temporarily adjust your Windows or Mac resolution for best

projection result, and then project your screen to V. You should see your Windows

or Mac PC Desktop on the V screen now.

12. o quit a projection, click the <Stop/Play> button on the PConTV software user

interface (as shown below). Your screen resolution will be restored to the original

one.

13. o begin a projection again, click the Play button again.

All manuals and user guides at all-guides.com

6 Using PConTV so tware user inter ace

After you have installed the PConTV software application from the installation CD to your

PC (‘s) you can run the PCon V software user interface to connect to the PConTV. If

there is more than one PConTV active in the same network, the software will list the

devices for you to choose.

Software activation

he first time you launch the PConTV Software user interface, you will see the activation

reminder:

Select "Activate" or select "Remind me later" to postpone activation. In the activation

dialog (as shown on the next page), enter your serial number and optional your email

address and click "Activate now".

he software will connect to the activation server to validate the software. When

connection to the server is successful a message will appear which says that your

software is activated, otherwise the message below will be shown. In this case connect

your PC to the internet and try again.

All manuals and user guides at all-guides.com
