Simplicity Prestige 27HP Manual de usuario

Parts Manual

Rev. 11/2008

Prestige

Series Garden Tractors & Mower Decks

TP 400-4579-A-PR-S

. No. Descri

tion

27HP Product

1695264 Prestige, 27HP Hydro 4WD w/PS RMO

2690680 Prestige, 27HP Hydro 4WD w/PS RMO and 50" Mower Deck

2690681 Prestige, 27HP Hydro 4WD w/PS RMO and 54" Mower Deck

. No. Descri

tion

Mower Decks

1695294 50" Mower Deck

1695266 54" Mower Deck

1734885

Part No.:

Not for

Reproduction

Not for

Reproduction

Table Of Content

Torque Specification Chart ..................................................................... Inside Back Cover

PRODUCT COMPONENTS PAGES

Frame & Front Axle Group - 4WD ....................................................................................................................... 4

Steering Group - Tilt Steering .............................................................................................................................. 8

Engine & Electric Clutch Group - 23HP, 25HP & 27HP Kohler ........................................................................... 10

Transmission Group ............................................................................................................................................. 12

Controls Group ..................................................................................................................................................... 16

Cruise Control Group ........................................................................................................................................... 18

Electrical Group .................................................................................................................................................... 20

Hood, Grille & Dash Group .................................................................................................................................. 22

Seat & Seat Deck Group ...................................................................................................................................... 24

Lift Group - Hydraulic Lift with Power Steering .................................................................................................... 26

Lift Group - Hydraulic Lift with Power Steering .................................................................................................... 30

Wheels & Tires Group .......................................................................................................................................... 34

Decals Group ....................................................................................................................................................... 36

44" & 50" Mower Deck - Clutch & Support Group ............................................................................................... 38

50" Mower Deck - Electric Height Adjustment & Roller Bar Group ..................................................................... 40

50" Mower Deck - Housing, Arbors & Blades Group ........................................................................................... 44

54" Mower Deck - Clutch & Support Group ......................................................................................................... 50

54" Mower Deck - Electric Height Adjustment & Roller Bar Group ..................................................................... 52

54" Mower Deck - Housing & Arbor Group .......................................................................................................... 56

Not for

Reproduction

Frame & Front Axle Group - 4WD

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

987590

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1695264 - Presti

2690680 - Prestige

2690681 - Presti

TP 400-4579-A-PR-S

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

Frame & Front Axle Group - 4WD

Footnotes

FRAME ASSEMBLY, Front & Rear 4WD1 1734731ASM 1

TOWER & SUPPORT ASSEMBLY2 1733139ASM 1

SUPPORT, Seat Deck3 1723528ASM 1

BACKPLATE, Hitch4 1722602ASM 1

BRACKET ASSEMBLY, Steering 4WD5 1733918ASM 1

BUMPER, 4GA6 1721805ASM 1

AXLE ASSEMBLY, Front7 1733480SM 1

PIVOT ASSEMBLY, Axle w/Bushings8 1734241ASM 1

CAPSCREW, Hex Head, 5/8-11 x 2-1/2 G59 1960755SM 1

CARRIAGE BOLT, 3/9-16 x 3/4 G512 1931348SM 2

JOINT, Ball 1/2-2013 1702779SM 1

SPACER14 1708236SM 1

NUT, Hex Jam, 1/2-2015 1919262SM 1

NUT, Hex Flange, 3/8-16 Two-Way Lock16 1930645SM 1

BRACKET, Cylinder Mounting18 1733166ASM 1

SPACER20 2172914SM 1

CYLINDER, Hydraulic Steering21 1733759SM 1

CAPSCREW, Hex Head, M12-1-3/4 x 3522 197487SM 3

SHAFT & BRACKET ASSEMBLY, Axle Pivot23 1733863SM 1

WASHER, 5/824 1960035SM 2

STOP, "L" Steering25 1734511ASM 1

SCREW, Hex Washer Head Taptite, 5/16-18 x 3/426 1664847SM 4

NUT, Hex Flange 5/8-11 Two-Way Lock27 2860646SM 2

SCREW, Hex Washer head, Taptite, 3/8-16 x 3/428 1923683SM 4

NUT, Hex Flange 1/2-13 Whiz Lock29 2860668SM 2

NUT, Hex Flange 3/8-16 Whiz Lock30 1928352SM 4

CAPSCREW, Hex Head 1/2-13 x 1 G531 1923114SM 2

CAPSCREW, Hex Head 3/8-16 x 1 G532 1921210SM 2

SCREW, Truss Head Torx Drive 5/16-18 x 7/833 1960086SM 4

PIN, Dowel34 1733581SM 2

WASHER, 1/235 1960170SM 3

LOCKWASHER, Spring36 1916966SM 3

PIN, Cotter37 1923360SM 1

LOCKWASHER, Spring38 1960754SM 6

CAPSCREW, Hex Head39 1950036SM 6

SPACER, Powdered Metal40 1667812SM 1

FITTING, Hose Elbow, 45 Degrees, 13/16-16 x 3/4-1641 1733403SM 2

HOSE ASSEMBLY, Hydraulic42 1733400SM 1

HOSE ASSEMBLY, Hydraulic43 1733891SM 1

BRACKET, Hose Mounting 10GA44 1733501ASM 1

FITTING, Bulkhead Union 13/16-1645 1733402SM 2

CARRIAGE BOLT, 5/16-18 x 3/4 G546 1931333SM 2

NUT, Hex KEPS, 5/16-1847 1960636SM 2

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1695264 - Presti

2690680 - Prestige

2690681 - Presti

TP 400-4579-A-PR-S

Not for

Reproduction

Frame & Front Axle Group - 4WD

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

987590

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1695264 - Presti

2690680 - Prestige

2690681 - Presti

TP 400-4579-A-PR-S

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

Frame & Front Axle Group - 4WD

Footnotes

NUT, Jam 13/16-1648 1733947SM 2

WASHER, 3/849 1960103SM 1

CARRIAGE BOLT, 3/8-16 x 2-1/4 G550 1931355SM 1

SUPPORT, Steering Unit 7GA51 1733044ASM 1

SCREW, Hex Washer Head Taptite 5/16-18 x 1/252 1924856SM 4

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1695264 - Presti

2690680 - Prestige

2690681 - Presti

TP 400-4579-A-PR-S

Not for

Reproduction

Steering Group - Tilt Steering

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

987424

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1695264 - Presti

2690680 - Prestige

2690681 - Presti

TP 400-4579-A-PR-S

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

Steering Group - Tilt Steering

Footnotes

STEERING WHEEL1 1733363SM 1

PLATE, Steering Mounting4 1724685ASM 1

CARRIAGE BOLT, 5/16-18 x 1-1/4 G55 1960655SM 2

ADAPTER, Tilt6 1725294SM 1

SPACER7 1723898SM 2

NUT, Push Pal8 1933988SM 2

NUT, Hex Keps 5/16-189 1960636SM 2

STEERING UNIT, Tilt10 1734002SM 1

BELLOWS, Tilt Steering Unit w/Slot11 1724368SM 1

CAP, Steering Wheel12 1725024SM 1

DECAL, Power Steering (Not Shown)13 1716518SM 2

NUT, Hex Lock ESNA Light 5/8-1815 1960576SM 1

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1695264 - Presti

2690680 - Prestige

2690681 - Presti

TP 400-4579-A-PR-S

Not for

Reproduction

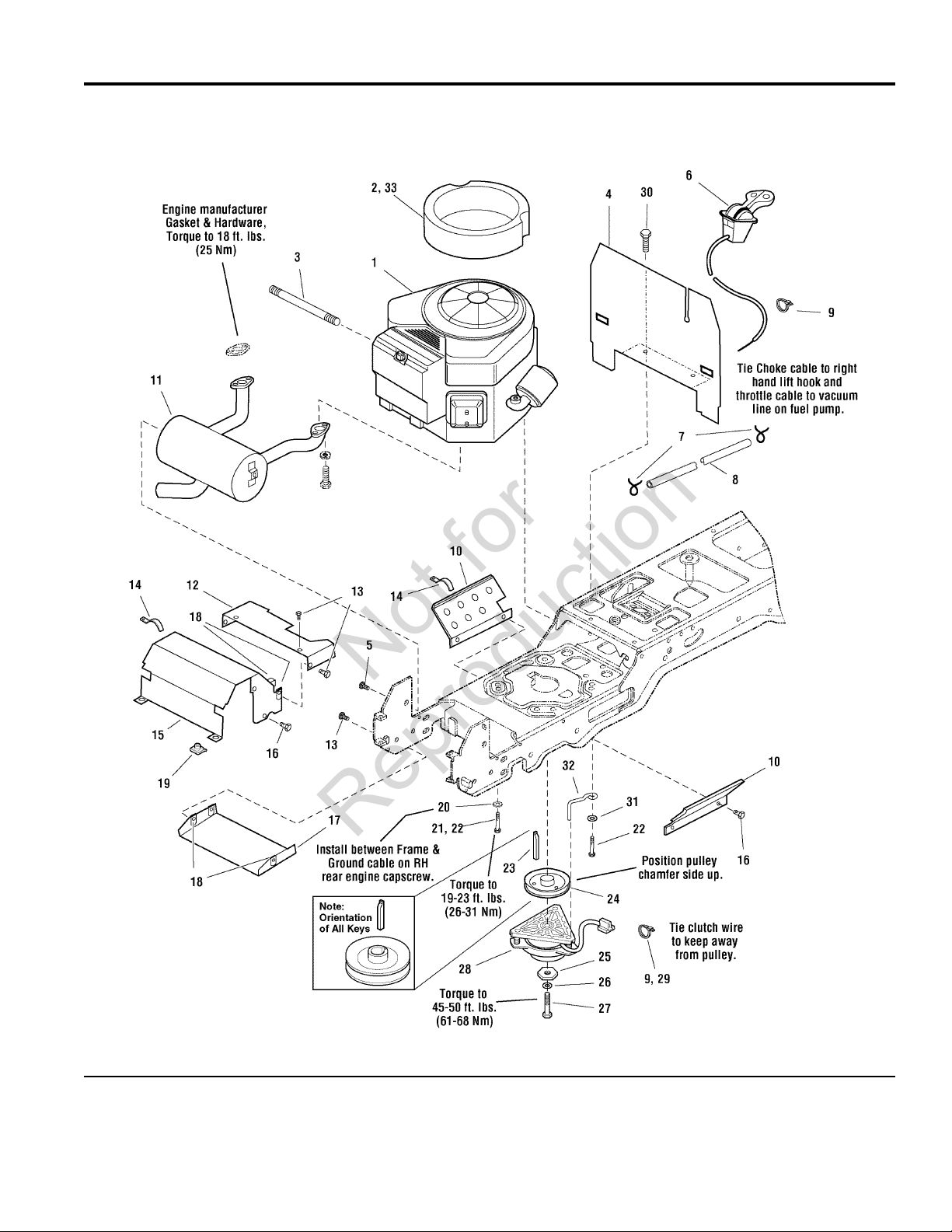

Engine & Electric Clutch Group - 23HP, 25HP & 27HP Kohler

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

985906

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1695264 - Presti

2690680 - Prestige

2690681 - Presti

TP 400-4579-A-PR-S

Not for

Reproduction
