Simplicity Regent 2690783 Manual de usuario

Not for

Reproduction

Parts Manual

Rev. 03/2009

Regent RD

Series Lawn Tractor

TP 400-4848-D-RG-S

. No. Descri

tion

19.5HP Product

2690782 Regent RD, 19.5HP B&S Hydro and 40" Mower Deck

(CE/Export)

. No. Descri

tion

22HP Product

2690783 Regent RD, 22HP B&S Hydro and 40" Mower Deck

(CE/Export)

1736068

Part No.:

Not for

Reproduction

Not for

Reproduction

Table Of Content

Torque Specification Chart ..................................................................... Inside Back Cover

PRODUCT COMPONENTS PAGES

Frame & Front Axle Group ................................................................................................................................... 4

Steering Group ..................................................................................................................................................... 6

Engine Group ....................................................................................................................................................... 8

Controls Group ..................................................................................................................................................... 10

Electrical Group .................................................................................................................................................... 14

Hood, Grille & Dash Group .................................................................................................................................. 18

Seat Deck & Fuel Group ...................................................................................................................................... 20

Mulching Flap Group ............................................................................................................................................ 22

Lift Group - Manual .............................................................................................................................................. 24

Wheels & Tires Group .......................................................................................................................................... 26

Decals Group ....................................................................................................................................................... 28

Back Plate Group ................................................................................................................................................. 30

Collector Group .................................................................................................................................................... 34

40" Mower Deck - Belt & Idler Arm Group ........................................................................................................... 36

40" Mower Deck - Housing, Hitch, Arbors & Blades Group ................................................................................ 40

Not for

Reproduction

Frame & Front Axle Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

2988017

The above parts group applies to the following Mfg. Nos.:

2009

2690782 - Re

ent RD

2690783 - Regent RD

TP 400-4848-D-RG-S

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

Frame & Front Axle Group

Footnotes

Cap, Hub 1.51D1 1726504SM 2

Ring, Klipring2 1611710SM 2

Washer .828 x 1.62 x .05833 2860183SM 4

Axle, Front (Includes Ref. Nos. 1, 2, 3, 17 & 19) (Includes Ref. Nos. 1, 2, 3, 17 & 19)5 1728018SM 1

Bushing, Axel Pivot6 1730186SM 2

Hook, Hitch .312THK7 1721918ASM 1

Capscrew HD 7/16-14 x 1.58 1960652SM 2

Nut, Hex-Flange 5/8-11LK11 2860646SM 1

Nut, Hex-Flange 5/16-18LK12 1931277SM 2

Capscrew, Hex 3/8-16 x 1.2513 1960032SM 2

Spacer15 1731912SM 2

Rod, Tie16 1728080ASM 1

Spindle & Cup Assembly RH17 1727872ASM 1

Nut, Hex-Flange 3/8-16 LK18 1930645SM 2

Spindle & Cup Asmy LH19 1727873ASM 1

Tower20 1727260SM 1

Frame21 1736499YP 1

Bolt M8 x 7522 1735874YP 2

Nut M823 1735934YP 2

Washer 8.424 1735989YP 6

Washer 825 1736000YP 6

Screw, Tap 5/16-18 x 0.6226 1930601SM 4

Bolt M8 x 2027 1735868YP 4

Pivot, Hood29 1728086SM 2

Support, Muffler30 1735973YP 1

Bolt, RD HD 5/16-18 x 1.031 1931335SM 2

Washer 0.62532 1960035SM 1

Capscrew, Hex 5/8-11 x 3.25033 2860744SM 1

Link, Drag34 1735919YP 1

Ball-Joint, CS16 M10-M1235 1735851YP 2

Nut M1236 1735928YP 2

Distance, Front Axle 0-9521-29137 1735892YP 2

Nut M10 DIN6923 838 1735926YP 2

The above parts group applies to the following Mfg. Nos.:

2009

2690782 - Re

ent RD

2690783 - Regent RD

TP 400-4848-D-RG-S

Not for

Reproduction

Steering Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

2988023

The above parts group applies to the following Mfg. Nos.:

2009

2690782 - Re

ent RD

2690783 - Regent RD

TP 400-4848-D-RG-S

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

Steering Group

Footnotes

Shaft, Steering Gear & Spline1 1727813SM 1

Washer 0.7502 1960114SM 2

Bushing3 1729665SM 2

Steering Wheel4 1728069SM 1

Nut, Hex-Lock 5/8-186 1960576SM 1

Cap, Steering Wheel Simplicity7 1722319SM 1

Nut M88 1735934YP 4

Bracket, Sector Support9 1727940SM 1

Bolt M8 x 2510 1735870YP 4

Gear, Steering .250 THK 26 Teeth11 1728027SM 1

Spacer, Sector Gear12 1728122SM 2

Screw, Hex LK Flange 3/8-16 x 1.0013 1934654SM 2

Nut, Hex-Flange 3/8-16 LK14 1931211SM 2

Ring, Klipring15 1611710SM 1

Washer 8.416 1735989YP 4

Washer 817 1736000YP 4

The above parts group applies to the following Mfg. Nos.:

2009

2690782 - Re

ent RD

2690783 - Regent RD

TP 400-4848-D-RG-S

Not for

Reproduction

Engine Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

2988015

The above parts group applies to the following Mfg. Nos.:

2009

2690782 - Re

ent RD

2690783 - Regent RD

TP 400-4848-D-RG-S

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

Engine Group

Footnotes

ENGINE, 19.5HP B&S Intek Single (Model # 441777 Type # 0128 Trim # B1)1* 1

ENGINE, 22HP B&S Intek Twin (Model # 31P677 Type # 0116 Trim # B1)1* 1

Valve Shut-Off2 1717473SM 1

Shield, Heat4 1735962YP 1

Screw, TAPTT 5/16-18 x 0.625 1930601SM 4

Shield, Heat (19.5HP)6 1727996SM 1

Shield, Heat (22HP Twin)6 1727997SM 1

Muffler B&S Twin (22HP Twin)7 1727994SM 1

Bracket, Muffler Mount8 1727976SM 1

Pipe, Exhaust RH Side (22HP Twin)9 1727979SM 1

Pipe Exhaust LH Side (22HP Twin)10 1727980SM 1

Muffler B&S Single (19.5HP)12 1727993SM 1

Pipe, Exhaust (19.5HP)13 1728959SM 1

Screw, TAPTT 1/4-20 x 0.514 1925003SM 4

Clip, Wire15 2834683SM 1

Control, Throttle Single (19.5HP)16 1734504SM 1

Control – Throttle Twin (22HP Twin)16 1734505SM 1

Clamp, Hose UM500817 1735883YP 2

Hose, Fuel 1-9920-24718 1735913YP 1

Clip, Hose19 1730268SM 2

Screw, TAPTT 3/8-16 x 1.00 (19.5HP)20 2827187SM 3

Washer, LK EXT-TOOTH .37521 2820427SM 1

Washer, Flat .3822 1924940SM 1

Pulley & Hub Assembly24 1732576SM 1

Tie25 1735980YP 1

Rod, Clutch Retainer, Long (BLK)26 1732875SM 1

Clutch, Electric (LONG OGURA)28 1732833SM 1

Washer, Hex .45329 1708264SM 1

Lockwasher 7/1630 1918199SM 1

Capscrew, Hex-Head 7/16-20 x 3.5031 1960649SM 1

Gasket, Exhaust32 1731214SM 1

Screw, Hex-Head T/R .38-16 x 1.2533 2828635SM 1

Screw34 1936228SM 2

Lockwasher35 1917356SM 2

The above parts group applies to the following Mfg. Nos.:

2009

2690782 - Re

ent RD

2690783 - Regent RD

TP 400-4848-D-RG-S

Not for

Reproduction

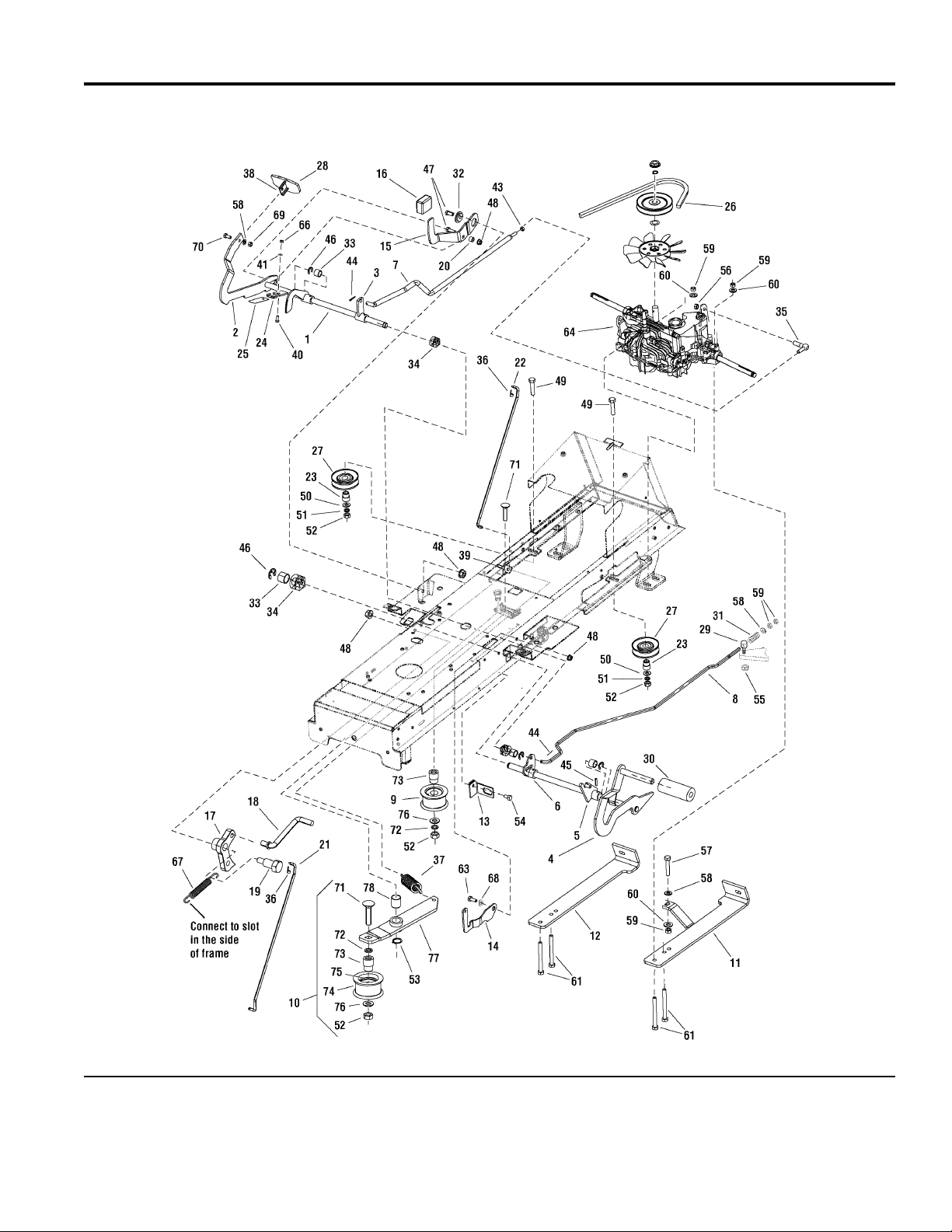

Controls Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

2988009

The above parts group applies to the following Mfg. Nos.:

2009

2690782 - Re

ent RD

2690783 - Regent RD

TP 400-4848-D-RG-S
