Simplicity 7800354 Manual de usuario

Parts Manual

Rev. 09/2008

Coronet RD Series

Riding Mowers

TP 400-4873-00-CO-S

. No. Descri

tion

15.5HP Product

7800354 Coronet RD, 15.5HP Hydro (CE)

7800355 Coronet RD, 15.5HP Hydro (CE, FR)

. No. Descri

tion

17.5HP Product

7800358 Coronet RD, 17.5HP Hydro (CE)

7800359 Coronet RD, 17.5HP Hydro (CE, FR)

885195

Part No.:

Not for

Reproduction

Not for

Reproduction

Table Of Content

Torque Specification Chart ..................................................................... Inside Back Cover

PRODUCT COMPONENTS PAGES

Steering Group ..................................................................................................................................................... 4

Engine & Electric Clutch Group - Briggs & Stratton ............................................................................................. 6

Drive Group .......................................................................................................................................................... 8

Electrical Group .................................................................................................................................................... 12

Seat, Body, Dash & Fuel Tank Group ................................................................................................................. 14

Wheel & Tire Group ............................................................................................................................................. 16

Decals Group - Brand & Model ............................................................................................................................ 18

Decals Group - Common & Safety ...................................................................................................................... 20

Bagger Group ....................................................................................................................................................... 22

33" Mower Deck - Arbors Group .......................................................................................................................... 24

33" Mower Deck - Housing & Arbors Group ........................................................................................................ 26

Not for

Reproduction

Steering Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

7800354 - Coronet RD

7800355 - Coronet RD

7800358 - Coronet RD

7800359 - Coronet RD

TP 400-4873-00-CO-S

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

Steering Group

Footnotes

COVER, INTEGRA1 729275 1

ST WHEEL INTEGRA - HARD2 727627 1

FOOTREST CAP3 885022 1

SHAFT, STEERING - LONG4 885106 1

BELLOWS5 720563 1

WASHER.54.81 16G FLT6 720173 2

FOOTREST SLEEVE - SIMPLICITY7 885062 1

FOOTREST - PLASTIC8 885002 1

SUPPORT, STEERING9 721950A 1

BEARING, UPPER STEERING10 721966 1

LINK, DRAG11 726537A 2

BRACKET, SUPPORT12 885036A 1

BRACKET, AXLE FRONT13 729342A 1

AXLE AND SPINDLE ASSY14 885081A 1

RACK, STEERING15 721949A 1

GEAR, PINION16 721971 1

ROLLER17 721973 2

BEARING, LOWER STEERING18 721970 1

PLATE, GEAR MTG.19 727201A 1

BOLT, SHOULDER20 720107 2

NUT.31-18 HEX FLG CTRLKZ21 720145 2

WASHER-1-1.3 16G FLT22 722584 1

WASHER, .328X1.062X.062 Z23 722622 2

BOLT-HEX.31-24X2.75 PLAIN24 720211 2

NUT.38-16 HEX FLG CTRLKZ25 720142 2

NUT.31-24 FLANGELOCK Z-BL26 722395 2

WASHER.39-1. 14G FLT27 722580 2

SCREW-.312-18X.7528 722858 13

RING- -E-1.00D-.050T29 720117 1

BUMPER-FRONT AXLE EPDM30 727875 2

SCREW-THD.FORM.HEX.31 720042 1

WASHER.34-1.2 11G FL32 722593 1

SCREW33 722863 1

BOLT-HEX.38-16x1.50 Z34 720192 2

THROTTLE CONTROL35 885110 1

SCREW Z/BL CHROMATE36 722841 2

TINNERMAN CLIP37 885118 1

FLOORMAT, RH38 885102 1

FLOORMAT, LH39 885103 1

STEERING SUPPORT PLATE40 885223A 1

RETAINER - SPRING41 721246 1

SCREW-TAPPING 10-1642 729075 2

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

7800354 - Coronet RD

7800355 - Coronet RD

7800358 - Coronet RD

7800359 - Coronet RD

TP 400-4873-00-CO-S

Not for

Reproduction

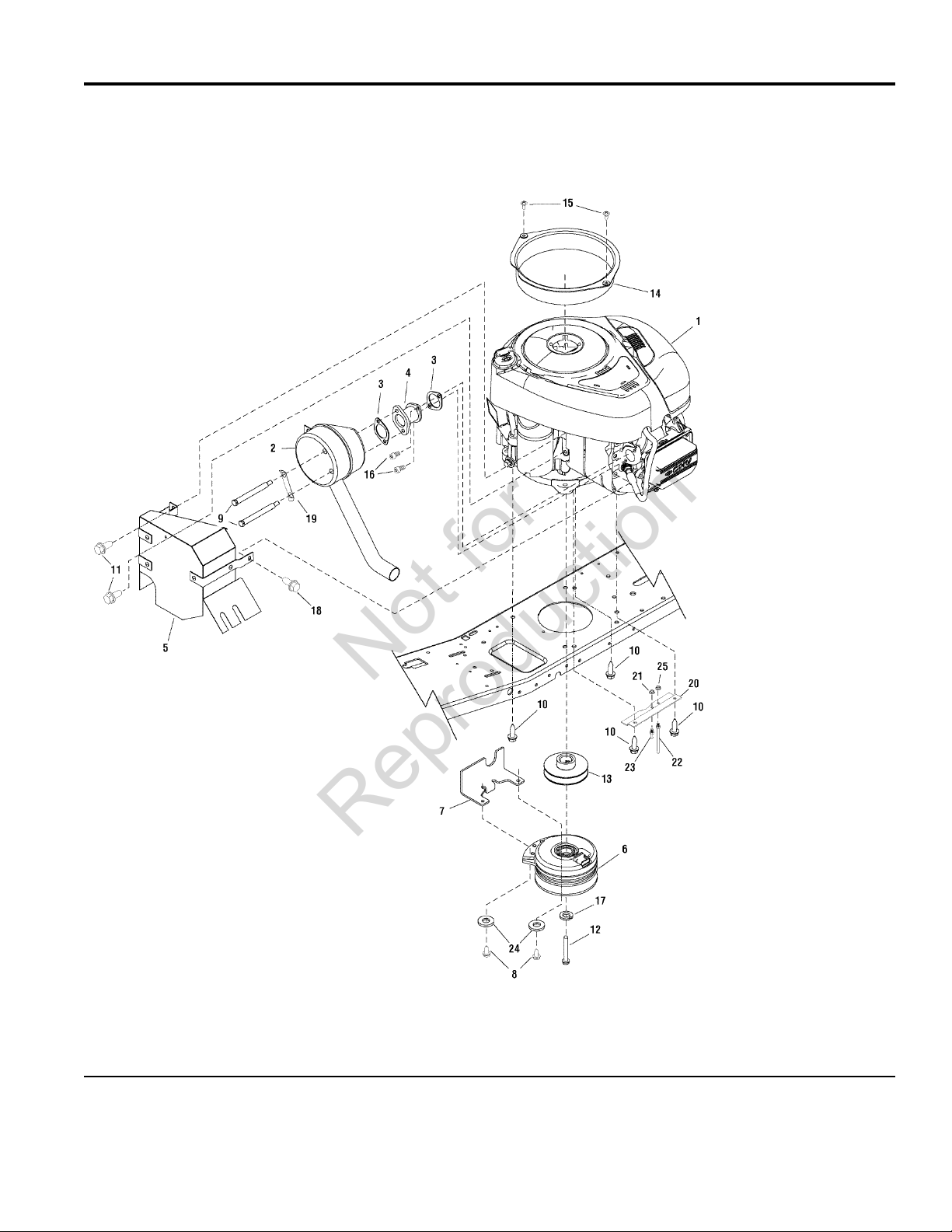

Engine & Electric Clutch Group - Briggs & Stratton

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

7800354 - Coronet RD

7800355 - Coronet RD

7800358 - Coronet RD

7800359 - Coronet RD

TP 400-4873-00-CO-S

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

Engine & Electric Clutch Group - Briggs & Stratton

Footnotes

ENGINE - 15.5HP Briggs & Stratton Model 31A677, Type 0136-B1 For use on models

7800354 & 7800355

1* 1

ENGINE - 17.5HP Briggs & Stratton Model 31A677, Type 0153-B1 For use on models

7800358 & 7800359

1* 1

TIE,STRAP-BLACK-5.38- 720393 3

MUFFLER2 885011 1

GASKET 2722933 720881 2

ADAPTOR, MUFFLER4 721405 1

ASSY-HEAT SHIELD5 885128 1

ELECTRIC CLUTCH6 885107 1

ELEC PTO TORQUE STRAP7 885056A 1

SCREW8 722858 2

BOLT - SHOULDER9 720105 2

ENG. BOLT -3/8 X1.2510 720045 4

SCREW.32-18X .88 HHWATAP11 720664 2

BOLT-HEX.43-20X2.50 Z-NYL12 1960370 1

STACK PULLEY M/D13 885096 1

BAFFLE - ENGINE14 885063 1

SHOULDER SCREW15 720095 2

5/16-18 SOCKET HEAD16 720663 2

WASHER, LOCK17 1918199 1

SCREW.25-20X0.59 HEX18 722866 1

LOCK-SCREW 22301619 721064 1

PLATE, BELT GUIDE20 885041A 1

NUT.31-18 HEX FLG SERLKZ21 720139 1

GUIDE, BELT LONG22 885078A 1

GUIDE, BELT SHORT23 885077 1

WASHER .34.62 16G FLT24 720163 2

NUT - 1/4-2025 720146 1

Note* See your local Briggs & Stratton distributor for parts & service.

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

7800354 - Coronet RD

7800355 - Coronet RD

7800358 - Coronet RD

7800359 - Coronet RD

TP 400-4873-00-CO-S

Not for

Reproduction

Drive Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

7800354 - Coronet RD

7800355 - Coronet RD

7800358 - Coronet RD

7800359 - Coronet RD

TP 400-4873-00-CO-S

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

Drive Group

Footnotes

FRAME CHANNEL - PREMIUM1 885058A 1

ARM - IDLER PULLEY ASSY2 885069A 1

PLATE - REINFORCEMENT3 885168A 1

BRACKET, TRANSAXLE4 885034A 2

BRKT, FRONT HANGER PIVOT5 726515A 1

PLATE, HITCH6 727241A 1

M/D IDLER STUD7 885064 1

WW LIFTER ASSEMBLY8 885074A 1

NUT.31-18 HEX FLG CTRLKZ9 720145 1

SCREW-. 312-18X.7510 722858 18

WS ASM. PEDAL C/B11 885068A 1

PLATE, REAR12 885116A 1

WW HYDRO ARM ASSY13 885070A 1

WW REVERSE PEDAL ASSY14 885089A 1

BOLT, CARRIAGE 1/4"15 720065 2

NUT, 1/4"16 720133 4

SCREW-.312-18X.7517 720358 5

PIN, COTTER18 720389 3

PULLEY - IDLER - BACKSIDE19 722031 1

NUT-ADJUSTING20 721353 1

IDLER PULLEY - FIXED21 722009 1

TRANSMISSION - HYDRO GEAR22 885030 1

BRKT, REAR HANGER R.H.23 885053A 2

PIN - THREADED SHLDR24 721221 2

NUT.38-16 HEX FLG CTRLKZ25 720142 2

BRKT - TORQUE STRAP26 885031A 1

CLUTCH & BRAKE PEDAL27 720257 1

ROD, PARKING BRAKE28 885104 1

PARKING BRAKE KNOB29 885026 1

SQUARE KEY30 720650 2

ADJUSTING NUT31 885076 1

BOLT-HEX .31-18X2.50 P&OIL32 720215 1

BOLT-HEX .31-18X3.00PO&L33 720216 4

NUT.31-18 HEX FLG CTRLKZ34 720145 4

NUT.38-16 FLANGELOCK ZINC35 720148 3

WASHER .26.75 16G FLT36 720159 2

WASHER37 720166 3

WASHER .54.81 16G FLT38 720173 2

WASHER39 727938 4

PIN,COTTER .094x0.75L40 720387 3

PIN-HAIR .56D-.092T41 720069 5

BELT - 33" DRIVE42 885015 1

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

7800354 - Coronet RD

7800355 - Coronet RD

7800358 - Coronet RD

7800359 - Coronet RD

TP 400-4873-00-CO-S

Not for

Reproduction

Drive Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

7800354 - Coronet RD

7800355 - Coronet RD

7800358 - Coronet RD

7800359 - Coronet RD

TP 400-4873-00-CO-S

Not for

Reproduction
