Simplicity 1694561 Manual de usuario

Installation

Instructions

Lift Lever Kit

Mfg. No. 1694561

For Baron / 2400 / RD Series

Figure 1. Contents

Kit Contents:

Ref Part No. Qty. Description

1 1725959A 1 ROD & TUBE ASSEMBLY

2 1960033 1 CLIP, Hair Pin

3 1723124 1 BUTTON, Red

4 1713995 1 GRIP, Soft, Black

5 1960674 1 PUSH NUT, 1/4

6 1723321 1 SPRING, Compression

7 1725958 1 ROD, Latch

8 1721999A 1 LATCH, Lift Lever

9 1960126 1 PUSH NUT, 1/4

10 1727441A 1 LEVER ASSEMBLY

11 1927609 1 PIN, 3/8 x 1

12 1931277 2 NUT, Hex, Flange Whiz Lock, 5/16-18

13 1708298 2 PIN, Round Head, Drilled, 3/8 x 1

14 1732511A 1 BRACKET, Mounting

15 1960074 4 CLIP, Hair Pin

16 1960585 2 CAPSCREW, Hex,5/16-18 x 1-3/4

17 1725957 2 PAD, Rubber

18 1732510A 1 SUPPORT PLATE

19 2157081 1 SPACER

20 1733693 1 LIFT SHAFT ASSEMBLY

21 1919381 2 WASHER, .34 x 1 x .13

22 1723683 2 PIN, CLEVIS

23 1724638 1 GUARD ASSY, DEFLECTOR

18 17

This kit adds a lift lever for front mounted

attachments.

Before beginning any service work turn off the

PTO, set the parking brake, turn off the ignition,

and disconnect the spark plug wire(s).

WARNING

LIFT LEVER KIT FITS ON BARON / 2400 / RD

Product Serial Number Range

Number Requires p/n 1726404

1694328 All

1694329 All

1694346 All

1694347 All

1694384 All

1694315 00001-00999

1694481 00001-00999

1694482 00001-00999

1694483 00001-00999

1694484 00001-00999

1694485 00001-00999

1694504 00001-00999

Installation Instructions Lift Lever Kit

INSTALLATION

ALL MODELS

1. Remove mower deck as described in the Operator’s

Manual.

2. Remove 5/16-18 nuts (A, Figure 2) and 5/16-18 x 3/4

capscrews (B) which hold the right rear seat deck (C)

to the frame(D). Discard capscrews and nuts.

3. Install bracket (E, Figure 3) using new 5/16-18 x 1-

3/4 capscrews (B) and new 5/16-18 locknuts (A).

Install New Lift Shaft Assembly

MODELS WITH SERIAL NUMBERS BELOW (<) 00999

1. Remove hair pin (F, Figure 5) and washer (E).

2. Remove lift rod (B) from lift shaft assembly (A).

3. Remove and discard lift shaft assembly (A). Retain

hardware.

4. Mount the new lift shaft assembly (A, Figure 6) to the

frame using four 5/16-18 x 3/4 carriage bolts (C) and

5/16-18 KEPS nuts (D).

5. Connect the lift rod (B) to the lift shaft assembly (A)

using washer (E) and hair pin (F).

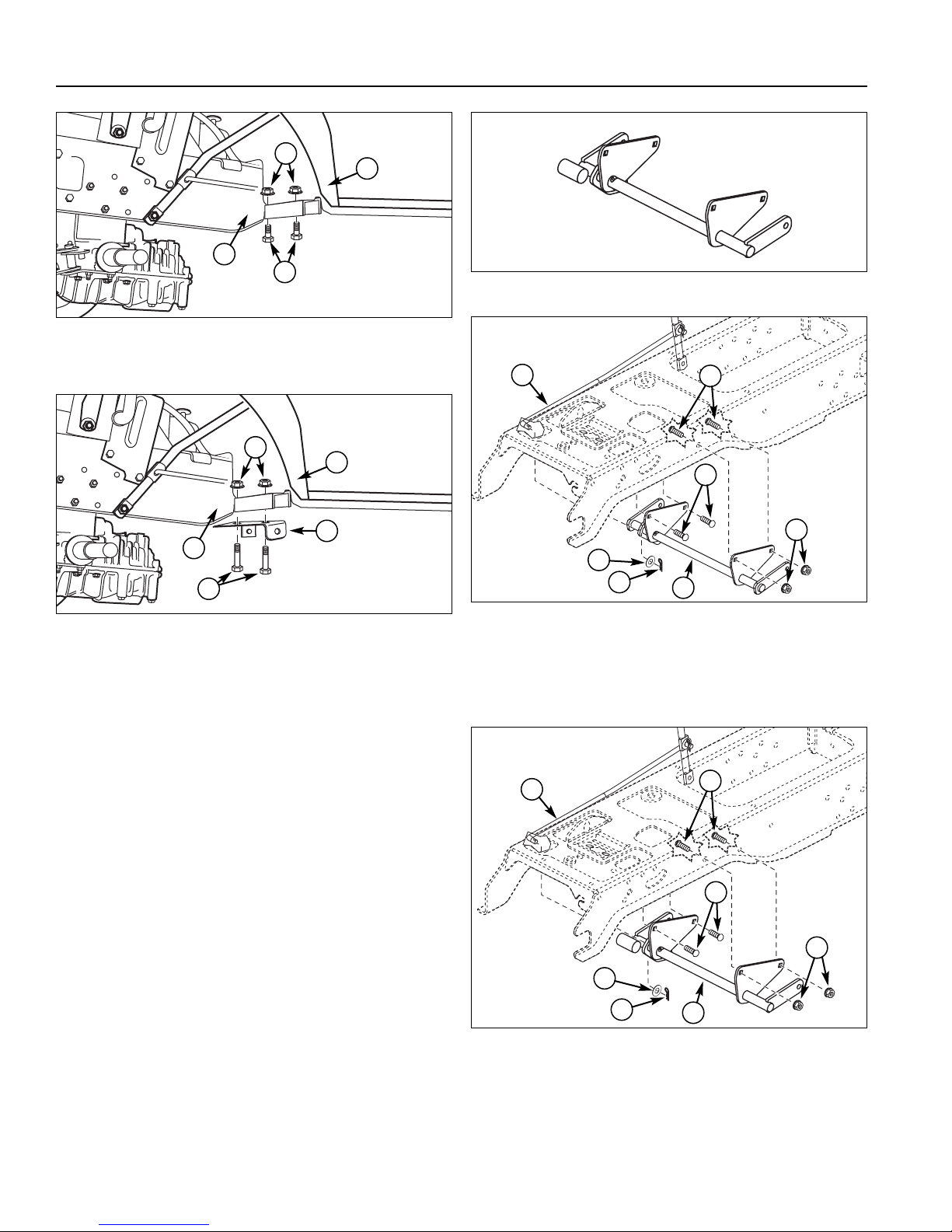

Figure 2. Capscrew Removal

A. Nuts, 5/16-18 C. Right Rear Seat Deck

B. Capscrews, 5/16-18 x 3/4 D. Frame

Figure 6. Install New Lift Shaft Assembly

A. Lift Shaft Assembly D. Nut, KEPS, 5/16-18

B. Lift Rod E. Washer

C. Carriage Bolts, F. Hair Pin

5/16-18 x 3/4

Figure 3. Bracket installation

A. Nuts, 5/16-18 (Existing) C. RIght Rear Seat Deck

B. Capscrews, D. Frame

5/16-18 x 1-3/4 (New) E. Bracket

Figure 5. Remove Old Lift Shaft Assembly

A. Lift Shaft Assembly D. Nut, KEPS, 5/16-18

B. Lift Rod E. Washer

C. Carriage Bolts, F. Hair Pin

5/16-18 x 3/4

Figure 4. Lift Lever Assembly 1726404

Lift Lever Kit Installation Instructions

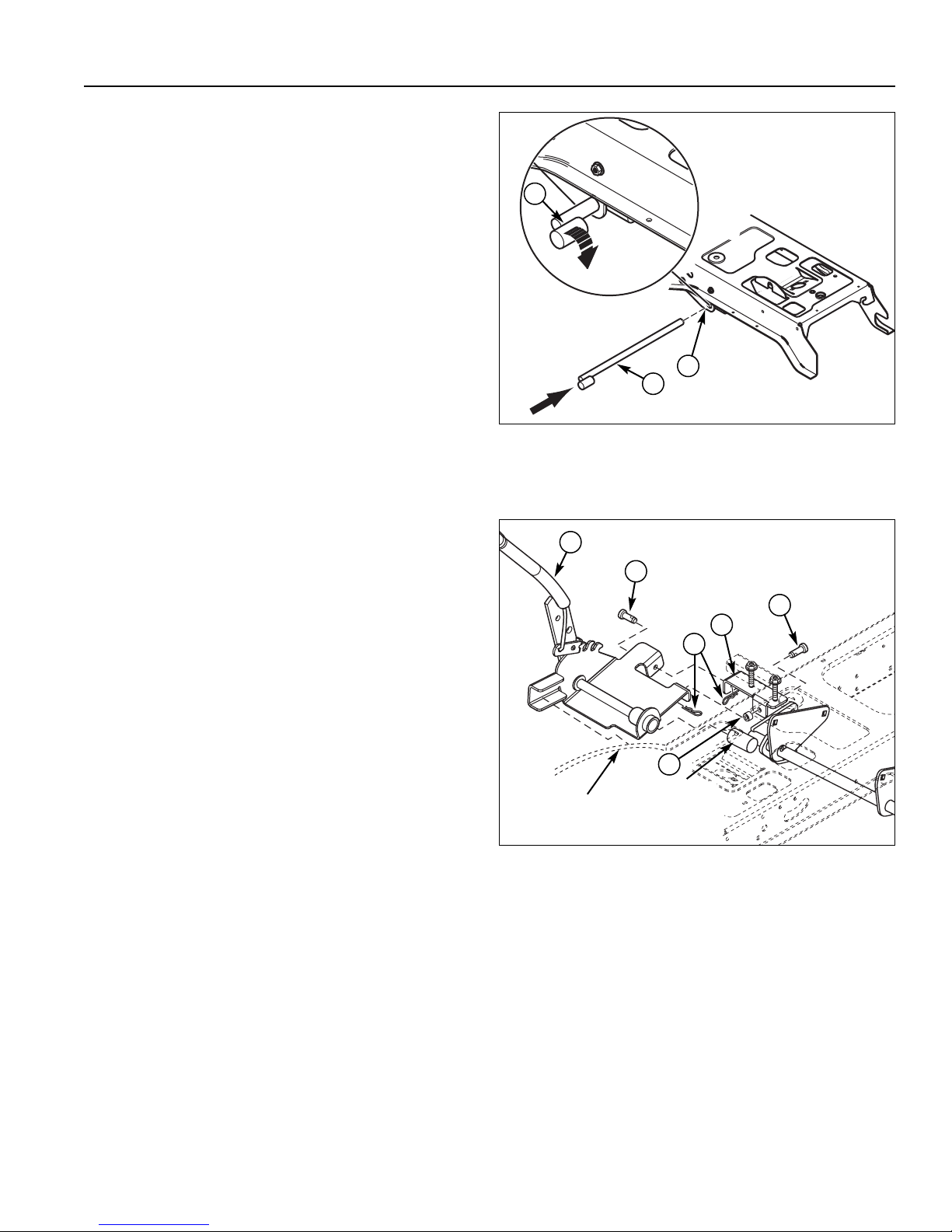

Figure 8. Install Lift lever Assembly

A. Lift Lever Assembly

B. Clevis Pin

C. Hair Pin

D. Mounting Bracket

E. Spacer

ALL MODELS

Install Front Attachment Lift Lever & Rod

1. Slide the lift lever assembly (A, Figure 8) on to the

end of the shaft assembly and on to the edge of the

tractor.

2. Secure to mounting bracket (D, Figure 8) using clevis

pins (B), spacer (E), and hair pins (C).

3. Slide lift rod (A, Figure 9) into the bottom hole in the

lift lever assembly (B). Secure with hair pin (C).

Install front attachment & hitch as outlined in

Operator’s Manual or Installation Instructions.

Edge of

Tractor

End of

Shaft

Assembly

Install New Lift Shaft Assembly

BARON 2007 AND NEWER MODELS

1. Slide Lift Shaft Assy (A, Figure 7) into key-slotted

hole (existing - attached to frame (B)) aligning key in

Lift Shaft Assy (A) with key slot in hole (B).

2 Rotate the Lift Shaft Assy (C) 180 degree to the right

to secure the Lift Shaft Assy in place.

Figure 7. Install Lift lever Assembly

A. Lift Lever Assembly

B. Existing hole

C. Rotate Lift Lever Assembly 180 Degrees

Installation Instructions Lift Lever Kit

Form No. 1726469-01

Rev. 11/2006

Briggs & Stratton Yard Power Products Group

TP 200-4020-01-AT-SMN

MANUFACTURING, INC.

500 N Spring Street / PO Box 997

Port Washington, WI 53074-0997 USA

Install Mower Deck

1. Remove Lift Lever Assembly (A, Figure 8).

2. Install mower deck as described in Operator’s

Manual or Dealer Setup Instructions.

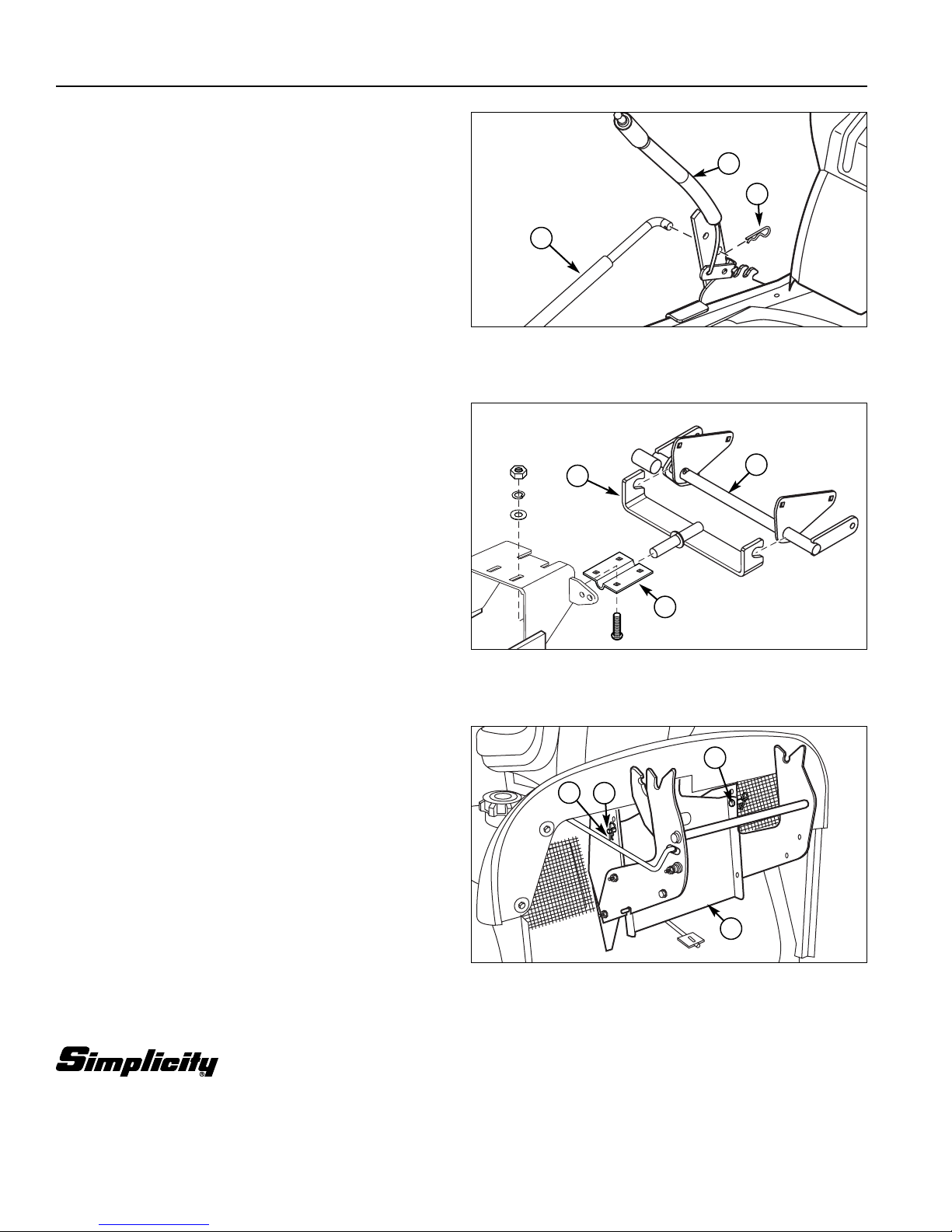

Figure 9. Install Lift Rod

A. Lift Rod C. Hair Pin

B. Lift Lever Assembly

Install Support Assembly

1. Hang support plate (A, Figure 10) onto shaft assem-

bly (B).

2. The post on the support plate (A) fits between the

clamp support (C) and hitch assembly (D). See Sub-

Frame Hitch Installation Instructions for details on

installing sub frame.

Figure 10. Install Support Plate

A. Support Plate C. Clamp Support

B. Shaft Assembly D. Hitch Assembly

Figure 11. Install Support Plate

A. Deflector Guard Assy C. Washer

B. Clevis Pin D. Hair Pin

Install Deflector Guard

1. Install Deflector Guard Assy (A, Figure 11) using

Clevis Pins (B), Washers (C), and Hair Pins (D) as

shown.
