Simplicity 1694916 Guía de configuración

Attachment

Illustrated

Parts List

Rev. 04/2007

500 N. Spring Street / PO Box 997

Port Washington, WI 53074-0997 USA

www.simplicitymfg.com

MANUFACTURING, INC.

. No. Descri

tion

Attachment

1694916 Catcher, Clean Sweep Twin, 38/42"

1734810

Part No.:

Table Of Content

Torque Specification Chart ..................................................................... Inside Back Cover

PRODUCT COMPONENTS PAGES

Twin Catcher Assembly ....................................................................................................................................... 4

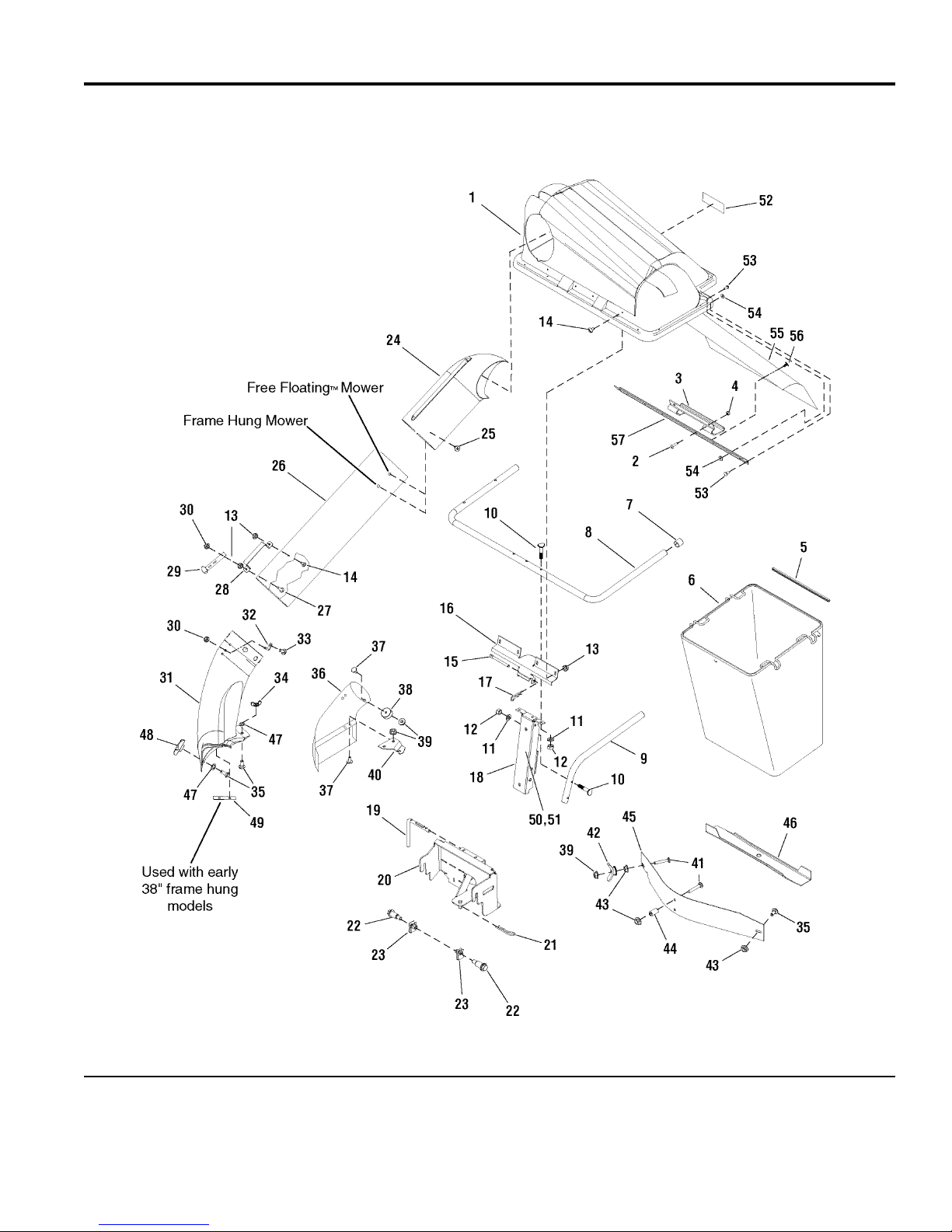

Twin Catcher Assembly

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

1694916

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1694916 - Catcher

TP 400-4531-00-AT-SMA

PART NO. DESCRIPTIONREF NO QTY.

Twin Catcher Assembly

Footnotes

COVER ASSEMBLY, Twin (Includes Ref. Nos. 52, 53, 54, 55, 56, 57)1 1732815SM 1

SCREW, #10 - 24 x 5/82004x21MA 2

HANDLE, Cover3 0504537MA 1

NUT, #10 - 24, ESNA Lock4 1933896SM 2

EDGING, 13-1/8" Long5 1700864SM 2

BAG ASSEMBLY, Twin6 1732350SM 2

CAP7 024862MA 3

TUBE, "U"8 054410E701MA 1

TUBE, Center9 054412E701MA 1

SCREW, 5/16 - 24, Curve10 006x93MA 5

LOCKWASHER, 5/16 Spring11 1917356SM 5

NUT, 5/16 - 24, Hex12 1920263SM 5

NUT, 1/4 - 20, Keps Lock13 1928372SM 6

SCREW, 1/4 - 20 x 1/214 004x24MA 5

PIN, Cover Hinge15 054407ZMA 1

HINGE, Cover16 054398E701MA 1

PIN, Hair17 1960074SM 1

CHANNEL ASSEMBLY18 1732867SM 1

PIN, Channel Mount19 1732565SM 1

MOUNT ASSEMBLY, Channel20 1732067ASM 1

PIN, Hair21 1960033SM 1

BOLT, Shoulder, 5/16 - 1822 1728976SM 2

NUT, 5/16 - 18, Speed23 1960717SM 2

ELBOW, Upper Tube24 1732446SM 1

SCREW, 1/4 x 3/4, Phillips25 26x239MA 1

TUBE, Clear26 1732552SM 1

SCREW, 1/4 - 20 x 127 004x71MA 1

HANDLE, Tube28 054416ZMA 1

STRAP, Rubber29 2171600SM 1

NUT, 1/4 - 20, Centerlock Flange30 1930642SM 2

BOOT, 38/42" Snapper Models31 1732060SM 1

PIN, Latch32 054563MA 1

BOLT, Carriage, 1/4 - 20 x 5/833 1960252SM 1

NUT, 5/16 - 18, Wing34 014x86MA 1

BOLT, Carriage, 5/16 - 18 x 3/435 1931333SM 3

BOOT, 38" Simplicity Model36 1732561SM 1

SCREW, 5/16 - 18 x 3/437 1960371SM 3

WASHER, Special, 11/32 x 3/438 1704341SM 1

NUT, 5/16 - 18, Centerlock Flange39 1935048SM 4

BRACKET, Boot Mount40 1704355ASM 1

BOLT, Carriage, 5/16 x 18 x 241 1931339SM 3

NUT ASSEMBLY, 5/16 - 18, Wing42 1679163SM 1

NUT, 5/16 - 18, Whizlock43 1927557SM 4

SPACER44 1674669SM 2

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1694916 - Catcher

TP 400-4531-00-AT-SMA

Twin Catcher Assembly

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

1694916

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1694916 - Catcher

TP 400-4531-00-AT-SMA

PART NO. DESCRIPTIONREF NO QTY.

Twin Catcher Assembly

Footnotes

KNOB, 5/16 - 18, Internal Thread, 5 Lobe48 1733098SM 1

SHIM, Mower Deflector Bracket49 1733180ASM 1

ID LABEL/SERIAL PLATE (Not Servicable)50 ---- 1

OVERLAY, Mylar (Not Servicable)51 ---- 1

DECAL, Cover Warning52 1732819SM 1

RIVET, Pop, 3/1653 1673320SM 18

WASHER, Rivet, 3/1654 1910531SM 12

SCREEN, Twin Cover55 1732488SM 1

FASTENERS, Push, 1/4 x 1/256 1732490SM 6

SCREEN SUPPORT, Twin57 1734384SM 1

INSTRUCTION MANUAL-- 1732352 1

INSTRUCTION SHEET, Shim-- 1733181 1

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1694916 - Catcher

TP 400-4531-00-AT-SMA
