Simplicity 4570 Guía de configuración

Attachment

Illustrated

Parts List

Rev. 04/2007

500 N. Spring Street / PO Box 997

Port Washington, WI 53074-0997 USA

www.simplicitymfg.com

MANUFACTURING, INC.

. No. Descri

tion

Attachment

1694923 Front Bumper

1734854

Part No.:

Table Of Content

Torque Specification Chart ..................................................................... Inside Back Cover

PRODUCT COMPONENTS PAGES

Front Bumper Group ............................................................................................................................................ 4

Front Bumper Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

1694923

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1694923 - Front Bum

TP 400-4570-00-AT-SMA

PART NO. DESCRIPTIONREF NO QTY.

Front Bumper Group

Footnotes

Bumper Assembly1 1731989ASM 1

Nut, Hex, Flange Lock, 5/16-182 1931277SM 4

Capscrew, Flange Lock, 5/16-18 x 3/43 1930591SM 4

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1694923 - Front Bum

TP 400-4570-00-AT-SMA

Torque Specification Chart

FOR STANDARD MACHINE HARDWARE (Tolerance ± 20%)

Hardware

Grade

SAE Grade 2 SAE Grade 5 SAE Grade 8

Size Of

in/lbs in/lbs

in/lbs

Hardware ft/lbs Nm. ft/lbs Nm. ft/lbs Nm.

8-32

2.1

3.4

4.6

8-36

2.3

3.5

4.9

10-24

3.1

4.9

6.8

10-32

3.5

5.5

7.7

1/4-20

7.6 810.9 12 16.3

1/4-28

8.6 10 13.6 14 19.0

5/16-18 11 15.0 17 23.1 25 34.0

5/16-24 12 16.3 19 25.8 27 34.0

3/8-16 20 27.2 30 40.8 45 61.2

3/8-24 23 31.3 35 47.6 50 68.0

7/16-14 30 40.8 50 68.0 70 95.2

7/16-20 35 47.6 55 74.8 80 108.8

1/2-13 50 68.0 75 102.0 110 149.6

1/2-20 55 74.8 90 122.4 120 163.2

9/16-12 65 88.4 110 149.6 150 204.0

9/16-18 75 102.0 120 163.2 170 231.2

5/8-11 90 122.4 150 204.0 220 299.2

5/8-18 100 136 180 244.8 240 326.4

3/4-10 160 217.6 260 353.6 386 525.0

3/4-16 180 244.8 300 408.0 420 571.2

7/8-9 140 190.4 400 544.0 600 816.0

7/8-14 155 210.8 440 598.4 660 897.6

1-8 220 299.2 580 788.8 900 1,244.0

1-12 240 326.4 640 870.4 1,000 1,360.0

Hex Head Capscrew

Hex Nut

Lockwasher

Washer

Carriage Bolt

NOTES

1. These torque values are to be used for all hardware

excluding: locknuts, self-tapping screws, thread forming

screws, sheet metal screws and socket head setscrews.

2. Recommended seating torque values for locknuts:

a. for prevailing torque locknuts - use 65% of grade 5

torques.

b. for flange whizlock nuts and screws - use 135% of

grade 5 torques.

3. Unless otherwise noted on assembly drawings, all torque

values must meet this specification.

Hardware Identification & Torque Specifications

Common Hardware Types

Screw, 1/2 x 2

Body

Diameter

Body

Length

Inside

Diameter

Nut, 1/2”

Marks

3/8” Bolt or Nut

Wrench—9/16”

3/8

5/16” Bolt or Nut

Wrench—1/2”

5/16

1/4” Bolt or Nut

Wrench—7/16”

1/4

1/2” Bolt or Nut

Wrench—3/4”

1/2

DIA.

7/16

DIA.

7/16” Bolt or Nut

Wrench (Bolt)—5/8”

Wrench (Nut)—11/16”

Wrench & Fastener Size Guide

Standard Hardware Sizing

When a washer or nut is identified as 1/2”, this is the

Nominal size

, meaning the

inside diameter

is 1/2 inch; if a

second number is present it represent the

threads per inch

When bolt or capscrew is identified as 1/2 - 16 x 2”, this

means the

Nominal size

, or

body diameter

is 1/2 inch; the

second number represents the

threads per inch

(16 in this

example, and the final number is the

body length

of the

bolt or screw (in this example 2 inches long).

The guides and ruler furnished below are designed to

help you select the appropriate hardware and tools.

1/4 3/4

1/2

1/4 3/4

1/2

1/4 3/4

1/2

1/4 3/4

1/2

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Equipos para césped y jardín de Simplicity

Simplicity

Simplicity 1694396 Manual de usuario

Simplicity

Simplicity 4549 Guía de configuración

Simplicity

Simplicity 3913 Guía de configuración

Simplicity

Simplicity 3901 Guía de configuración

Simplicity

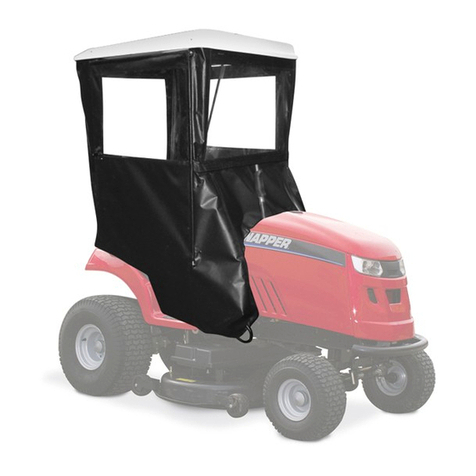

Simplicity 1694152 Guía de configuración
